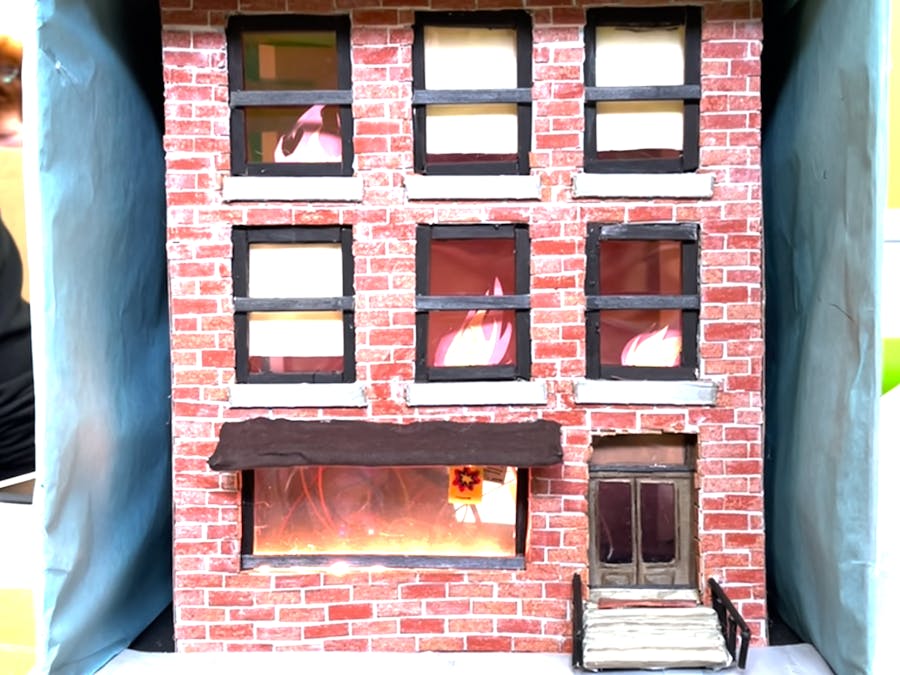

Fire Alert Project

// import code ppl wrote for me
#include "Particle.h"
#include "neopixel.h"

// who knows what this does
SYSTEM_MODE(AUTOMATIC);

// logging stuff
SerialLogHandler logHandler(LOG_LEVEL_INFO);

// main consts
const int MOVIE_DURATION = 10000;
const unsigned long CALL_COOLDOWN = 300000; // 5 minutes: 1000 * 60 * 5

// main vars
unsigned long movieStartTime = 0;
unsigned long lastFireCall = 0;
String lastTimeStamp = "";
bool moviePlaying = false;
int eventsRan = 0;

// neopixel
#define PIXEL_PIN SPI1
#define PIXEL_COUNT 7
#define PIXEL_TYPE WS2812B

Adafruit_NeoPixel strip(PIXEL_COUNT, PIXEL_PIN, PIXEL_TYPE);

const int MIN_G = 15; // 90, 77, 40, 15
const int MAX_G = 90; // 206, 180, 110, 90
const unsigned long G_DURATION = 2000.0;

// speaker pin value
const int SPEAKER_PIN = D3;
const int LOW_TONE = 800;
const int HIGH_TONE = 1800;
const unsigned long SIREN_DURATION = 3000.0;

// servo stuff for flames
const int FLAME1_PIN = A2;
const int FLAME2_PIN = A5;
const int FLAME3_PIN = D1;

const int NUM_DELAYS = 6;
const int MOVIE_DELAYS[NUM_DELAYS] = { 300, 150, MOVIE_DURATION, 100, 100, 0 };

Servo flame1;
Servo flame2;
Servo flame3;

// light up/down lights
void renderFire() {
    strip.clear();
    if (moviePlaying) {
        double ratio = (millis() % G_DURATION) / (G_DURATION / 2.0);
        double g = 0;
        if (ratio < 1) {
            g = MIN_G + (ratio * (MAX_G - MIN_G));
        } else {
            ratio -= 1;
            g = MAX_G - (ratio * (MAX_G - MIN_G));
        }
        for (int i = 0; i < strip.numPixels(); i++) {
            strip.setColor(i, 255, g, 0);
        }
    }
    strip.setBrightness(255);
    strip.show();
}

// plays tone, thanks mccaffery
void playTone(int frequency) {
    if (frequency != 0) {
        int period = 1000000 / frequency; // Calculate period in microseconds
        int pulseWidth = period / 2; // 50% duty cycle
        digitalWrite(SPEAKER_PIN, HIGH); // Turn on the speaker
        delayMicroseconds(pulseWidth); // Keep it on for half the period
        digitalWrite(SPEAKER_PIN, LOW); // Turn off the speaker
        delayMicroseconds(pulseWidth); // Keep it off for half the period
    } else {
        digitalWrite(SPEAKER_PIN, LOW);
    }
}

void renderSiren() {
    if (moviePlaying) {
        double ratio = (millis() % SIREN_DURATION) / (SIREN_DURATION / 2.0);
        double freq = 0;
        if (ratio < 1) {
            freq = LOW_TONE + (ratio * (HIGH_TONE - LOW_TONE));
        } else {
            ratio -= 1;
            freq = HIGH_TONE - (ratio * (HIGH_TONE - LOW_TONE));
        }
        playTone(freq);
    } else {
        playTone(0);
    }
}

// "cue the music" ahh function
void renderMovie() {
    if (!moviePlaying) return;

    unsigned long difference = millis() - movieStartTime;
    unsigned long timePassed = 0;

    for (int i = 0; i < eventsRan; i++) {
        timePassed += MOVIE_DELAYS[i];
    }

    if (difference > timePassed) {
        if (eventsRan == 0) {
            flame1.write(10);
        } else if (eventsRan == 1) {
            flame2.write(170);
        } else if (eventsRan == 2) {
            flame3.write(10);
        } else if (eventsRan == 3) {
            flame1.write(170);
        } else if (eventsRan == 4) {
            flame2.write(10);
        } else if (eventsRan == 5) {
            flame3.write(170);
        } else if (eventsRan == 6) {
            moviePlaying = false;
        }
        eventsRan++;
    }
}

void setup() {
    // neopixel
    strip.begin();
    strip.clear();
    strip.show();

    // speaker
    pinMode(SPEAKER_PIN, OUTPUT);

    // servos
    flame1.attach(FLAME1_PIN);
    flame2.attach(FLAME2_PIN);
    flame3.attach(FLAME3_PIN);

    flame1.write(170);
    flame2.write(10);
    flame3.write(170);

    // webhook connection to event response
    Particle.subscribe("hook-response/get-last-fire-call", handleEventResponse);
    Serial.begin(9600);
    Serial.println("Photon Setup Complete!");
    Serial.println();

    delay(1000);

    // call api to have a value to compare to
    Serial.println("Publishing get-last-fire-call...");
    Serial.println("");
    Particle.publish("get-last-fire-call");
}

void loop() {
    // call api every CALL_COOLDOWN (5 minutes)
    const unsigned long now = millis();
    if (now > lastFireCall + CALL_COOLDOWN) {
        lastFireCall = now;
        Serial.println("Publishing get-last-fire-call...");
        Serial.println("");
        Particle.publish("get-last-fire-call");
    }

    // make sure components are in the correct state depending on if movie is playing
    renderFire();
    renderSiren();
    renderMovie();
}

void handleEventResponse(const char *event, const char *data)
{
    String responseString = String(data);

    char stringBuffer[256] = "";
    responseString.toCharArray(stringBuffer, 256);

    String timeStamp = strtok(stringBuffer, "_");
    String dateTime = strtok(NULL, "_");
    String fireDepartment = strtok(NULL, "_");

    Serial.println("Response Received: " + responseString);
    Serial.println("Time Stamp: " + timeStamp);
    Serial.println("Date Time: " + dateTime);
    Serial.println("Fire Department: " + fireDepartment);
    Serial.println();

    if (timeStamp == NULL || timeStamp.equals(lastTimeStamp)) return;
    lastTimeStamp = timeStamp;

    Serial.println("New Fire Call Found!");

    if (moviePlaying) return;
    movieStartTime = millis();
    eventsRan = 0;
    moviePlaying = true;

    Serial.println("Starting Movie...");
    Serial.println();
}
