HOW TO USE a VIBRATION SENSOR- VISUINO TUTORIAL WITH ARDUINO

In this tutorial we will use Vibration sensor, led, buzzer, resistor, Arduino Uno and Visuino to make a beep when vibration is detected.

BeginnerProtip1 hour626

HOW TO USE a VIBRATION SENSOR- VISUINO TUTORIAL WITH ARDUINO

Things used in this project

Hardware components

Arduino UNO

DIYables USB Cable 2.0 Type A/B for Arduino Uno

DIYables LED

Adafruit viberation sensor

DIYables Jumper Wires

DIYables Breadboard

DIYables Starter Kit

Optional

DIYables Prototype Expansion Board for Arduino Uno

Optional

Software apps and online services

Arduino IDE

Visuino - Graphical Development Environment for Arduino

Story

In this tutorial we will use Vibration sensor, led, buzzer, resistor, Arduino Uno and Visuino to make a beep when vibration is detected.

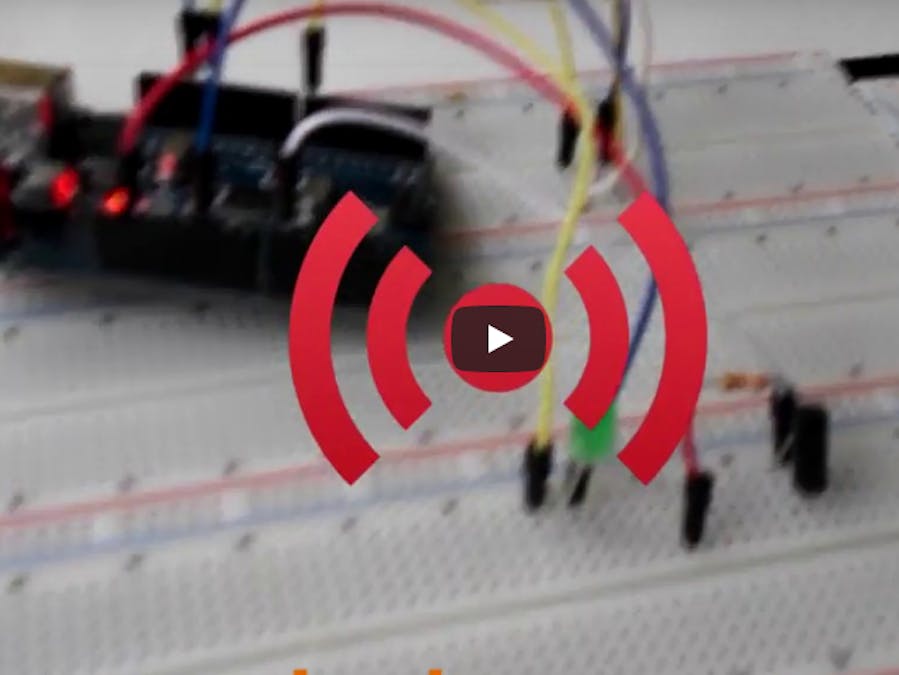

Watch a demonstration video.

Step 1: What You Will Need

1 / 6

Arduino UNO (can be any other Arduino)
Breadboard (or breadboard shield)
Red LED (or any other color)
Pull-up resistor (50k ohm)
Vibration sensor
Buzzer
Visuino program: Download Visuino

Step 2: The Circuit

The connections are pretty easy, see the above image with the breadboard circuit schematic.

Connect GND from Arduino to the breadboard

Connect GND to Buzzer pin(-)
Connect Arduino Digital pin(7) to Buzzer pin(+)
Connect Arduino Digital pin(13) to LED pin(+)
Connect LED pin(-) to GND
Connect Arduino pin(5V) to pull-up resistor
Connect vibration sensor (pin1) to pull-up resistor
Connect vibration sensor (pin2) to Arduino Analog pin (A0)

Step 3: Start Visuino, and Select the Arduino UNO Board Type

1 / 2

To start programming the Arduino, you will need to have the Arduino IDE installed from here: http://www.arduino.cc/.

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this tutorial will not work! If you have not done follow the steps in this tutorial to setup the Arduino IDE to program ESP 8266! The Visuino: https://www.visuino.com also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

Step 4: Add and Connect Pulse Generator, Logic Gates,Repeat and LED Component

Add Pulse Generator, set frequency to 1000 (it will auto change to 1E3)
Add RepeatDigital component set count to 10
Add Logic gate AND component
Add LED component

Step 5: In Visuino: Connecting Components

1 / 2

Connect RepeatDigital1 component pin[In] to Arduino Analog Out pin[0]
Connect RepeatDigital1 component pin[Out] to And1 component pin [0]
Connect And1 component pin[out] to Arduino digital pin[7]
Connect PulseGenerator1 component pin[out] to And1 component pin[1]
Connect Led1 component pin[In] to And1 component pin[Out]
Connect Led1 component pin[Out] to Arduino Digital pin[13]

Step 6: Play

If you power the Arduino UNO module, the Buzzer will BEEP and LED will blink if you shake the vibration sensor.

Congratulations! You have completed your Vibration sensor project with Visuino. Also attached is the Visuino project, that I created for this tutorial. You can download and open it in Visuino: https://www.visuino.com

Code

vibration-sensor.owarduino

<OPEN WIRE DIAGRAM VERSION 1/>
<UNIT Unit1>
  <COMPONENT Arduino>
    <X 640/>
    <INSTANCE object Arduino: TArduinoBoard
  Modules.Items = <
    item
      _ = TArduinoEEPROMModule
    end\>
  AnalogInputReference = Default
  Serial.Items = <
    item
      _ = TArduinoHardwareSerial
    end\>
  I2CChannels.Items = <
    item
      _ = TArduinoI2C
    end\>
  SPIChannels.Items = <
    item
      _ = TArduinoSPI
    end\>
  Digital.Items = <
    item
      _ = TArduinoAdditionalDigitalSerial0Channel
    end
    item
      _ = TArduinoAdditionalDigitalSerial0Channel
    end
    item
      _ = TArduinoAdditionalDigitalInterruptChannel
    end
    item
      _ = TArduinoBasicDigitalPWMInterruptChannel
    end
    item
      _ = TArduinoAdditionalDigitalChannel
    end
    item
      _ = TArduinoBasicDigitalPWMChannel
    end
    item
      _ = TArduinoBasicDigitalPWMChannel
    end
    item
      _ = TArduinoAdditionalDigitalChannel
      DigitalInputPin.Form = __OpenWireRootUnit__
      DigitalInputPin.SourcePin = __OpenWireRootUnit__.And1.OutputPin
    end
    item
      _ = TArduinoAdditionalDigitalChannel
    end
    item
      _ = TArduinoBasicDigitalPWMChannel
    end
    item
      _ = TArduinoBasicDigitalPWMChannel
    end
    item
      _ = TArduinoBasicDigitalPWMSPI0Channel
    end
    item
      _ = TArduinoAdditionalDigitalSPI0Channel
    end
    item
      _ = TArduinoAdditionalDigitalSPI0Channel
      DigitalInputPin.Form = __OpenWireRootUnit__
      DigitalInputPin.SourcePin = __OpenWireRootUnit__.LED1.OutputPin
    end
    item
      _ = TArduinoCombinedAnalogDigitalChannel
      OutputPin.Form = __OpenWireRootUnit__
      OutputPin.SinkPins = (
        __OpenWireRootUnit__.RepeatDigital1.InputPin)
    end
    item
      _ = TArduinoCombinedAnalogDigitalChannel
    end
    item
      _ = TArduinoCombinedAnalogDigitalChannel
    end
    item
      _ = TArduinoCombinedAnalogDigitalChannel
    end
    item
      _ = TArduinoCombinedAnalogDigitalI2C0Channel
    end
    item
      _ = TArduinoCombinedAnalogDigitalI2C0Channel
    end\>
end
/>
    <Y 256/>
  </COMPONENT>
  <COMPONENT Counter1>
    <X 1136/>
    <INSTANCE object Counter1: TArduinoCounter
end
/>
    <Y 752/>
  </COMPONENT>
  <COMPONENT RepeatDigital1>
    <X 256/>
    <INSTANCE object RepeatDigital1: TArduinoRepeatDigital
  OutputPin.Form = __OpenWireRootUnit__
  OutputPin.SinkPins = (
    (
      __OpenWireRootUnit__.And1.InputPins._Pin0
      '__OpenWireRootUnit__.And1.InputPins.Pin [0]'))
  InputPin.Form = __OpenWireRootUnit__
  InputPin.SourcePin = (
    __OpenWireRootUnit__.Arduino.Digital._Item14.OutputPin

      '__OpenWireRootUnit__.Arduino.Digital.Digital[ 14 ]/AnalogIn[ 0 ]' +
      '.OutputPin')
  Count = 10
end
/>
    <Y 528/>
  </COMPONENT>
  <COMPONENT PulseGenerator1>
    <X 256/>
    <INSTANCE object PulseGenerator1: TArduinoPulseGenerator
  OutputPin.Form = __OpenWireRootUnit__
  OutputPin.SinkPins = (
    (
      __OpenWireRootUnit__.And1.InputPins._Pin1
      '__OpenWireRootUnit__.And1.InputPins.Pin [1]'))
  Frequency = 1000.000000000000000000
  Asymmetry = 0.000000000000000000
end
/>
    <Y 608/>
  </COMPONENT>
  <COMPONENT And1>
    <X 464/>
    <INSTANCE object And1: TArduinoBooleanAnd
  OutputPin.Form = __OpenWireRootUnit__
  OutputPin.SinkPins = (
    (
      __OpenWireRootUnit__.Arduino.Digital._Item7.DigitalInputPin

        '__OpenWireRootUnit__.Arduino.Digital.Digital[ 7 ].DigitalInputPi' +
        'n')
    __OpenWireRootUnit__.LED1.InputPin)
  InputPins.Form = __OpenWireRootUnit__
  InputPins.Pins = (
    __OpenWireRootUnit__.RepeatDigital1.OutputPin
    __OpenWireRootUnit__.PulseGenerator1.OutputPin)
end
/>
    <Y 560/>
  </COMPONENT>
  <COMPONENT LED1>
    <X 352/>
    <INSTANCE object LED1: TArduinoLED
  OutputPin.Form = __OpenWireRootUnit__
  OutputPin.SinkPins = (
    (
      __OpenWireRootUnit__.Arduino.Digital._Item13.DigitalInputPin

        '__OpenWireRootUnit__.Arduino.Digital.Digital(LED)(SPI-SCK)[ 13 ]' +
        '.DigitalInputPin'))
  InputPin.Form = __OpenWireRootUnit__
  InputPin.SourcePin = __OpenWireRootUnit__.And1.OutputPin
end
/>
    <Y 848/>
  </COMPONENT>
    <SELECTION LED1/>
    <BINDINGS object TOWPinBindingManager
end
/>
</UNIT>
