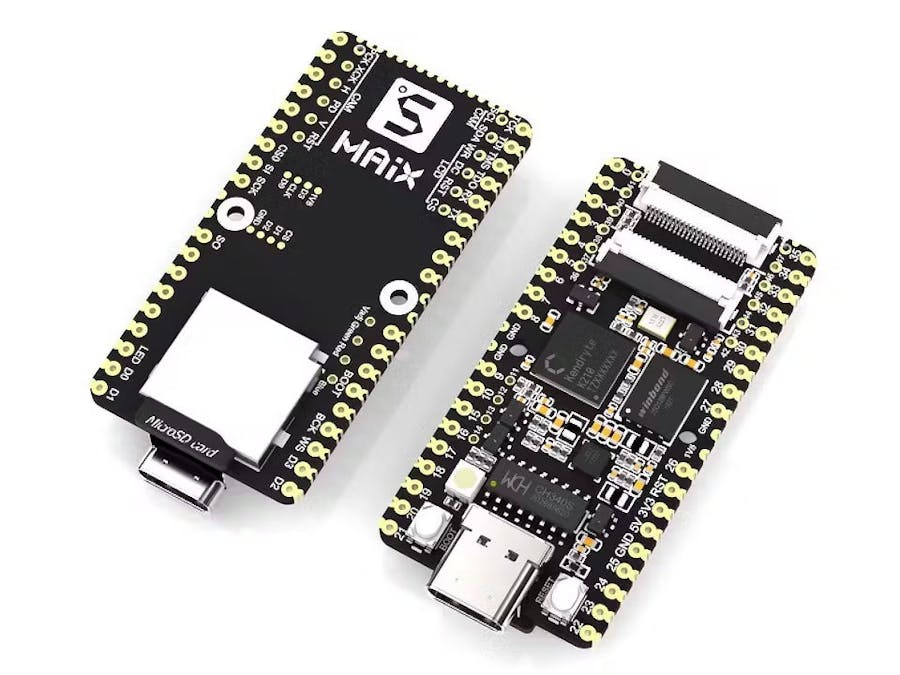

Edge Impulse FOMO tflite(float)-kmodel K210 Maixbit

import sensor
import image
import time
import gc
import sys
import lcd
import _thread
from Maix import GPIO
import KPU as kpu
from board import board_info
from fpioa_manager import fm

# Initialize the sensor
sensor.reset()
sensor.set_pixformat(sensor.RGB565)
# sensor.set_pixformat(sensor.GRAYSCALE)
sensor.set_framesize(sensor.QVGA)
sensor.set_windowing((240, 240))
# sensor.skip_frames(time=2000)
sensor.set_auto_gain(1)
sensor.set_auto_exposure(1)
sensor.set_auto_whitebal(1)
sensor.skip_frames(30)
sensor.set_colorbar(0)
sensor.run(1)

lock = _thread.allocate_lock()

print("Ready to load model")

# Perform memory test
kpu.memtest()

# Initialize clock
clock = time.clock()

# Load model
try:
    task = kpu.load("/sd/riceuno1.kmodel")
    print("Model loaded")
except Exception as e:
    print("Error loading model:", e)
    sys.exit(1)  # Terminate script if model loading fails

# Threshold and size for FOMO
threshold_fomo = 0.96
fomo_size_nn = 12
global fmap, img_cam, img  # Declare global variables

fmap = None  # Initialize fmap
img=None
# Set output for KPU task
kpu.set_outputs(task, 0, fomo_size_nn, fomo_size_nn, 2)

def fomo_list(fomo_size, fomo_fmap, ch, fomo_threshold=0.95):
    global thread1_done

    try:
        # Find indices of elements that are greater than or equal to the threshold
        indices_of_high_values = [index for index, value in enumerate(fomo_fmap[(fomo_size * fomo_size) * ch:(fomo_size * fomo_size) * (ch + 1)]) if value >= fomo_threshold]
        # Use list comprehensions to find values and indices above 90
        values_above_90 = [round(value, 2) for value in fomo_fmap[(fomo_size * fomo_size) * ch:(fomo_size * fomo_size) * (ch + 1)] if value >= fomo_threshold]
        print("Raw Values above:", values_above_90)
        # Print the results
        print("Indices of values above:", indices_of_high_values)
        print("Indices of elements >= ", fomo_threshold, ": ", indices_of_high_values)
        print((fomo_size * fomo_size) * ch)

        # Create a grid
        grid = [[0 for _ in range(fomo_size)] for _ in range(fomo_size)]

        # Update the grid based on the indices of high values
        for index in indices_of_high_values:
            row = index // fomo_size
            col = index % fomo_size
            if ch == 1:
                img.draw_circle((col + 1) * 20 - 4, (row + 1) * 20 - 4, 16, color=(255, 0, 0), fill=False)
            # if ch == 2:
            #     img.draw_circle((col + 1) * 20 - 4, (row + 1) * 20 - 4, 16, color=(0, 255, 0), fill=False)
            grid[row][col] = 1

        print("\nGrid:")
        for row in grid:
            print(" ".join(map(str, row)))

        print("FOMO processing finished")
    except Exception as e:
        print("Error in FOMO processing:", e)
    finally:
        print("Thread End")
        # _thread.exit()

def thread_core_1():
    global lock, img_cam, img, fmap
    while True:
        img = sensor.snapshot()
        img_cam = img.copy()  # consume a lot of process
        img_cam = img_cam.resize(96, 96)  # consume a lot of process
        img_cam = img_cam.to_grayscale(copy=False)  # consume a lot of process

        img_cam.pix_to_ai()
        lock.acquire()
        fmap = kpu.forward(task, img_cam, 0)
        lock.release()
        time.sleep(0.05)

scan = _thread.start_new_thread(thread_core_1, ())

def main():
    global img, img_cam, fmap
    global lock, fmap
    print("Start")

    while True:
        try:

            lock.acquire()
            if fmap is not None:
                clock.tick()
                fomo_list(fomo_size_nn, fmap, 1, threshold_fomo)
                print("FOMO------------------")
                fps = clock.fps()
                print("FPS:", fps)
                img.draw_string(2, 220, ("%2.1ffps" % (fps)), color=(0, 255, 128), scale=2)

            lock.release()

            print("Done")
            time.sleep(0.01)  # Pause before repeating the process
        except Exception as e:
            print("Error in main loop:", e)
            break

try:
    main()
except Exception as e:
    print("Unhandled exception:", e)
finally:
    try:
        kpu.deinit(task)
    except Exception as e:
        print("Error during cleanup:", e)
