Tactile Interface Thermometer-Clock

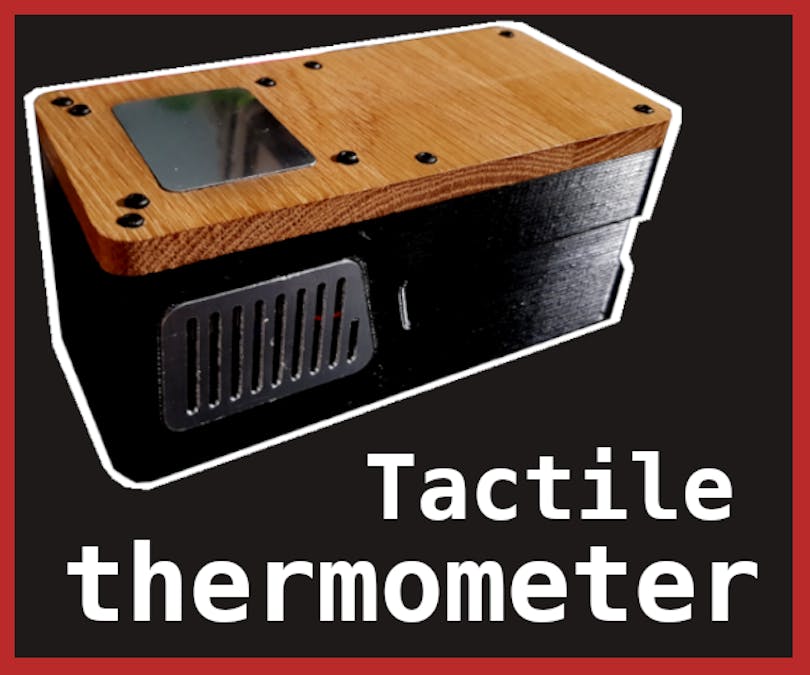

A Thermometer Clock with no screen, numbers or visible interface.

AdvancedFull instructions provided285

Things used in this project

Hardware components

NodeMCU ESP8266 Breakout Board

Peltier plate

Fan and Heat sink

Piezo Disk

Linear Solenoid, 12 VDC

BTS7960-43A cd-motor driver

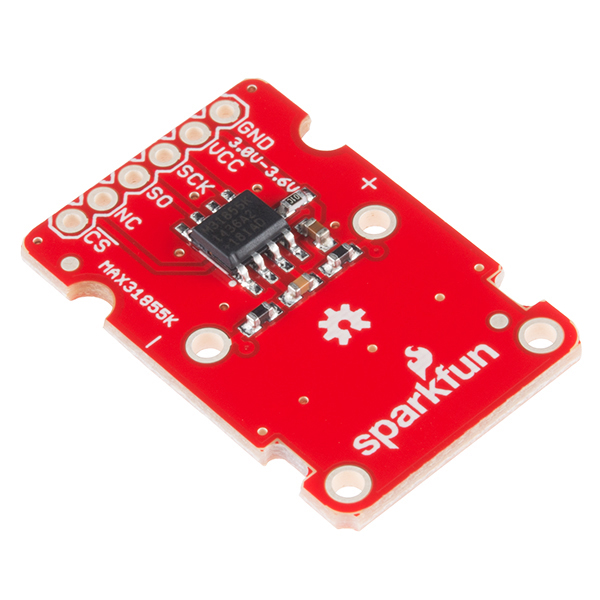

SparkFun Thermocouple Breakout - MAX31855K

irbl8721 (Mosfet)

Resistor 1k ohm

Resistor 1M ohm

Mini 360 dc buck converter

Software apps and online services

Autodesk Fusion

Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)

CNC machine

Soldering iron (generic)

Story

short video

Hi!

I made this device, a thermometer-clock without screen, buttons, needles or any visible interface.

It may not be the most practical device, but we can’t deny that it’s a cool idea. 😎

I think it might be a good device for people who live far from home and want to feel a "physical" bond with their place of origin.

It's based on a NodeMCU, a peltier plate and a solenoid, and uses a PID system to reach the target temperature accurately.

Step 1: Components.

Schema

BOM:

NodeMCU.
Solenoid.
Peltier plate.
BTS7960-43A cd-motor driver.
MAX31855 Thermocouple Amplifier.
Mini 360 dc buck converter.
2 x irlb8721 mosfet.
2 x 1KΩ resistor.
1 x 1MΩ resistor.
Piezo disk.

Step 2: Arduino Sketch.

You can find the sketch and the stl files here: github.com/sagarrabanana/notJustAnotherKnockClock

In general terms, the operation of the program would be as follows: First, the device is connected to the Internet, once connected it stays listening to the piezo, if we knock the box twice, it'll use the "NTPClient libraries. h" and "WiFiUdp. h" to consult the time. Once it reads the data, translates the result to "bell towers" style and expresses it through the solenoid.

On the other hand, if the piezo detects three knocks, the device will check the temperature in the target city, using the openweather API. Once it gets this the data, it turns on the peltier plate. This plate is controlled by a DC motor driver. The program will use the ambient temperature as a reference to decide whether the plate should be heated or cooled to reach the target temperature. All this will be regulated with a PID system, having a continuous feedback of the thermometer placed between the peltier plate and the aluminum plate. Once the target temperature is reached, you will notify using the solenoid.

Step 3: Full Process Video:

Full explanation video, ENGLISH SUBTITLES

Here you can find more details about the process. (English subtitles).

I hope you like it!

Schematics

Code

main

/*
  Rui Santos
  Complete project details at Complete project details at https://RandomNerdTutorials.com/esp8266-nodemcu-http-get-open-weather-map-thingspeak-arduino/

  Permission is hereby granted, free of charge, to any person obtaining a copy
  of this software and associated documentation files.

  The above copyright notice and this permission notice shall be included in all
  copies or substantial portions of the Software.
*/

// ejemplo para MAX31855-> https://github.com/enjoyneering/MAX31855/blob/master/examples/MAX31855_ESP8266_hw_SPI_Demo/MAX31855_ESP8266_hw_SPI_Demo.ino

#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClient.h>
#include <Arduino_JSON.h>
//---https://lastminuteengineers.com/esp8266-ntp-server-date-time-tutorial/
#include <NTPClient.h>
#include <WiFiUdp.h>

//--------------- PID
#include <SPI.h>
#include <MAX31855.h>
#include <PID_v1.h>
//------------

const long utcOffsetInSeconds = 3600;
// Define NTP Client to get time
WiFiUDP ntpUDP;
NTPClient timeClient(ntpUDP, "pool.ntp.org", utcOffsetInSeconds);

//-----------------------https://randomnerdtutorials.com/esp8266-nodemcu-http-get-open-weather-map-thingspeak-arduino/

const char* ssid = "yourSSID";
const char* password = "yourPassword";

// Your Domain name with URL path or IP address with path
String openWeatherMapApiKey = "03ethis4cis61fnote6fatrue8f";


// Replace with your country code and city
String city = "Leioa";
String countryCode = "ES";

// THE DEFAULT TIMER IS SET TO 10 SECONDS FOR TESTING PURPOSES
// For a final application, check the API call limits per hour/minute to avoid getting blocked/banned
unsigned long lastTime = 0;
unsigned long timerDelay = 10000;

String jsonBuffer;
//---------------------
const int piezo = A0;
int cont = 0;
int umbral = 20;
float umbralTime = 300;
long timeUlt = 0;
int knock;

//-----------------PID
int32_t rawData = 0;
double ambiente;

int alcanzado = 0;
uint8_t solenoidePin = D8;
long cuentaTiempo;

uint8_t PIN_OUTPUT_COLD = D2;
uint8_t PIN_OUTPUT_HOT = D1;

uint8_t fanPin = D7;

//Define Variables we'll be connecting to
double Setpoint, Input, Output, tempObj;
double SetpointPre;

//Specify the links and initial tuning parameters
double cKp = 200, cKi = 20, cKd = 30;
double hKp = 20, hKi = 8, hKd = 600;
PID coldPID(&Input, &Output, &Setpoint, cKp, cKi, cKd, REVERSE);//DIRECT
PID hotPID(&Input, &Output, &Setpoint, hKp, hKi, hKd, DIRECT);//DIRECT

MAX31855 myMAX31855(D4);   //chip select pin, ESP8266 fails to BOOT/FLASH if D4 is LOW

//--------------------

void setup() {
  WiFi.persistent(false);  //disable saving wifi config into SDK flash area

  Serial.begin(115200);

  WiFi.begin(ssid, password);
  Serial.println("Connecting");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected to WiFi network with IP Address: ");
  Serial.println(WiFi.localIP());

  timeClient.begin();
  myMAX31855.begin();
  while (myMAX31855.getChipID() != MAX31855_ID)
  {
    Serial.println(F("MAX6675 error")); //(F()) saves string to flash & keeps dynamic memory free
    delay(5000);
  }
  Serial.println(F("MAX6675 OK"));
  while (myMAX31855.detectThermocouple() != MAX31855_THERMOCOUPLE_OK)
  {
    switch (myMAX31855.detectThermocouple())
    {
      case MAX31855_THERMOCOUPLE_SHORT_TO_VCC:
        Serial.println(F("Thermocouple short to VCC"));
        break;

      case MAX31855_THERMOCOUPLE_SHORT_TO_GND:
        Serial.println(F("Thermocouple short to GND"));
        break;

      case MAX31855_THERMOCOUPLE_NOT_CONNECTED:
        Serial.println(F("Thermocouple not connected"));
        break;

      case MAX31855_THERMOCOUPLE_UNKNOWN:
        Serial.println(F("Thermocouple unknown error"));
        break;

      case MAX31855_THERMOCOUPLE_READ_FAIL:
        Serial.println(F("Thermocouple read error, check chip & spi cable"));
        break;
    }
    delay(3000);
  }
  coldPID.SetMode(AUTOMATIC);
  coldPID.SetOutputLimits(0, 1023);//con esto modifico el limite del output del PID pasandolo de 255 a 1023 para adecuarlo a la resolucion del NodeMCU

  hotPID.SetMode(AUTOMATIC);
  hotPID.SetOutputLimits(0, 1023);//con esto modifico el limite del output del PID pasandolo de 255 a 1023 para adecuarlo a la resolucion del NodeMCU

  pinMode(solenoidePin, OUTPUT);
  pinMode(fanPin, OUTPUT);
  digitalWrite(fanPin, LOW);
}

void loop() {



  // Check WiFi connection status
  if (WiFi.status() == WL_CONNECTED) {
    knock = analogRead(piezo);
    Serial.print("knock Val: ");
    Serial.println(knock);
    if ((knock > umbral) and cont == 0)
    {
      timeUlt = millis();
      cont++;
      delay(50);
    }
    else if ((knock > umbral) and (cont > 0) and (millis() - timeUlt) < umbralTime)
    {
      timeUlt = millis();
      cont++;
      delay(80);
    }
    else if ((millis() - timeUlt) > umbralTime and (cont > 0))
    {
      Serial.print("numero de golpes: ");
      Serial.println(cont);
      if (cont == 2)
      {
        timeClient.update();
        int hora = timeClient.getHours() + 1;
        int minutos = timeClient.getMinutes();
        Serial.print(hora);
        Serial.print(":");
        Serial.println(minutos);
        if (hora > 12)
        {
          for (int i = 1; i <= (hora - 12); i++)
          {
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(200);
          }
        }
        else if (hora <= 12)
        {
          for (int i = 1; i <= hora; i++)
          {
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(200);
          }
        }
        delay(500);
        for (int i = 1; i <= (int)(minutos / 15); i++)
        {
          digitalWrite(solenoidePin, HIGH);
          delay(100);
          digitalWrite(solenoidePin, LOW);
          delay(200);
        }
      }
      else if (cont == 3)
      {
        tempObj = getTemp();
        //setTemp((int)tempObj);
        SetpointPre = (int)tempObj;
        digitalWrite(fanPin, HIGH);
        //---------------
        while (true)
        {

          rawData = myMAX31855.readRawData();
          ambiente = myMAX31855.getColdJunctionTemperature(rawData);
          if (ambiente > SetpointPre)
          {
            Setpoint = SetpointPre;
            Input = myMAX31855.getTemperature(rawData);
            coldPID.Compute();
            analogWrite(PIN_OUTPUT_COLD, Output);
            Serial.println("enfriamos");
          }
          else if (ambiente < SetpointPre)
          {
            Setpoint = SetpointPre;
            Input = myMAX31855.getTemperature(rawData);
            hotPID.Compute();
            analogWrite(PIN_OUTPUT_HOT, Output);
            Serial.println("calentamos");
          }
          Serial.print("input: ");
          Serial.println(Input);
          Serial.print("output: ");
          Serial.println(Output);
          Serial.print("setpoint: ");
          Serial.println(Setpoint);
          Serial.print("ambiente: ");
          Serial.println(ambiente);
          //delay(5000);
          if ((Input == Setpoint) && (alcanzado == 0))
          {
            Serial.print("Alcanzado 1 -----------------------------------------------------");
           /* digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(100);
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(100);*/
            alcanzado = 1;
            cuentaTiempo = millis();
          }
          if ((alcanzado == 1) && ((millis() - cuentaTiempo) > 20000))
          {
            //alcanzado = 0;
            Serial.print("Alcanzado  ---------------------------2--------------------------");
            Serial.println("fuera");
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(100);
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(100);
            alcanzado = 2;
            /*
            digitalWrite(PIN_OUTPUT_COLD, LOW);
            digitalWrite(PIN_OUTPUT_HOT, LOW);
            digitalWrite(fanPin, LOW);
            break;*/

          }
           if ((alcanzado == 2) && ((millis() - cuentaTiempo) > 60000))
          {

            Serial.print("Alcanzado  ----------------------------------------------------- 3");
            Serial.println("fuera");
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(100);
            digitalWrite(solenoidePin, HIGH);
            delay(100);
            digitalWrite(solenoidePin, LOW);
            delay(100);
            digitalWrite(PIN_OUTPUT_COLD, LOW);
            digitalWrite(PIN_OUTPUT_HOT, LOW);
            digitalWrite(fanPin, LOW);
            alcanzado = 0;
            break;

          }
        }
      }
      cont = 0;
    }

  }

  else {
    Serial.println("WiFi Disconnected");
    delay(500);
    WiFi.begin(ssid, password);
    Serial.println("Connecting");
    while (WiFi.status() != WL_CONNECTED) {
      delay(500);
      Serial.print(".");
    }
    Serial.println("");
    Serial.print("Connected to WiFi network with IP Address: ");
    Serial.println(WiFi.localIP());
  }
}

String httpGETRequest(const char* serverName) {
  HTTPClient http;

  // Your IP address with path or Domain name with URL path
  http.begin(serverName);

  // Send HTTP POST request
  int httpResponseCode = http.GET();

  String payload = "{}";

  if (httpResponseCode > 0) {
    Serial.print("HTTP Response code: ");
    Serial.println(httpResponseCode);
    payload = http.getString();
  }
  else {
    Serial.print("Error code: ");
    Serial.println(httpResponseCode);
  }
  // Free resources
  http.end();

  return payload;
}

double getTemp()
{
  String serverPath = "http://api.openweathermap.org/data/2.5/weather?q=" + city + "," + countryCode + "&APPID=" + openWeatherMapApiKey + "&units=metric";

  jsonBuffer = httpGETRequest(serverPath.c_str());
  //Serial.println(jsonBuffer);
  JSONVar myObject = JSON.parse(jsonBuffer);

  Serial.print("datatype: ");
  Serial.println(JSON.typeof(myObject["main"]["temp"]));

  double temp = myObject["main"]["temp"];

  Serial.print("int temp: ");
  Serial.println(temp);
  return temp;

}


void setAlarm() //Esto esta sin terminar! nos quedamos aqui
{
  delay(100);
  digitalWrite(solenoidePin, HIGH);
  delay(50);
  digitalWrite(solenoidePin, LOW);

}
