Offline Voice Recognition Hub Based on ESPNOW

A smart offline module which acts like a hub and send commands to different slave devices, Based on ESPNOW protocol ESP8266.

IntermediateFull instructions provided2 hours41
Offline Voice Recognition Hub Based on ESPNOW
Ad

Story

Read more

Custom parts and enclosures

GERBER Solid state relay

BOM

PICK AND PLACE (CPL)

Schematics

Solid state relay

Code

Receiver Slave

Arduino
#include <ESP8266WiFi.h>
#include <espnow.h>

#define led1 4  // light
#define led2 5  // oscilloscope
#define led3 0  // solder
#define led4 2  // power

// Structure to declare variable
typedef struct myStruct {
    int a;
    int b;
    int c;
    int d;
} myStruct;

// Create a myStruct called structObj
myStruct structObj;

// Callback function
void OnDataRecv(uint8_t * mac, uint8_t *incomingData, uint8_t len) {
  memcpy(&structObj, incomingData, sizeof(structObj));
 // Serial.print("Bytes received: ");
 // Serial.println(len);
 // Serial.print("D1 button state: ");
 // Serial.println(structObj.a);
 // Serial.print("D3 button state: ");
 // Serial.println(structObj.b);
  // Serial.println();

  digitalWrite(led1, (structObj.a == 100) ? HIGH : LOW);
  digitalWrite(led1, (structObj.a == 200) ? LOW : HIGH);

  digitalWrite(led2, (structObj.b == 100) ? HIGH : LOW);
  digitalWrite(led2, (structObj.b == 200) ? LOW : HIGH);

  digitalWrite(led3, (structObj.c == 100) ? HIGH : LOW);
  digitalWrite(led3, (structObj.c == 200) ? LOW : HIGH);

  digitalWrite(led4, (structObj.d == 100) ? HIGH : LOW);
  digitalWrite(led4, (structObj.d == 200) ? LOW : HIGH);
}

void setup() {
  // Initialize Serial Monitor
  Serial.begin(115200);

  pinMode(led1, OUTPUT);
  pinMode(led2, OUTPUT);
  pinMode(led3, OUTPUT);
  pinMode(led4, OUTPUT);

  // Set device as a Wi-Fi Station
  WiFi.mode(WIFI_STA);

  // Init ESP-NOW
  if (esp_now_init() != 0) {
    Serial.println("Error initializing ESP-NOW");
    return;
  }

  esp_now_set_self_role(ESP_NOW_ROLE_SLAVE); //set role
  esp_now_register_recv_cb(OnDataRecv); // set callback
}

void loop() {

}

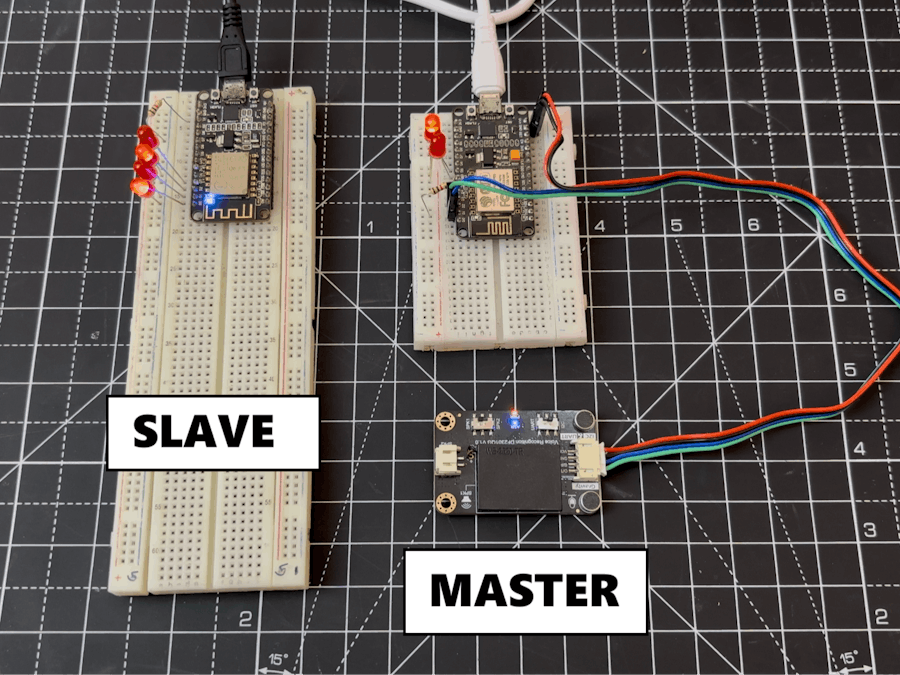

HUB MASTER Transmitter

Arduino
#include <ESP8266WiFi.h>
#include <espnow.h>
#include <Wire.h>
#include "DFRobot_DF2301Q.h"

#define camera 14  // d5
#define speaker 12  // d6

//I2C communication
DFRobot_DF2301Q_I2C DF2301Q;

int btn1State = 0; // LIGHT
int btn2State = 0; // OSCILLOSCOPE (2PIN)
int btn3State = 0; // SOLDER
int btn4State = 0; // POWER

//int btn5State = 0; // SPEAKER (LOCAL)
//int btn6State = 0; // CAMERA  (LOCAL)


// REPLACE WITH RECEIVER MAC Address
uint8_t broadcastAddress[] = {0xA8, 0x48, 0xFA, 0xE2, 0x43, 0xC7};




// Structure to declare variables
typedef struct myStruct {
  int a;
  int b;
  int c;
  int d;
} myStruct;

// Create a myStruct object called structObj
myStruct structObj;




// Callback when data is sent
void OnDataSent(uint8_t *mac_addr, uint8_t sendStatus) {
  if (sendStatus == 0){
    Serial.println("Delivery success");
  }
  else{
    Serial.println("Delivery fail");
  }
}




void setup() {
  // Init Serial Monitor
  Serial.begin(115200);
    while( !( DF2301Q.begin() ) ) {
    Serial.println("Communication with device failed, please check connection");
    delay(3000);
  }

  Serial.println("Begin ok!");

  DF2301Q.setVolume(10);
  DF2301Q.setMuteMode(0);
  DF2301Q.setWakeTime(25);

  uint8_t wakeTime = 0;
  wakeTime = DF2301Q.getWakeTime();
  Serial.print("wakeTime = ");
  Serial.println(wakeTime);

  // DF2301Q.playByCMDID(1);   // Wake-up command
  DF2301Q.playByCMDID(23);   // Common word ID


  pinMode(camera, OUTPUT);
  pinMode(speaker, OUTPUT);


  // Set device as a Wi-Fi Station
  WiFi.mode(WIFI_STA);

  // Init ESP-NOW
  if (esp_now_init() != 0) {
    Serial.println("Error initializing ESP-NOW");
    return;
  }

  esp_now_set_self_role(ESP_NOW_ROLE_CONTROLLER); //set role
  esp_now_register_send_cb(OnDataSent); //set callback

  // Register peer
  esp_now_add_peer(broadcastAddress, ESP_NOW_ROLE_SLAVE, 1, NULL, 0);
}




void loop() {
    delay(1000);

  uint8_t CMDID = 0;
  CMDID = DF2301Q.getCMDID();
  if(0 != CMDID) {
  Serial.print("CMDID = ");
  Serial.println(CMDID);
  }

  if(CMDID == 82) { //RESET
  btn1State = 100;
  btn2State = 100;
  btn3State = 100;
  btn4State = 100;
  }

  if(CMDID == 6) { //GOODBYE
  btn1State = 200;
  btn2State = 200;
  btn3State = 200;
  btn4State = 200;
  }

  if(CMDID == 103) { // TURN ON THE LIGHT
  btn1State = 100;
  }

  if(CMDID == 104) {  // TURN OFF THE LIGHT
  btn1State = 200;
  }

  if(CMDID == 7) { // POWER ON
  btn4State = 100;
  }

  if(CMDID == 8) {  // POWER OFF
  btn4State = 200;
  }

  if(CMDID == 9) { // SOLDER ON
  btn3State = 100;
  }

  if(CMDID == 10) {  // SOLDER OFF
  btn3State = 200;
  }

  if(CMDID == 80) { // START OSCILLATING
  btn2State = 100;
  }

  if(CMDID == 81) {  // STOP OSCILLATING
  btn2State = 200;
  }

  if(CMDID == 73) { // TURN ON THE CAMERA // GPIO 14
  digitalWrite(camera, HIGH);
  }

  if(CMDID == 74) {  // TURN OFF THE CAMERA
  digitalWrite(camera, LOW);
  }


  if(CMDID == 90) { // TURN ON THE SPEAKER  // GPIO 12
  digitalWrite(speaker, HIGH);
  }

  if(CMDID == 91) {  // TURN OFF THE SPEAKER
  digitalWrite(speaker, LOW);
  }


structObj.a = btn1State;
structObj.b = btn2State;
structObj.c = btn3State;
structObj.d = btn4State;



// Send message via ESP-NOW
esp_now_send(broadcastAddress, (uint8_t *) &structObj, sizeof(structObj));

delay(1000);

}
