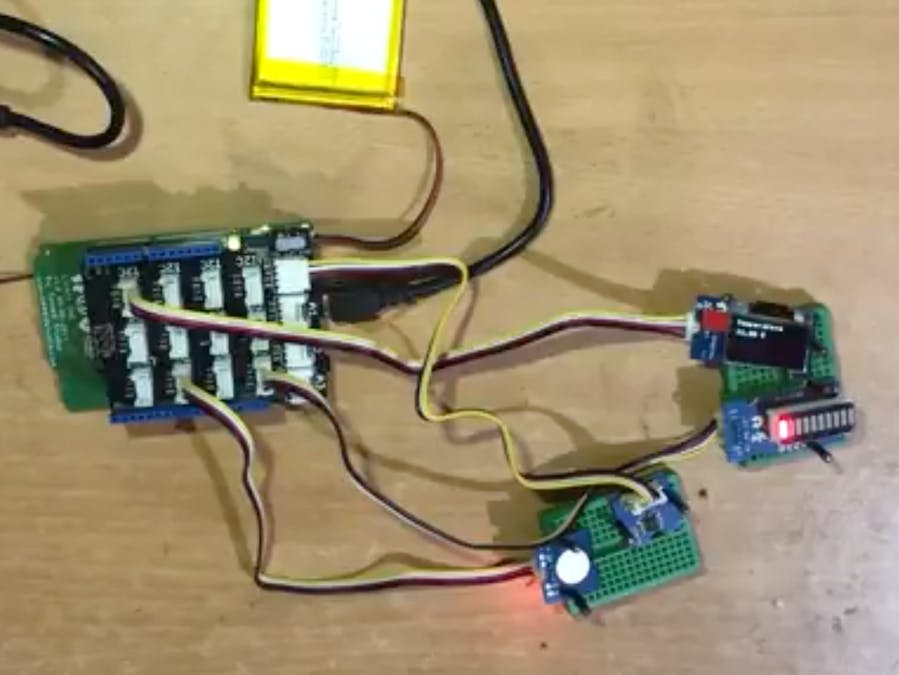

IoT - Send SMS with Ambient Temperature on Touch

This is an example, but if you like to send SMS with IoT sensor data, this is the best reference project for you.

IntermediateFull instructions provided24 minutes1,002
IoT - Send SMS with Ambient Temperature on Touch

Things used in this project

Hardware components

MediaTek LinkIt One
×1
Grove - Touch Sensor SKU 101020037
Seeed Studio Grove - Touch Sensor SKU 101020037
×1
Grove - OLED Display 1.12'' V2
Seeed Studio Grove - OLED Display 1.12'' V2
×1
Grove LED Bar
×1
Grove - Temperature Sensor
Seeed Studio Grove - Temperature Sensor
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Block diagram for IoT SMS Sender using multiple sensors

Code

Arduino code for GSM SMS sender with Touch sensor, LED bar, OLED Display and Temperature sensor

Arduino
/*******************************************************
 * SANTRONIX <info@santronix.in>
 *
 * This file is part of SANTRONIX Mediatek LinkIt Tutorials Project.
 *
 * SANTRONIX Mediatek LinkIt Tutorials Project can not be copied and/or distributed without the express
 * permission of SANTRONIX
 *******************************************************/

#include <Grove_LED_Bar.h>
#include <LGSM.h>
#include <math.h>
#include <Wire.h>
#include <SeeedOLED.h>
#include <TimedAction.h>

const int touchPin = 2;
Grove_LED_Bar ledBar(5,4,0);
const int B = 4250;               // B value of the thermistor
const int R0 = 100000;            // R0 = 100k
const int pinTempSensor = A0;

float temperature = 0.0;
int touchSensorValue = 0;

bool processing = false;

void checkTemperature()
{
  int a = analogRead(pinTempSensor);

  float R = 1023.0/a-1;
  R = R0*R;

  temperature = 1.0/((log(R/R0)/B)+(1/298.15))-273.15; // convert to temperature via datasheet

  SeeedOled.setTextXY(0,0);          //Set the cursor to Xth Page, Yth Column
  SeeedOled.putString("Temperature"); //Print the String
  SeeedOled.setTextXY(2,0);          //Set the cursor to Xth Page, Yth Column
  SeeedOled.putFloat(temperature,2);
  SeeedOled.putString(" C");
}

void sendSms()
{
  if(touchSensorValue==1)
  {
    if(!processing)
    {
      processing = true;
      LSMS.beginSMS("8291922124");
      LSMS.print("Temperature is : ");
      LSMS.print(temperature);
      LSMS.print(" C");                   // for e.g., Temperature is : 25.6 C
      if (LSMS.endSMS())                  // Send the SMS and wait for reply
      {
        SeeedOled.setTextXY(4,0);
        SeeedOled.putString("SMS Sent");
        delay(5000);
        SeeedOled.clearDisplay();
        processing = false;
      }
      else
      {
        SeeedOled.setTextXY(4,0);
        SeeedOled.putString("SMS Not Sent");
        delay(5000);
        SeeedOled.clearDisplay();
        processing = false;
      }
    }
  }
}


TimedAction checkTempThread = TimedAction(1000, checkTemperature);
TimedAction smsThread = TimedAction(1000, sendSms);

void setup() {
  // put your setup code here, to run once:
  pinMode(touchPin, INPUT);
  ledBar.begin();
  //Serial.begin(9600);

  Wire.begin();
  SeeedOled.init();  //initialze SEEED OLED display

  SeeedOled.clearDisplay();          //clear the screen and set start position to top left corner
  SeeedOled.setNormalDisplay();      //Set display to normal mode (i.e non-inverse mode)
  SeeedOled.setPageMode();           //Set addressing mode to Page Mode

  while (!LSMS.ready())                 // Wait for the sim to initialize
  {
    delay(1000);                        // Wait for a second and then try again
  }
  SeeedOled.putString("SIM Initialized");
  //Serial.println("Sim initialized");

  delay(3000);
  SeeedOled.clearDisplay();
}

void loop() {
  checkTempThread.check();
  smsThread.check();
  // put your main code here, to run repeatedly:
  touchSensorValue = digitalRead(touchPin);

  if(touchSensorValue==1)
  {
    ledBar.setLevel(10);
  }else{
    ledBar.setLevel(1);
  }
}
