Sauna Buddy

•

Jan R. Seyler

Created March 25, 2024 © GPL3+

Sauna Buddy

Your smart companion for the ideal sauna session - every time.

Intermediate3 hours14

Things used in this project

Hardware components

Adafruit BME688

Seeed Studio XIAO ESP32C3

Micro controller

Resistor 100k ohm

Raspberry Pi 3 Model B+

Used for recording raw data

Software apps and online services

Bosch BME AI Studio

Software from Bosch Sensortec

bme68x-python-library

Bosch-BME68x-Library

Software library from Bosch Sensortec

Arduino IDE

Hand tools and fabrication machines

ELEGOO NEPTUNE 4

Story

Introduction

Taking a sauna is a really emotional and personal experience. Sometimes after taking a sauna you know something was not right but often is it hard to actually be sure what was wrong. Using the here proposed system it is not only possible to measure but also to save and visualize the quantitative values. That way you can sustainably improve your sauna experience!

Modern sensors and advanced technology allow us to measure different environmental values. A powerful sensor is the Gas Sensor BME688 by Bosch Sensortec GmbH. Using an humidity, pressure, temperature and gas sensor in combination with a neural network it is possible to gain information about the air quality as well as the smell of the sauna infusion. Therefore the neural network had to be trained (this was the fun part).

With the XIAO ESP32-C3 it is possible to receive the decision of the neural network but also the raw sensor data from the BME688. This is important because depending on the heating oven, carbon monoxide can be a huge risk. The gas sensor is highly sensitive to CO which will lead to high values of the gas sensor. We used the Rock5b (or any other Single Board Computer like Raspberry Pi can be used) to receive the values from the ESP32 over MQTT. The task of the Raspberry Pi is to be the MQTT Broker (we used HiveMQ), to save the data to a database (Influxdb) and visualize it using Grafana. For comfort we used docker for managing the applications.

1) Hardware

The used micro controller XIAO-ESP32-C3 controls the environmental sensor BME688 via I2C-Interface. The default I2C address of the sensor is 0x77.

Connect the ESP32-C3 via I2C-Interface to the BME688

A Li-Po battery is connected to the charging interface of the µC. Through a 100k ohm voltage divider the voltage of the battery can be monitored by the µC.

Power supply via Li-Po battery and additional voltage divider for monitoring the battery capacity

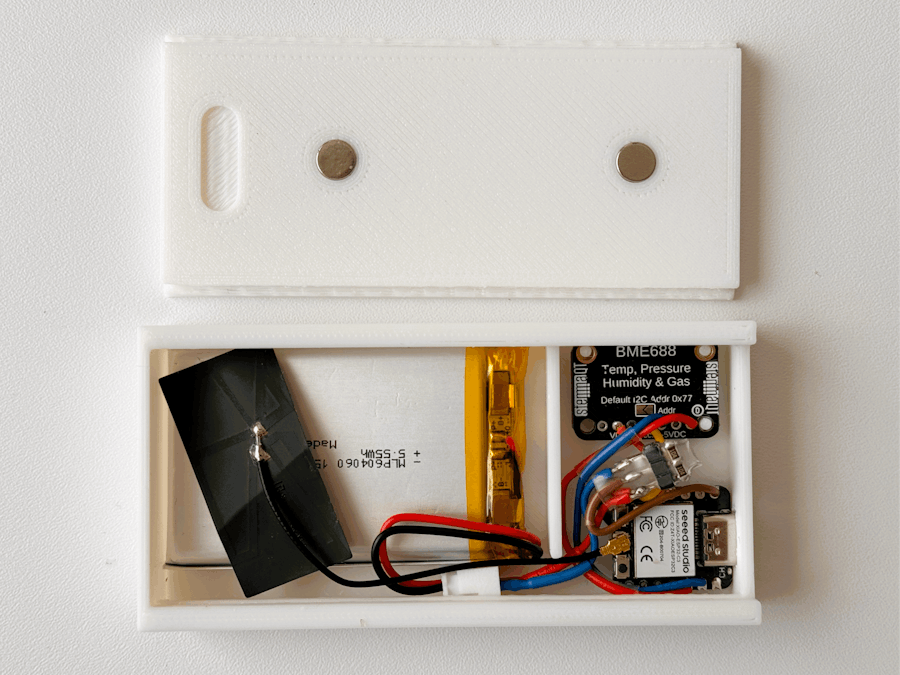

Also we 3D-printed a casing. Everything set up correctly, the hardware could look like this:

Hardware setup in 3D-printed case

The used single board computer (SBC) is the Rock5b from Radxa, on which the front-end application is running. The SBC creates an access point to which the microcontroller is connected.

Rock5b from Radxa

2) Software

2.1) Bosch Library

You will need to install the BSEC2 library from Bosch Sensortec in order to control the BME688.

Bosch BSEC2 library from https://github.com/boschsensortec/Bosch-BSEC2-Library
Bosch BME68x library from https://github.com/BoschSensortec/Bosch-BME68x-Library

Add the downloaded libraries (zip file) to the Arduino IDE.

2.2) Arduino Firmware

The ESP32 collects the following data:

temperature
pressure
humidity
gas sensor resistance
Indoor air quality (IAQ) value
IAQ accuracy
IAQ static (optimized for non mobile measurements)
CO2 equivalent
Volatile organic compounds (VOC) equivalent
sensor status
battery level

Here is shown a rough flowchart of the firmware:

Flowchart of the Arduino Firmware

First, the ESP needs to connect to a PC via the serial port for debugging. It also uses wifi to connect to the MQTT broker on our SBC. Then the BME needs to be initialized and a connection validated. The main loop polls the BME for values. As soon as a new message is received, an interrupt is triggered. The values are interpreted in the callback function. Then the battery level is calculated and all data is sent via MQTT. Then the main loop continues with polling data.

2.3) Network

As mentioned before the µC is connected wirelessly to the single board computer and sends the sensor data via MQTT protocol to the broker.

Software structure

Node-RED forwards the data to the database and saves them in a collection.

Node-RED flow for the communication between MQTT broker and the database

The actual user interface is the dashboard in Grafana where all the sensor data are plotted and accessible. So far, only the sensor data is displayed, but possible triggered actions based on a threshold value would be quite conceivable.

Dashboard in Grafana

3) Record sensor data for training neural net

A crucial point of the BME is the ability to implement a neural network that can detect a odor (the infusion in our case) based on the sensor data. The training process is explained below.

3.1) Test setup

Raspberry Pi 3B+
BME688
Long four-core cable

Pinout diagram of the raspberry pi 3B+

In the following picture you can see the test setup in order to record the raw sensor data.

Test setup for recording data

You need to install the python library to control the BME688 via the GPIO-pins. Follow the installations instruction of the following Github project: https://github.com/pi3g/bme68x-python-library
The library provides a python script that saves the raw sensor data in the right format so you can afterwards use the record to train a neural network in BME AI Studio.
To start the measurement, boot the Raspberry Pi and run the script "BME_RawData.sh". The terminal then opens and if everything is connected correctly, the measurement starts. To end the measurement and save the data, press "Ctrl+C" in the terminal. If saving is successful, the saved measurement can be found in the ".../bme68x-python-library/tools/bmerawdata/..." folder.

As a demonstration example we record sample data from different types of tea: blueberry and raspberry. We recorded two data sets of 15 minutes per tea type.

Data record of different tea types

During the measurement, always log the system time of the Raspberry Pi and the odor so you can specify the specimen later on in the BME AI Studio.

3.2) Training the neural network in BME AI Studio

Once the data has been recorded, the data is imported into BME AI Studio and labeled according to the investigated odor. A classification algorithm can then be created, here for example the type of tea: blueberry or raspberry. Two classes are created for this, to which the data samples are added accordingly. Before you train the neural network, you should read the instructions regarding the training settings (https://www.bosch-sensortec.com/software/bme/docs/process-steps/train-algorithms.html). These influence the quality of the AI model.

Example algorithm differing between blueberry or raspberry

Training settings

Unfortunately, the neural network can only be trained with a certain minimum number of data points. We were therefore unable to create an AI model with our training data.

Nevertheless, we tested an already trained model on the BME688.

3.3) Deploy the neural network to the BME688

To deploy your trained network you have to export the algorithm in BME AI Studio. That done, you have to open the .c file and copy the generated array which have 2064 elements to the Arduino File "Deploy_AI_Classification.ino":

const uint8_t bsec_config_selectivity[2063] = {2,0,5,2,189,1,0,0,0,0,0,0,247, ... }; ==> const uint8_t bsec_config [2063] = {<<Copy array data here>>};

Then you can compile the Arduino program and upload to the micro controller. Because we were not able to train our own AI model, we tried out the example project, which distinguishes between coffee beans and neutral air.

In the following video you can see the output of the AI algorithm. Class 1 belongs to the odor "coffee beans" and class 2 belongs to the odor "neutral air".

Example AI model deployment

It was interesting that the sensor has a certain delay in detection. This means that the odour is only detected after a short dead time and it takes a moment before the odour is no longer detected, even though the substance is no longer there.

This means that odours can be detected that are no longer perceptible but must have been present at this location in the past. However, the delay in detection must be taken into account.

4) Further challenges

Adjust the program code to execute the gas classification and the sensor data collection in parallel
Tweak the sleep mode settings to reduce energy consumption
Record more raw data to successfully train the neural network

We hope you enjoy read We hope you enjoyed our project and were inspired by our idea!

Code

version: "3.8"

services:

  node-red:
    image: nodered/node-red:latest
    hostname: "x-nodered"
    environment:
      - TZ=Europe/Berlin
    ports:
      - 1880:1880
    volumes:
      - /NodeRed:/data
    networks:
      - iot-docker
    restart: unless-stopped

  hivemq:
    hostname: "x-hivemq"
    image: hivemq/hivemq4:latest
    ports:
      - 1883:1883
      - 8080:8080
    restart: unless-stopped
    networks:
      - iot-docker

  influxdb:
    image: influxdb:latest
    volumes:
      - ./influxDB:/var/lib/influxdb
    ports:
      - 8086:8086
    networks:
      - iot-docker
    restart: unless-stopped

  grafana:
    image: grafana/grafana:latest
    hostname: "x-grafana"
    ports:
      - 3000:3000
    #environment:
      #- GF_INSTALL_PLUGINS=$GF_INSTALL_PLUGINS
    volumes:
      - ./Grafana:/var/lib/grafana
    networks:
      - iot-docker
    restart: unless-stopped

networks:
  iot-docker:

/*******************************************************************************
** Author:	Luka Kustura, Thilo Danner
** Date:	  22.03.2024
** Purpose: Multivalue Sensor BME688 from Bosch Sensortec
**          Read out sensor data and send it via MQTT to Single Board Computer
*******************************************************************************/


#include <bsec2.h>
#include <WiFi.h>
#include <PubSubClient.h>


// Measuered by multimeter: 4,05 V
// Measured ADC: 2059 mV
// 4,05V / 2,059 V = 1,966974259349199 ==> 1,967
# define VoltageDivider 1.967

//#define uS_TO_S_FACTOR 1000000  /* Conversion factor for micro seconds to seconds */
//#define TIME_TO_SLEEP  120        /* Time ESP32 will go to sleep (in seconds) */

/* Macros used */
#define ERROR_DUR   1000
#define PRECISION   2
#define SIZE 16

#define JSON_BUFFER_SIZE 256

// Wifi Station Credentials
const char* ssid     = "Studienarbeit";
const char* password = "DHBW_2024";


IPAddress mqtt_server(192, 168, 12, 1);
const char* mqtt_username = "x";
const char* mqtt_password = "Budvar";
const char* clientID = "ESP32";

bool state = true;
bool changed = true;

void setup_wifi(void);
void checkBsecStatus(Bsec2 bsec);
void newDataCallback(const bme68xData data, const bsecOutputs outputs, Bsec2 bsec);
void reconnect(void);
void callback(char* topic, byte* payload, unsigned int length);
void send_data(char* topic, StringSumHelper data);

WiFiClient wifiClient;
PubSubClient client(wifiClient);

// Setup sensor...
Bsec2 envSensor;

typedef struct {
  int IAQ;
  int IAQstatic;
  int IAQaccuracy;
  float temperature;
  float pressure;
  float humidity;
  float co2equiv;
  float breathVOCequiv;
  float gas;
  float stabStatus;
  float runStatus;
} bme_data;

bme_data output_data;



void setup(void)
{

  // esp_sleep_enable_timer_wakeup(TIME_TO_SLEEP * uS_TO_S_FACTOR);
  //set the resolution to 12 bits (0-4096)
  analogReadResolution(12);

  /* Desired subscription list of BSEC2 outputs */
  bsecSensor sensorList[] = {
    BSEC_OUTPUT_IAQ,
    BSEC_OUTPUT_RAW_TEMPERATURE,
    BSEC_OUTPUT_RAW_PRESSURE,
    BSEC_OUTPUT_STATIC_IAQ,                             /*!< Unscaled indoor-air-quality estimate */
    BSEC_OUTPUT_CO2_EQUIVALENT,                         /*!< CO2 equivalent estimate [ppm] */
    BSEC_OUTPUT_BREATH_VOC_EQUIVALENT,                  /*!< Breath VOC concentration estimate [ppm] */
    BSEC_OUTPUT_RAW_HUMIDITY,
    BSEC_OUTPUT_RAW_GAS,
    BSEC_OUTPUT_STABILIZATION_STATUS,
    BSEC_OUTPUT_RUN_IN_STATUS
  };

    /* Initialize the communication interfaces */
    Serial.begin(115200);
    Wire.begin();

    /* Valid for boards with USB-COM. Wait until the port is open */
    while(!Serial)  {
      delay(10);
    }

    Serial.println("Serial connection successful\n");
    setup_wifi();

    client.setServer(mqtt_server, 1883);
    client.setCallback(callback);
    /* Initialize the library and interfaces */
    if (!envSensor.begin(BME68X_I2C_ADDR_HIGH, Wire)) {
      checkBsecStatus(envSensor);
      for(;;);
    }
    else {
      Serial.println("Initialize the library and interfaces successful\n");
    }

    /* Subsribe to the desired BSEC2 outputs */
    //#define BSEC_SAMPLE_RATE_ULP    (0.0033333f)    /*!< Sample rate in case of Ultra Low Power Mode */
    //#define BSEC_SAMPLE_RATE_CONT   (1.0f)          /*!< Sample rate in case of Continuous Mode */
    //#define BSEC_SAMPLE_RATE_LP     (0.33333f)      /*!< Sample rate in case of Low Power Mode */

    if (!envSensor.updateSubscription(sensorList, ARRAY_LEN(sensorList), BSEC_SAMPLE_RATE_ULP)) {
      checkBsecStatus(envSensor);
    }
    else {
      Serial.println("Subsribe to the desired BSEC2 outputs successful\n");
    }

    if (client.connect(clientID)) {
      if(!client.publish("airquality/general", "ESP connected")) Serial.println("Failed sending over mqtt");
    }
    /* Whenever new data is available call the newDataCallback function */
    envSensor.attachCallback(newDataCallback);

    Serial.println("BSEC library version " + \
            String(envSensor.version.major) + "." \
            + String(envSensor.version.minor) + "." \
            + String(envSensor.version.major_bugfix) + "." \
            + String(envSensor.version.minor_bugfix));

   }

void loop(void)
{
    /* Call the run function often so that the library can
     * check if it is time to read new data from the sensor
     * and process it.
     */
    if (!envSensor.run()) checkBsecStatus(envSensor);
    if (!client.connected()) {
      reconnect();
    }
    client.loop();
    if(state != changed){
      Serial.println("Sending data");

      send_data("airquality/temp", (output_data.temperature));
      send_data("airquality/press", (output_data.pressure));
      send_data("airquality/hum", (output_data.humidity));
      send_data("airquality/gas", (output_data.gas));

      send_data("airquality/IAQ", (output_data.IAQ));
      send_data("airquality/IAQaccuracy", (output_data.IAQaccuracy));
      send_data("airquality/IAQstatic", (output_data.IAQstatic));

      send_data("airquality/CO2equivalent", (output_data.co2equiv));
      send_data("airquality/breathVOCequivalent", (output_data.breathVOCequiv));

      send_data("airquality/stabStatus", (output_data.stabStatus));
      send_data("airquality/runStatus", (output_data.runStatus));

      // Read out battery level (Voltage) from voltage divider on GPIO2
      float batteryVoltageLevel = analogReadMilliVolts(2)*VoltageDivider;
      send_data("airquality/batteryLevel", (batteryVoltageLevel));

      // delay(1000);  // Delay 1s for WIFI Transimission (no packet loss)
      // esp_deep_sleep_start();

      changed = state;
    }

}

void newDataCallback(const bme68xData data, const bsecOutputs outputs, Bsec2 bsec)
{
    if (!outputs.nOutputs)  {
        return;
    }
    Serial.println("BSEC outputs:\n\ttimestamp = " + String((int) (outputs.output[0].time_stamp / INT64_C(1000000))));
    for (uint8_t i = 0; i < outputs.nOutputs; i++)  {
        const bsecData output  = outputs.output[i];
        switch (output.sensor_id) {
            case BSEC_OUTPUT_IAQ:
                Serial.println("\tIAQ = " + String(output.signal));
                output_data.IAQ = int(output.signal);
                Serial.println("\tiaq accuracy = " + String((int) output.accuracy));
                output_data.IAQaccuracy = int(output.accuracy);
                break;
            case BSEC_OUTPUT_RAW_TEMPERATURE:
                Serial.println("\ttemperature = " + String(output_data.temperature));
                output_data.temperature = float(output.signal);
                break;
            case BSEC_OUTPUT_RAW_PRESSURE:
                Serial.println("\tpressure = " + String(output_data.pressure));
                output_data.pressure = float(output.signal);
                break;
            case BSEC_OUTPUT_RAW_HUMIDITY:
                Serial.println("\thumidity = " + String(output_data.humidity));
                output_data.humidity = float(output.signal);
                break;
            case BSEC_OUTPUT_RAW_GAS:
                Serial.println("\tgas = " + String(output_data.gas));
                output_data.gas = float(output.signal);
                break;
            case BSEC_OUTPUT_STABILIZATION_STATUS:
                Serial.println("\tstabilization status = " + String(output.signal));
                output_data.stabStatus = float(output.signal);
                break;
            case BSEC_OUTPUT_RUN_IN_STATUS:
                Serial.println("\trun in status = " + String(output.signal));
                output_data.runStatus = float(output.signal);
                break;
            case BSEC_OUTPUT_STATIC_IAQ:
                Serial.println("\tstatic IAQ = " + String(output.signal));
                output_data.IAQstatic = float(output.signal);
                break;
            case BSEC_OUTPUT_CO2_EQUIVALENT:
                Serial.println("\tCO2 equivalent [ppm] = " + String(output.signal));
                output_data.co2equiv = float(output.signal);
                break;
            case BSEC_OUTPUT_BREATH_VOC_EQUIVALENT:
                Serial.println("\tBreath VOC equivalent [ppm] = " + String(output.signal));
                output_data.breathVOCequiv = float(output.signal);
                break;
            default:
                break;
        }
    }
    state = !state;
}

void checkBsecStatus(Bsec2 bsec)
{
    if (bsec.status < BSEC_OK)  {
        Serial.println("BSEC error code: " + String(bsec.status));
    }
    else if (bsec.status > BSEC_OK) {
        Serial.println("BSEC warning code: " + String(bsec.status));
    }
    if (bsec.sensor.status < BME68X_OK) {
        Serial.println("BME68X error code: " + String(bsec.sensor.status));
    }
    else if (bsec.sensor.status > BME68X_OK)  {
        Serial.println("BME68X warning code: " + String(bsec.sensor.status));
    }
}

void setup_wifi(){
  /*
   * From https://blog.byschiller.de/tutorials/esp32/mqtt-getting-started
   */
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  // connection to WIFi Network
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
      delay(500);
      Serial.print(".");
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
  Serial.println("MAC address: ");
  Serial.println(WiFi.macAddress());
}

void callback(char* topic, byte* payload, unsigned int length) {
    /*
     * ESP should only publish, not receive
     */
}

void reconnect() {
  /* Loop until we're reconnected */
  while (!client.connected()) {
    Serial.print("Attempting MQTT connection...");
    // Attempt to connect
    if (client.connect("arduinoClient")) {
      Serial.println("connected");
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      // Wait 5 seconds before retrying
      delay(5000);
    }
  }
}


void send_data(const char* topic, float output_data)  {
  char buffer[SIZE+1];
  sprintf(buffer, "%f", output_data);
  if (!client.publish(topic, (buffer))) {
    Serial.println("Failed sending over mqtt");
  }
}

/**
 * Copyright (C) 2021 Bosch Sensortec GmbH
 *
 * SPDX-License-Identifier: BSD-3-Clause
 *
 */

/*******************************************************************************
** Author:	Luka Kustura, Thilo Danner
** Date:	  22.03.2024
** Purpose: Deploy the neuronal network - Sensor BME688 from Bosch Sensortec
**          Differ between normal air and coffee beans
*******************************************************************************/


/**
 * basic_config_state.ino sketch :
 * This is an example for integration of BSEC2x library using configuration setting and has been
 * tested with Adafruit ESP8266 Board
 *
 * For quick integration test, example code can be used with configuration file under folder
 * Bosch_BSEC2_Library/src/config/FieldAir_HandSanitizer (Configuration file added as simple
 * code example for integration but not optimized on classification performance)
 * Config string for H2S and NonH2S target classes is also kept for reference (Suitable for
 * lab-based characterization of the sensor)
 */


#include <bsec2.h>
#define CLASSIFICATION	1
/* Note :
          For the classification output from BSEC algorithm set OUTPUT_MODE macro to CLASSIFICATION.
*/
#define OUTPUT_MODE CLASSIFICATION

const uint8_t bsec_config[2063] = {
  2,0,5,2,189,1,0,0,0,0,0,0,247,7,0,0,176,0,1,0,0,168,19,73,64,49,119,76,0,0,97,69,0,0,97,69,137,65,0,191,205,204,204,
  190,0,0,64,191,225,122,148,190,10,0,3,0,0,0,96,64,23,183,209,56,0,0,0,0,0,0,0,0,0,0,0,0,205,204,204,189,0,0,0,0,0,0,0,
  0,0,0,128,63,0,0,0,0,0,0,128,63,0,0,0,0,0,0,0,0,0,0,128,63,0,0,0,0,0,0,128,63,0,0,0,0,0,0,0,0,0,0,128,63,0,0,0,0,0,0,
  128,63,82,73,157,188,95,41,203,61,118,224,108,63,155,230,125,63,191,14,124,63,0,0,160,65,0,0,32,66,0,0,160,65,0,0,32,
  66,0,0,32,66,0,0,160,65,0,0,32,66,0,0,160,65,8,0,2,0,0,0,72,66,16,0,3,0,10,215,163,60,10,215,35,59,10,215,35,59,13,0,
  5,0,0,0,0,0,100,254,131,137,87,88,0,9,0,7,240,150,61,0,0,0,0,0,0,0,0,28,124,225,61,52,128,215,63,0,0,160,64,0,0,0,0,0,
  0,0,0,205,204,12,62,103,213,39,62,230,63,76,192,0,0,0,0,0,0,0,0,145,237,60,191,251,58,64,63,177,80,131,64,0,0,0,0,0,0,
  0,0,93,254,227,62,54,60,133,191,0,0,64,64,12,0,10,0,0,0,0,0,0,0,0,0,45,5,11,0,0,0,2,15,132,6,63,126,206,143,62,12,40,250,
  59,213,1,163,190,50,249,179,190,216,97,189,61,228,51,60,190,209,201,141,62,77,29,76,62,22,94,143,62,29,160,74,190,243,139,
  189,62,0,0,0,0,90,240,71,190,230,122,143,190,216,212,251,189,0,0,0,0,159,10,105,62,193,38,24,63,220,1,134,190,181,52,193,
  62,181,52,193,190,0,0,0,0,0,0,0,0,220,185,111,189,231,85,76,63,190,145,112,60,43,122,7,191,174,8,16,191,81,12,60,191,22,
  253,102,62,51,6,162,62,232,174,137,191,8,106,252,190,84,93,228,190,133,75,250,62,81,142,73,191,82,240,38,191,198,125,182,
  189,70,209,24,191,197,181,220,190,1,216,157,62,24,14,90,191,201,139,221,189,87,92,74,190,32,205,20,63,43,101,55,190,14,0,
  164,190,46,215,114,61,151,208,209,59,46,223,220,188,221,251,161,62,5,125,3,191,193,28,116,60,7,242,124,188,81,173,29,190,
  232,67,80,190,47,98,193,190,14,255,23,191,91,14,232,189,3,211,139,190,63,33,191,189,249,34,157,190,39,185,0,62,53,67,47,
  191,216,158,98,62,157,17,182,62,243,233,151,187,47,206,75,190,237,199,9,188,153,195,127,190,178,124,139,188,13,169,107,
  61,201,46,252,62,87,181,4,191,187,99,38,62,168,190,243,62,101,156,209,62,172,85,181,188,73,150,10,63,159,169,234,190,193,
  110,201,62,227,195,62,62,210,100,185,62,32,202,54,62,162,229,182,189,184,197,39,61,202,234,233,62,22,0,9,63,143,223,124,61,
  136,138,24,62,87,62,108,62,221,236,50,63,172,177,176,62,18,139,172,190,244,185,249,190,30,163,193,61,230,242,244,61,111,81,
  152,190,123,126,211,62,157,244,164,62,167,168,121,62,5,78,168,62,148,160,165,62,20,149,28,190,146,102,118,61,208,85,39,190,
  3,21,163,189,112,129,151,62,101,141,41,190,220,61,4,62,21,169,62,62,164,188,60,63,11,87,40,188,176,173,179,190,122,254,152,
  188,25,92,12,62,63,235,165,189,97,162,166,58,18,212,85,62,98,75,85,190,26,226,66,62,87,25,180,62,243,156,91,63,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,94,208,195,188,107,20,
  43,63,149,216,239,190,85,119,2,60,105,76,153,62,187,196,149,189,153,43,33,190,187,174,93,190,57,79,7,63,126,211,31,62,5,96,129,
  190,91,26,65,63,101,40,185,190,156,240,221,190,229,253,212,189,197,43,170,190,83,184,47,190,219,252,125,62,148,91,246,62,135,
  163,46,190,17,116,109,63,189,150,160,190,41,81,202,62,48,17,204,62,149,120,52,63,116,66,166,62,53,128,66,190,132,227,81,
  190,172,154,151,190,151,100,90,63,153,16,73,62,254,179,238,189,14,15,148,190,25,71,21,61,193,112,0,62,132,167,40,63,197,
  18,244,189,25,58,123,62,125,206,181,190,120,37,124,62,76,8,39,63,156,95,153,188,16,91,158,190,201,222,37,63,245,38,217,62,
  82,186,8,62,181,142,239,190,96,255,16,62,253,72,40,190,185,158,25,62,188,114,128,63,189,52,136,62,100,163,149,190,171,64,
  118,63,37,156,205,62,128,201,23,63,94,123,92,61,49,64,93,62,112,200,237,190,143,93,188,62,207,122,139,62,214,103,100,190,
  54,132,154,188,190,207,23,62,43,49,177,190,71,47,165,62,133,187,120,190,220,95,29,190,223,151,27,61,187,41,19,62,72,252,26,
  190,166,134,9,188,239,75,158,190,71,251,185,189,90,127,144,61,138,188,178,61,22,84,125,190,57,174,166,62,44,173,113,62,30,
  20,160,61,63,213,84,63,91,30,131,62,166,172,111,190,154,114,121,63,30,188,29,63,153,254,99,63,133,189,142,188,107,150,250,
  190,183,89,126,191,189,91,30,63,26,73,244,62,254,95,51,190,50,245,170,60,225,42,29,63,10,131,61,62,59,197,142,62,25,184,211,
  189,82,130,212,61,192,18,98,62,166,83,140,62,12,92,24,191,131,58,50,63,0,0,0,0,0,0,0,0,186,220,249,189,136,12,46,191,0,0,0,
  0,0,0,0,0,27,218,207,189,232,188,168,62,0,0,0,0,0,0,0,0,171,68,52,191,103,55,174,62,0,0,0,0,0,0,0,0,128,128,239,190,104,33,
  165,62,0,0,0,0,0,0,0,0,164,38,83,191,66,116,79,63,0,0,0,0,0,0,0,0,56,200,245,62,68,206,192,190,0,0,0,0,0,0,0,0,59,191,59,63,
  152,122,21,191,0,0,0,0,0,0,0,0,148,220,158,62,81,229,132,191,0,0,0,0,0,0,0,0,17,169,249,190,20,157,138,63,0,0,0,0,0,0,0,0,
  10,10,2,96,128,227,74,143,79,143,71,114,143,209,72,43,244,78,71,206,24,40,72,144,157,5,72,158,60,237,71,204,111,73,71,7,226,
  11,72,144,109,36,72,0,0,0,0,0,0,0,0,0,0,0,0,19,175,129,74,63,162,182,70,3,220,62,72,198,206,88,70,227,241,82,71,61,22,35,71,
  3,21,10,71,0,70,48,70,85,81,203,70,3,140,254,70,0,0,128,63,0,0,128,63,0,0,128,63,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
  0,0,0,0,0,0,0,0,0,0,0,0,0,145,1,254,0,2,1,5,48,117,100,0,44,1,112,23,151,7,132,3,197,0,92,4,144,1,64,1,64,1,144,1,48,117,48,
  117,48,117,48,117,100,0,100,0,100,0,48,117,48,117,48,117,100,0,100,0,48,117,48,117,8,7,8,7,8,7,8,7,8,7,8,7,8,7,8,7,8,7,100,0,
  100,0,100,0,100,0,48,117,48,117,48,117,100,0,100,0,100,0,48,117,48,117,100,0,100,0,255,255,255,255,255,255,255,255,255,255,255,
  255,255,255,255,255,255,255,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,44,1,255,255,255,255,255,255,255,
  255,255,255,255,255,255,255,255,255,255,255,112,23,112,23,112,23,112,23,8,7,8,7,8,7,8,7,112,23,112,23,112,23,112,23,112,23,112,
  23,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,112,23,112,23,112,23,
  112,23,255,255,255,255,220,5,220,5,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,
  255,255,255,255,255,255,255,220,5,220,5,220,5,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,
  255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,
  255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,255,48,117,0,1,0,64,0,2,0,64,0,
  2,0,2,0,31,0,32,0,2,0,31,0,32,0,100,0,64,1,170,0,64,1,240,0,240,0,240,0,64,1,64,1,64,1,10,1,0,0,0,0,0,35,175,0,0
};

/* Macros used */
#define STATE_SAVE_PERIOD UINT32_C(360 * 60 * 1000) /* 360 minutes - 4 times a day */
#define ERROR_DUR 1000

/**
 * @brief : This function checks the BSEC status, prints the respective error code. Halts in case of error
 * @param[in] bsec  : Bsec2 class object
 */
void checkBsecStatus(Bsec2 bsec);

/**
 * @brief : This function updates/saves BSEC state
 * @param[in] bsec  : Bsec2 class object
 */
void updateBsecState(Bsec2 bsec);

/**
 * @brief : This function is called by the BSEC library when a new output is available
 * @param[in] input     : BME68X sensor data before processing
 * @param[in] outputs   : Processed BSEC BSEC output data
 * @param[in] bsec      : Instance of BSEC2 calling the callback
 */
void newDataCallback(const bme68xData data, const bsecOutputs outputs, Bsec2 bsec);

/**
 * @brief : This function retrieves the existing state
 * @param : Bsec2 class object
 */
bool loadState(Bsec2 bsec);

/**
 * @brief : This function writes the state into EEPROM
 * @param : Bsec2 class object
 */
bool saveState(Bsec2 bsec);

/* Create an object of the class Bsec2 */
Bsec2 envSensor;
#ifdef USE_EEPROM
static uint8_t bsecState[BSEC_MAX_STATE_BLOB_SIZE];
#endif
/* Gas estimate names will be according to the configuration classes used */
const String gasName[] = { "Field Air", "Hand sanitizer", "Undefined 3", "Undefined 4"};

/* Entry point for the example */
void setup(void)
{
#if (OUTPUT_MODE == CLASSIFICATION)
  /* Desired subscription list of BSEC2 outputs */
    bsecSensor sensorList[] = {
            BSEC_OUTPUT_RAW_TEMPERATURE,
            BSEC_OUTPUT_RAW_PRESSURE,
            BSEC_OUTPUT_RAW_HUMIDITY,
            BSEC_OUTPUT_RAW_GAS,
            BSEC_OUTPUT_RAW_GAS_INDEX,
            BSEC_OUTPUT_GAS_ESTIMATE_1,
            BSEC_OUTPUT_GAS_ESTIMATE_2,
            BSEC_OUTPUT_GAS_ESTIMATE_3,
            BSEC_OUTPUT_GAS_ESTIMATE_4
    };
#elif (OUTPUT_MODE == REGRESSION)
	/* Desired subscription list of BSEC2 outputs */
    bsecSensor sensorList[] = {
            BSEC_OUTPUT_RAW_TEMPERATURE,
            BSEC_OUTPUT_RAW_PRESSURE,
            BSEC_OUTPUT_RAW_HUMIDITY,
            BSEC_OUTPUT_RAW_GAS,
            BSEC_OUTPUT_RAW_GAS_INDEX,
            BSEC_OUTPUT_REGRESSION_ESTIMATE_1,
            BSEC_OUTPUT_REGRESSION_ESTIMATE_2,
            BSEC_OUTPUT_REGRESSION_ESTIMATE_3,
            BSEC_OUTPUT_REGRESSION_ESTIMATE_4
    };
#endif

    Serial.begin(115200);

  #ifdef USE_EEPROM
    EEPROM.begin(BSEC_MAX_STATE_BLOB_SIZE + 1);
  #endif
    Wire.begin();
    /* Valid for boards with USB-COM. Wait until the port is open */
    while (!Serial) delay(10);

    /* Initialize the library and interfaces */
    if (!envSensor.begin(BME68X_I2C_ADDR_LOW, Wire))  {
        checkBsecStatus(envSensor);
    }
    /* Load the configuration string that stores information on how to classify the detected gas */
    if (!envSensor.setConfig(bsec_config))  {
      checkBsecStatus (envSensor);
    }
    /* Copy state from the EEPROM to the algorithm */
    if (!loadState(envSensor))  {
      checkBsecStatus (envSensor);
    }
    /* Subscribe for the desired BSEC2 outputs */
    if (!envSensor.updateSubscription(sensorList, ARRAY_LEN(sensorList), BSEC_SAMPLE_RATE_SCAN))  {
      checkBsecStatus (envSensor);
    }
    /* Whenever new data is available call the newDataCallback function */
    envSensor.attachCallback(newDataCallback);
    Serial.println("\nBSEC library version " + \
            String(envSensor.version.major) + "." \
            + String(envSensor.version.minor) + "." \
            + String(envSensor.version.major_bugfix) + "." \
            + String(envSensor.version.minor_bugfix));
}

/* Function that is looped forever */
void loop(void)
{
    /* Call the run function often so that the library can
     * check if it is time to read new data from the sensor
     * and process it.
     */
    if (!envSensor.run()) {
        checkBsecStatus (envSensor);
    }
}


void updateBsecState(Bsec2 bsec)
{
    static uint16_t stateUpdateCounter = 0;
    bool update = false;
    if (!stateUpdateCounter || (stateUpdateCounter * STATE_SAVE_PERIOD) < millis()) {
        /* Update every STATE_SAVE_PERIOD minutes */
        update = true;
        stateUpdateCounter++;
    }
    if (update && !saveState(bsec))
        checkBsecStatus(bsec);
}

void newDataCallback(const bme68xData data, const bsecOutputs outputs, Bsec2 bsec)
{
    if (!outputs.nOutputs)
        return;
    Serial.println("BSEC outputs:\n\ttimestamp = " + String((int) (outputs.output[0].time_stamp / INT64_C(1000000))));
    uint8_t index = 0;
    for (uint8_t i = 0; i < outputs.nOutputs; i++)  {
      const bsecData output  = outputs.output[i];
      switch (output.sensor_id) {
            case BSEC_OUTPUT_RAW_TEMPERATURE:
                Serial.println("\ttemperature = " + String(output.signal));
                break;
            case BSEC_OUTPUT_RAW_PRESSURE:
                Serial.println("\tpressure = " + String(output.signal));
                break;
            case BSEC_OUTPUT_RAW_HUMIDITY:
                Serial.println("\thumidity = " + String(output.signal));
                break;
            case BSEC_OUTPUT_RAW_GAS:
                Serial.println("\tgas resistance = " + String(output.signal));
                break;
            case BSEC_OUTPUT_RAW_GAS_INDEX:
                Serial.println("\tgas index = " + String(output.signal));
                break;
            case BSEC_OUTPUT_SENSOR_HEAT_COMPENSATED_TEMPERATURE:
                Serial.println("\tcompensated temperature = " + String(output.signal));
                break;
            case BSEC_OUTPUT_SENSOR_HEAT_COMPENSATED_HUMIDITY:
                Serial.println("\tcompensated humidity = " + String(output.signal));
                break;
            case BSEC_OUTPUT_GAS_ESTIMATE_1:
            case BSEC_OUTPUT_GAS_ESTIMATE_2:
            case BSEC_OUTPUT_GAS_ESTIMATE_3:
            case BSEC_OUTPUT_GAS_ESTIMATE_4:
                index = (output.sensor_id - BSEC_OUTPUT_GAS_ESTIMATE_1);
                if (index == 0) // The four classes are updated from BSEC with same accuracy, thus printing is done just once.
                {
                  Serial.println("\taccuracy = " + String(output.accuracy));
                }
                Serial.println("\tclass " + String(index + 1) + " probability : " + String(output.signal * 100) + "%");
                break;
            default:
                break;
        }
    }
    updateBsecState(envSensor);
}

void checkBsecStatus(Bsec2 bsec)
{
    if (bsec.status < BSEC_OK)  {
        Serial.println("BSEC error code : " + String(bsec.status));
    } else if (bsec.status > BSEC_OK) {
        Serial.println("BSEC warning code : " + String(bsec.status));
    }
    if (bsec.sensor.status < BME68X_OK) {
        Serial.println("BME68X error code : " + String(bsec.sensor.status));
    } else if (bsec.sensor.status > BME68X_OK)  {
        Serial.println("BME68X warning code : " + String(bsec.sensor.status));
    }
}

bool loadState(Bsec2 bsec)
{
#ifdef USE_EEPROM
    if (EEPROM.read(0) == BSEC_MAX_STATE_BLOB_SIZE)
    {
        /* Existing state in EEPROM */
        Serial.println("Reading state from EEPROM");
        Serial.print("State file: ");
        for (uint8_t i = 0; i < BSEC_MAX_STATE_BLOB_SIZE; i++)
        {
            bsecState[i] = EEPROM.read(i + 1);
            Serial.print(String(bsecState[i], HEX) + ", ");
        }
        Serial.println();

        if (!bsec.setState(bsecState))
            return false;
    } else
    {
        /* Erase the EEPROM with zeroes */
        Serial.println("Erasing EEPROM");

        for (uint8_t i = 0; i <= BSEC_MAX_STATE_BLOB_SIZE; i++)
            EEPROM.write(i, 0);

        EEPROM.commit();
    }
#endif
    return true;
}

bool saveState(Bsec2 bsec)
{
#ifdef USE_EEPROM
    if (!bsec.getState(bsecState))
        return false;

    Serial.println("Writing state to EEPROM");
    Serial.print("State file: ");

    for (uint8_t i = 0; i < BSEC_MAX_STATE_BLOB_SIZE; i++)
    {
        EEPROM.write(i + 1, bsecState[i]);
        Serial.print(String(bsecState[i], HEX) + ", ");
    }
    Serial.println();

    EEPROM.write(0, BSEC_MAX_STATE_BLOB_SIZE);
    EEPROM.commit();
#endif
    return true;
}

Credits

Sauna Buddy

1 project • 0 followers

Contact

Sauna Buddy

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Introduction

1) Hardware

2) Software

2.1) Bosch Library

2.2) Arduino Firmware

2.3) Network

3) Record sensor data for training neural net

3.1) Test setup

3.2) Training the neural network in BME AI Studio

3.3) Deploy the neural network to the BME688

4) Further challenges

Custom parts and enclosures

Case

Case Closure

Code

Docker compose

BME688_ESP32-C3 Sensor data to MQTT Broker

Bash script for starting data record

Deploy AI model to the µC

Credits

Sauna Buddy

Jan R. Seyler

Comments

Embed the widget on your own site

Sauna Buddy

Sauna Buddy

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

Introduction

1) Hardware

2) Software

2.1) Bosch Library

2.2) Arduino Firmware

2.3) Network

3) Record sensor data for training neural net

3.1) Test setup

3.2) Training the neural network in BME AI Studio

3.3) Deploy the neural network to the BME688

4) Further challenges

Custom parts and enclosures

Case

Case Closure

Code

Docker compose

BME688_ESP32-C3 Sensor data to MQTT Broker

Bash script for starting data record

Deploy AI model to the µC

Credits

Sauna Buddy

Jan R. Seyler

Comments

Related channels and tags
