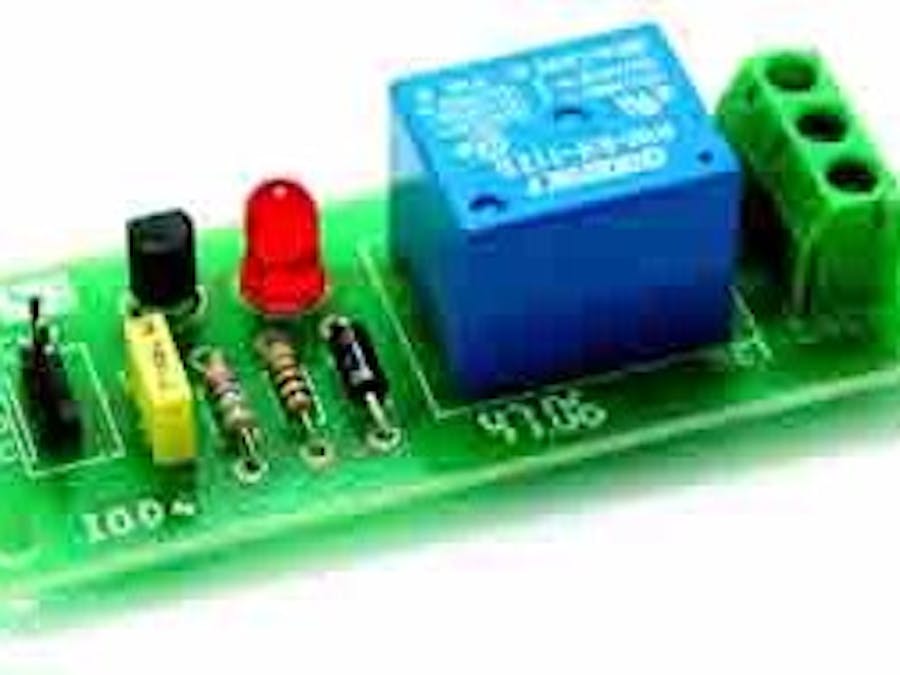

Fabricate Your Own 1-channel Relay

Specifications:

• Input – 12 VDC @ 42 mA

• Output – SPDT relay

• Relay specification – 5 A @ 230 VAC

• Trigger level – 2 ~ 15 VDC

• Header pins for connecting power and trigger voltage

• LED indicates relay status

• Power Battery Terminal (PBT) for easy relay output connection

• Four mounting holes of 3.2 mm each

• PCB dimensions 27 mm x 69 mm
