Enhancing Tamper Protection with Secure PI SP2301

Introduction

In an era where electronic devices are increasingly interconnected and entrusted with sensitive data, ensuring their physical security against tampering is more critical than ever. Tamper protection is a cornerstone of device integrity, safeguarding against unauthorized access, theft, and malicious modifications. The Secure PI SP2301 stands out as a versatile solution designed to address these challenges, offering a comprehensive suite of features tailored for modern security needs. From its Linux-based architecture to its innovative tamper detection pins, SP2301 provides a powerful platform for building resilient systems that can detect and respond to physical intrusion attempts in real time. This article explores how the SP2301 enhances tamper protection and outlines its transformative impact across various industries and applications.

Key Features of Secure PI SP2301

Secure PI SP2301 is a Linux-based module designed with a focus on security, integration, and performance. It offers a suite of features that make it highly effective for building tamper protection systems:

• Linux-Based Operating System: The use of a Linux OS provides a stable, secure, and versatile platform for developing complex security algorithms and integrating various software and hardware components.
• Built-in Security Features: SP2301 includes hardware-supported cryptographic functions, secure boot capabilities, and specialized tamper detection pins that can connect directly to physical sensors for real-time tamper monitoring.
• High Performance: Equipped with powerful processing capabilities, SP2301 can handle multiple security tasks simultaneously, ensuring that tamper detection and response mechanisms operate efficiently without lag.

Advantages of Using Secure PI SP2301 for Tamper Protection Devices

Tamper pins are crucial to the Secure PI solution, providing real-time detection of physical tampering and triggering swift security responses like alarms or data erasure. By enabling continuous monitoring and integration with protective grids, they ensure the integrity and security of the system.

1. Disassembly Detection Enhancement:

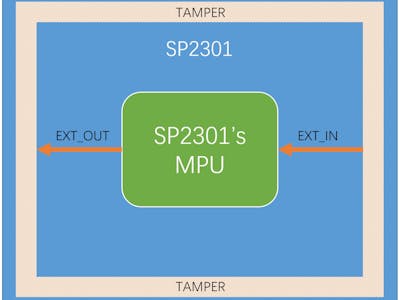

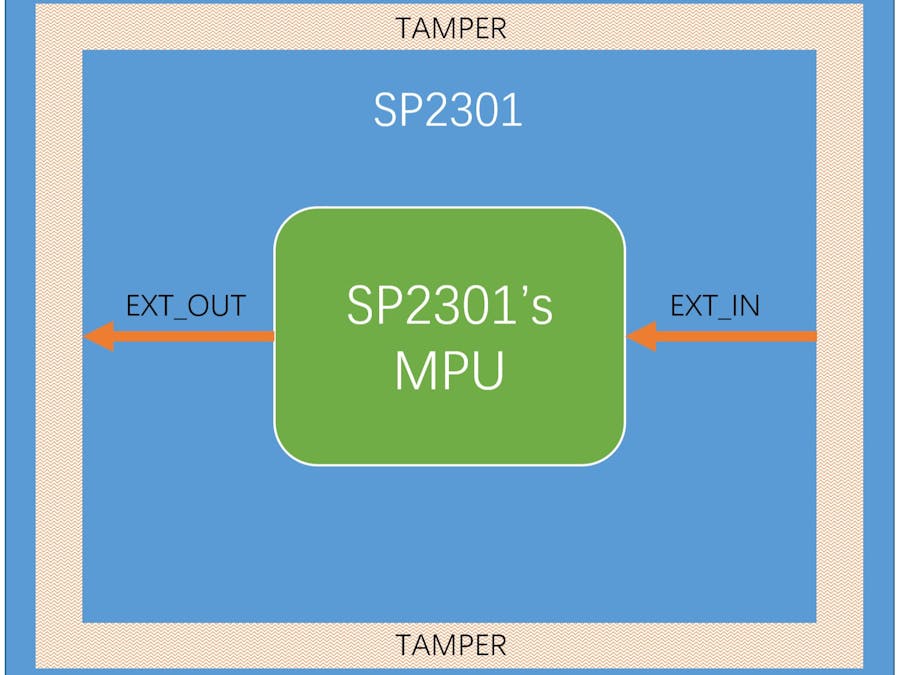

• Leverage SP2301's tamper detection pins to create a protective grid akin to SP2301 MCU’s EXT_OUT and EXT_IN configuration.
• Design a physical mesh or a conductive grid wrapped around the device to monitor integrity. When connected, the tamper pins would transmit a signal, ensuring continuity.
• Interruptions in signal flow (detected within a pre-defined time frame) would indicate potential disassembly or tampering attempts.

2. Intrusion Response Capabilities:

• Alarm Triggering: Immediately activate audio-visual alerts or send a notification to a monitoring system upon tamper detection.Secure Data Erasure:
• Use SP2301’s secure boot and cryptographic features to wipe sensitive information stored in Battery-Protected Memory (BBRAM) or similar secure memory areas.
• Device Self-Destruction: Implement controlled self-destruction measures (e.g., disable device functionality or physically damage sensitive data) to prevent data theft or unauthorized usage.
• System Lockdown: Activate mechanisms to lock the device, rendering it inoperable until manually reset by authorized personnel.

3. Random Data Verification for Enhanced Protection:

• SP2301 use of random numbers for tamper verification. Generate a random sequence using a true random number generator (RNG) and send it via tamper pins.
• Validate the receipt of this sequence within a fixed interval. Any mismatch or absence of response can trigger an intrusion response.

4. Multi-Zone Tamper Detection:

• Allow for multiple tamper zones by utilizing additional tamper pins. This supports complex device geometries where various parts need independent monitoring.

5. Integration with SP2301 Features:

• Use the Linux-based architecture to implement advanced algorithms for intrusion detection and response.
• Enable real-time logging and remote alert mechanisms via built-in secure communication protocols.

Conclusion

The Secure PI SP2301 redefines tamper protection by integrating advanced features such as disassembly detection, responsive intrusion mechanisms, and dynamic signal verification. With its Linux-based architecture and tamper detection pins, the module offers real-time monitoring, secure data erasure, system lockdown, and scalability for diverse applications, from consumer electronics to industrial control systems. By providing a cost-effective, customizable, and robust security framework, SP2301 ensures device integrity and protects sensitive information against physical threats, making it an essential solution for modern hardware security in an increasingly interconnected and vulnerable world.
