Description
My design for a nano hexcopter with a firmware upgrade to carry more payload for more application.
Details

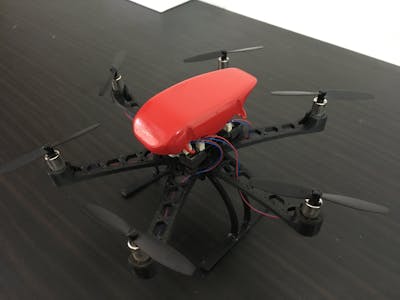

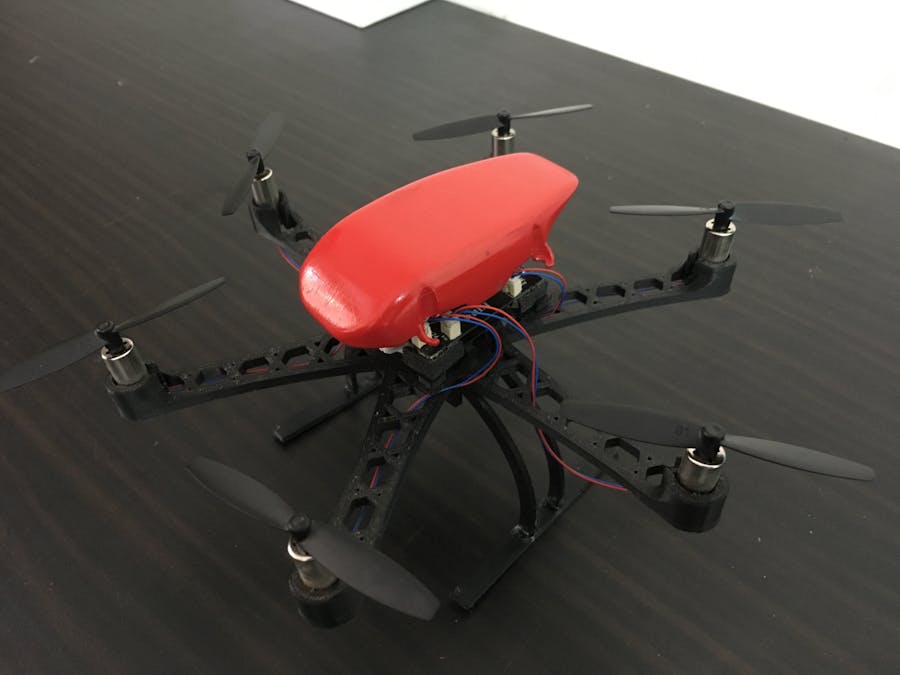

I 3D printed a frame of a hexcopter that I designed on Autodesk Fusion 360 . Its 170mm across motor to motor.
The setup is that of a brushed nanao quad with 8mm motors and 65mm props.
Its controlled by the PlutoX PCB . The firmware was made on their API based SDK called Cygnus IDE.
This copter is powered by a 750 mah , single cell lipo battery with a high C rating of 45 .
The hex was also designed with longer landing gear to have space to carry on the under-belly of the craft.
The material used for the print was PLA on an MK2 Prusa printer.
To open drone experimentation to the world, Drona Aviation is crowdfunding for PlutoX on Indiegogo. Support them and help them bring it to life: https://igg.me/at/flyplutox/tinkerers
