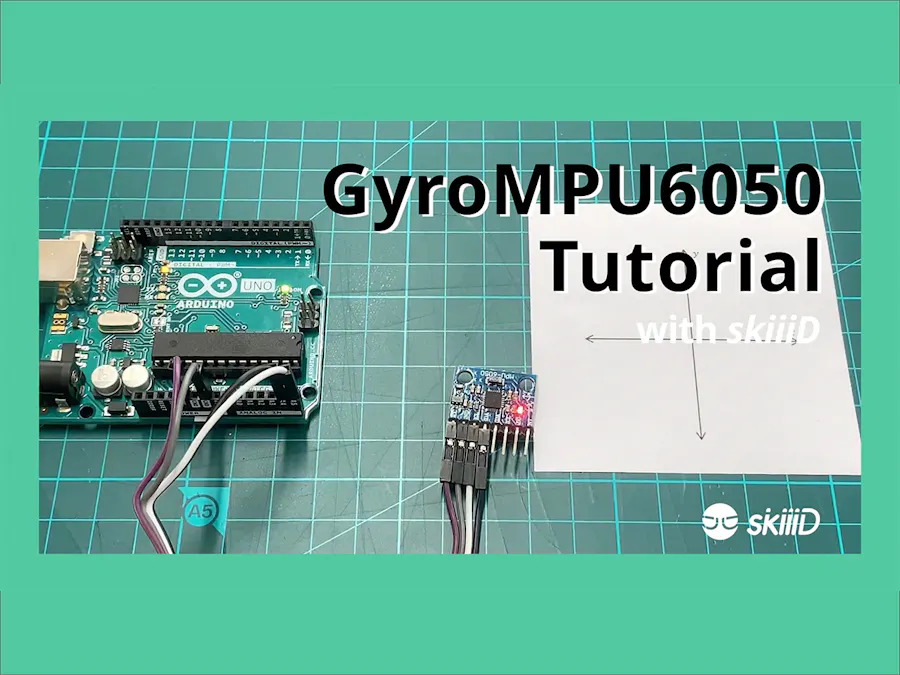

How to Use Gyro Sensor MPU6050 with "skiiiD"

Before start, there is a basic tutorial for how to use skiiiD

https://www.hackster.io/skiiid/getting-started-with-skiiid-editor-f69b5d

Launch skiiiD and select Arduino UNO

#1 Launch skiiiD and select New button

#2 Select ①Arduino Uno and then click ②OK button

Add Gyro Sensor Component

#1 Click '+' (Add Component Button) to search and select the component.

#2 ① search GyrosensorModule on thesearch bar and

#3②Click GyroModule,

#4 then you can see ③ pin indication. (You can configure it.)

#5 ④ click ADD button

#6⑤Added Modulehas appeared on right pane on the editor page.

Nine Functions of Gyro Sensor

getAccelX() - Get Acceleration value of X-axis
getAccelY() - Get Acceleration value of Y-axis
getAccelZ() - Get Acceleration value of Z-axis
getGyroX() - Get Gyro value of X-axis
getGyroY() - Get Gyro value of Y-axis
getGyroZ() - Get Gyro value of Z-axis
getAngleX() - Get Angle of X-axis
getAngleY() - Get Angle of Y-axis
getAngleZ() - Get Angle of Z-axis

Contact and Feedback

We are working on components and boards libraries. Feel free to use it and welcome to feedback. Below is contact methods

email: contact@skiiid.io

twitter: https://twitter.com/skiiiD_official

Facebook: https://www.facebook.com/enterphin

or visit https://skiiid.io/contact/ and go to Need help tab.

Comments are fine too!
