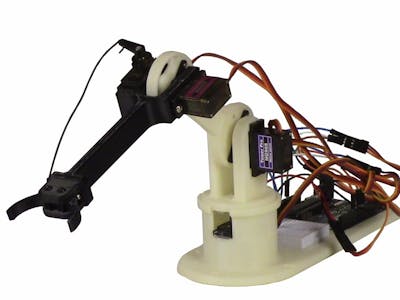

Control LittleArm Arduino Robot with Windows Application

#include <Servo.h>  //arduino library
#include <math.h>   //standard c library

#define PI 3.141

Servo baseServo;
Servo shoulderServo;
Servo elbowServo;
Servo gripperServo;

int command;

struct jointAngle{
  int base;
  int shoulder;
  int elbow;
};

int desiredGrip;
int gripperPos;

int desiredDelay;

int servoSpeed = 15;
int ready = 0;

struct jointAngle desiredAngle; //desired angles of the servos

//+++++++++++++++FUNCTION DECLARATIONS+++++++++++++++++++++++++++

int servoParallelControl (int thePos, Servo theServo );
//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

void setup()
{
  Serial.begin(9600);
  baseServo.attach(9);        // attaches the servo on pin 9 to the servo object
  shoulderServo.attach(10);
  elbowServo.attach(11);
  gripperServo.attach(6);

  Serial.setTimeout(50);      //ensures the the arduino does not read serial for too long
  Serial.println("started");
  baseServo.write(90);        //intial positions of servos
  shoulderServo.write(150);
  elbowServo.write(110);
  ready = 0;
}

//primary arduino loop
void loop()
{
  if (Serial.available()){
    ready = 1;
    desiredAngle.base = Serial.parseInt();
    desiredAngle.shoulder = Serial.parseInt();
    desiredAngle.elbow = Serial.parseInt();
    desiredGrip = Serial.parseInt();
    desiredDelay = Serial.parseInt();

    if(Serial.read() == '\n'){               // if the last byte is 'd' then stop reading and execute command 'd' stands for 'done'

        Serial.flush();                     //clear all other commands piled in the buffer
          //send completion of the command
        Serial.print('d');
    }
  }

  int status1 = 0;
  int status2 = 0;
  int status3 = 0;
  int status4 = 0;
  int done = 0 ;

  while(done == 0 && ready == 1){
    //move the servo to the desired position
    status1 = servoParallelControl(desiredAngle.base, baseServo, desiredDelay);
    status2 = servoParallelControl(desiredAngle.shoulder,  shoulderServo, desiredDelay);
    status3 = servoParallelControl(desiredAngle.elbow, elbowServo, desiredDelay);
    status4 = servoParallelControl(desiredGrip, gripperServo, desiredDelay);

    if (status1 == 1 & status2 == 1 & status3 == 1 & status4 == 1){
      done = 1;

    }

  }// end of while




}

//++++++++++++++++++++++++++++++FUNCTION DEFITNITIONS++++++++++++++++++++++++++++++++++++++++++

int servoParallelControl (int thePos, Servo theServo, int theSpeed ){

    int startPos = theServo.read();        //read the current pos
    int newPos = startPos;
    //int theSpeed = speed;

    //define where the pos is with respect to the command
    // if the current position is less that the actual move up
    if (startPos < (thePos-5)){

       newPos = newPos + 1;
       theServo.write(newPos);
       delay(theSpeed);
       return 0;

    }

   else if (newPos > (thePos + 5)){

      newPos = newPos - 1;
      theServo.write(newPos);
      delay(theSpeed);
      return 0;

    }

    else {
        return 1;
    }


}
