Capstone project using iot

Capstone project to give message of the exceeding temperature alert using iot of the fridge or any room and there be a email alert for temp

BeginnerProtip4 hours63
Capstone project using iot

Things used in this project

Hardware components

Bolt WiFi Module
Bolt IoT Bolt WiFi Module
×1
3 female to male wires
×1
lm35 temperature sensor
×1
data cable and adapter
×1

Software apps and online services

digital ocean server
mailgun server
For generating email from the server to the users email id when thereshold temperature range is exceeded or deceeded
SMS Messaging API
Twilio SMS Messaging API

Hand tools and fabrication machines

laptop

Story

Read more

Schematics

Circuit

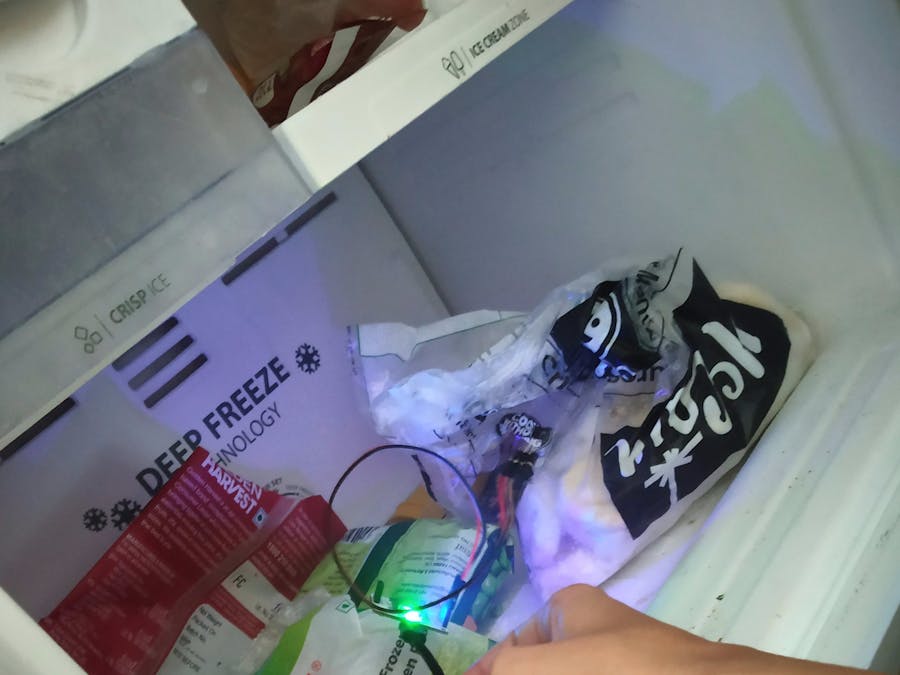

Fridge circuit

Graph of anomaly

Runtime picture of mailgun

Code

Twillo

JavaScript
SID = 'You can find SID in your Twilio Dashboard'
AUTH_TOKEN = 'You can find  on your Twilio Dashboard'
FROM_NUMBER = 'This is the no. generated by Twilio. You can find this on your Twilio Dashboard'
TO_NUMBER = 'This is your number. Make sure you are adding +91 in beginning'
API_KEY = 'This is your Bolt Cloud accout API key'
DEVICE_ID = 'This is the ID of your Bolt device'

Regression code of product

JavaScript
setChartLibrary('google-chart');
setChartTitle('Polynomial Regression');
setChartType('predictionGraph');
setAxisName('time_stamp','temp');
mul(0.0977);
plotChart('time_stamp','temp');

Mailgun

JavaScript
MAILGUN_API_KEY = 'This is the private API key which you can find on your Mailgun Dashboard'
SANDBOX_URL= 'You can find this on your Mailgun Dashboard'
SENDER_EMAIL = 'This would be test@your SANDBOX_URL'
RECIPIENT_EMAIL = 'Enter your Email ID Here'
API_KEY = 'This is your Bolt Cloud account API key'
DEVICE_ID = 'This is the ID of your Bolt device'

Mail gun source code

JavaScript
while True:
    print ("Reading sensor value")
    response = mybolt.analogRead('A0')
    data = json.loads(response)
    print ("Sensor value is: " + str(data['value']))
    try:
        sensor_value = int(data['value'])
        if sensor_value > maximum_limit or sensor_value < minimum_limit:
            print("Making request to Mailgun to send an email")
            response = mailer.send_email("Alert", "The Current temperature sensor value is " +str(sensor_value))
            response_text = json.loads(response.text)
            print("Response received from Mailgun is: " + str(response_text['message']))
    except Exception as e:
        print ("Error occured: Below are the details")
        print (e)
    time.sleep(10)
