Team Starpointer:

•

•

•

•

Published December 1, 2017 © GPL3+

SSHS CS 7반 3조 StarPointer

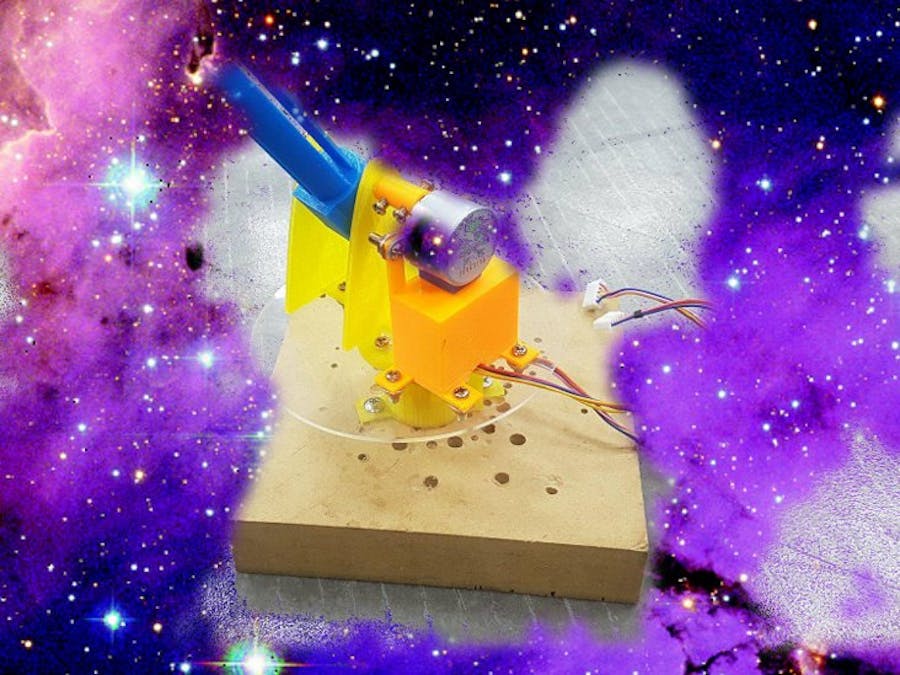

A device that shows where stars are by pointing with lasers.

AdvancedFull instructions provided10 hours6,189

Things used in this project

Hardware components

SparkFun Triple Axis Accelerometer and Gyro Breakout - MPU-6050

Arduino UNO

Breadboard (generic)

Jumper wires (generic)

Software apps and online services

Arduino IDE

Autodesk Fusion

Hand tools and fabrication machines

3D Printer (generic)

Laser cutter (generic)

Hot glue gun (generic)

Story

천문대에서 간단하게 천체 관측을 할 때, 구름과 도시로부터의 광해로 인해 보이는 별이 많지 않은 경우가 많다. 이럴 경우, 관련 지식이 부족한 사람들의 경우 하늘에 현재 보이는 별이 어떤 별인지, 자신이 찾는 별은 어디쯤에 있는지 헷갈리는 경우가 많다. 이 장치는 이러한 상황을 방지하고, 원하는 별의 고도와 방위각을 실시간으로 계산하여 알려주는 장치이다. 고도와 방위각 두 개의 축으로 이루어진 마운트에 별 지시용 레이저 포인터를 장착하여 별이 있는 위치에 자동으로 레이저를 쏴주므로 더욱 쉽게 별의 위치를 파악할 수 있다.

When you observe stars in the observatory, you cannot see many stars because of clouds or lights of the city. When this happens, people with not enough knowledge about stars doesn't know which is the star they are looking at and where the star they want to observe is. This device prevents this from happening. It shows where the star they want to observe is by pointing with a laser pointer.

이 장치의 장점은 관찰 장소나 시간이 바뀌어도 실시간으로 반영하여 계산할 수 있다는 것이다. GPS 센서를 이용해 현재 표준시각과 위도 및 경도 정보를 받아오고, 자기장 센서를 통해 정북쪽 방향을 보정하면 원하는 별의 적도좌표계 정보를 기반으로 계산을 통해 지평좌표계로 변환한 후 이에 맞게 레이저 포인터를 회전시킨다. 레이저 포인터가 장착된 마운트에는 MPU-6050 자이로 칩이 장착되어 있어 현재 레이저포인터가 가리키는 고도를 실시간으로 확인할 수 있다.

The advantages of this device is that it can calculate the star's place whether the time or place changes. We get the time, longitude, and latitude from the GPS module, and get the north direction with magnetic field sensors. Also, we convert equatorial coordinate system to horizontal coordinate system, and turn the laser pointers using stepping motors. On the mount of the laser pointer, there is a MPU-6050 gyro sensor, allowing us to know the altitude by time.

준비물

아두이노 우노 R3 보드 x1

28BYJ-48 스테퍼 모터 + ULN2003 모터 드라이버 x2

GY-521 MPU 6050 자이로 센서 x1

GY-NEO6MV2 GPS 센서 x1

아크릴 판 (레이저 절단기를 이용해 원형으로 절단) x1

받침대용 나무 판 x1

모터 방위각 마운트(3D 프린터 부품) x1

모터 고도 마운트(3D 프린터 부품) x1

축 마운트(3D 프린터 부품) x2

레이저 포인터 마운트(3D 프린터 부품) x1

3mm 축 회전판 마운트(3D 프린터 부품) x1

3mm 축 x1

3mm/5mm 변환 커플러(3D 프린터 부품) x1

M4 볼트 및 너트 다수

점퍼 케이블 다수

Materials needed

Arduino Uno R3 board x1

28BYJ-48 stepping motor + ULN2003 Motor driver x2

GY-521 MPU 6050 gyro sensor x1

GY-NEO6MV2 GPS sensor x1

Acrylic board (Cut it into a circle using a laser cutter) x1

Wood plate for pedestal x1

Mount for stepping motor ,azimuth (3d printed part) x1

Mount for stepping motor, altitude (3d printed part) x1

Support fixture for the axis (3d printed part) x2

Holder for the laser pointer (3d printed part) x1

3mm axis, spindle connecting gear (3d printed part) x1

3mm axis x1

3mm/5mm converting coupler (3d printed part) x1

M4 nuts and bolts

Jumper cables for arduino

제작 과정

1. 방위각 모터 마운트를 나사못을 이용해 고정용 나무판에 장착한다.

2. 방위각 모터 마운트에 스테퍼 모터를 삽입한다.

3. 회전판 마운트를 볼트와 너트를 이용해 회전판에 연결한다.

4. 아크릴 회전판에 고도 모터 마운트와 축 마운트를 자리에 맞게 설치한다.

5. 고도 조절 모터를 고도 모터 마운트에 볼트와 너트를 이용해 장착한다.

6. 고도 모터 축에 커플러를 연결한 뒤 볼트를 조여 고정한다.

7. 축 마운트 사이에 레이저 포인터 마운트를 넣고 축을 연결한다.

8. 레이저 포인터 마운트의 볼트를 조여 고정하고, 레이저 포인터를 삽입한다.

9. 회전판 부분을 방위각 모터 축에 장착한다.

How to make it

1. Attach the azimuth motor mount to the wooden board using a screw.

2. Attach the stepping motor to the motor mount.

3. Attach the spindle connecting gear to the spindle.

4. Attach the altitude motor mount and support fixture on the acrylic spindle.

5. Fasten the stepping motor to the motor mount using bolts and nuts.

6. Attach the converting coupler to the altitude stepping motor and connect the 3mm axis.

7. Insert the laser pointer holder into the axis.

8. Fix the laser pointer holder using a bolt and insert the laser pointer.

9. Attach the spindle to the azimuth stepping motor.

Finished project

Finished project(MPU-6050 attached)

Explanation of our Star Pointer

Schematics

Code

float stardata[8][2]={{101.28, -16.71},{78.64, -8.2},{37.95,89.26},{116.33,28.03},{114.83,5.23},{88.79,7.41},{68.98,16.51},{79.17,46}}; // right Ascention, and declination data of Sirius, Rigel, Polaris, Pollux, Procyon,  Betelgeuse, Aldebaran, Capella ( reference : http://www.stellar-database.com/ )
const float pi=3.141592;
float Azimuth, altitude,hourangle,latitude,longitude;
float DtoR(float degree) // Degree to Radian
{
  return degree/360*2*pi;
}
float RtoD(float radian) // Radian to Degree
{
  return radian/2/pi*360;
}
void findAa(double declination) // Finds Azimuth and altitude. NEED HOURANGLE RESULT -> findHourangle()
{
  Azimuth=RtoD( atan(  sin( DtoR(hourangle) ) / ( cos( DtoR(hourangle) )* sin( DtoR(latitude) ) - tan( DtoR(declination) ) * cos( DtoR(latitude) ) ) ) );//https://en.wikipedia.org/wiki/Celestial_coordinate_system
  altitude=RtoD( asin( sin( DtoR(latitude) ) * sin( DtoR(declination) ) + cos( DtoR(latitude) ) * cos( DtoR(declination) ) * cos( DtoR(hourangle) ) ) );
}
void findHourangle(double rightAscention,int localDay, int localTime) //https://archive.org/stream/CalculationOfLocalSiderealTime/Calculation-of-Local-Sidereal-Time_djvu.txt
{
    hourangle = (localDay*0.0657098)+(localTime*1.002737)+6.1265-(longitude-136)/15;               ///longitude!!!!
    if(hourangle<0)
      hourangle+=24;
    else if(hourangle>=24)
      hourangle-=24;
      hourangle=hourangle/24*360;
      hourangle-=rightAscention;
      if(hourangle<0)
        hourangle+=360;
}
void calc(int N)
{
  findHourangle(stardata[N-1][0],360,0);
  findAa(stardata[N-1][1]);
  printf("%f %f",Azimuth,altitude);
}

#define pin1 2
#define pin2 3
#define pin3 4
#define pin4 5
void setup() {
  Serial.begin(115200);
  pinMode(pin1, OUTPUT);
  pinMode(pin2, OUTPUT);
  pinMode(pin3, OUTPUT);
  pinMode(pin4, OUTPUT);
}
void turnStepper(float angle,int way){
 float steps=(angle/360)*(2048);
 int countstep=0;
 int delaytime=5000;
 if(way==1){
 while(countstep<steps){
 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 }
 }
 else if(way==-1){
 while(countstep<steps){
 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);
 }
 }
 }

void loop() {
 turnStepper(60.0,1);
 delay(1000);
}

#define pin1 2
#define pin2 3
#define pin3 4
#define pin4 5
#define pin5 8
#define pin6 9
#define pin7 10
#define pin8 11
#include <Wire.h>
#define mpu_add 0x68

double current_angle_x;
double current_angle_y;

double ac_x;
double ac_y;
double ac_z;
double gy_x;
double gy_y;
double gy_z;
double deg_x;
double deg_y;

double dgy_x;
double dgy_y;
float stardata[8][2]={{101.28, -16.71},{78.64, -8.2},{37.95,89.26},{116.33,28.03},{114.83,5.23},{88.79,7.41},{68.98,16.51},{79.17,46}};
const float pi=3.141592;
float Azimuth, altitude,hourangle,latitude=35,longitude=136;
int starNo;
float DtoR(float degree) // Degree to Radian
{
  return degree/360*2*pi;
}
float RtoD(float radian) // Radian to Degree
{
  return radian/2/pi*360;
}
void findAa(double declination) // Finds Azimuth and altitude. NEED HOURANGLE RESULT -> findHourangle()
{
  Azimuth=RtoD( atan(  sin( DtoR(hourangle) ) / ( cos( DtoR(hourangle) )* sin( DtoR(latitude) ) - tan( DtoR(declination) ) * cos( DtoR(latitude) ) ) ) );//https://en.wikipedia.org/wiki/Celestial_coordinate_system
  altitude=RtoD( asin( sin( DtoR(latitude) ) * sin( DtoR(declination) ) + cos( DtoR(latitude) ) * cos( DtoR(declination) ) * cos( DtoR(hourangle) ) ) );
}
void findHourangle(double rightAscention,int localDay, int localTime) //https://archive.org/stream/CalculationOfLocalSiderealTime/Calculation-of-Local-Sidereal-Time_djvu.txt
{
    hourangle = (localDay*0.0657098)+(localTime*1.002737)+6.1265-(longitude-136)/15;
    if(hourangle<0)
      hourangle+=24;
    else if(hourangle>=24)
      hourangle-=24;
      hourangle=hourangle/24*360;
      hourangle-=rightAscention;
      if(hourangle<0)
        hourangle+=360;
}
void calc(int N)
{
  findHourangle(stardata[N-1][0],340,20);
  findAa(stardata[N-1][1]);
}
void inputstarNo()
{
  Serial.println("Hello. What star should I point?");
  Serial.println("1.Sirius 2.Rigel 3.Polaris 4.Pollux");
  Serial.println("5.Procyon 6.Betelgeuse 7.Aldebaran 8.Capella");
  while(1)
  {
    if(Serial.available())
    {
      starNo = Serial.parseInt();
      if(starNo>=1&&starNo<=8)
        break;
      Serial.println("Invalid Input!!");
    }
  }
  Serial.print("Finding ");
  Serial.print(starNo);
  Serial.println("...");
}
void turnStepper1(float angle,int way){
 float steps=(angle/360)*(2048);
 int countstep=0;
 int delaytime=5000;
 if(way==1){
 while(countstep<steps){
 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 }
 }
 else if(way==-1){
 while(countstep<steps){
 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);
 }
 }
 }
 void turnStepper2(float angle,int way){
 float steps=(angle/360)*(2048);
 int countstep=0;
 int delaytime=5000;
 if(way==1){
 while(countstep<steps){
 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 }
 }
 else if(way==-1){
 while(countstep<steps){
 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);
 }
 }
 }

void getaccdata() {
  Wire.beginTransmission(mpu_add) ; //get acc data
  Wire.write(0x3B) ;
  Wire.endTransmission(false) ;
  Wire.requestFrom(mpu_add, 6, true) ;
  ac_x = Wire.read() << 8 | Wire.read() ;
  ac_y = Wire.read() << 8 | Wire.read() ;
  ac_z = Wire.read() << 8 | Wire.read() ;
}

void getgyrdata() {
  Wire.beginTransmission(mpu_add) ; //get gyro data
  Wire.write(0x43) ;
  Wire.endTransmission(false) ;
  Wire.requestFrom(mpu_add, 6, true) ;
  gy_x = Wire.read() << 8 | Wire.read() ;
  gy_y = Wire.read() << 8 | Wire.read() ;
  gy_z = Wire.read() << 8 | Wire.read() ;
}

void curang() {
  deg_x = atan2(ac_x, ac_z) * 180 / PI ;  //rad to deg
  deg_y = atan2(ac_y, ac_z)*180/PI;
  dgy_x = gy_x / 131. ;
  dgy_y = gy_y / 131. ;
  current_angle_x = (0.95 * (current_angle_x + (dgy_x * 0.001))) + (0.05 * deg_x) ;
  current_angle_y = (0.95 * (current_angle_y + (dgy_y * 0.001))) + (0.05 * deg_y) ;
}

void MPUreceive(){
  int a=0;
  while(a++<160)
  {
  getaccdata();
  getgyrdata();

  curang();
  Serial.println(current_angle_y);
  }
}
void resetaltitude(){
  MPUreceive();
  if(current_angle_y>0)
    turnStepper1(current_angle_y,1);
  else if(current_angle_y<0)
  turnStepper1(-current_angle_y,-1);
}
void setup()
{
  Wire.begin();
  Wire.beginTransmission(mpu_add);
  Wire.write(0x6B);
  Wire.write(0);//MPU6050
  Wire.endTransmission(true);
  Serial.begin(9600);
  pinMode(pin1, OUTPUT);
  pinMode(pin2, OUTPUT);
  pinMode(pin3, OUTPUT);
  pinMode(pin4, OUTPUT);
  pinMode(pin5, OUTPUT);
  pinMode(pin6, OUTPUT);
  pinMode(pin7, OUTPUT);
  pinMode(pin8, OUTPUT);
  resetaltitude();
}

void loop()
{

  inputstarNo();
  calc(starNo);
  Serial.println(altitude);
  Serial.println(Azimuth);
  if(Azimuth<0)
    Azimuth+=360;
  if(altitude<0)
  {
    Serial.println("The star isn't here now!");
  }
  else
  {
    turnStepper1(altitude,1);
    turnStepper2(Azimuth,1);
    delay(10000);
    turnStepper1(altitude,-1);
    turnStepper2(Azimuth,-1);
  }
}

#define pin1 2
#define pin2 3
#define pin3 4
#define pin4 5
#define pin5 8
#define pin6 9
#define pin7 10
#define pin8 11
#include <Wire.h>
#define mpu_add 0x68

double current_angle_x;
double current_angle_y;

double ac_x;
double ac_y;
double ac_z;
double gy_x;
double gy_y;
double gy_z;
double deg_x;
double deg_y;

double dgy_x;
double dgy_y;
float stardata[8][2]={{101.28, -16.71},{78.64, -8.2},{37.95,89.26},{116.33,28.03},{114.83,5.23},{88.79,7.41},{68.98,16.51},{79.17,46}};
const float pi=3.141592;
float Azimuth, altitude,hourangle,latitude=35,longitude=136;
int starNo, localDay, localTime;
float DtoR(float degree) // Degree to Radian
{
  return degree/360*2*pi;
}
float RtoD(float radian) // Radian to Degree
{
  return radian/2/pi*360;
}
void findAa(double declination) // Finds Azimuth and altitude. NEED HOURANGLE RESULT -> findHourangle()
{
  Azimuth=RtoD( atan(  sin( DtoR(hourangle) ) / ( cos( DtoR(hourangle) )* sin( DtoR(latitude) ) - tan( DtoR(declination) ) * cos( DtoR(latitude) ) ) ) );//https://en.wikipedia.org/wiki/Celestial_coordinate_system
  altitude=RtoD( asin( sin( DtoR(latitude) ) * sin( DtoR(declination) ) + cos( DtoR(latitude) ) * cos( DtoR(declination) ) * cos( DtoR(hourangle) ) ) );
}
void findHourangle(double rightAscention) //https://archive.org/stream/CalculationOfLocalSiderealTime/Calculation-of-Local-Sidereal-Time_djvu.txt
{
    hourangle = (localDay*0.0657098)+(localTime*1.002737)+6.1265-(longitude-136)/15;
    if(hourangle<0)
      hourangle+=24;
    else if(hourangle>=24)
      hourangle-=24;
      hourangle=hourangle/24*360;
      hourangle-=rightAscention;
      if(hourangle<0)
        hourangle+=360;
}
void calc(int N)
{
  findHourangle(stardata[N-1][0]);
  findAa(stardata[N-1][1]);
}
void inputstarNo()
{
  Serial.println("Hello. What star should I point?");
  Serial.println("1.Sirius 2.Rigel 3.Polaris 4.Pollux");
  Serial.println("5.Procyon 6.Betelgeuse 7.Aldebaran 8.Capella");
  while(1)
  {
    if(Serial.available())
    {
      starNo = Serial.parseInt();
      if(starNo>=1&&starNo<=8)
        break;
      Serial.println("Invalid Input!!");
    }
  }
  Serial.print("Finding ");
  Serial.print(starNo);
  Serial.println("...");
}
void turnStepper1(float angle,int way){
 float steps=(angle/360)*(2048);
 int countstep=0;
 int delaytime=5000;
 if(way==1){
 while(countstep<steps){
 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 }
 }
 else if(way==-1){
 while(countstep<steps){
 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,HIGH);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,LOW);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,HIGH);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin1,LOW);
 digitalWrite(pin2,LOW);
 digitalWrite(pin3,HIGH);
 digitalWrite(pin4,HIGH);
 countstep++;
 delayMicroseconds(delaytime);
 }
 }
 }
 void turnStepper2(float angle,int way){
 float steps=(angle/360)*(2048);
 int countstep=0;
 int delaytime=5000;
 if(way==1){
 while(countstep<steps){
 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 }
 }
 else if(way==-1){
 while(countstep<steps){
 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,HIGH);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,LOW);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,HIGH);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,LOW);
 countstep++;
 delayMicroseconds(delaytime);

 digitalWrite(pin5,LOW);
 digitalWrite(pin6,LOW);
 digitalWrite(pin7,HIGH);
 digitalWrite(pin8,HIGH);
 countstep++;
 delayMicroseconds(delaytime);
 }
 }
 }

void getaccdata() {
  Wire.beginTransmission(mpu_add) ; //get acc data
  Wire.write(0x3B) ;
  Wire.endTransmission(false) ;
  Wire.requestFrom(mpu_add, 6, true) ;
  ac_x = Wire.read() << 8 | Wire.read() ;
  ac_y = Wire.read() << 8 | Wire.read() ;
  ac_z = Wire.read() << 8 | Wire.read() ;
}

void getgyrdata() {
  Wire.beginTransmission(mpu_add) ; //get gyro data
  Wire.write(0x43) ;
  Wire.endTransmission(false) ;
  Wire.requestFrom(mpu_add, 6, true) ;
  gy_x = Wire.read() << 8 | Wire.read() ;
  gy_y = Wire.read() << 8 | Wire.read() ;
  gy_z = Wire.read() << 8 | Wire.read() ;
}

void curang() {
  deg_x = atan2(ac_x, ac_z) * 180 / PI ;  //rad to deg
  deg_y = atan2(ac_y, ac_z)*180/PI;
  dgy_x = gy_x / 131. ;
  dgy_y = gy_y / 131. ;
  current_angle_x = (0.95 * (current_angle_x + (dgy_x * 0.001))) + (0.05 * deg_x) ;
  current_angle_y = (0.95 * (current_angle_y + (dgy_y * 0.001))) + (0.05 * deg_y) ;
}

void MPUreceive(){
  int a=0;
  while(a++<160)
  {
  getaccdata();
  getgyrdata();

  curang();
  Serial.println(current_angle_y);
  }
}
void resetaltitude(){
  MPUreceive();
  if(current_angle_y>0)
    turnStepper1(current_angle_y,1);
  else if(current_angle_y<0)
  turnStepper1(-current_angle_y,-1);
}
void setup()
{
  Wire.begin();
  Wire.beginTransmission(mpu_add);
  Wire.write(0x6B);
  Wire.write(0);//MPU6050
  Wire.endTransmission(true);
  Serial.begin(9600);
  pinMode(pin1, OUTPUT);
  pinMode(pin2, OUTPUT);
  pinMode(pin3, OUTPUT);
  pinMode(pin4, OUTPUT);
  pinMode(pin5, OUTPUT);
  pinMode(pin6, OUTPUT);
  pinMode(pin7, OUTPUT);
  pinMode(pin8, OUTPUT);
  resetaltitude();
  Serial.println("What day, what time is it?");
  while(1)
  {
    if(Serial.available())
    {
      localDay = Serial.parseInt();
      if(localDay>=1&&localDay<=366)
        break;
      Serial.println("Invalid Input!!");
    }
  }
  while(1)
  {
    if(Serial.available())
    {
      localTime = Serial.parseInt();
      if(localTime>=1&&localTime<=24)
        break;
      Serial.println("Invalid Input!!");
    }
  }
}

void loop()
{

  inputstarNo();
  calc(starNo);
  Serial.println(altitude);
  Serial.println(Azimuth);
  if(Azimuth<0)
    Azimuth+=360;
  if(altitude<0)
  {
    Serial.println("The star isn't here now!");
  }
  else
  {
    turnStepper1(altitude,1);
    turnStepper2(Azimuth,1);
    delay(10000);
    turnStepper1(altitude,-1);
    turnStepper2(Azimuth,-1);
  }
}

#include <Wire.h>
#define mpu_add 0x68

double current_angle_x;
double current_angle_y;

double ac_x;
double ac_y;
double ac_z;
double gy_x;
double gy_y;
double gy_z;
double deg_x;
double deg_y;

double dgy_x;
double dgy_y;

void setup() {
  // put your setup code here, to run once:
  Wire.begin();
  Wire.beginTransmission(mpu_add);
  Wire.write(0x6B);
  Wire.write(0);//MPU6050
  Wire.endTransmission(true);
    Serial.begin(9600);
}

void loop() {
  // put your main code here, to run repeatedly:

  getaccdata();
  getgyrdata();

  curang();

  Serial.println((unsigned long)millis());
  Serial.println();
  Serial.println(current_angle_x);
  Serial.println(current_angle_y);
}

void getaccdata() {
  Wire.beginTransmission(mpu_add) ; //get acc data
  Wire.write(0x3B) ;
  Wire.endTransmission(false) ;
  Wire.requestFrom(mpu_add, 6, true) ;
  ac_x = Wire.read() << 8 | Wire.read() ;
  ac_y = Wire.read() << 8 | Wire.read() ;
  ac_z = Wire.read() << 8 | Wire.read() ;
}

void getgyrdata() {
  Wire.beginTransmission(mpu_add) ; //get gyro data
  Wire.write(0x43) ;
  Wire.endTransmission(false) ;
  Wire.requestFrom(mpu_add, 6, true) ;
  gy_x = Wire.read() << 8 | Wire.read() ;
  gy_y = Wire.read() << 8 | Wire.read() ;
  gy_z = Wire.read() << 8 | Wire.read() ;
}

void curang() {
  deg_x = atan2(ac_x, ac_z) * 180 / PI ;  //rad to deg
  deg_y = atan2(ac_y, ac_z)*180/PI;
  dgy_x = gy_x / 131. ;
  dgy_y = gy_y / 131. ;
  current_angle_x = (0.95 * (current_angle_x + (dgy_x * 0.001))) + (0.05 * deg_x) ;
  current_angle_y = (0.95 * (current_angle_y + (dgy_y * 0.001))) + (0.05 * deg_y) ;
}

Credits

Comments

Please log in or sign up to comment.

SSHS CS 7반 3조 StarPointer

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

준비물

Materials needed

제작 과정

How to make it

Custom parts and enclosures

Holder for stepper motor(28BYJ-48)

Gear

Stepper holder for altitude

MPU-6050 case(base)

MPU-6050 case(Lid)

Case for laser pointer

Schematics

Circuit Design

Code

star coordinate conversion functions

Code for controlling stepping motor 28BYJ-48

Total code

Total code

Code for using MPU-6050

Credits

Juhan Hong

장광재

seunghoon oh

Bohyun Lee

호원재

Comments

Embed the widget on your own site

SSHS CS 7반 3조 StarPointer

SSHS CS 7반 3조 StarPointer

Things used in this project

Hardware components

Software apps and online services

Hand tools and fabrication machines

Story

준비물

Materials needed

제작 과정

How to make it

Custom parts and enclosures

Holder for stepper motor(28BYJ-48)

Gear

Stepper holder for altitude

MPU-6050 case(base)

MPU-6050 case(Lid)

Case for laser pointer

Schematics

Circuit Design

Code

star coordinate conversion functions

Code for controlling stepping motor 28BYJ-48

Total code

Total code

Code for using MPU-6050

Credits

Juhan Hong

장광재

seunghoon oh

Bohyun Lee

호원재

Comments

Related channels and tags
