Smart Gates

Description

The principle of operation:

• The car drives up to the gates.

• Camera reads the car plate numbers.

• Checks the read number with the database; if it finds one, then it opens the gate and lets the car pass.

• Each car at the gates is photographed, then a photo is sent to the Telegram application with the car plate number and its status.

• Telegram bot has the ability to open and close the gates, take a current photo and add an unknown car to the database.

It's done with OpenCV + Python + Bash + Telegram Bot.

*** I'm working now on web-interface which will have the ability to:

1. Open/pause/close the gates

2. Add/Remove/Edit/Block cars

3. Add/Remove/Edit/Block ip cameras

4. Set Gpio number for the relay

5. Set ip camera's zoom

6. Enable/disable auto open for gates

7. Add/Remove/Edit/Block users, set status and privileges

8. Log for car recognition where you can preview, search cars by date/number and export log in excel format

Preparation

For this you will need an RPI3 with the Ubuntu Mate installed. You can get it here: https://ubuntu-mate.org/download/

Installing ALPR library

The easiest way to install

sudo apt-get update && sudo apt-get install -y openalpr openalpr-daemon openalpr-utils libopenalpr-dev

Install ImageMagick

sudo apt-get install imagemagick

Installing dependencies for Telegram bot

sudo apt-get install libreadline-dev libconfig-dev libssl-dev lua5.2 liblua5.2-dev libevent-dev libjansson-dev libpython-dev make
apt-get update
apt-get -y install python-pip
pip install pytelegrambotapi
pip install json

Installing Telegram-cli

Check this link to install and configure telegram-cli in ubuntu.

Relay connection

• Connect relay to RPI 3. In my case I used GPIO23 pin for 1st relay and GPIO26 for the second one.

You can test the relay with shell script, just create a simple sh script and run it:

nano open.sh
chmod +x open.sh
sh open.sh

Paste the code below and run it.

Script code for relay 1:

#!/bin/bash
echo 23 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio23/direction
echo 0 > /sys/class/gpio/gpio23/value
ping -c 2 localhost
echo 23 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio23/direction
echo 1 > /sys/class/gpio/gpio23/value

Script code for relay 2:

#!/bin/bash
echo 26 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio26/direction
echo 0 > /sys/class/gpio/gpio26/value
ping -c 2 localhost
echo 26 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio26/direction
echo 1 > /sys/class/gpio/gpio26/value

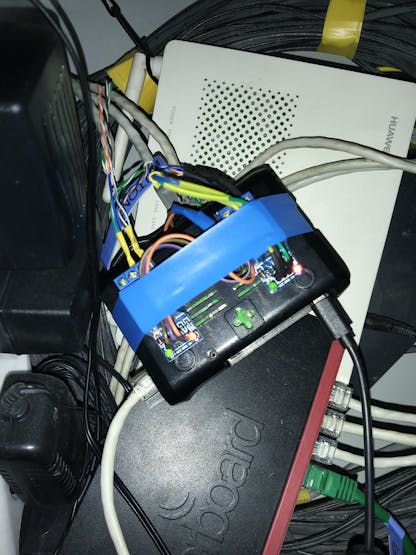

Connect relays to gates

Telegram message-send script

• Create .sh script with the following code:

#!/bin/bash
 to=$1
 msg=$2
 tgpath=/home/user/tg
 cd ${tgpath}
 (sleep1; echo "dialog_list";sleep 1; echo "msg $to $msg";) | ${tgpath}/bin/telegram-cli -k -W tg-server.pub

Telegram photo-send script

• Create .sh script with the following code:

#!/bin/bash
 to=$1
 msg=$2
 tgpath=/home/user/tg
 cd ${tgpath}
 (sleep 1; echo "dialog_list";sleep 1; echo "send_photo $to $msg";) | ${tgpath}/bin/telegram-cli -k -W tg-server.pub

Create 2 files for the main recognition script:

touch log.txt
touch numbers.txt

In the numbers.txt - add all the known car plates numbers.

Order of the numbers.txt should be as follows:

YZO169

RFS961

RFS123

ILAI123

RFS872

Car plate recognition script

• 1st it connects to ip-camera and downloads a snapshot.

• then it renames the snapshot.cgi to .jpg file

• Next step is converting(zooming) the image. This step you should configure by yourself. In my case i used "crop 45%" because my camera was placed to high over the gates. So i needed to zoom the photo so the script could recognize the car plate.

• Rest i hope is clear.

#! /bin/bash
wget -q http://login:password@ipadress/cgi-bin/snapshot.cgi -O /home/user/Downloads/autocheck/snapshot.cgi
mv /home/user/Downloads/autocheck/snapshot.cgi /home/user/Downloads/autocheck/snapshot.jpg
convert /home/user/Downloads/autocheck/snapshot.jpg -gravity Center -crop 45%\! /home/user/Downloads/autocheck/output.jpg
FILENAME=$(alpr -c eu -d -n 1 /home/user/Downloads/autocheck/output.jpg |awk '{print $2}' | awk 'FNR>=2 && FNR<=4')
if grep -Fxq "$FILENAME" /home/user/Downloads/autocheck/numbers.txt
then
echo CAR FOUND!, opening the gates! | while IFS= read -r line; do echo "$FILENAME, $(date) $line"; done >>/home/user/Downloads/autocheck/log.txt
sh /home/user/Downloads/autocheck/relay-control/open.sh 2> /dev/null
sh /home/user/Downloads/autocheck/tg.sh xGates "Car Found! Welcome" > log.out 2> /dev/null
sh /home/user/Downloads/autocheck/tg.sh xGates  $FILENAME > log.out 2> /dev/null
sh /home/user/Downloads/autocheck/tgphoto.sh xGates /home/user/Downloads/autocheck/output.jpg > log.out 2> /dev/null
sleep 20
sh /home/user/Downloads/autocheck/relay-control/open.sh 2> /dev/null
elif [ -n "$FILENAME" ];  #if not empty
then
echo Unregistered car is at the gates! | while IFS= read -r line; do echo "$FILENAME, $(date) $line"; done >>/home/user/Downloads/autocheck/log.txt
sh /home/user/Downloads/autocheck/relay-control/open.sh 2> /dev/null
sh /home/user/Downloads/autocheck/tg.sh xGates "Unregistered car is at the gates!" > log.out 2> /dev/null
sh /home/user/Downloads/autocheck/tg.sh xGates  $FILENAME > log.out 2> /dev/null
sh /home/user/Downloads/autocheck/tgphoto.sh xGates /home/user/Downloads/autocheck/output.jpg > log.out 2> /dev/null
sleep 20
sh /home/user/Downloads/autocheck/relay-control/open.sh 2> /dev/null
else
2> /dev/null
fi
sleep 1
exec bash "$0"

Telegram bot and script

Open Telegram app, search for @BotFather and start the chat. Send /newbot command and follow the instructions. After completing the initial steps, you’ll get your TOKEN

• Create python script and save it as bot.py

# -*- coding: utf-8 -*-
import config
import telebot
import os
import time
import requests
import subprocess
import simplejson
import sys
from telegram import InlineKeyboardButton, InlineKeyboardMarkup
from telebot import types
bot = telebot.TeleBot(config.token)
@bot.message_handler(content_types=["text"])
def any_msg(message):
   keyboard = types.InlineKeyboardMarkup()
   callback_button1 = types.InlineKeyboardButton(text="Gate-1", callback_data="open")
   callback_button2 = types.InlineKeyboardButton(text="Gate-2", callback_data="open2")
   callback_button3 = types.InlineKeyboardButton(text="Photo", callback_data="photo")
#    callback_button3 = types.InlineKeyboardButton(text="Add car", callback_data="add")
   keyboard.add(callback_button1,callback_button2,callback_button3)
   bot.send_message(message.chat.id, "Welcome to the xGates", reply_markup=keyboard)
@bot.callback_query_handler(func=lambda call: True)
def callback_inline(call):
   if call.message:
       if call.data == "open":
           os.system("cat </dev/null |sh /home/user/Downloads/autocheck/relay-control/open.sh 2>/dev/null")
   if call.message:
       if call.data == "open2":
           os.system("cat </dev/null |sh /home/user/Downloads/autocheck/relay-control/open2.sh 2>/dev/null")
   if call.message:
       if call.data == "photo":
           os.system("sh /home/user/Downloads/autocheck/tgphoto.sh xGates /home/user/Downloads/autocheck/output.jpg > log.out 2> /dev/null")
   if call.message:
       if call.data == "close":
           os.system("cat </dev/null |sh /home/user/Downloads/autocheck/relay-control/close.sh 2>/dev/null")
   if call.message:
       if call.data == "add":
           os.system("cat </dev/null |sh /home/user/Downloads/autocheck/relay-control/add.sh 2>/dev/null")
def run(self):
       while True:
           self.updates()
           time.sleep(1)
if __name__ == '__main__':
   bot.polling(none_stop=True)

• Create in the same directory config.py and paste there your TOKEN which you got from @Botfather.

# -*- coding: utf-8 -*-
token = 'TOKEN'

Run it

Check all the paths in scripts and run.

sh check.sh
python bot.py

*I hope that I did not miss anything.

If you have any questions - do not hesitate to ask!
