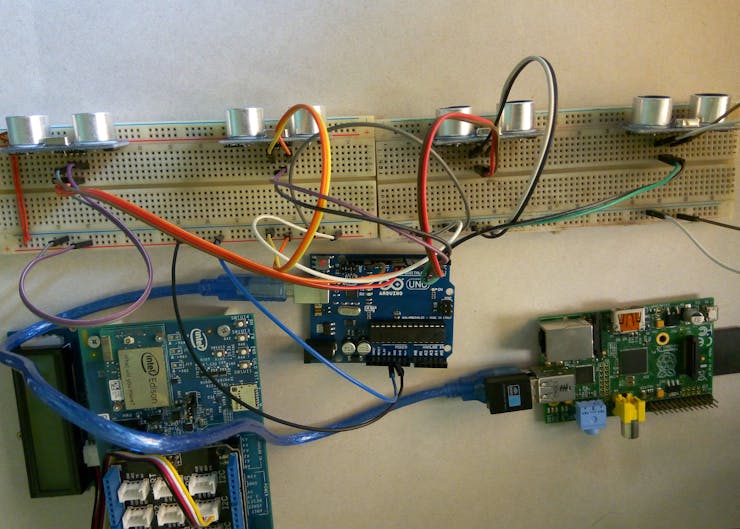

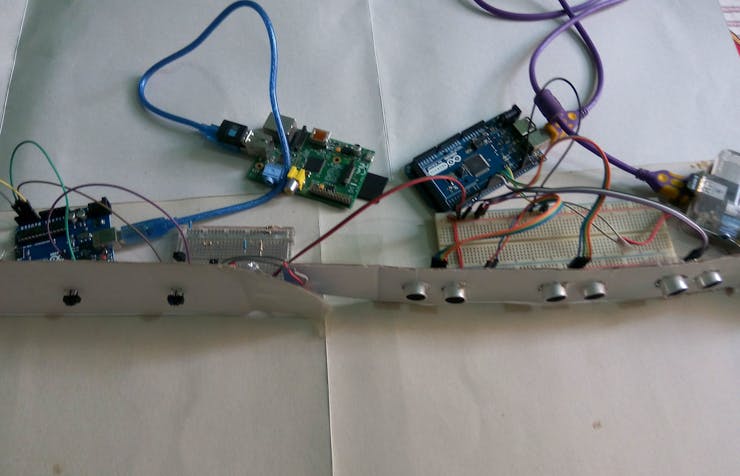

Smart Parking System

#define echoPin1 2 // Echo Pin for sonar 1
#define trigPin1 3 // Trigger Pin for sonar 1
#define echoPin2 4 // Echo Pin for sonar 2
#define trigPin2 5 // Trigger Pin for sonar 2
#define echoPin3 6 // Echo Pin for sonar 3
#define trigPin3 7 // Trigger Pin for sonar 3
#define echoPin4 9 // Echo Pin for sonar 4
#define trigPin4 8 // Trigger Pin for sonar 4


long duration1, distance1; // Duration used to calculate distance
long duration2, distance2;
long duration3, distance3;
long duration4, distance4;

int count=0;
int freeSlot =0;

void setup() {
 Serial.begin (9600); // initiate serial communication to raspberry pi
 pinMode(trigPin1, OUTPUT); // trigger pin as output
 pinMode(echoPin1, INPUT);  // echo pin as input
 pinMode(trigPin2, OUTPUT);
 pinMode(echoPin2, INPUT);
 pinMode(trigPin3, OUTPUT);
 pinMode(echoPin3, INPUT);
 pinMode(trigPin4, OUTPUT);
 pinMode(echoPin4, INPUT);

}

void loop() {
/* The following trigPin/echoPin cycle is used to determine the
 distance of the nearest object by bouncing soundwaves off of it. */

/* At least 10 microsecond high level signal is required to trigger
 * pin.
 *               _____
 *              |     |
 * -------------!     !---------
 *         .....|10us |........
 * the module then produce eight 40KHz pulse signal and waits to receive echo
 */
 digitalWrite(trigPin1, LOW);
 delayMicroseconds(2);
 digitalWrite(trigPin1, HIGH);
 delayMicroseconds(10);
 digitalWrite(trigPin1, LOW);
 // pulseIn( ) function determines a pulse width in time
 // duration of pulse is proportional to distance of obstacle
 duration1 = pulseIn(echoPin1, HIGH);

 digitalWrite(trigPin2, LOW);
 delayMicroseconds(2);
 digitalWrite(trigPin2, HIGH);
 delayMicroseconds(10);
 digitalWrite(trigPin2, LOW);
 duration2 = pulseIn(echoPin2, HIGH);

 digitalWrite(trigPin3, LOW);
 delayMicroseconds(2);
 digitalWrite(trigPin3, HIGH);
 delayMicroseconds(10);
 digitalWrite(trigPin3, LOW);
 duration3 = pulseIn(echoPin3, HIGH);

 digitalWrite(trigPin4, LOW);
 delayMicroseconds(2);
 digitalWrite(trigPin4, HIGH);
 delayMicroseconds(10);
 digitalWrite(trigPin4, LOW);
 duration4 = pulseIn(echoPin4, HIGH);

 //  distance = (high level timevelocity of sound (340M/S) / 2,
 //  in centimeter = uS/58
 distance1 = duration1/58.2;
 if(distance1<10)
   distance1 = 1;
 else distance1 = 0;

 distance2 = duration2/58.2;
 if(distance2<10)
   distance2 = 1;
 else distance2 = 0;

 distance3 = duration3/58.2;
 if(distance3<10)
   distance3 = 1;
 else distance3 = 0;

 distance4 = duration4/58.2;
 if(distance4<10)
   distance4 = 1;
 else distance4 = 0;

 // add the result from all sensor to count total car
 count = distance1 + distance2 + distance3 + distance4;;

 // free slot = total slot - total car
 freeSlot = 4 - count;
 // number of total slot is sent to raspberry pi using usb
 Serial.println(freeSlot);
 // the status is updated every 30 seconds.
 delay(30000);
 freeSlot = 0;
 distance1 = 0;
 distance2 = 0;
 distance3 = 0;
 distance4 = 0;
}

// Libmraa is a C/C++ library with bindings to Java, Python and JavaScript
// to interface with the IO on Galileo, Edison & other platforms,
// with a structured and sane API where port names/numbering matches the board that you are on.
var mraa = require('mraa');
// Hitachi HD44780 LCD driver for Linux boards
var lcd = require('./lcd');

var version = mraa.getVersion();
var display = new lcd.LCD(0);
// mqtt is a client library for the MQTT protocol, written in JavaScript for node.js and the browser.
var mqtt = require('mqtt');
// Node implements File I/O using simple wrappers around standard POSIX functions.
// The Node File System (fs) module is imported using the following line
var fs = require('fs');
// mqtt connection endpoint is define in ARTIK Cloud documantation page
var PROTOCOL = 'mqtts';
var BROKER ='api.artik.cloud';
var PORT = 8883;

var URL = PROTOCOL + '://' + BROKER;
URL += ':' + PORT;

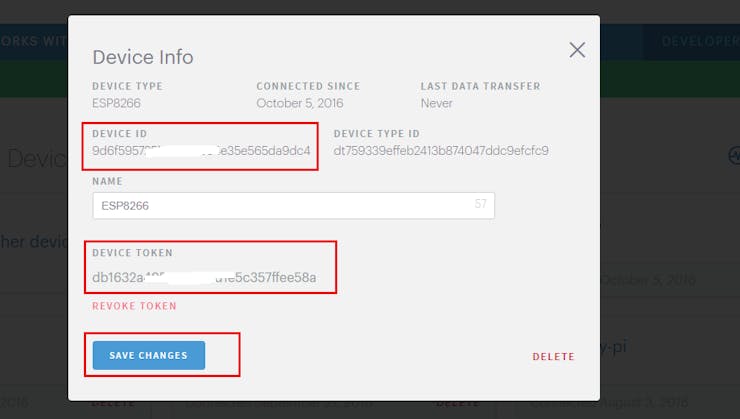

// device id and device token is used for authentication
var deviceID = '4368e28eb8db4adfa368e5e0120932fa';
var deviceTOKEN = '655eac98350f42858e7df90cd270550a';
// use device id as username & device token as password
var requireds = { username: deviceID, password: deviceTOKEN };
var mqttConfig = { 'url': URL, 'requireds': requireds };
// Connects to the broker specified by the given url and options and returns a Client.
var client = mqtt.connect(mqttConfig.url, mqttConfig.requireds);
// topic for client
var pubTOPIC = '/v1.1/messages/'+deviceID;
// topic for subscriber
var subTOPIC = '/v1.1/actions/'+deviceID;

if (version >= 'v0.6.1') {
    console.log('mraa version (' + version + ') ok');
}
else {
    console.log('meaa version(' + version + ') is old - this code may not work');
}

// Emitted automatically on successful connection

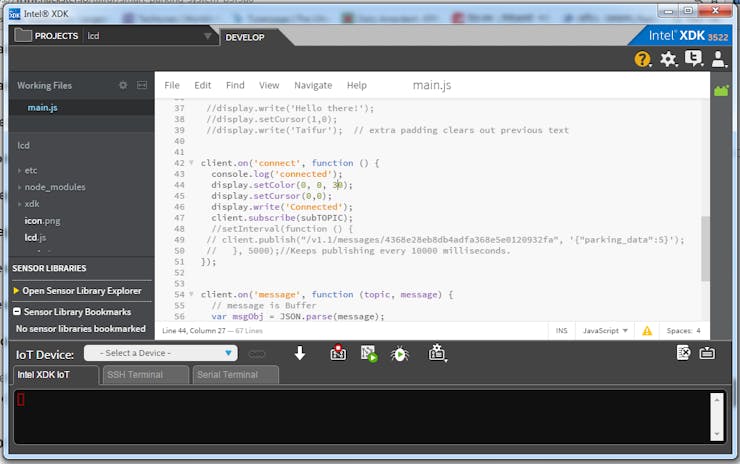

client.on('connect', function () {
  console.log('connected');
  // set backlight color for RGB lcd
  display.setColor(255, 255, 255);
  display.setCursor(0,0);
  display.write('Connected');
  // subscribe to the topic
  client.subscribe(subTOPIC);
});

// Emitted when the client receives a publish packet
// topic is topic of the received packet
// message payload of the received packet
client.on('message', function (topic, message) {
  // message is Buffer
  // parses the received string as JSON
  var msgObj = JSON.parse(message);
  var rainbowData = msgObj.actions[0].parameters.text;
  var indigoData = msgObj.actions[0].parameters.text2;
  // the values then print to lcd display
  display.setCursor(0,0);
  display.write('RainbowFSlot: '+rainbowData);
  display.setCursor(1,0);
  display.write('IndigoFrSlot: '+indigoData);
  console.log(rainbowData);
  console.log(message.toString())
  //client.end()
});

// real-time interactions are possible using websocket
// Notice the ws:. This is the new URL schema for WebSocket connections.
// There is also wss: for secure WebSocket connection the same way
// https: is used for secure HTTP connections.
// you can get it from Artik cloud documentation page
var wsUri = "wss://api.artik.cloud/v1.1/websocket?ack=true";
var device_id = "YOUR DEVICE ID HERE"; // Edison parking DEVICE ID
var device_token = "YOUR DEVICE TOKEN HERE"; //Intel Edison parking DEVICE TOKEN

var output;
var attributes_log;
var websocket;

function init() {
	// document.getElementById() write something to html page
    output = document.getElementById("output");
    attributes_log = document.getElementById("attributes_log");
    if (browserSupportsWebSockets() === false) {
		// check browser support websocket protocol or not
        writeToScreen("Sorry! your web browser does not support WebSockets. Try using Google Chrome or Firefox Latest Versions");

        var element = document.getElementById("websocketelements");
        element.parentNode.removeChild(element);

        return; //
    }
    //You open up a WebSocket connection simply by calling the WebSocket constructor
    websocket = new WebSocket(wsUri);
    //When the connection is open, function invoked automatically
    websocket.onopen = function() {
        //writeAttributeValues('onOpen Event Fired');
        writeToScreen("Successfully connected to Parking System");
		// after connection is open, registration is required for secure data transmission
		register();
    };
    // invoked when new message received
    websocket.onmessage = function(evt) {
        onMessage(evt);
    };
    // when received error
	// You can handle any errors that occur by listening out for the error event.
    websocket.onerror = function(evt) {
        onError(evt);
    };
}

function onClose(evt) {
	// Once youre done with your WebSocket you can terminate the connection using the close() method.
    websocket.close();
    //writeAttributeValues('onClose Event Fired');
    writeToScreen("DISCONNECTED");
}

// When a message is received the message event is fired.
function onMessage(evt) {
    writeToScreen('<span style="color: blue;">RESPONSE: ' + evt.data + '</span>');
    //writeAttributeValues('onMessage Event Fired');
	handleRcvMsg(evt.data); //data is send to the function handleRcvMsg()
}

function onError(evt) {
    writeToScreen('<span style="color: red;">ERROR:</span> ' + evt.data);
    //writeAttributeValues('onError Event Fired');
}

function doSend(message) {
	// To send a message through the WebSocket connection you call the send() method on your WebSocket instance
    websocket.send(message);
    //writeAttributeValues('onSend Event Fired');
    writeToScreen("SENT: " + message);
}

function writeAttributeValues(prefix) {
    var pre = document.createElement("p");
    pre.style.wordWrap = "break-word";
    pre.innerHTML = "INFO " + getCurrentDate() + " " + prefix + "<b> readyState: " + websocket.readyState + " bufferedAmount: " + websocket.bufferedAmount + "</b>";
    ;
    attributes_log.appendChild(pre);
}

function writeToScreen(message) {
    var pre = document.createElement("p");
    pre.style.wordWrap = "break-word";
    pre.innerHTML = message;
    output.appendChild(pre);
}

function getCurrentDate() {
    var now = new Date();
    var datetime = now.getFullYear() + '/' + (now.getMonth() + 1) + '/' + now.getDate();
    datetime += ' ' + now.getHours() + ':' + now.getMinutes() + ':' + now.getSeconds();
    return datetime;
}

function browserSupportsWebSockets() {
    if ("WebSocket" in window)
    {
        return true;
    }
    else
    {
        return false;
    }
}

function getTimeMillis(){
    return parseInt(Date.now().toString());
}

function register(){
    writeToScreen("Registering device on the WebSocket connection");
    try{
        var registerMessage = '{"type":"register", "sdid":"'+device_id+'", "Authorization":"bearer '+device_token+'", "cid":"'+getTimeMillis()+'"}';
        writeToScreen('Sending register message ' + registerMessage + '\n');
        websocket.send(registerMessage, {mask: true});
        isWebSocketReady = true;
		//document.getElementById("rainbow").innerHTML = "";
		//document.getElementById("rainbow").innerHTML = "Capacity:"+'<span style="color: red;">50</span> '+"Free Slot:"+'<span style="color: red;"></span>'+"50";
        //document.getElementById("indigo").innerHTML = "Capacity: 60,  Free Slot: 5";
	}
    catch (e) {
        writeToScreen('Failed to register messages. Error in registering message: ' + e.toString());
    }
}

//data after receiving is sent here for processing
function handleRcvMsg(msg){
	// message is received as following string
	// {"actions":[{"name":"setText","parameters":{"text":"4", "text2": "5"}}]}
	// you have to parse it
    var msgObj = JSON.parse(msg);
    if (msgObj.type != "action") return; //Early return;

    var actions = msgObj.data.actions;
    var rainbowData = actions[0].parameters.text;
	var indigoData = actions[0].parameters.text2;
    console.log("The received action is " + actions);
	document.getElementById("rainbow").innerHTML = "Capacity: 50,  Free Slot: "+rainbowData;
	document.getElementById("indigo").innerHTML = "Capacity: 60,  Free Slot: "+indigoData;

}

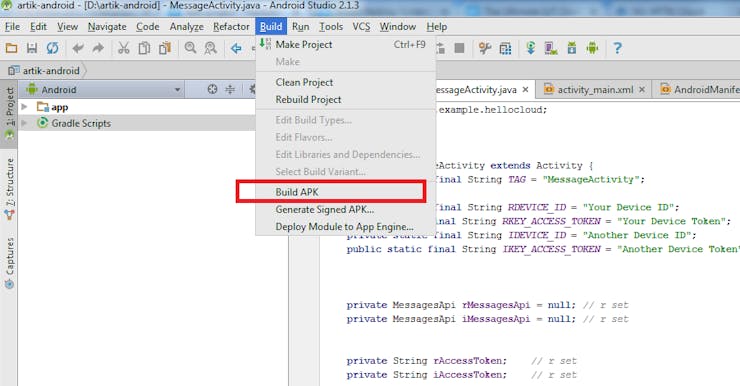

package cloud.artik.example.hellocloud;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

import cloud.artik.api.MessagesApi;
import cloud.artik.api.UsersApi;
import cloud.artik.client.ApiCallback;
import cloud.artik.client.ApiClient;
import cloud.artik.client.ApiException;
import cloud.artik.model.MessageAction;
import cloud.artik.model.MessageIDEnvelope;
import cloud.artik.model.NormalizedMessagesEnvelope;
import cloud.artik.model.UserEnvelope;

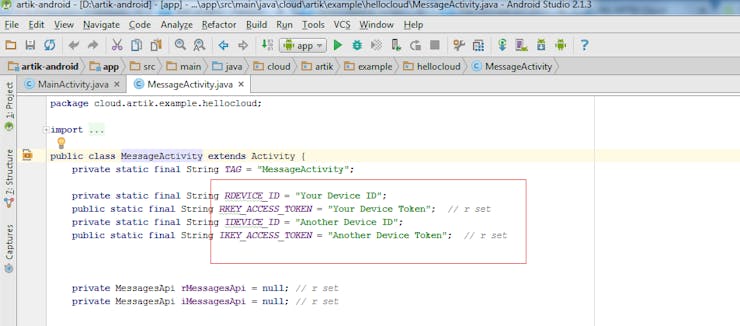

public class MessageActivity extends Activity {
    private static final String TAG = "MessageActivity";

    private static final String RDEVICE_ID = "Your Device ID";
    public static final String RKEY_ACCESS_TOKEN = "Your Device Token";  // r set
    private static final String IDEVICE_ID = "Another Device ID";
    public static final String IKEY_ACCESS_TOKEN = "Another Device Token";  // r set



    private MessagesApi rMessagesApi = null; // r set
    private MessagesApi iMessagesApi = null; // r set


    private String rAccessToken;    // r set
    private String iAccessToken;    // r set

    private TextView rainbowLot;
    private TextView indigoLot;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_message);

        rAccessToken = getIntent().getStringExtra(RKEY_ACCESS_TOKEN);   // r set
        iAccessToken = getIntent().getStringExtra(IKEY_ACCESS_TOKEN);   // r set

        Button getLatestMsgBtn = (Button)findViewById(R.id.getlatest_btn);

        rainbowLot = (TextView)findViewById(R.id.txtRlot);
        indigoLot = (TextView)findViewById(R.id.txtIlot);

        setupArtikCloudApi();

        getLatestMsgBtn.setOnClickListener(new View.OnClickListener() {
            public void onClick(View v) {

                // Now get the message
                //getRainbowMsg();
                getIndigoMsg();
            }
        });
    }

    private void setupArtikCloudApi() {
        ApiClient rApiClient = new ApiClient();
        ApiClient iApiClient = new ApiClient();

        rApiClient.setAccessToken(rAccessToken);   // r set
        iApiClient.setAccessToken(iAccessToken);   // r set

        rMessagesApi = new MessagesApi(rApiClient);  // r set
        iMessagesApi = new MessagesApi(iApiClient);  // r set
    }

    private void getRainbowMsg() {
        final String tag = TAG + " getLastNormalizedMessagesAsync";
        try {
            int messageCount = 2;
            rMessagesApi.getLastNormalizedMessagesAsync(messageCount, RDEVICE_ID, null,
                    new ApiCallback<NormalizedMessagesEnvelope>() {
                        @Override
                        public void onFailure(ApiException exc, int i, Map<String, List<String>> stringListMap) {
                            processFailure(tag, exc);
                        }

                        @Override
                        public void onSuccess(NormalizedMessagesEnvelope result, int i, Map<String, List<String>> stringListMap) {
                            Log.v(tag, " onSuccess latestMessage = " + result.getData().toString());
                            updateGetResponseOnUIThread(result.getData().get(0).getMid(), result.getData().get(0).getData().toString());
                        }

                        @Override
                        public void onUploadProgress(long bytes, long contentLen, boolean done) {
                        }

                        @Override
                        public void onDownloadProgress(long bytes, long contentLen, boolean done) {
                        }
                    });

        } catch (ApiException exc) {
            processFailure(tag, exc);
        }
    }

    private void getIndigoMsg() {
        final String tag = TAG + " getLastNormalizedMessagesAsync";
        try {
            int messageCount = 1;
            iMessagesApi.getLastNormalizedMessagesAsync(messageCount, IDEVICE_ID, null,
                    new ApiCallback<NormalizedMessagesEnvelope>() {
                        @Override
                        public void onFailure(ApiException exc, int i, Map<String, List<String>> stringListMap) {
                            processFailure(tag, exc);
                        }

                        @Override
                        public void onSuccess(NormalizedMessagesEnvelope result, int i, Map<String, List<String>> stringListMap) {
                            Log.v(tag, " onSuccess latestMessage = " + result.getData().toString());
                            updateGetResponseOnUIThread(result.getData().get(0).getMid(), result.getData().get(0).getData().toString());
                        }

                        @Override
                        public void onUploadProgress(long bytes, long contentLen, boolean done) {
                        }

                        @Override
                        public void onDownloadProgress(long bytes, long contentLen, boolean done) {
                        }
                    });

        } catch (ApiException exc) {
            processFailure(tag, exc);
        }
    }

    static void showErrorOnUIThread(final String text, final Activity activity) {
        activity.runOnUiThread(new Runnable() {
            @Override
            public void run() {
                int duration = Toast.LENGTH_LONG;
                Toast toast = Toast.makeText(activity.getApplicationContext(), text, duration);
                toast.show();
            }
        });
    }


    private void updateGetResponseOnUIThread(final String mid, final String msgData) {
        this.runOnUiThread(new Runnable() {
            @Override
            public void run() {
                String delims = "[=}.]+";
                String[] tokens = msgData.split(delims);
                //rainbowLot.setText(tokens[1]);
                indigoLot.setText(tokens[1]);
            }
        });
    }

    private void processFailure(final String context, ApiException exc) {
        String errorDetail = " onFailure with exception" + exc;
        Log.w(context, errorDetail);
        exc.printStackTrace();
        showErrorOnUIThread(context+errorDetail, MessageActivity.this);
    }

} //MessageActivity
