Tanishq Jaiswal
Published

SMS based Home Automation system using 1SHEELD

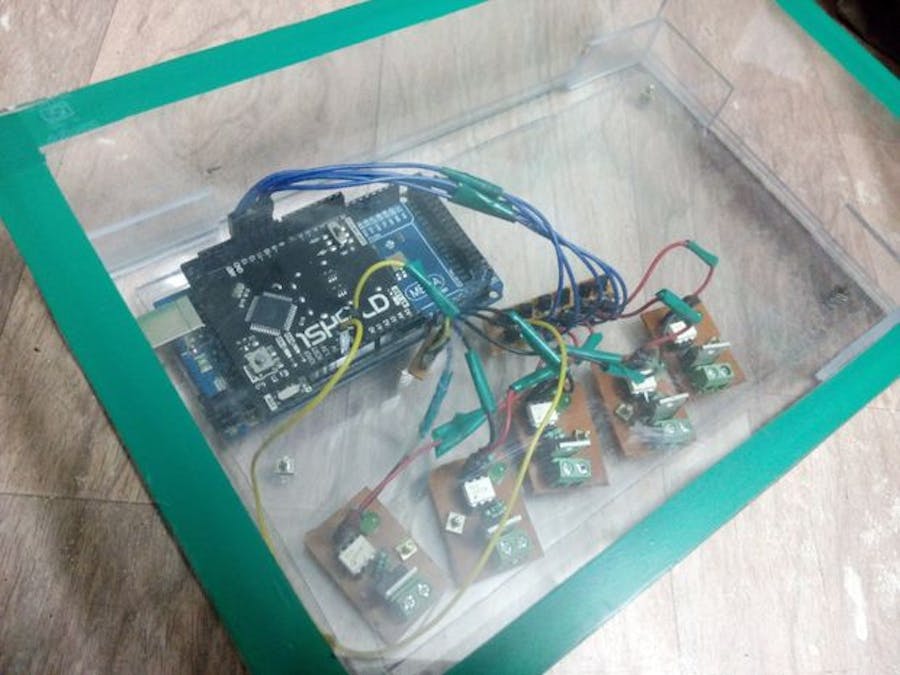

Make a 5-channel SMS based Home Automation system using 1Sheeld.

BeginnerFull instructions provided36,784

Things used in this project

Hardware components

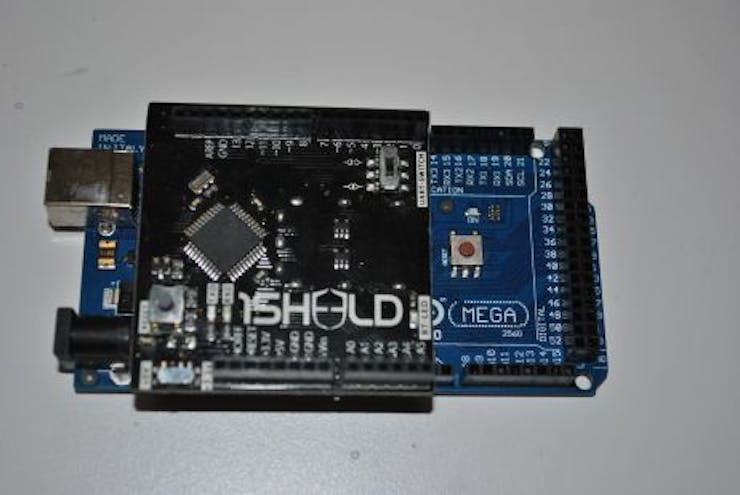

Arduino Mega 2560
Arduino Mega 2560
×1

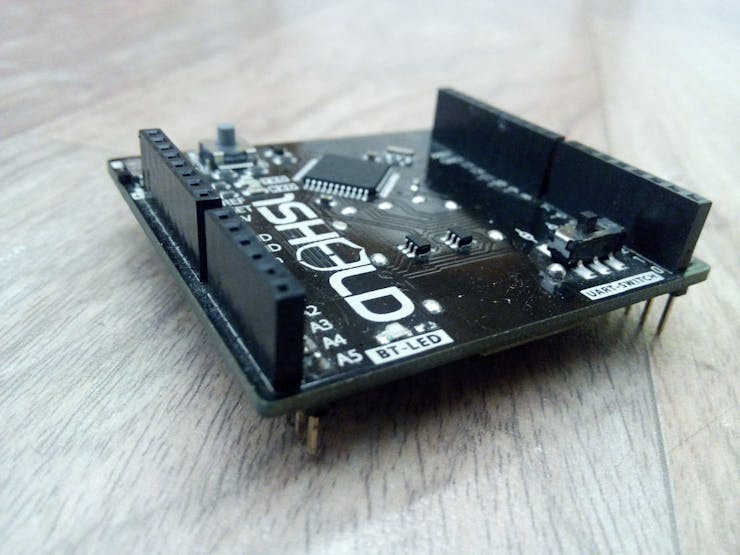

1Sheeld
1Sheeld
×1

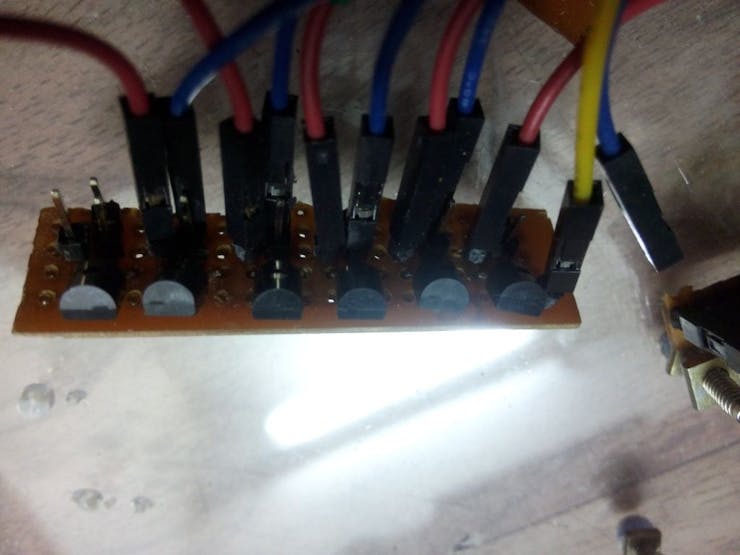

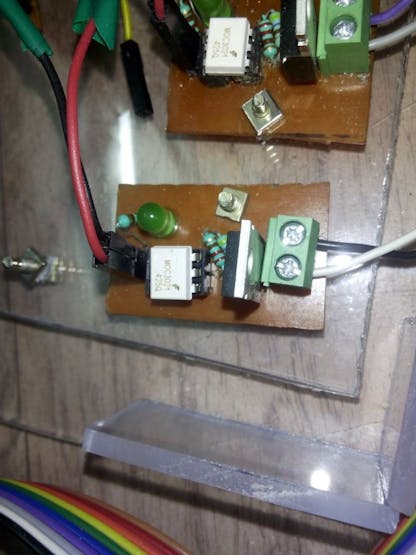

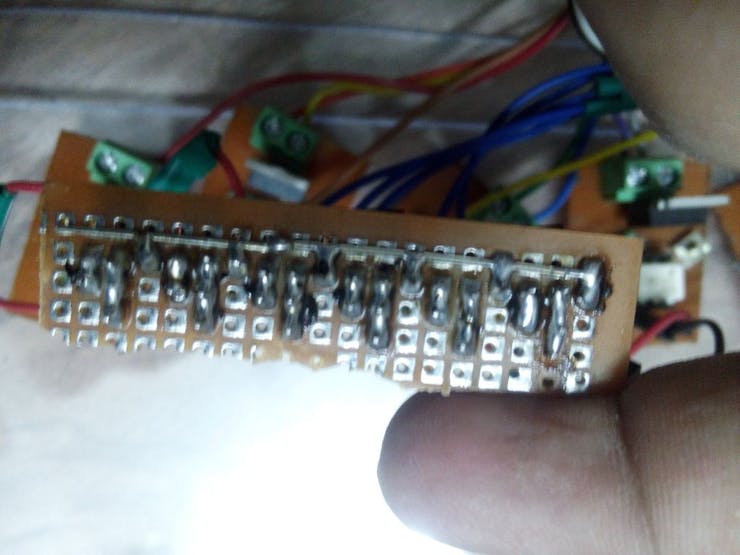

Relay (generic)
×5

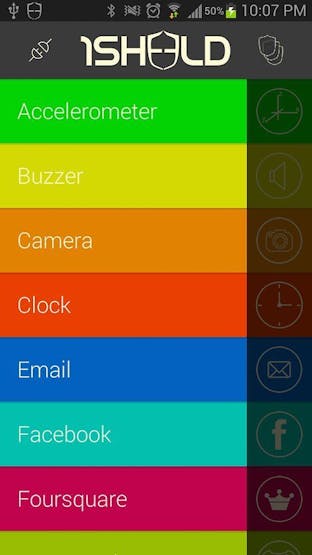

Android device
Android device
×1

Software apps and online services

Arduino IDE
Arduino IDE

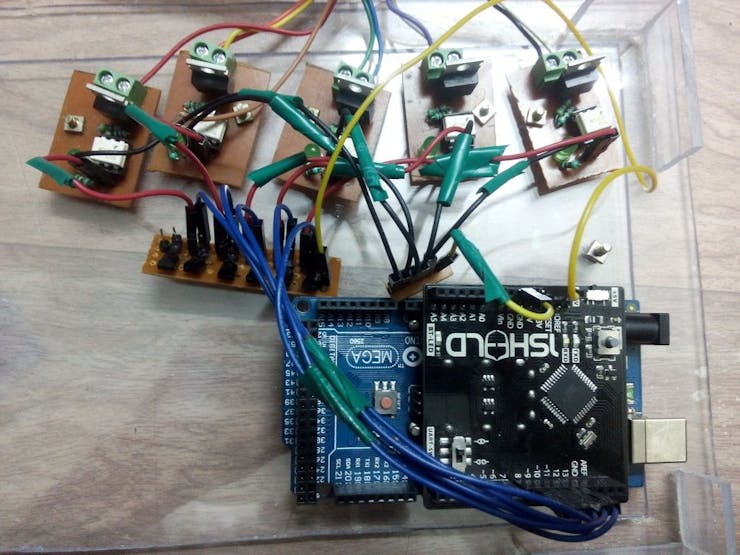

Story

Read more

Schematics


Code

sms.txt

Plain text
/*
    A simple Example which will turn the pins on and
    off while recieving specific messages from specific
    phone.
    5 pins which are used here pin: 13,12,11,10 and 9.

    */</p><p>    /* Include 1Sheeld Library */
#include <OneSheeld.h>
    int ledPin13 =13 ;        /* led on pin 13 for debuging */
    int ledPin12 =12;         /* led on pin 12 for debuging */
    int ledPin11 =11;         /* led on pin 11 for debuging */
    int ledPin10 =10;         /* led on pin 10 for debuging */
    int ledPin9 =9;           /* led on pin 9 for debuging */
    int ledpin =4;            /* led on pin 4 for debuging */</p><p>    void setup()
    {
      /* Start communication */
      OneSheeld.begin();
      /* This function invokeds receiveSms once any new messages are
         received */
      SMS.setOnSmsReceive(receiveSms);
    }</p><p>    /* Nothing to loop on */
    void loop()
    {}</p><p>    /* Receiving Function for new SMS's */
    void receiveSms(const char * number ,const char * text)
    {
      if(!strcmp(number,"+1234567890"))               /* phone number from which you will send the sms "PUT YOURS IN PLACE OF +1234567890" */
      {
        if(!strcmp(text,"on13"))                        /* Check if i need to open the light connected to (pin 13)*/
        {
          digitalWrite(ledPin13,HIGH);                  /* turn on the light (pin 13) */
        }
        if(!strcmp(text,"off13"))
         {
          digitalWrite(ledPin13,LOW);                   /* turn off the light(pin 13) */
        }

        if(!strcmp(text,"on12"))                        /* Check if i need to open the light (pin 12) */
        {
          digitalWrite(ledPin12,HIGH);                  /* turn on the light (pin 12) */
        }
        if(!strcmp(text,"off12"))

        {
          digitalWrite(ledPin12,LOW);                   /* turn off the light(pin 12) */
        }

        if(!strcmp(text,"on11"))                        /* Check if i need to open the light (pin 11) */
        {
          digitalWrite(ledPin11,HIGH);                  /* turn on the light (pin 11) */
        }
        if(!strcmp(text,"off11"))

        {
          digitalWrite(ledPin11,LOW);                   /* turn off the light(pin 11) */
        }
        if(!strcmp(text,"on10"))                        /* Check if i need to open the light (pin 10) */
        {
          digitalWrite(ledPin10,HIGH);                  /* turn on the light (pin 10) */
        }
        if(!strcmp(text,"off10"))

        {
          digitalWrite(ledPin10,LOW);                   /* turn off the light(pin 10) */
        }
        if(!strcmp(text,"on9"))                         /* Check if i need to open the light (pin 9) */
        {
          digitalWrite(ledPin9,HIGH);                   /* turn on the light (pin 9) */
        }
        if(!strcmp(text,"off9"))

        {
          digitalWrite(ledPin9,LOW);                    /* turn off the light(pin 9) */
        }

        if(!strcmp(text,"on all"))

        {
          digitalWrite(ledPin9,HIGH);          /* turn on the light(pin 9) */
          digitalWrite(ledPin10,HIGH);         /* turn on the light(pin 9) */
          digitalWrite(ledPin11,HIGH);         /* turn on the light(pin 9) */
          digitalWrite(ledPin12,HIGH);         /* turn on the light(pin 9) */
          digitalWrite(ledPin13,HIGH);         /* turn on the light(pin 9) */
        }
        if(!strcmp(text,"off all"))

        {
          digitalWrite(ledPin9,LOW);          /* turn off the light(pin 9) */
          digitalWrite(ledPin10,LOW);         /* turn off the light(pin 9) */
          digitalWrite(ledPin11,LOW);         /* turn off the light(pin 9) */
          digitalWrite(ledPin12,LOW);         /* turn off the light(pin 9) */
          digitalWrite(ledPin13,LOW);         /* turn off the light(pin 9) */
        }
        else
        {
          digitalWrite(ledpin,LOW);                    /* put any unused pin here (pin 4) */
        }
      }
    }

Untitled file

Arduino
/*
    A simple Example which will turn the pins on and
    off while recieving specific messages from specific
    phone.
    5 pins which are used here pin: 13,12,11,10 and 9.

    */</p><p>    /* Include 1Sheeld Library */
#include <OneSheeld.h>
    int ledPin13 =13 ;        /* led on pin 13 for debuging */
    int ledPin12 =12;         /* led on pin 12 for debuging */
    int ledPin11 =11;         /* led on pin 11 for debuging */
    int ledPin10 =10;         /* led on pin 10 for debuging */
    int ledPin9 =9;           /* led on pin 9 for debuging */
    int ledpin =4;            /* led on pin 4 for debuging */</p><p>    void setup()
    {
      /* Start communication */
      OneSheeld.begin();
      /* This function invokeds receiveSms once any new messages are
         received */
      SMS.setOnSmsReceive(receiveSms);
    }</p><p>    /* Nothing to loop on */
    void loop()
    {}</p><p>    /* Receiving Function for new SMS's */
    void receiveSms(const char * number ,const char * text)
    {
      if(!strcmp(number,"+1234567890"))               /* phone number from which you will send the sms "PUT YOURS IN PLACE OF +1234567890" */
      {
        if(!strcmp(text,"on13"))                        /* Check if i need to open the light connected to (pin 13)*/
        {
          digitalWrite(ledPin13,HIGH);                  /* turn on the light (pin 13) */
        }
        if(!strcmp(text,"off13"))
         {
          digitalWrite(ledPin13,LOW);                   /* turn off the light(pin 13) */
        }

        if(!strcmp(text,"on12"))                        /* Check if i need to open the light (pin 12) */
        {
          digitalWrite(ledPin12,HIGH);                  /* turn on the light (pin 12) */
        }
        if(!strcmp(text,"off12"))

        {
          digitalWrite(ledPin12,LOW);                   /* turn off the light(pin 12) */
        }

        if(!strcmp(text,"on11"))                        /* Check if i need to open the light (pin 11) */
        {
          digitalWrite(ledPin11,HIGH);                  /* turn on the light (pin 11) */
        }
        if(!strcmp(text,"off11"))

        {
          digitalWrite(ledPin11,LOW);                   /* turn off the light(pin 11) */
        }
        if(!strcmp(text,"on10"))                        /* Check if i need to open the light (pin 10) */
        {
          digitalWrite(ledPin10,HIGH);                  /* turn on the light (pin 10) */
        }
        if(!strcmp(text,"off10"))

        {
          digitalWrite(ledPin10,LOW);                   /* turn off the light(pin 10) */
        }
        if(!strcmp(text,"on9"))                         /* Check if i need to open the light (pin 9) */
        {
          digitalWrite(ledPin9,HIGH);                   /* turn on the light (pin 9) */
        }
        if(!strcmp(text,"off9"))

        {
          digitalWrite(ledPin9,LOW);                    /* turn off the light(pin 9) */
        }

        if(!strcmp(text,"on all"))

        {
          digitalWrite(ledPin9,HIGH);          /* turn on the light(pin 9) */
          digitalWrite(ledPin10,HIGH);         /* turn on the light(pin 9) */
          digitalWrite(ledPin11,HIGH);         /* turn on the light(pin 9) */
          digitalWrite(ledPin12,HIGH);         /* turn on the light(pin 9) */
          digitalWrite(ledPin13,HIGH);         /* turn on the light(pin 9) */
        }
        if(!strcmp(text,"off all"))

        {
          digitalWrite(ledPin9,LOW);          /* turn off the light(pin 9) */
          digitalWrite(ledPin10,LOW);         /* turn off the light(pin 9) */
          digitalWrite(ledPin11,LOW);         /* turn off the light(pin 9) */
          digitalWrite(ledPin12,LOW);         /* turn off the light(pin 9) */
          digitalWrite(ledPin13,LOW);         /* turn off the light(pin 9) */
        }
        else
        {
          digitalWrite(ledpin,LOW);                    /* put any unused pin here (pin 4) */
        }
      }
    }

Github

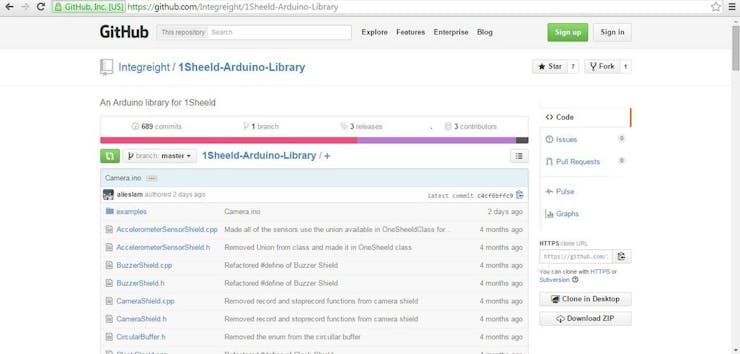

https://github.com/Integreight/1Sheeld-Arduino-Library

Codebender.cc

upload this sketch to your arduino
