Connect SIM7600 to IBM Watson IoT platform using MQTT

This project describes the steps to connect and send data to IBM IoT platform using MQTT protocol via SIM7600 4G modem

AdvancedProtip2 hours3,372
Connect SIM7600 to IBM Watson IoT platform using MQTT

Things used in this project

Hardware components

LILYGO® TTGO T-PCIE
LILYGO® TTGO T-PCIE
×1
SIM7600X-H
SIMCom Wireless Solutions SIM7600X-H
This is a PCI-e module that go with the TTGO
×1

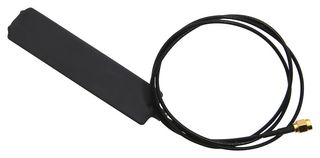

Omni-directional Antenna, LTE
Omni-directional Antenna, LTE
×1
Directional Antenna, GNSS Active Patch Antenna with LNA
Directional Antenna, GNSS Active Patch Antenna with LNA
This is optional
×1
USB Cable, USB Type C Plug
USB Cable, USB Type C Plug
TTGO modules are now equipped with USB-C connectors hence a suitable USB cable to connect the same to a computer to program it.
×1
4G simcard
×1

Software apps and online services

Arduino IDE
Arduino IDE
On a Personal Computer (Windows / Mac)
IBM Cloud Account
IBM IoT Platform

Story

Read more

Schematics

SIM7600 ESP32 integration schematics

The diagram shows how to wire ESP32 to talk with SIM7600 over UART Serial

Code

ESP32 SIM7600 MQTT connection

Arduino
This sketch is programmed using Arduino IDE onto LilyGo ESP32 TTGO board. Hence ESP32 must be installed as a supported device on Arduino. Target device can be LOLIN D32 PRO.
/**
 * @file ESP32-SIM7600-MQTT.ino
 * @author Tanmoy Dutta (tanmoy.dutta@gmail.com)
 * @brief Sketch for IBM IoT MQTT connection demo using SIM7600 4G modem
 * @version 0.1
 * @date 2022-02-22
 *
 * @copyright Copyright (c) 2022
 *
 */
#include <HardwareSerial.h>

/************************* PIN DEFINITIONS *********************************/
#define MODEM_PWRKEY              25
#define MODEM_RST                 4
#define MODEM_TX                  26
#define MODEM_RX                  27
/************************* /PIN DEFINITIONS *********************************/

/****************************** MQTT Creds ***************************************/
String ORG = "<ORG ID of the IBM IoT instance>";
String DEVICE_ID = "<Registered Device Id>";
String DEVICE_TYPE = "<Device Type>";
String TOKEN = "<Authentication Token>";
String PROTOCOL_PREFIX = "tcp://"; //URL Prefix as required by SIM7600 module
String PORT = "8883"; //Secure port

String server_url = PROTOCOL_PREFIX + ORG + ".messaging.internetofthings.ibmcloud.com" + ":" + PORT;
String topic = "iot-2/evt/status/fmt/json"; //We are publishing data in JSON format
String authMethod = "use-token-auth"; //This is fixed for device authentication
String token = TOKEN;

String clientId = "d:" + ORG + ":" + DEVICE_TYPE + ":" + DEVICE_ID;
/****************************** /MQTT Creds ***************************************/



/**
 * @brief Send the AT command to SIM7600
 * and capture the response
 *
 * @param command
 */
void serialCommand(String command){
  Serial.print("Command:");Serial.println(command);
  Serial2.println(command);

  char dat;
  while (Serial2.available()) {
     dat = Serial2.read();
     Serial.print(dat);
     delay(10);

  }

  Serial.println(dat); //Print the command response
}

/**
 * @brief Connection command to MQTT Server
 *
 */
void mqttConnect() {
  Serial.println("Check modem status...");
  serialCommand("ATE0");
  delay(10);
  Serial.println("done!");

  Serial.println("MQTT Start...");
  serialCommand("AT+CMQTTSTART");
  delay(100);
  Serial.println("done!");

  Serial.println("Configure client id...");
  serialCommand("AT+CMQTTACCQ=0,\"" + clientId + "\",1");
  delay(500);
  Serial.println("done!");

  Serial.println("Open MQTT connection...");
  serialCommand("AT+CMQTTCONNECT=0,\"" + server_url + "\",90,1,\"" + authMethod + "\",\"" + token + "\"");
  delay(5000); //Allow sufficient time for the SSL handshake to finish
  Serial.println("done!");

}


/**
 * @brief Sequence of commands to send the data
 *
 * @param dat
 */
void sendMQTTData(String dat) {

  serialCommand("AT+CMQTTTOPIC=0,25"); //Length of the topic string
  delay(20);

  serialCommand(topic);
  delay(10);

  serialCommand("AT+CMQTTPAYLOAD=0,200"); //Length of the payload
  delay(20);

  serialCommand("{\"d\":{\"a\":" + dat + "}}");
  delay(20);

  serialCommand("AT+CMQTTPUB=0,0,60"); //Publish to the server
  delay(10);

}

/**
 * @brief Disconnect the client from MQTT Server and
 * release the client
 *
 */
void mqttDisconnect() {
  Serial.println("Diconnect MQTT...");
  serialCommand("AT+CMQTTDISC=0,60"); //Disconnect Server
  delay(2000);
  Serial.println("done!");

  Serial.println("Release client...");
  serialCommand("AT+CMQTTREL=0"); //Release Client
  delay(2000);
  Serial.println("done!");

  Serial.println("Stop MQTT...");
  serialCommand("AT+CMQTTSTOP"); //Stop 4G connection
  delay(2000);
  Serial.println("done!");

}

/**
 * @brief Initialise the peripherals and modem
 *
 */
void setup() {
  Serial.begin(115200);
  Serial2.begin(115200, SERIAL_8N1, MODEM_TX, MODEM_RX); //Setup Serial link with the Modem

  pinMode(MODEM_RST, OUTPUT);
  digitalWrite(MODEM_RST, HIGH); // Default state

  pinMode(MODEM_PWRKEY, OUTPUT);
  digitalWrite(MODEM_PWRKEY, LOW);
  delay(1000);
  digitalWrite(MODEM_PWRKEY, HIGH);

  digitalWrite(MODEM_RST, HIGH);
  delay(10);
  digitalWrite(MODEM_RST, LOW);
  delay(10);
  digitalWrite(MODEM_RST, HIGH);

  Serial.println("Modem init called.");
  Serial.println("Waiting 20 seconds...");
  delay(20000); //And now we allow time for the modem to start up and initialise

  mqttConnect();

  sendMQTTData("1");

  mqttDisconnect();
}

/**
 * @brief Do nothing in the loop
 *
 */
void loop() {
}
