Environmental sensing with Agruimino Lemon and E-Ink display

This project focuses on utilizing Lifely Agrumino sensors to monitor temperature and soli humidity, displaying the data on a E-Paper display

BeginnerProtip5 hours277

Environmental sensing with Agruimino Lemon and E-Ink display

Things used in this project

Hardware components

Lifely Agrumino

1.9inch Segment E-Paper Module, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter

Jumper wires (generic)

I2C cables

Software apps and online services

Arduino IDE

Story

1.Introduction

This project is primarily focused on environmental monitoring, specifically temperature and humidity. It involves the use of Lifely Agrumino sensors to collect data from the surroundings.

The collected data is then processed and displayed on an E-Paper display.

This can be valuable for a wide range of applications where environmental data is essential, such as home-automation.

How does it work?

The project involves the following key components and steps:

Sensor Data Collection: Lifely Agrumino sensors are used to measure temperature and humidity in the environment. These sensors are connected to a microcontroller, an Arduino board, which reads the data from the sensors.
Display Interface: An E-Paper display is employed to visualize the collected data. To interface with the display, an I2C module is used as an interface for communications. The Wire.h library facilitates communication through the I2C standard.
Customized Library: The E-Paper display typically comes with a basic library called EPD_1in9. However, to make it compatible with the Lifely Agrumino sensors, some modifications are required. This includes changes to functions like GPIOInit, EPD_1in9_ReadBusy, and EPD_1in9_Reset.
Application Code: The application code is responsible for orchestrating the entire process. During the setup phase, it establishes serial communication with the Agrumino board, initializes the I2C communication with the E-Paper display, and reads temperature and humidity values.
Data Manipulation: The temperature and humidity readings are both displayed on the serial monitor and manipulated. These values are often stored in arrays for further processing.
Display Output: The manipulated data is then formatted for display on the E-Paper screen. Typically, E-Paper displays are divided into segments, and the data is mapped to these segments.
Power Management: To conserve power and extend battery life, the project incorporates a deep sleep mode. The duration of deep sleep is configurable through the SLEEP_TIME_SEC constant.

2.Hardware

The E-Paper display is connected to a module that serves as an interface for I2C communication.

Agrumino I2C port GND, VOUT, SDA, SCL pins are connected to the relative pins on the display module.

Agrumino GPIO ports 1 and 2 are used to control BUSY and RESET signals.

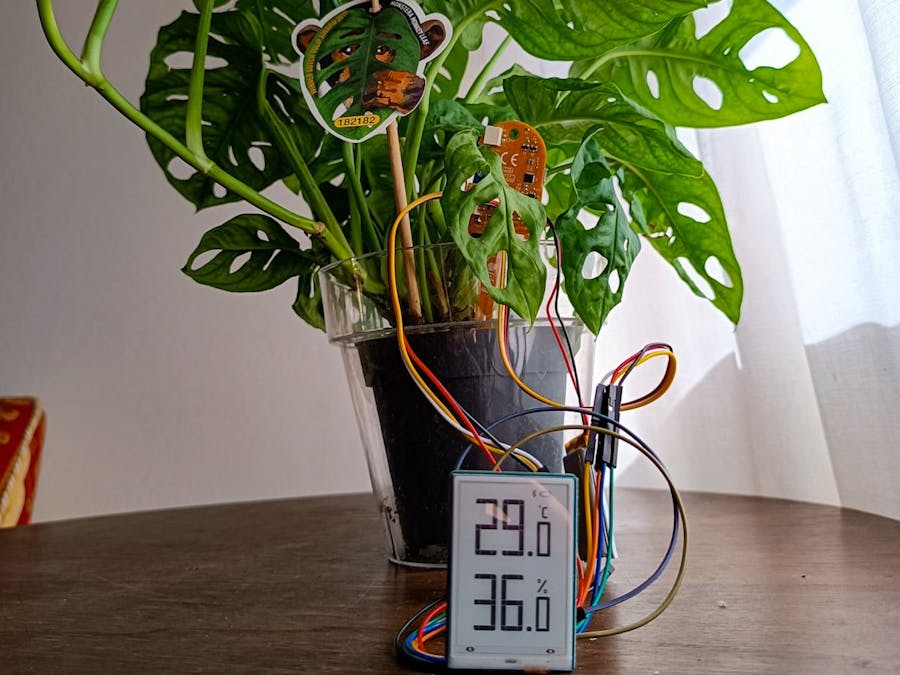

Connections between Agrumino I2C and GPIO ports and display module

3.Software setup

3.1Displaylibrary

The E-Paper display is connected to a module that serves as an interface for I2C communication. The Wire.h library facilitates communication via the I2C standard. Additionally, the display comes with a simple public library called EPD_1in9 for communication management. However, this library was not originally designed for use with Agrumino, so we had to make some modifications to the original library. These modifications included changes to control functions such as GPIOInit, EPD_1in9_ReadBusy, and EPD_1in9_Reset.

3.2Application Code

The code for this project is straightforward and follows the basic example provided by the manufacturer, with some modifications. In the setup section, we establish serial communication with the Agrumino board, power it on, and initialize communication with the E-Paper display.

Next, we read temperature and humidity values, which are both transmitted to the serial monitor and processed before being placed into arrays named temperature_digits and humidity_digits. These arrays are then inserted into another array that corresponds to the 13 segments of the E-Paper display.

Finally, the array containing the values of the various display segments is transmitted to the E-Paper display. After this, the board enters a deep sleep mode to reduce power consumption and extend the battery life. The duration of the deep sleep can be set in seconds using the SLEEP_TIME_SEC constant, which is then multiplied by 1000000 because the function requires a value in microseconds.

/*  This sketch send data in a 1.9inch Segment E-Paper Module.
    The original EPD_1.9 library has been modified as some control functions
    (GPIOInit, ReadBusy, and Reset) must refer to Agrumino library. */

#include <stdio.h>
#include <Wire.h>             // used to communicate with I2C devices.
#include "Lifely_EPD_1in9.h"  // used to communicate with E-Paper Display.
#include <Agrumino.h>         // used to communicate with Agrumino board.
#define SLEEP_TIME_SEC 10     // used to set the deep sleep time in seconds.
Agrumino agrumino;

float temperature_value =0.0;
float humidity_value =0.0;
void delaySec(int sec) { delay(sec * 1000); }

void deepSleepSec(int sec) {
  ESP.deepSleep(sec * 1000000); // microseconds
}

char digit_left[] = {0xbf, 0x00, 0xfd, 0xf5, 0x47, 0xf7, 0xff, 0x21, 0xff, 0xf7, 0x00};  // individual segments for the left part od the digit, index 10 is empty
char digit_right[] ={0x1f, 0x1f, 0x17, 0x1f, 0x1f, 0x1d, 0x1d, 0x1f, 0x1f, 0x1f, 0x00};  // individual segments for the right part od the digit, index 10 is empty
char temperature_digits[] = {1, 2, 3, 4}; // temperature digits > 1, 2, 3, 4 = 123.4°C
char humidity_digits[] = {5, 6, 7}; // humidity digits > 5, 6, 7 = 56.7%
unsigned char eink_segments[]  = {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,       };  // all white, but will be updated later with proper digits

void GPIOInit()
{
  agrumino.setGPIOMode(GPIO_2 , GPIO_INPUT);
  agrumino.setGPIOMode(GPIO_1 , GPIO_OUTPUT);
}

void EPD_1in9_ReadBusy()
{
  Serial.println("wait");
  delay(10);
  while(1)
  {  //=1 BUSY;
    if(agrumino.readGPIO(GPIO_2)==1)
      break;
    delay(1);
  }
  delay(10);
    Serial.println("Down");
}
void EPD_1in9_Reset()
{

  agrumino.writeGPIO(GPIO_1, HIGH);
  delay(200);
  agrumino.writeGPIO(GPIO_1, LOW);
  delay(20);
  agrumino.writeGPIO(GPIO_1, HIGH);
  delay(200);
}


void setup()
{

  Serial.begin(115200); // start serial communication
  agrumino.setup();
  delay(200);
  agrumino.turnBoardOn();
  delay(200);
  Wire.begin();  // start I2C commnunication with the e-ink display
  Serial.println("Clear");
  GPIOInit();
  EPD_1in9_init();

}

void loop()
{

  temperature_value = agrumino.readTempC(); // set the temperature
  humidity_value = agrumino.readSoil(); // set the humidity
  Serial.println("temperature is:  " + String(temperature_value));
  Serial.println("humidity is:  " + String(humidity_value));
  // some updates for the e-ink display, I don´t understand most of it, so I´m keepin it here
  EPD_1in9_lut_5S();
  EPD_1in9_Write_Screen(DSPNUM_1in9_off);
  delay(500);
  EPD_1in9_lut_GC();
  EPD_1in9_lut_DU_WB();

  // set correct digits values based on the temperature
  temperature_digits[0] = int(temperature_value / 100) % 10;
  temperature_digits[1] = int(temperature_value / 10) % 10;
  temperature_digits[2] = int(temperature_value ) % 10;
  temperature_digits[3] = int(temperature_value * 10) % 10;

  // set correct digits values based on the humidity
  humidity_digits[0] = int(humidity_value / 10) % 10;
  humidity_digits[1] = int(humidity_value ) % 10;
  humidity_digits[2] = int(humidity_value * 10) % 10;

  // do not show leading zeros for values <100 and <10 both temperature and humidity
  if (temperature_value < 100) {temperature_digits[0] = 10;}
  if (temperature_value < 10) {temperature_digits[1] = 10;}

  if (humidity_value < 10) {humidity_digits[0] = 10;}

  // temperature digits
  eink_segments[0] = digit_right[temperature_digits[0]];
  eink_segments[1] = digit_left[temperature_digits[1]];
  eink_segments[2] = digit_right[temperature_digits[1]];
  eink_segments[3] = digit_left[temperature_digits[2]];
  eink_segments[4] = digit_right[temperature_digits[2]] | B00100000 /* decimal point */;
  eink_segments[11] = digit_left[temperature_digits[3]];
  eink_segments[12] = digit_right[temperature_digits[3]];

  // humidity digits
  eink_segments[5] = digit_left[humidity_digits[0]];
  eink_segments[6] = digit_right[humidity_digits[0]];
  eink_segments[7] = digit_left[humidity_digits[1]];
  eink_segments[8] = digit_right[humidity_digits[1]] | B00100000 /* decimal point */;
  eink_segments[9] = digit_left[humidity_digits[2]];
  eink_segments[10] = digit_right[humidity_digits[2]] | B00100000 /* percentage sign */;
  // special symbols - °C / °F, bluetooth, battery
  eink_segments[13] = 0x05 /* °C */ | B00001000 /* bluetooth */ | B00010000 /* battery icon */;
  // write segments to the e-ink screen
  EPD_1in9_Write_Screen(eink_segments);
  EPD_1in9_sleep();
  agrumino.turnBoardOff();
  deepSleepSec(SLEEP_TIME_SEC);
}

#ifndef _Lifely_EPD_1in9_H_
#define _Lifely_EPD_1in9_H_

#include <Arduino.h>
#include <Wire.h>
#include <stdlib.h>
// address
#define adds_com  	0x3C
#define adds_data	0x3D

#define EPD_BUSY_PIN 7
#define EPD_RST_PIN 8



extern unsigned char DSPNUM_1in9_on[];
extern unsigned char DSPNUM_1in9_off[];
extern unsigned char DSPNUM_1in9_WB[];
extern unsigned char DSPNUM_1in9_W0[];
extern unsigned char DSPNUM_1in9_W1[];
extern unsigned char DSPNUM_1in9_W2[];
extern unsigned char DSPNUM_1in9_W3[];
extern unsigned char DSPNUM_1in9_W4[];
extern unsigned char DSPNUM_1in9_W5[];
extern unsigned char DSPNUM_1in9_W6[];
extern unsigned char DSPNUM_1in9_W7[];
extern unsigned char DSPNUM_1in9_W8[];
extern unsigned char DSPNUM_1in9_W9[];

void GPIOInit(void);
void EPD_1in9_Reset(void);
void EPD_1in9_SendCommand(unsigned char Reg);
void EPD_1in9_SendData(unsigned char Data);
unsigned char EPD_1in9_readCommand(unsigned char Reg);
unsigned char EPD_1in9_readData(unsigned char Data);
void EPD_1in9_ReadBusy(void);
void EPD_1in9_lut_DU_WB(void);
void EPD_1in9_lut_GC(void);
void EPD_1in9_lut_5S(void);
void EPD_1in9_Temperature(void);
void EPD_1in9_init(void);
void EPD_1in9_Write_Screen(unsigned char *image);
void EPD_1in9_Write_Screen1(unsigned char *image);
void EPD_1in9_sleep(void);

#endif

#include <Arduino.h>
#include <Wire.h>
#include <stdlib.h>
#include "Lifely_EPD_1in9.h"
#include <Agrumino.h>

//////////////////////////////////////full screen update LUT////////////////////////////////////////////

unsigned char DSPNUM_1in9_on[]   = {0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,       };  // all black
unsigned char DSPNUM_1in9_off[]  = {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,       };  // all white
unsigned char DSPNUM_1in9_WB[]   = {0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,       };  // All black font
unsigned char DSPNUM_1in9_W0[]   = {0x00, 0xbf, 0x1f, 0xbf, 0x1f, 0xbf, 0x1f, 0xbf, 0x1f, 0xbf, 0x1f, 0xbf, 0x1f, 0x00, 0x00,       };  // 0
unsigned char DSPNUM_1in9_W1[]   = {0xff, 0x1f, 0x00, 0x1f, 0x00, 0x1f, 0x00, 0x1f, 0x00, 0x1f, 0x00, 0x1f, 0x00, 0x00, 0x00,       };  // 1
unsigned char DSPNUM_1in9_W2[]   = {0x00, 0xfd, 0x17, 0xfd, 0x17, 0xfd, 0x17, 0xfd, 0x17, 0xfd, 0x17, 0xfd, 0x37, 0x00, 0x00,       };  // 2
unsigned char DSPNUM_1in9_W3[]   = {0x00, 0xf5, 0x1f, 0xf5, 0x1f, 0xf5, 0x1f, 0xf5, 0x1f, 0xf5, 0x1f, 0xf5, 0x1f, 0x00, 0x00,       };  // 3
unsigned char DSPNUM_1in9_W4[]   = {0x00, 0x47, 0x1f, 0x47, 0x1f, 0x47, 0x1f, 0x47, 0x1f, 0x47, 0x1f, 0x47, 0x3f, 0x00, 0x00,       };  // 4
unsigned char DSPNUM_1in9_W5[]   = {0x00, 0xf7, 0x1d, 0xf7, 0x1d, 0xf7, 0x1d, 0xf7, 0x1d, 0xf7, 0x1d, 0xf7, 0x1d, 0x00, 0x00,       };  // 5
unsigned char DSPNUM_1in9_W6[]   = {0x00, 0xff, 0x1d, 0xff, 0x1d, 0xff, 0x1d, 0xff, 0x1d, 0xff, 0x1d, 0xff, 0x3d, 0x00, 0x00,       };  // 6
unsigned char DSPNUM_1in9_W7[]   = {0x00, 0x21, 0x1f, 0x21, 0x1f, 0x21, 0x1f, 0x21, 0x1f, 0x21, 0x1f, 0x21, 0x1f, 0x00, 0x00,       };  // 7
unsigned char DSPNUM_1in9_W8[]   = {0x00, 0xff, 0x1f, 0xff, 0x1f, 0xff, 0x1f, 0xff, 0x1f, 0xff, 0x1f, 0xff, 0x3f, 0x00, 0x00,       };  // 8
unsigned char DSPNUM_1in9_W9[]   = {0x00, 0xf7, 0x1f, 0xf7, 0x1f, 0xf7, 0x1f, 0xf7, 0x1f, 0xf7, 0x1f, 0xf7, 0x1f, 0x00, 0x00,       };  // 9

unsigned char VAR_Temperature=20;

void EPD_1in9_SendCommand(unsigned char Reg)
{
	Wire.beginTransmission(adds_com);
	Wire.write(Reg);
	Wire.endTransmission(false);
}

/******************************************************************************
function :	send data
parameter:
    Data : Write data
******************************************************************************/
void EPD_1in9_SendData(unsigned char Data)
{
  Wire.beginTransmission(adds_data);
	Wire.write(Data);
	Wire.endTransmission();
}

/******************************************************************************
function :	read command
parameter:
     Reg : Command register
******************************************************************************/
unsigned char EPD_1in9_readCommand(unsigned char Reg)
{
	unsigned char a;
	Wire.beginTransmission(adds_com);
	delay(10);
	Wire.write(Reg);
	a = Wire.read();
	Wire.endTransmission();
	return a;
}

/******************************************************************************
function :	read data
parameter:
    Data : Write data
******************************************************************************/
unsigned char EPD_1in9_readData(unsigned char Data)
{
	unsigned char a;
  Wire.beginTransmission(adds_data);
	delay(10);
	Wire.write(Data);
	a = Wire.read();
	Wire.endTransmission();
	return a;
}

/******************************************************************************
function :	Wait until the busy_pin goes LOW
parameter:
******************************************************************************/


/*
# DU waveform white extinction diagram + black out diagram
# Bureau of brush waveform
*/
void EPD_1in9_lut_DU_WB(void)
{
	Wire.beginTransmission(adds_com);
	Wire.write(0x82);
	Wire.write(0x80);
	Wire.write(0x00);
	Wire.write(0xC0);
	Wire.write(0x80);
	Wire.write(0x80);
	Wire.write(0x62);
	Wire.endTransmission();
}

/*
# GC waveform
# The brush waveform
*/
void EPD_1in9_lut_GC(void)
{
	Wire.beginTransmission(adds_com);
	Wire.write(0x82);
	Wire.write(0x20);
	Wire.write(0x00);
	Wire.write(0xA0);
	Wire.write(0x80);
	Wire.write(0x40);
	Wire.write(0x63);
	Wire.endTransmission();
}

/*
# 5 waveform  better ghosting
# Boot waveform
*/
void EPD_1in9_lut_5S(void)
{
	Wire.beginTransmission(adds_com);
	Wire.write(0x82);
	Wire.write(0x28);
	Wire.write(0x20);
	Wire.write(0xA8);
	Wire.write(0xA0);
	Wire.write(0x50);
	Wire.write(0x65);
	Wire.endTransmission();
}

/*
# temperature measurement
# You are advised to periodically measure the temperature and modify the driver parameters
# If an external temperature sensor is available, use an external temperature sensor
*/
void EPD_1in9_Temperature(void)
{
	Wire.beginTransmission(adds_com);
	if( VAR_Temperature < 10 )
	{
		Wire.write(0x7E);
		Wire.write(0x81);
		Wire.write(0xB4);
	}
	else
	{
		Wire.write(0x7E);
		Wire.write(0x81);
		Wire.write(0xB4);
	}
	Wire.endTransmission();

    delay(10);

	Wire.beginTransmission(adds_com);
	Wire.write(0xe7);    // Set default frame time

	// Set default frame time
	if(VAR_Temperature<5)
		Wire.write(0x31); // 0x31  (49+1)*20ms=1000ms
	else if(VAR_Temperature<10)
		Wire.write(0x22); // 0x22  (34+1)*20ms=700ms
	else if(VAR_Temperature<15)
		Wire.write(0x18); // 0x18  (24+1)*20ms=500ms
	else if(VAR_Temperature<20)
		Wire.write(0x13); // 0x13  (19+1)*20ms=400ms
	else
		Wire.write(0x0e); // 0x0e  (14+1)*20ms=300ms
	Wire.endTransmission();
}

/*
# Note that the size and frame rate of V0 need to be set during initialization,
# otherwise the local brush will not be displayed
*/
void EPD_1in9_init(void)
{
	unsigned char i = 0;
	EPD_1in9_Reset();
	delay(100);

	Wire.beginTransmission(adds_com);
	Wire.write(0x2B); // POWER_ON
	Wire.endTransmission();

	delay(10);

	Wire.beginTransmission(adds_com);
	Wire.write(0xA7); // boost
	Wire.write(0xE0); // TSON
	Wire.endTransmission();

	delay(10);

	EPD_1in9_Temperature();
}

void EPD_1in9_Write_Screen( unsigned char *image)
{
	Wire.beginTransmission(adds_com);
	Wire.write(0xAC); // Close the sleep
	Wire.write(0x2B); // turn on the power
	Wire.write(0x40); // Write RAM address
	Wire.write(0xA9); // Turn on the first SRAM
	Wire.write(0xA8); // Shut down the first SRAM
	Wire.endTransmission();

	Wire.beginTransmission(adds_data);
	for(char j = 0 ; j<15 ; j++ )
		Wire.write(image[j]);

	Wire.write(0x00);
	Wire.endTransmission();


	Wire.beginTransmission(adds_com);
	Wire.write(0xAB); // Turn on the second SRAM
	Wire.write(0xAA); // Shut down the second SRAM
	Wire.write(0xAF); // display on
	Wire.endTransmission();

	EPD_1in9_ReadBusy();
	//delay(2000);

	Wire.beginTransmission(adds_com);
	Wire.write(0xAE); // display off
	Wire.write(0x28); // HV OFF
	Wire.write(0xAD); // sleep in
	Wire.endTransmission();
}

void EPD_1in9_Write_Screen1( unsigned char *image)
{
	Wire.beginTransmission(adds_com);
	Wire.write(0xAC); // Close the sleep
	Wire.write(0x2B); // turn on the power
	Wire.write(0x40); // Write RAM address
	Wire.write(0xA9); // Turn on the first SRAM
	Wire.write(0xA8); // Shut down the first SRAM
	Wire.endTransmission();

	Wire.beginTransmission(adds_data);
	for(char j = 0 ; j<15 ; j++ )
		Wire.write(image[j]);

	Wire.write(0x03);
	Wire.endTransmission();

	Wire.beginTransmission(adds_com);
	Wire.write(0xAB); // Turn on the second SRAM
	Wire.write(0xAA); // Shut down the second SRAM
	Wire.write(0xAF); // display on
	Wire.endTransmission();

	EPD_1in9_ReadBusy();
	//delay(2000);

	Wire.beginTransmission(adds_com);
	Wire.write(0xAE); // display off
	Wire.write(0x28); // HV OFF
	Wire.write(0xAD); // sleep in
	Wire.endTransmission();

}

void EPD_1in9_sleep(void)
{
	Wire.beginTransmission(adds_com);
	Wire.write(0x28); // POWER_OFF
	EPD_1in9_ReadBusy();
	Wire.write(0xAD); // DEEP_SLEEP
	Wire.endTransmission();

	delay(2000);
	// digitalWrite(EPD_RST_PIN, 0);
}

Credits

Comments

Please log in or sign up to comment.

Environmental sensing with Agruimino Lemon and E-Ink display

Things used in this project

Hardware components

Software apps and online services

Story

How does it work?

Code

Soil-Temp-Monitoring

Lifely_EPD_1in9.h

Lifely_EPD_1in9.cpp

Credits

Giovanni Lisca

Valeria Marras

Claudio Deriu

Annarita Buttu

Comments

Embed the widget on your own site

Environmental sensing with Agruimino Lemon and E-Ink display

Environmental sensing with Agruimino Lemon and E-Ink display

Things used in this project

Hardware components

Software apps and online services

Story

How does it work?

Code

Soil-Temp-Monitoring

Lifely_EPD_1in9.h

Lifely_EPD_1in9.cpp

Credits

Giovanni Lisca

Valeria Marras

Claudio Deriu

Annarita Buttu

Comments

Related channels and tags
