Roll Detection Using Accelerometer

Using an accelerometer, we detected angular acceleration. With this data we used a particle photon to notify the user via a Blynk dashboard.

IntermediateShowcase (no instructions)15 hours3,745

Things used in this project

Hardware components

Particle Photon

Plan to use this to send accelerometer data to another particle so that it can be saved to a micro SSD.

SparkFun Triple Axis Accelerometer and Gyro Breakout - MPU-6050

Jumper wires (generic)

Software apps and online services

Blynk

Plan to use this to graph data

Story

Motivation

We were trying to think of cool ways we could connect two particle photons together and send data from one to another. Our team's extracurricular activities include rocketry and Formula SAE. We wanted to be able to use an accelerometer and photon to graph the movement of an object from a base station using some form of wireless transmission and initially planned to graph the movement of the car and its orientation (yaw, pitch, and role). Why this particular aspect of the project was not possible to achieve is explained below. Essentially, we hope to be able to graph and display movement, and to be able to accurately see what the car/rocket is doing on a computer. Using this project, we could affix the components to a rocket or formula car and see the orientation of a rocket as it flies upward, or see the acceleration and angle of a formula car while in a turn. The culmination of our efforts are an accelerometer and photon combination, which notifies another photon it has been tilted past a threshold set in the particle photon's code. We also utilize Blynk to graph how many times the accelerometer tilts and to also send a warning message to the user.

Introduction

Our project began in an effort to wirelessly transmit accelerometer data using the Particle Photon’s User Datagram Protocol(UDP) capabilities. This initial setup would have involved a particle connected to a computer while the other was connected to the serial outputs on an arduino, through which all of the processing/formatting of the accelerometer data would have been accomplished. Using UDP we wanted to wirelessly transmit accelerometer data to a photon and have that photon read in the data in a format capable of being using by a program that orients a constructed three-dimensional object in a rendering window, and updates that object’s orientation in real-time based on the orientation of the accelerometer. The program that would have handled the three-dimensional mapping of accelerometer data is called “Processing” and is used for many projects requiring some form of visualization.

Limitations

We discovered inherent limitations in being able to do this, though. Firstly, the accelerometer outputs data using I2C which works well with the example code for Processing when a wireless transmission component isn’t needed. Secondarily, UDP is rather impractical for this application. We succeeded in reading in packets of data consisting of only a solitary character, with datatype char, but were unable to read the entire data packet we wanted to send.

We then explored using two small radios to transmit our accelerometer data. We were successful in transmitting this data but with the Arduino reading in the accelerometer data via I2C and the radios only capable of sending and receiving data via Rx and Tx pins, processing couldn’t read the incoming data properly. There may be a way to successfully transmit data via Rx and Tx pins that was originally transmitted using I2C. If there is, it is currently not in our skillset to implement.

Roll Detection and Notification Setup

Photons and Accelerometer

As of now, we have a configuration consisting of two particle photons and an accelerometer. The accelerometer is connected to one of these photons and publishes an event upon rolling, or angular acceleration about the “y” axis, for the other photon to listen to. The listening photon has subscribed to this event and, upon detecting it has been published, will illuminate the onboard LED at pin D7. We have then interfaced the photon-accelerometer combination with Blynk, writing a string message to a terminal widget and graphing the number of times the accelerometer has exceeded the roll threshold.

Below is a video of The B-Team explaining our project and the Blynk dashboard we used to notify the user of the rolling of the accelerometer.

The B-Team Accelerometer Project

Hardware

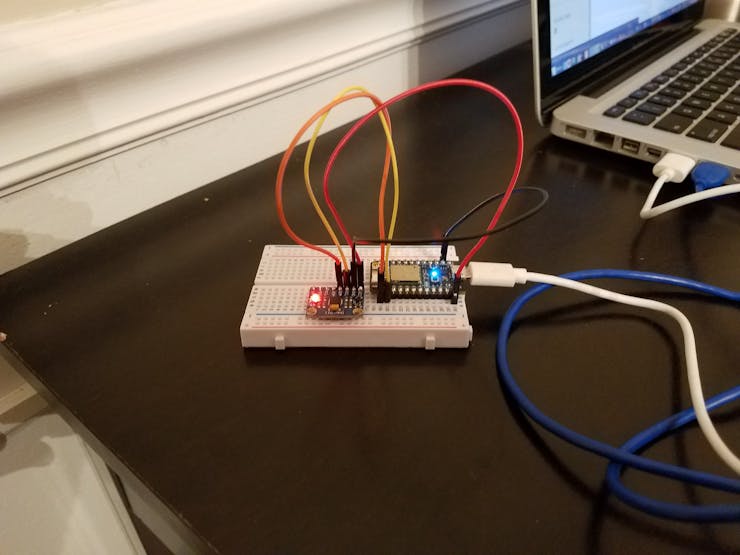

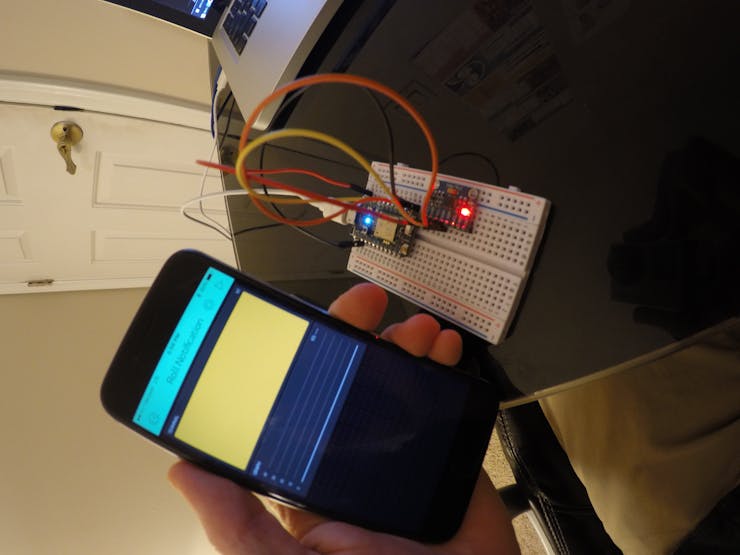

Photos of our hardware configuration can be seen below. We purchased the MPU6050 accelerometer to connect to the photon.

Blynk

Blynk allowed us to utilize an app available on Apple’s app store that is capable of displaying whatever data we push to it. We have decided to push a string message to a terminal widget which notifies the user of the accelerometer that they have exceeded the angular acceleration threshold set in the code. We have also included a counter for how many times the accelerometer exceeds the threshold. With this we plot the number of counts versus time on a graph in the blynk app.

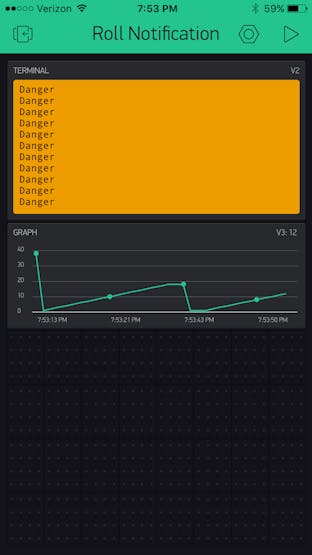

Blynk Dashboard - Terminal Widget and Graph Widget

The photo above is our Blynk dashboard. We wrote a message containing the text "Danger" when the accelerometer tilted. The graph below shows the number of times the accelerometer rolled over a certain period of time. The counter resets upon resetting the photon.

Conclusion

The particle photons communicate between one another using a simple publish and subscribe solution. We then implement the Blynk app to allow graphing of a variable counter versus time.

Comments

We did attempt to have the secondary photon call the Blynk functions, but the particle photon would consistently disconnect from the cloud upon doing so. This could have been interference due to Particle.subscribe() and Blynk.begin(auth).

Code

// This #include statement was automatically added by the Particle IDE.
#include "blynk/blynk.h"
//#define BLYNK_PRINT Serial
// This #include statement was automatically added by the Particle IDE.
#include "MPU6050/MPU6050.h"

// Once you import this library into an app on the web based IDE, modify the code to look something like the following.
// This code is a heavily modified version of the MPU6050_raw.ino example found elsewhere in this repo.
// This code has been tested against the MPU-9150 breakout board from Sparkfun.

// This #include statement was automatically added by the Spark IDE.
#include "MPU6050/MPU6050.h"

int ledPin = D7;
//float threshhold = 800;
// MPU variables:
MPU6050 accelgyro;
int16_t ax, ay, az;
int16_t gx, gy, gz;

char auth[] = "a9f6f8d56817451fa19aab099d57c16b";

WidgetLED led(V1);
WidgetTerminal term(V2);

int i = 0;

bool ledState = false;
void toggleLed() {
    ledState = !ledState;
    digitalWrite(ledPin, ledState);
}

void setup() {
    pinMode(ledPin, OUTPUT);

    Wire.begin();
    Serial.begin(9600);
    Blynk.begin(auth);

    // The following line will wait until you connect to the Spark.io using serial and hit        enter. This gives
    // you enough time to start capturing the data when you are ready instead of just            spewing data to the UART.
    //
    // So, open a serial connection using something like:
    // screen /dev/tty.usbmodem1411 9600
    while(!Serial.available()) SPARK_WLAN_Loop();

    //Serial.println("Initializing I2C devices...");
    accelgyro.initialize();


}

void loop() {

    // read raw accel/gyro measurements from device
    accelgyro.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);
    /*Serial.print("a/g:\t");
    Serial.print("x: "); Serial.print(ax); Serial.print("\t");
    Serial.print("y: "); Serial.print(ay); Serial.print("\t");
    Serial.print("z: "); Serial.print(az); Serial.print("\t");
    Serial.print("Pitch: "); Serial.print(gx); Serial.print("\t");
    Serial.print("Roll: "); Serial.print(gy); Serial.print("\t");
    Serial.print("Yaw: "); Serial.println(gz); */

    //toggleLed();


    if(gy > 0) {
        i++;
        Particle.publish("A_Unique_Event_252103", "On");
        //led.on();
        term.println("Danger");
        term.flush();
        Blynk.virtualWrite(V3, i);
        delay(500);

    }
    else {
        Particle.publish("A_Unique_Event_252103", "Off");
        //led.off();

    }

}

int boardLed = D7;

void setup() {

    pinMode(boardLed, OUTPUT);
    Particle.subscribe("A_Unique_Event_252103", myHandler);

}

void loop() {


}

void myHandler(const char *event, const char *data) {

    if (strcmp(data,"Off")==0) {
    // Turn onboard led off
    digitalWrite(boardLed,LOW);
    delay(100);

  }
  else if (strcmp(data,"On")==0) {
    //If triggered by published event, i.e. if the accelerometer's roll exceeds a threshold, turn onboard led on
    digitalWrite(boardLed,HIGH);
    delay(500);
  }
  else {
    // if the data is something else, don't do anything.
    // Really the data shouldn't be anything but those two listed above.
  }

}
