Published April 7, 2020

Black Mirror's Metalhead Dog

In this project I'm trying to bring to life an evil robot from Black Mirror series, the Metalhead dog

IntermediateWork in progress3 days830

Things used in this project

Hardware components

Raspberry Pi V3

The brain of the system

Raspberry Pi Camera Module

MQ2 Sensor

Flammable Gas and Smoke Sensor Module

DHT-11 Humidity and Temperature Sensor Module

MPU-6050 Six-Axis (Gyro + Accelerometer)

PIR Sensor

To detect presence of people

CYS0150 Servo Motor

15Kg Torque (for the legs)

Towerpro MG946R Servo Motor

15Kg Torque (for the legs)

N20 Micro Geared DC Motor

For the spring shooting mechanism

Arduino Mega

Tu read the sensors

Towerpro SG90 Servo Motor

PCA9685 Servo Motor Driver 16 Channel I2C

OLED Display 0.96" 128x64 I2C

Battery level indicator

HC-SR04 Sensor

Ultrasonic Sensor

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

3D Printer (generic)

Story

1 / 6

Description

I've been working on this project for one year as a hobby project. The Metalhead Dog is a robot dog from the Black Mirror series S04E05."Metalhead" is filmed entirely in black and white, and follows the plight of Bella (Maxine Peake) trying to flee from robotic "dogs" after the unexplained collapse of human society.

Details

My initial goal was just to make It stand on It's feet and use some sensors like ultrasonic, gyro, pir, temperature and hummidity, but now I want more. I'm happy with the results until then and would be glad with opinions and tips about this project. Here is a video where I'm testing the leg motors:

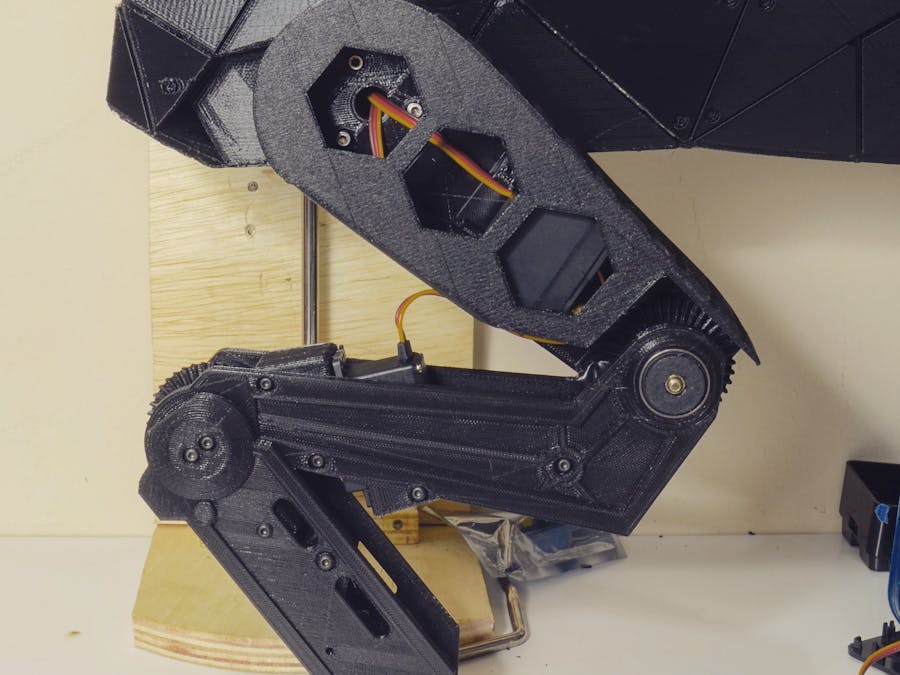

Leg Test

Youtube
