PC Application For Control Arduino 10 Switch

Description

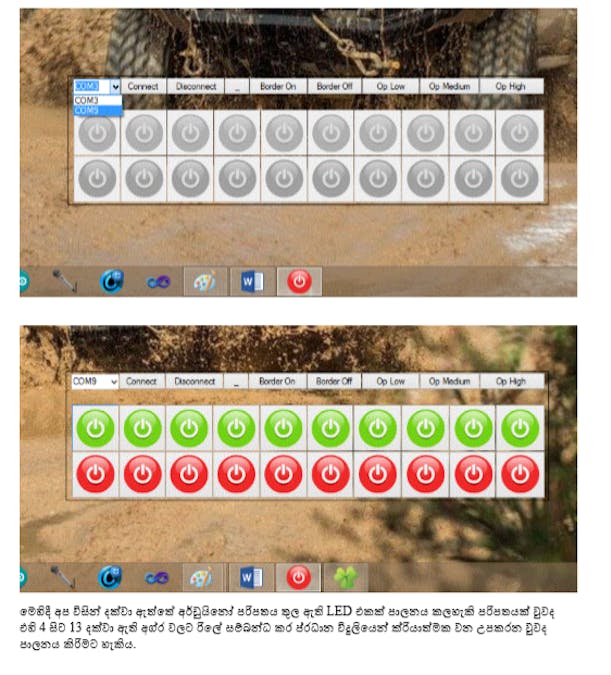

We have provided windows application for control Arduino IO port as ON OFF you can use 10 relay in this project click this link for download user manual Arduino code and application.

Details

// Rio Technical Solution
// No 61 new economic center nidahasmawatha kegalle
// 071 537 67 85
// tirashana@gmail.com
#define BaudRate 9600
char incomingOption;
void setup()
{
  pinMode(13, OUTPUT);
  pinMode(12, OUTPUT);
  pinMode(11, OUTPUT);
  pinMode(10, OUTPUT);
  pinMode(9, OUTPUT);
  pinMode(8, OUTPUT);
  pinMode(7, OUTPUT);
  pinMode(6, OUTPUT);
  pinMode(5, OUTPUT);
  pinMode(4, OUTPUT);
  // serial communication
  Serial.begin(BaudRate);
}
void loop()
{
     //read from serial port getting information from VS 2013
     incomingOption = Serial.read();
     //verify incomingOption
     switch(incomingOption){
        case '0':

          digitalWrite(13, HIGH); ////// s1
          break;
        case '1':

          digitalWrite(13, LOW); ////// s1
          break;
           case '2':

          digitalWrite(12, HIGH); ////// s2
          break;
        case '3':

          digitalWrite(12, LOW);////// s2
           break;
             case '4':

          digitalWrite(11, HIGH); ////// s3
          break;
        case '5':
          // Turn OFF LED
          digitalWrite(11, LOW);////// s3
          break;
            case '6':

          digitalWrite(10, HIGH);////// s4
          break;
        case '7':

          digitalWrite(10, LOW);////// s4
          break;
            case '8':

          digitalWrite(9, HIGH);////// s5
          break;
        case '9':

          digitalWrite(9, LOW);////// s5
          break;
            case 'a':

          digitalWrite(8, HIGH);////// s6
          break;
        case 'b':

          digitalWrite(8, LOW);////// s6
          break;
            case 'c':

          digitalWrite(7, HIGH);////// s7
          break;
        case 'd':

          digitalWrite(7, LOW);////// s7
          break;
           case 'e':

          digitalWrite(6, HIGH);////// s8
          break;
        case 'f':

          digitalWrite(6, LOW);////// s8
          break;
           case 'g':

          digitalWrite(5, HIGH);////// s9
          break;
        case 'h':

          digitalWrite(5, LOW);////// s19
          break;
            case 'i':

          digitalWrite(4, HIGH);////// s10
          break;
        case 'k':

          digitalWrite(4, LOW);////// s10
          break;


     }
}

Download link

YouTube Video
