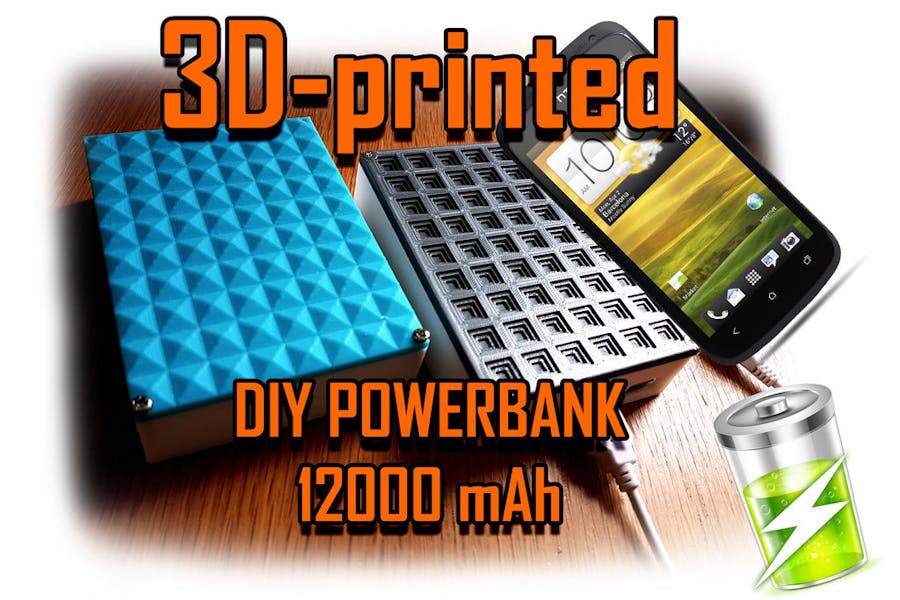

Powerbank DIY 12000-16000 MAh 2.1 Amp 3D-printed With LED...

Hi everybody! Im sick and tired of all these small and ugly powerbanks that doesn´t have capacity enough to even charge your cellphone once. So this is how you make your own that you can customize with diffrent lids with a capacity up to 16000 mAh. There is an assambley-video step-by-step on the youtubechannel.

Step 1: Download and 3D-print the Parts.

You will need a bottom, a lid and a powerbutton, you can find everything at thingiverse:http://www.thingiverse.com/thing:2261807

I printed it at 20% honeycomb-infill PLA.

Step 2: Assamble

First insert your powerbutton.

Step 3: Solder

Solder your batteryholder to the USB-PCB, red to bta+ and black to bta-. MAKE SURE TO WIRE IT IN PARALELL! like in the picture, else you will burn the PCB due to high voltage!

Step 4: Assamble

Assamble the PCB and batteryholder,insert batteries, try if it work before you glue everything in place!

Step 5: Tight Screws

Tight the screws and enjoy. The outputs and inputs schematics is:[ 1amp ] [ Input ] [ 2.1 amp]

You may also use it as a LED-flashlight two fast clicks on the powerbutton and the LED lights up.
