Published May 4, 2021

Easy Plug and Play, Just Say Google to Switch on

Smart Extension for a Smarter way of living just by using Bolt IOT Module + IFTTT + Some Electronics Stuff.

IntermediateShowcase (no instructions)2 hours108

Easy Plug and Play, Just Say Google to Switch on

Things used in this project

Hardware components

Bolt IoT Bolt WiFi Module

ControlEverything.com 4-CHANNEL RELAY CONTROLLER FOR I2C

Anchor Taiwan Modular Switch Board

Anchor Taiwan Modular Socket

Power Cable Cord

Jumper wires (generic)

Anchor Taiwan 1mm Copper wire - 1 meters

USB-A to Micro-USB Cable

5V Power Adapter

Software apps and online services

Bolt IoT Bolt Cloud

Bolt IoT Android App

IFTTT Maker service

Hand tools and fabrication machines

Soldering iron (generic)

Solder Wire, Lead Free

Wire Stripper & Cutter, 18-10 AWG / 0.75-4mm² Capacity Wires

Multitool, Screwdriver

Hot glue gun (generic)

Story

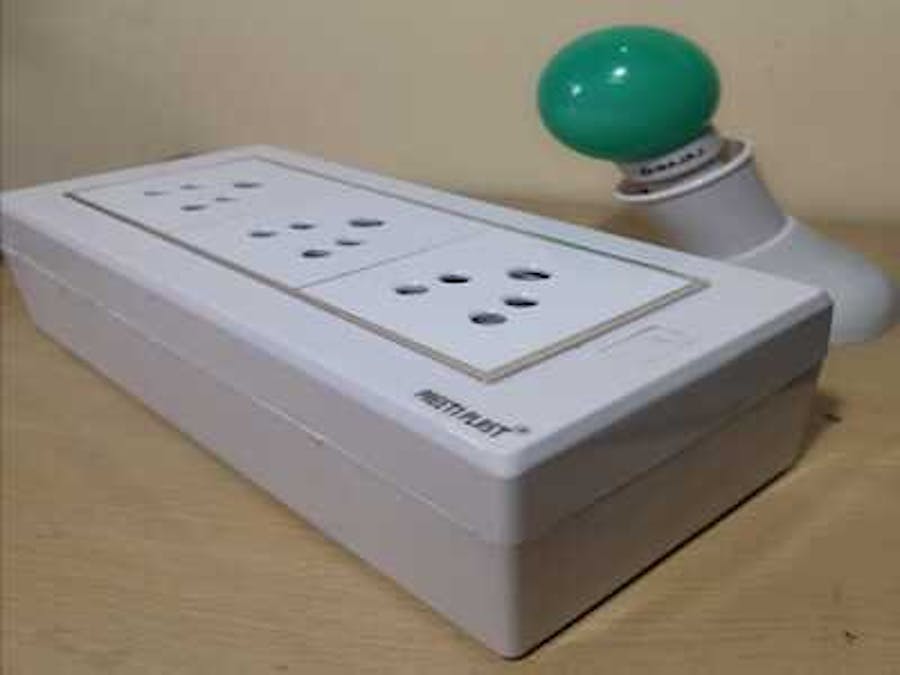

As we are moving in these advanced and more futuristic technologies, we want to have our daily work not only at our fingertips but through our voice and gestures also. So, I scoop out some of my ideas here out of my mind and build a smart extension board that can be controlled using bolt interface as well as your Google Assistance too.

Code

Smart Board Code

singleButton({name:"load1 On", action:"digitalWrite",
pin:"1", value:"HIGH"})
singleButton({name:"load1 Off", action:"digitalWrite",
pin:"1", value:"LOW"})
singleButton({name:"load2 On", action:"digitalWrite",
pin:"2", value:"HIGH"})
singleButton({name:"load2 Off", action:"digitalWrite",
pin:"2", value:"LOW"})
singleButton({name:"load3 On", action:"digitalWrite",
pin:"3", value:"HIGH"})
singleButton({name:"load3 Off", action:"digitalWrite",
pin:"3", value:"LOW"})
singleButton({name:"load4 On", action:"digitalWrite",
pin:"4", value:"HIGH"})
singleButton({name:"load4 Off", action:"digitalWrite",
pin:"4", value:"LOW"})
