Published December 28, 2024 © GPL3+

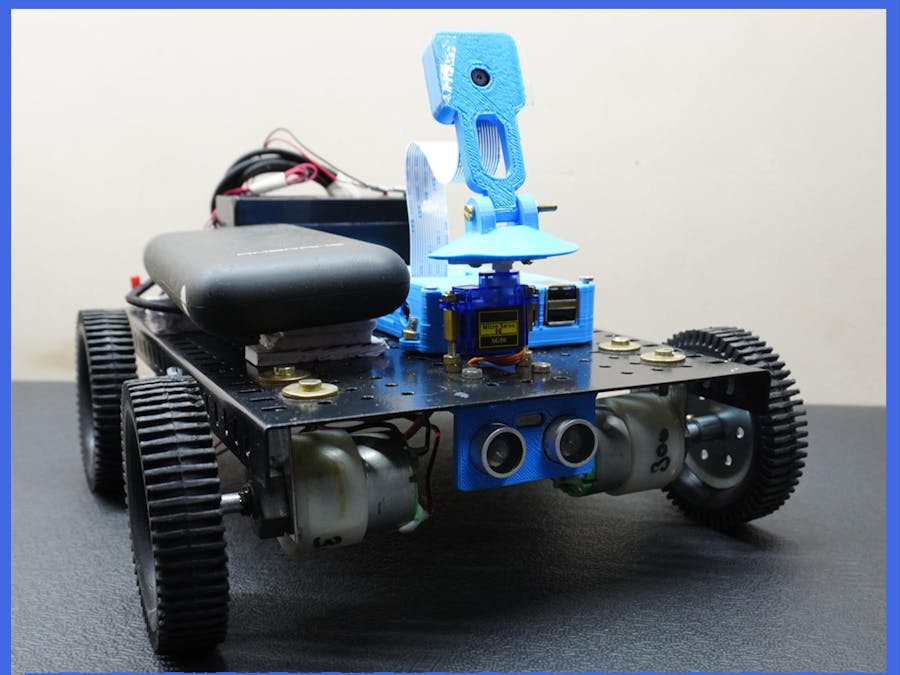

Facial Recognition Robot with Raspberry Pi and Blynk Control

Face Recognition System with Raspberry Pi and Blynk App enhances security and, allows remote control and real-time unknown person alerts.

IntermediateFull instructions providedOver 4 days505

Facial Recognition Robot with Raspberry Pi and Blynk Control

Things used in this project

Hardware components

Raspberry Pi 4 Model B

Espressif ESP32

Ultrasonic Sensor - HC-SR04 (Generic)

Raspberry Pi Camera Module

SparkFun Dual H-Bridge motor drivers L298

Geared DC Motor, 12 V

Pimoroni Maker Essentials - Micro-motors & Grippy Wheels

Lead acid battery

Power Bank

Metal robot chassis

SG90 Micro-servo motor

Software apps and online services

Raspberry Pi Raspbian

Blynk

Arduino IDE

OpenCV – Open Source Computer Vision Library OpenCV

Hand tools and fabrication machines

Soldering iron (generic)

3D Printer (generic)

Solder Wire, Lead Free

Multitool, Screwdriver

Story

In today's interconnected world, security and automation have become paramount. The "Face Recognition System with Real-Time Unknown Person Alerting Using Raspberry Pi and Blynk App" is an innovative solution that leverages cutting-edge technology to address these needs effectively. This project utilizes the Raspberry Pi, an affordable yet powerful microcomputer, to perform real-time facial recognition, enabling enhanced security and remote monitoring. The integration of the Blynk app adds unparalleled convenience, allowing users to control and monitor the system from anywhere.

1 / 2

The system revolves around creating and training a facial recognition model using datasets of known individuals. With a camera module capturing live video feeds, the Raspberry Pi processes the data to identify familiar faces while alerting the user about unknown individuals. This functionality is supported by a combination of hardware, such as a camera and servo motor, and software tools, including the Blynk app, which enables video streaming and remote control.

By uniting IoT with machine learning, this project exemplifies a practical, scalable, and efficient approach to security automation, catering to homes, offices, and other facilities.

To implement the facial recognition functionality, follow the step-by-step instructions provided in the Tom’s Hardware guide. I used this guide as a foundation and made modifications to the code to meet my requirements. Specifically, the system was enhanced to send notifications whenever an unknown person is detected.

Additionally, an ESP32 microcontroller was integrated to control the servo motor, enabling movements such as forward, reverse, left, and right. The robot's operations are seamlessly managed via the Blynk app interface, providing users with an intuitive and remote control solution.

Raspberry Pi Code

The Raspberry Pi serves as the brain for real-time facial recognition. Below is a brief overview of the face recognition code flow:

Loading Trained Face Data:The file encodings.pickle contains face encodings (numeric representations of facial features) of known individuals. This file was created during the training phase using known face datasets. The system uses this file to match faces in real time.

Video Stream Initialization:The VideoStream module starts capturing video from the camera. The frames are resized to 500 pixels wide for faster processing.

Face Detection and Recognition:

Each frame from the video is processed to detect faces using the face_recognition.face_locations function.
The detected faces are then compared with the stored encodings from encodings.pickle.
If a match is found, the corresponding person's name is retrieved. If no match is found, the face is labeled as "Unknown."

Unknown Face Alert:

When an "Unknown" face is detected:

The Raspberry Pi sends a HIGH signal to the ESP32 via a GPIO pin.
This alerts the ESP32, triggering the robot to stop and send a notification to the user via the Blynk app.
When an "Unknown" face is detected:The Raspberry Pi sends a HIGH signal to the ESP32 via a GPIO pin.This alerts the ESP32, triggering the robot to stop and send a notification to the user via the Blynk app.

For recognized faces:

The GPIO pin signal remains LOW to indicate no alert.
For recognized faces:The GPIO pin signal remains LOW to indicate no alert.

Displaying Results:

Each detected face is highlighted with a bounding box on the video feed, and the name (or "Unknown") is displayed.
The video feed is shown on the connected monitor, allowing the user to see the recognition in real time.

ESP32 Code

The ESP32 acts as the controller for the robot's movement, obstacle detection, and communication with the Blynk app.

Pins and Peripherals :

Motor Pins (ml1, ml2, mr1, mr2): Control the robot's motors for forward, reverse, left, and right movements.
Servo Pin: Connected to a servo motor for additional functionality.
Ultrasonic Sensor Pins (trigPin, echoPin): Measure the distance to obstacles.
Buzzer Pin: Alerts the user about obstacles.
RPI_Pin: Reads the alert signal from the Raspberry Pi.

Motor Control :

The robot's movements (forward, reverse, left, right) are controlled by sending high/low signals to the motor pins.
These movements are triggered by commands from the Blynk app, mapped to virtual pins (V1 for forward, V4 for reverse, V5 for left, V6 for right).
When no command is active, the robot stops.

Servo Motor Control :

The servo motor is controlled via virtual pin V3 on the Blynk app.
The user can set the servo's angle for specific tasks, such as rotating a mounted camera or other accessories.

Obstacle Detection :

The ultrasonic sensor measures the distance to obstacles in front of the robot.
If an obstacle is detected within 2 to 25 cm, the robot stops, and the buzzer emits a series of beeps to alert the user.
The obstacle distance is continuously updated in the Blynk app on virtual pin V2.

Unknown Face Alert Handling :

The ESP32 monitors the RPI_Pin for signals from the Raspberry Pi.

If the RPi detects an "Unknown" face, it sends a HIGH signal to the ESP32. In response:

The ESP32 displays "Unknown Person Found" in the Blynk app (via virtual pin V7).
An alert is also shown on the Blynk LCD widget on virtual pin V8.

Workflow Summary

Facial Recognition on Raspberry Pi:

The RPi captures video frames and detects faces in real time.
Recognized faces are identified, and alerts are sent to the ESP32 if an unknown face is detected.

Robot Control via ESP32:

The ESP32 controls the robot's movement based on user commands from the Blynk app.
It stops the robot and alerts the user if an obstacle is detected

Remote Monitoring and Control:

The Blynk app provides an interface for:

Viewing alerts (e.g., "Unknown Person Found").
Controlling the robot's movement.
Adjusting the servo motor's angle.
Monitoring obstacle distances.
The Blynk app provides an interface for: Viewing alerts (e.g., "Unknown Person Found").Controlling the robot's movement. Adjusting the servo motor's angle. Monitoring obstacle distances.

Testing and Results

To evaluate the system’s performance, datasets of two participants, Mallikarjuna and Chaitrashree, were created and used to train the facial recognition model. The system was then tested by removing the creator's face dataset to ensure they were identified as "Unknown."

During these trials:

The system reliably identified the known individuals.
It correctly labeled the creator as "Unknown, " demonstrating its accuracy and reliability.

Testing Video

Code

# import the necessary packages
from imutils.video import VideoStream
from imutils.video import FPS
import face_recognition
import imutils
import pickle
import time
import cv2
import RPi.GPIO as GPIO
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BCM)
data_to_esp = 26
GPIO.setup(data_to_esp,GPIO.OUT)
GPIO.output(data_to_esp, GPIO.LOW)
#Initialize 'currentname' to trigger only when a new person is identified.
currentname = "unknown"
#Determine faces from encodings.pickle file model created from train_model.py
encodingsP = "encodings.pickle"

# load the known faces and embeddings along with OpenCV's Haar
# cascade for face detection
print("[INFO] loading encodings + face detector...")
data = pickle.loads(open(encodingsP, "rb").read())

# initialize the video stream and allow the camera sensor to warm up
# Set the ser to the followng
# src = 0 : for the build in single web cam, could be your laptop webcam
# src = 2 : I had to set it to 2 inorder to use the USB webcam attached to my laptop
#vs = VideoStream(src=2,framerate=10).start()
vs = VideoStream(usePiCamera=True).start()
time.sleep(0.1)

# start the FPS counter
fps = FPS().start()

# loop over frames from the video file stream
while True:
	# grab the frame from the threaded video stream and resize it
	# to 500px (to speedup processing)
	frame = vs.read()
	frame = imutils.resize(frame, width=500)
	# Detect the fce boxes
	boxes = face_recognition.face_locations(frame)
	# compute the facial embeddings for each face bounding box
	encodings = face_recognition.face_encodings(frame, boxes)
	names = []

	# loop over the facial embeddings
	for encoding in encodings:
		# attempt to match each face in the input image to our known
		# encodings
		matches = face_recognition.compare_faces(data["encodings"],
			encoding)
		name = "Unknown"


		if True in matches:
			# find the indexes of all matched faces then initialize a
			# dictionary to count the total number of times each face
			# was matched
			matchedIdxs = [i for (i, b) in enumerate(matches) if b]
			counts = {}

			# loop over the matched indexes and maintain a count for
			# each recognized face face
			for i in matchedIdxs:
				name = data["names"][i]
				counts[name] = counts.get(name, 0) + 1

			# determine the recognized face with the largest number
			# of votes (note: in the event of an unlikely tie Python
			# will select first entry in the dictionary)
			name = max(counts, key=counts.get)



			#If someone in your dataset is identified, print their name on the screen
			if currentname != name:
				currentname = name
				print(currentname)


		# update the list of names
		names.append(name)

	# loop over the recognized faces
	for ((top, right, bottom, left), name) in zip(boxes, names):
		# draw the predicted face name on the image - color is in BGR
		cv2.rectangle(frame, (left, top), (right, bottom),
			(0, 255, 225), 2)
		y = top - 15 if top - 15 > 15 else top + 15
		cv2.putText(frame, name, (left, y), cv2.FONT_HERSHEY_SIMPLEX,
			.8, (0, 255, 255), 2)
		lable_text = name
		if lable_text == 'Unknown':
			print("Unkmwn found")
			GPIO.output(data_to_esp,GPIO.HIGH)
			time.sleep(2)
			GPIO.output(data_to_esp, GPIO.LOW)
		else:
			GPIO.output(data_to_esp, GPIO.LOW)




	# display the image to our screen
	cv2.imshow("Facial Recognition is Running", frame)
	key = cv2.waitKey(1) & 0xFF

	# quit when 'q' key is pressed
	if key == ord("q"):
		break

	# update the FPS counter
	fps.update()

# stop the timer and display FPS information
fps.stop()
print("[INFO] elasped time: {:.2f}".format(fps.elapsed()))
print("[INFO] approx. FPS: {:.2f}".format(fps.fps()))

# do a bit of cleanup
cv2.destroyAllWindows()
vs.stop()

import cv2
from picamera import PiCamera
from picamera.array import PiRGBArray

name = 'chaithrashree' #replace with your name

cam = PiCamera()
cam.resolution = (512, 304)
cam.framerate = 10
rawCapture = PiRGBArray(cam, size=(512, 304))

img_counter = 0

while True:
    for frame in cam.capture_continuous(rawCapture, format="bgr", use_video_port=True):
        image = frame.array
        cv2.imshow("Press Space to take a photo", image)
        rawCapture.truncate(0)

        k = cv2.waitKey(1)
        rawCapture.truncate(0)
        if k%256 == 27: # ESC pressed
            break
        elif k%256 == 32:
            # SPACE pressed
            img_name = "dataset/"+ name +"/image_{}.jpg".format(img_counter)
            cv2.imwrite(img_name, image)
            print("{} written!".format(img_name))
            img_counter += 1

    if k%256 == 27:
        print("Escape hit, closing...")
        break

cv2.destroyAllWindows()

# import the necessary packages
from imutils import paths
import face_recognition
#import argparse
import pickle
import cv2
import os

# our images are located in the dataset folder
print("[INFO] start processing faces...")
imagePaths = list(paths.list_images("dataset"))

# initialize the list of known encodings and known names
knownEncodings = []
knownNames = []

# loop over the image paths
for (i, imagePath) in enumerate(imagePaths):
	# extract the person name from the image path
	print("[INFO] processing image {}/{}".format(i + 1,
		len(imagePaths)))
	name = imagePath.split(os.path.sep)[-2]

	# load the input image and convert it from RGB (OpenCV ordering)
	# to dlib ordering (RGB)
	image = cv2.imread(imagePath)
	rgb = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

	# detect the (x, y)-coordinates of the bounding boxes
	# corresponding to each face in the input image
	boxes = face_recognition.face_locations(rgb,
		model="hog")

	# compute the facial embedding for the face
	encodings = face_recognition.face_encodings(rgb, boxes)

	# loop over the encodings
	for encoding in encodings:
		# add each encoding + name to our set of known names and
		# encodings
		knownEncodings.append(encoding)
		knownNames.append(name)

# dump the facial encodings + names to disk
print("[INFO] serializing encodings...")
data = {"encodings": knownEncodings, "names": knownNames}
f = open("encodings.pickle", "wb")
f.write(pickle.dumps(data))
f.close()

#define BLYNK_TEMPLATE_ID "TMPLdoAxwioZ"//Replace with your blynk template ID
#define BLYNK_TEMPLATE_NAME "surveillance Robot"//Replace with your blynk template name
#include <ESP32Servo.h>
#define BLYNK_PRINT Serial
#include <WiFi.h>
#include <WiFiClient.h>
#include <BlynkSimpleEsp32.h>
char auth[] = "Blynk auth id";
char ssid[] = "Your ssid";
char pass[] = "SSID password";
int ml1 = 23;//MOTOR 1
int ml2 = 19;//MOTOR 2
int mr1 = 18;//MOTOR 3
int mr2 = 4;//MOTOR 4
int RPI_Pin =33; // pin shared with raspberry pi
int RPI = 0;
Servo myservo;  // create servo object to control a servo
int uss_status;
int servoPin = 25;;      // GPIO pin used to connect the servo control (digital out)
char val;    // variable to read the value from the analog pin

int Buzzer = 26;
int trigPin = 13;    // Trigger
int echoPin = 27;    // Echo

long duration, cm, inches;
unsigned long Buzzer_Intial = 0;
const long Buzzer_interval = 100;


WidgetLCD lcd(V0);
WidgetLCD RPI_lcd(V8);
BlynkTimer timer;


void Denied_Beep_delay()
{
Buzzer_Intial = millis();
while((millis() - Buzzer_Intial) <= Buzzer_interval)
{
}
}

void Obstacle_Alert()
{
for (int AB = 0; AB <= 2; AB++) {
digitalWrite(Buzzer,HIGH);
Denied_Beep_delay();
digitalWrite(Buzzer,LOW);
Denied_Beep_delay();
}
}

BLYNK_CONNECTED() {
Blynk.syncAll();
}



BLYNK_WRITE(V1)
{
int x = param.asInt();
if(x == 1 && uss_status == 0)
{
lcd.clear();
lcd.print(1, 0, "Forward"); // use: (position X: 0-15, position Y: 0-1, "Message you want to print")
Serial.println("Forward");
digitalWrite(ml1, HIGH);//forward
digitalWrite(ml2,LOW);
digitalWrite(mr1,HIGH);
digitalWrite(mr2,LOW);
}
else
{
 lcd.clear();
lcd.print(1, 0, "Stop");
digitalWrite(ml1, HIGH);
digitalWrite(ml2, HIGH);
digitalWrite(mr1, HIGH);
digitalWrite(mr2, HIGH);
}
}

BLYNK_WRITE(V4)
{
int y = param.asInt();
if(y == 1)
{
lcd.clear();
lcd.print(1, 0, "Reverse"); // use: (position X: 0-15, position Y: 0-1, "Message you want to print")
Serial.println("reverse");
digitalWrite(ml1, LOW);//reverse
digitalWrite(ml2,HIGH);
digitalWrite(mr1,LOW);
digitalWrite(mr2,HIGH);
}

else
{
 lcd.clear();
lcd.print(1, 0, "Stop");
digitalWrite(ml1, HIGH);
digitalWrite(ml2, HIGH);
digitalWrite(mr1, HIGH);
digitalWrite(mr2, HIGH);
}
}

BLYNK_WRITE(V5)
{
int u = param.asInt();
if(u == 1)
{
lcd.clear();
lcd.print(1, 0, "Left"); // use: (position X: 0-15, position Y: 0-1, "Message you want to print")
Serial.println("Left");
digitalWrite(ml1, HIGH);//left
digitalWrite(ml2,LOW);
digitalWrite(mr1,LOW);
digitalWrite(mr2,LOW);
}
else
{
 lcd.clear();
lcd.print(1, 0, "Stop");
digitalWrite(ml1, HIGH);
digitalWrite(ml2, HIGH);
digitalWrite(mr1, HIGH);
digitalWrite(mr2, HIGH);
}
}

BLYNK_WRITE(V6)
{
int z = param.asInt();
if(z == 1)
{
lcd.clear();
Serial.println("Right");
lcd.print(1, 0, "Right");
digitalWrite(ml1, LOW);
digitalWrite(ml2,LOW);
digitalWrite(mr1,HIGH);
digitalWrite(mr2,LOW);
}
else
{
 lcd.clear();
lcd.print(1, 0, "Stop");
digitalWrite(ml1, HIGH);
digitalWrite(ml2, HIGH);
digitalWrite(mr1, HIGH);
digitalWrite(mr2, HIGH);
}
}


BLYNK_WRITE(V3)
{
  int q = param[0].asInt();
  myservo.write(q);
  Serial.print("Q:");
  Serial.print(q);
  Serial.println();
}

void ultrasonic()
{
digitalWrite(trigPin, LOW);
delayMicroseconds(5);
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);
pinMode(echoPin, INPUT);
duration = pulseIn(echoPin, HIGH);
// Convert the time into a distance
cm = (duration/2) / 29.1;
inches = (duration/2) / 74;
Blynk.virtualWrite(V2,cm);

delay(100);
if((cm >= 2)&&(cm <=25))
{
uss_status = 1;
lcd.clear();
lcd.print(1, 0, "Obstacle Found");
Obstacle_Alert();
}
else
{
 uss_status = 0;
}

}
void setup()
{
pinMode(ml1, OUTPUT);
pinMode(ml2,OUTPUT);
pinMode(mr1, OUTPUT);
pinMode(mr2,OUTPUT);
pinMode(trigPin, OUTPUT);
pinMode(echoPin, INPUT);
pinMode(RPI_Pin,INPUT);
pinMode(Buzzer,OUTPUT);
ESP32PWM::allocateTimer(0);
ESP32PWM::allocateTimer(1);
ESP32PWM::allocateTimer(2);
ESP32PWM::allocateTimer(3);
myservo.setPeriodHertz(50);// Standard 50hz servo
myservo.attach(servoPin, 500, 2400);   // attaches the servo on pin 18 to the servo object
Serial.begin(9600);
Blynk.begin(auth, ssid, pass);
}



void loop()
{
RPI = digitalRead(RPI_Pin);
if(RPI == 1)
{
  Blynk.virtualWrite(V7,10);
  RPI_lcd.clear();
  RPI_lcd.print(0, 0, "Unknown Person");
  RPI_lcd.print(0, 1, "  Found");
}
else
{
 Blynk.virtualWrite(V7,0);
 RPI_lcd.clear();
}
ultrasonic();
Blynk.run();
}
