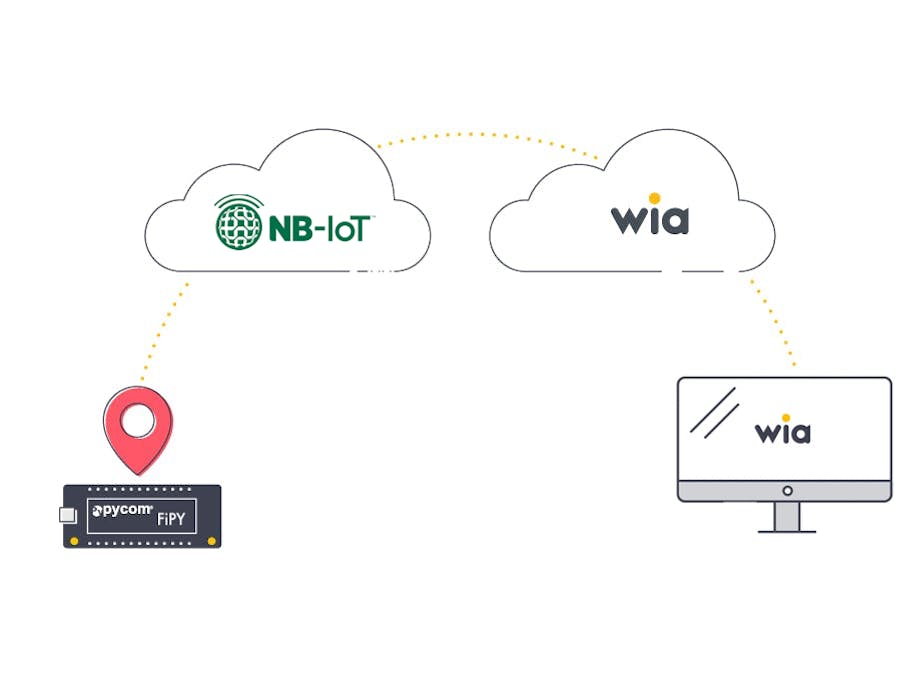

In this tutorial , we will be using a FiPy to send data and publish an event over NB-IoT to the Wia Platform
Before we start , there is a few steps we must follow as preparation for what's to come . These steps involve upgrading and updating all firmware for all parts of your python boards and chips to communicate with each other accordingly
- Pysense / Pytrack / Expansion Board - follow this tutorial here
- FiPy - follow this tutorial here
Note: Ensure the SD Card you use is formatted as FAT32 instead of FAT like indicated in below tutorial
- Modem - follow this tutorial here
Now that all your hardware components are in check and ready , lets move onto and prepare the software components
We'll be using Visual Studio Code as our development environment. You can download the latest version from here.
Once you've got it setup, install the Pymakr plugin as indicated in this tutorial to get it setup.
You can do so either via the USB port on the Expansion Board, Pysense or Pytrack boards (more on that here).
Get Device Name
Once you've got it connected to your computer, get the name of your device using one of the following steps:
- Download and install the FTDI drivers from here. Select the appropriate version for your operating system and architecture.
- Open a terminal window and run the command ls /dev/tty*
- Look for a device with the name that begins with /dev/tty e.g. /dev/tty.usbmodemPy343431 on MAC or/dev/ttyUSB0/dev/ttyACM0 on Linux.
For Linux, you may need to run the two commands below. Once you've completed that, reboot your computer. This will add permissions that will allow you to upload a sketch to the board.
sudo usermod -a -G tty ${USER} sudo usermod -a -G dialout ${USER}
- Download and install the FTDI drivers from here. Select the appropriate version for your operating system and architecture.
- Open the Windows start menu and search for Device Manager
- The COM port for the Pycom device will be listed as USB Serial Device or something similar
- Keep note of the COM port (e.g. COM4)
Pytrack and Pysense will work out of the box for Windows 8/10/+, Mac OS as well as Linux. If using Windows 7, drivers to support the boards will need to be installed. You can find them here .
- Create a new folder on your computer (eg. Wia_Publish_Event_FiPy) and open it with VSCode
- In this folder, create two new files
- Boot.py
- Main.py
- Open these files in the code editor (eg. VSCode)
- Copy and paste the code below into the boot.py file. View here on GitHub.
Python
from machine import UART
import machine
import osuart = UART(0, baudrate=115200)
os.dupterm(uart)
machine.main('main.py')
- Copy and paste the code below into the main.py file. View here on GitHub.
Python
from network import LTE
import socket , ssl , time , os , binascii , ujson
# replaced actual host name portion with "abc"
host='52.17.209.228'
port=5683
addr=(host,port)
accessToken = "INSERT_DEVICE_KEY"
name = "hello-wia"
data = "data"
coap_packet = "40020000b66576656e7473ff"
json_data = {"accessToken":accessToken,"name":name,"data":data}
packet_Wia = coap_packet + str(binascii.hexlify(ujson.dumps(json_data)).decode('utf-8'))
print(packet_Wia)
lte = LTE()
lte.attach(band=INSERT_BAND_NUMBER, apn="INSERT_APN_HERE")
#eg. 20 , nb.inetd.gdsp
while not lte.isattached():
time.sleep(0.5)
print("%", end="")
print("\nAttached!")
lte.connect()
# start a data session and obtain an IP address
while not lte.isconnected():
time.sleep(0.5)
print("-", end="")
print("Connected!")
s = socket.socket(socket.AF_INET, socket.SOCK_DGRAM, socket.IPPROTO_UDP)
s.connect(addr)
s.send(packet_Wia)
Replace the following values of the following variables:
- INSERT_DEVICE_KEY with your device secret key. You can find this in your Device Configuration page (see screenshot below).
- INSERT_BAND_NUMBER with the band number given by your operator.
- INSERT_APN_HERE with the APN given by your operator
Your folder structure should now look like this:
Wia_Publish_Event_FiPy (Folder)
- boot.py
- main.py
Click Upload in the Pymakr plugin at the bottom of your window in VSCode and send the code to your Pycom board.
Now go to your device in the Wia dashboard and you should see the data appearing in the debugger.
Congratulations and Well Done on completing the tutorial, hope you enjoyed it.
