Plot My Face

This project demonstrates Direct Memory Mapping driver and "Hybrid applications" - those which leverage Arduino libraries and XAML+C# on Windows 10 IoT Core for Raspberry Pi.

This project requires that your Raspberry Pi is configured to use the Direct Memory Mapping driver as described here.

The key elements of this project are:

• Using camera to capture an image, with a live preview
• Using Xaml UI to display intermediate stages of the plot
• Dither the input image to generate a series of dots
• Use a travelling salesperson algorithm to connect the the dots using line segments
• Use the line segements to drive an H-Bot style carteisian plotter
• Drive steppers using the Arduino library AccelStepper written by Mike McCauley.

Explaination of the hardware build

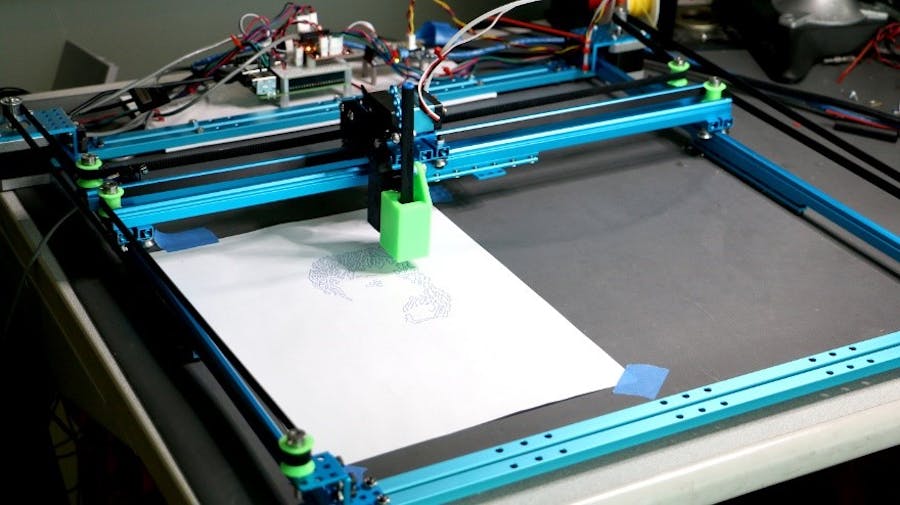

The hardware for this plotter is configured as an H-Bot cartesian frame. An HBot uses a single long toothed belt and two stepper motors to drive the X and Y axes. The configuration has the benefit that both of the the stepper motors are mounted to the frame, which means the central carriage is very light and can move exceptionally fast. The downside of the HBot it is not balanced - if the Y axis is not extremely rigid, there can be racking. The simplicity of this design makes it a quick and easy build.

Steppers

The two steppers work together to drive the X and Y axes, instead of each motor controlling a single axis. The formula for converting from axis steps to multi-motor steps are:

aStepper = xStep + yStep bStepper = xStep - yStep

Software

The application that drives this project is a hybrid application - it uses a C# and Xaml host, with a C++/CX Windows component which hosts the Arduino wiring code.

Capture

The Capture pipeline uses MediaCapture in the Windows.Media.Capture namespace. This component is associated with a live preview window in xaml. When the user selects capture, a picture is saved to storage then processing begins.

Dither

The image is then processed using a Floyd-Steinberg Two-dimensional error diffusion dithering algorithm. It is currently configured to reduce the number of points for speed purposes. This can be controled by adjusting kBWThreshold in Dithering.cs

Travelling Salesperson

The points in the dither are connected using a Travelling Salesperson Algorithm - generating TSP Art. The agorithm is currently configured for expedient rendering, not an optimal solution. If you want to reconfigure this, instructs are available in TravellingSalesmanAlgorithm.cs

Drawing

Once the TSP is generated, the Win2D canvas draws the TSP, with progress. The datastructure backing the rendering is used to generate the toolpath - and ultimately the stepper profiles usingAccelStepper.

left as an exercise to the reader

There are many things that can be done with this project:

• Convert the H-Bot to CoreXY which balances the load better
• Use a rigid plotter frame
• Laser Engraving
• Parallelize dithering and TSP generation
