DHT12 Lib for Humidity and Temp. easy lib (2 wire for all).

MySite with doc update and news about this (http://www.mischianti.org/2019/01/01/dht12-library-en/)

Arduino playground (https://playground.arduino.cc/Main/DHT12SensorLibrary)

This is an Arduino and esp8266 library for the DHT12 series of very low cost temperature/humidity sensors (less than 1$) that work with i2c or one wire connection.

AI read that sometime seems that need calibration, but I have tree of this and get value very similar to DHT22. If you have this problem, open issue on github and I add implementation.

Tutorial:

To download click the DOWNLOADS button in the top right corner, rename the uncompressed folder DHT12. Check that the DHT folder contains DHT12.cpp and DHT12.h . Place the DHT library folder your arduinosketchfolder>/libraries/ folder. You may need to create the libraries subfolder if its your first library. Restart the IDE.

Reef complete DHT12 Humidity & Temperature

This library try to emulate the behavior of standard DHT library sensors (and copy a lot of code), and I add the code to manage I2C also in the same manner. The method is the same of DHT library sensor, with some adding like dew point function.

To use with i2c the constructor is:

 DHT12 dht12;

And take the default value for SDA SCL pin. (It's possible to redefine with specified constructor for ESP8266 but is not the best way). Or

 DHT12 dht12(uint8_t addressOrPin)

addressOrPin -> address to change address, boolean value is the selection of oneWire or I2C mode.

To use one wire:

 DHT12 dht12(uint8_t addressOrPin, true)

addressOrPin -> pin boolean value is the selection of OneWire or i2c mode.

You can use It with "implicit", "simple read" or "full read":

• Implicit, only the first read doing a true read of the sensor, the other read that become in 2 secs. interval are the stored value of first read.

 // The read of sensor have 2secs of elapsed time, unless you pass force parameter
		// Read temperature as Celsius (the default)
		float t12 = dht12.readTemperature();
		// Read temperature as Fahrenheit (isFahrenheit = true)
		float f12 = dht12.readTemperature(true);
		// Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
		float h12 = dht12.readHumidity();


		// Compute heat index in Fahrenheit (the default)
		float hif12 = dht12.computeHeatIndex(f12, h12);
		// Compute heat index in Celsius (isFahreheit = false)
		float hic12 = dht12.computeHeatIndex(t12, h12, false);
		// Compute dew point in Fahrenheit (the default)
		float dpf12 = dht12.dewPoint(f12, h12);
		// Compute dew point in Celsius (isFahreheit = false)
		float dpc12 = dht12.dewPoint(t12, h12, false);

• Simple read to get a status of read.

 // The read of sensor have 2secs of elapsed time, unless you pass force parameter
		bool chk = dht12.read(); // true read is ok, false read problem
		// Read temperature as Celsius (the default)
		float t12 = dht12.readTemperature();
		// Read temperature as Fahrenheit (isFahrenheit = true)
		float f12 = dht12.readTemperature(true);
		// Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
		float h12 = dht12.readHumidity();

		// Compute heat index in Fahrenheit (the default)
		float hif12 = dht12.computeHeatIndex(f12, h12);
		// Compute heat index in Celsius (isFahreheit = false)
		float hic12 = dht12.computeHeatIndex(t12, h12, false);
		// Compute dew point in Fahrenheit (the default)
		float dpf12 = dht12.dewPoint(f12, h12);
		// Compute dew point in Celsius (isFahreheit = false)
		float dpc12 = dht12.dewPoint(t12, h12, false);

• Full read to get a specified status.

 // The read of sensor have 2secs of elapsed time, unless you pass force parameter
		DHT12::ReadStatus chk = dht12.readStatus();
		Serial.print(F("\nRead sensor: "));
		switch (chk) {
		case DHT12::OK:
			Serial.println(F("OK"));
			break;
		case DHT12::ERROR_CHECKSUM:
			Serial.println(F("Checksum error"));
			break;
		case DHT12::ERROR_TIMEOUT:
			Serial.println(F("Timeout error"));
			break;
		case DHT12::ERROR_TIMEOUT_LOW:
			Serial.println(F("Timeout error on low signal, try put high pullup resistance"));
			break;
		case DHT12::ERROR_TIMEOUT_HIGH:
			Serial.println(F("Timeout error on low signal, try put low pullup resistance"));
			break;
		case DHT12::ERROR_CONNECT:
			Serial.println(F("Connect error"));
			break;
		case DHT12::ERROR_ACK_L:
			Serial.println(F("AckL error"));
			break;
		case DHT12::ERROR_ACK_H:
			Serial.println(F("AckH error"));
			break;
		case DHT12::ERROR_UNKNOWN:
			Serial.println(F("Unknown error DETECTED"));
			break;
		case DHT12::NONE:
			Serial.println(F("No result"));
			break;
		default:
			Serial.println(F("Unknown error"));
			break;
		}
		// Read temperature as Celsius (the default)
		float t12 = dht12.readTemperature();
		// Read temperature as Fahrenheit (isFahrenheit = true)
		float f12 = dht12.readTemperature(true);
		// Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
		float h12 = dht12.readHumidity();

		// Compute heat index in Fahrenheit (the default)
		float hif12 = dht12.computeHeatIndex(f12, h12);
		// Compute heat index in Celsius (isFahreheit = false)
		float hic12 = dht12.computeHeatIndex(t12, h12, false);
		// Compute dew point in Fahrenheit (the default)
		float dpf12 = dht12.dewPoint(f12, h12);
		// Compute dew point in Celsius (isFahreheit = false)
		float dpc12 = dht12.dewPoint(t12, h12, false);

With examples, there are the connection diagrams, it's important to use the correct pullup resistor.

Thanks to Bobadas, dplasa and Adafruit, for sharing the code in Github (where I take some code and ideas).

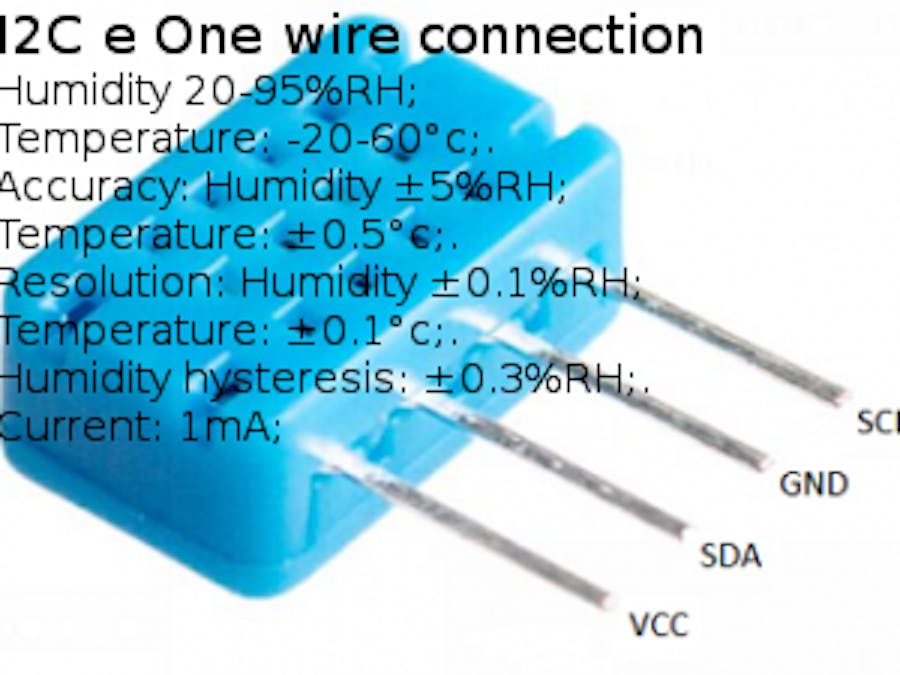

DHT12 PIN

DHT12 connection schema are below.
