Simple Arduino LoRa Communciation (8km)

We are going to test E32-TTL-100. It is a wireless transceiver module, operates at 410 441 MHz (or 868MHz or 915MHz) based on original RFIC SX1278 from SEMTECH, transparent transmission is available, TTL level. The module adopts LORA spread spectrum technology.

Supplies:

• Arduino UNO
• Lora e32 devices AliExpress (433MHz 3Km) - AliExpress (433MHz 8Km) - AliExpress (868MHz 3Km) - AliExpress (868MHz 8Km) - AliExpress (915MHz 3Km) - AliExpress (915MHz 8Km)

Optional

• Mischianti Arduino LoRa shield (Open source)
• Mischianti WeMos LoRa shield (Open source)

Devices Specs

The module features FEC Forward Error Correction algorithm, which ensure its high coding efficiency & good correction performance. In the case of sudden interference, it can correct the interfered data packets automatically, so that the reliability and transmission range are improved correspondingly. But without FEC, those da te packets can only be dropped. And with the rigorous encryption & decryption, data interception becomes pointless. The function of data compression can decrease the transmission time & probability of being interference, while improving the reliability & transmission efficiency.

• Module size: 21*36mm
• Antenna type: SMA-K (50Ω impedance)
• Transmission distance: 3000m(max)
• Maximum power: 2dB(100mW)
• Air rates: 2.4Kbps (6 optional level (0.3, 1.2, 2.4, 4.8, 9.6, 19.2kbps)
• Emission length: 512ByteReceive
• length: 512Byte
• Communication Interface: UART – 8N1, 8E1, 8O1,
• Eight kinds of UART baud Rate, from 1200 to 115200bps (Default: 9600)
• RSSI support: No (Built-in intelligent processing)

Transmission Type

Transparent transmissionThis can be considered like a “Demo mode”, by default you can send message to all device of same configured address and channel.

Fixed transmission

This type of transmission you can specify an address and a channel where where you want send the message. You can send message to a:

• Specified device with a predeterminated Address Low, Address High and Channel.

• Broadcast message to a set of channel devices Normal mode Simply send message.

Device Mode

Normal mode

Simply send message.

Wake-up mode and power-saving mode

As you can intend if a device is in Wake-up mode can “wake” one or more devices that are in power-saving mode with a preamble communication.

You can Wake Up device and microcontroller via WOR.

Program/sleep mode

With this configuration you can change configuration of your device.

Wiring Device

Here the schema of connection of the device, this is a fully connected, with management of M0 and M1 pin permit to change modality of the device, so you can switch to configuration or wake up mode with program, the library help you in all this operation.

Configuration

Exist a specified command to set and get configuration

/*
 * LoRa E32-TTL-100
 * Get configuration.
 * https://www.mischianti.org
 *
 * E32-TTL-100----- Arduino UNO
 * M0         ----- 3.3v
 * M1         ----- 3.3v
 * RX         ----- PIN 2 (PullUP & Voltage divider)
 * TX         ----- PIN 3 (PullUP)
 * AUX        ----- Not connected
 * VCC        ----- 3.3v/5v
 * GND        ----- GND
 *
 */
#include "Arduino.h"
#include "LoRa_E32.h"

LoRa_E32 e32ttl100(2, 3); // RX, TX
void printParameters(struct Configuration configuration);
void printModuleInformation(struct ModuleInformation moduleInformation);

void setup() {
    Serial.begin(9600);
    delay(500);

    // Startup all pins and UART
    e32ttl100.begin();

    ResponseStructContainer c;
    c = e32ttl100.getConfiguration();
    // It's important get configuration pointer before all other operation
    Configuration configuration = *(Configuration*) c.data;
    Serial.println(c.status.getResponseDescription());
    Serial.println(c.status.code);

    printParameters(configuration);

    ResponseStructContainer cMi;
    cMi = e32ttl100.getModuleInformation();
    // It's important get information pointer before all other operation
    ModuleInformation mi = *(ModuleInformation*)cMi.data;

    Serial.println(cMi.status.getResponseDescription());
    Serial.println(cMi.status.code);

    printModuleInformation(mi);
}

void loop() {

}
void printParameters(struct Configuration configuration) {
    Serial.println("----------------------------------------");

    Serial.print(F("HEAD : "));  Serial.print(configuration.HEAD, BIN);Serial.print(" ");Serial.print(configuration.HEAD, DEC);Serial.print(" ");Serial.println(configuration.HEAD, HEX);
    Serial.println(F(" "));
    Serial.print(F("AddH : "));  Serial.println(configuration.ADDH, BIN);
    Serial.print(F("AddL : "));  Serial.println(configuration.ADDL, BIN);
    Serial.print(F("Chan : "));  Serial.print(configuration.CHAN, DEC); Serial.print(" -> "); Serial.println(configuration.getChannelDescription());
    Serial.println(F(" "));
    Serial.print(F("SpeedParityBit     : "));  Serial.print(configuration.SPED.uartParity, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTParityDescription());
    Serial.print(F("SpeedUARTDataRate  : "));  Serial.print(configuration.SPED.uartBaudRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTBaudRate());
    Serial.print(F("SpeedAirDataRate   : "));  Serial.print(configuration.SPED.airDataRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getAirDataRate());

    Serial.print(F("OptionTrans        : "));  Serial.print(configuration.OPTION.fixedTransmission, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFixedTransmissionDescription());
    Serial.print(F("OptionPullup       : "));  Serial.print(configuration.OPTION.ioDriveMode, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getIODroveModeDescription());
    Serial.print(F("OptionWakeup       : "));  Serial.print(configuration.OPTION.wirelessWakeupTime, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getWirelessWakeUPTimeDescription());
    Serial.print(F("OptionFEC          : "));  Serial.print(configuration.OPTION.fec, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFECDescription());
    Serial.print(F("OptionPower        : "));  Serial.print(configuration.OPTION.transmissionPower, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getTransmissionPowerDescription());

    Serial.println("----------------------------------------");

}
void printModuleInformation(struct ModuleInformation moduleInformation) {
    Serial.println("----------------------------------------");
    Serial.print(F("HEAD : "));  Serial.print(moduleInformation.HEAD, BIN);Serial.print(" ");Serial.print(moduleInformation.HEAD, DEC);Serial.print(" ");Serial.println(moduleInformation.HEAD, HEX);

    Serial.print(F("Model no.: "));  Serial.println(moduleInformation.model, HEX);
    Serial.print(F("Version  : "));  Serial.println(moduleInformation.version, HEX);
    Serial.print(F("Features : "));  Serial.println(moduleInformation.features, HEX);
    Serial.println("----------------------------------------");

}

Configuration Result

And the result become

Begin
Success
1
----------------------------------------
HEAD : 11000000 192 C0
AddH : 0
AddL : 0
Chan : 23 -> 433MHz
SpeedParityBit     : 0 -> 8N1 (Default)
SpeedUARTDataRate  : 11 -> 9600bps (default)
SpeedAirDataRate   : 10 -> 2.4kbps (default)
OptionTrans        : 0 -> Transparent transmission (default)
OptionPullup       : 1 -> TXD, RXD, AUX are push-pulls/pull-ups
OptionWakeup       : 0 -> 250ms (default)
OptionFEC          : 1 -> Turn on Forward Error Correction Switch (Default)
OptionPower        : 0 -> 20dBm (Default)
----------------------------------------
Success
1
----------------------------------------
HEAD : 11000011 195 C3
Model no.: 32
Version  : 44
Features : 14
----------------------------------------Step 7: Send Message

Send simple message

Here a simple sketch to send a message to all device attached to the channel

/*
 * LoRa E32-TTL-100
 * Write on serial to transfer a message to other device
 * https://www.mischianti.org
 *
 * E32-TTL-100----- Arduino UNO
 * M0         ----- GND
 * M1         ----- GND
* TX         ----- RX PIN 2 (PullUP)
 * RX         ----- TX PIN 3 (PullUP & Voltage divider)
 * AUX        ----- Not connected
 * VCC        ----- 3.3v/5v
 * GND        ----- GND
 *
 */
#include "Arduino.h"
#include "LoRa_E32.h"

LoRa_E32 e32ttl100(2, 3); // RX, TX

void setup() {
  Serial.begin(9600);
  delay(500);

  Serial.println("Hi, I'm going to send message!");

  // Startup all pins and UART
  e32ttl100.begin();

  // Send message
  ResponseStatus rs = e32ttl100.sendMessage("Hello, world?");
  // Check If there is some problem of succesfully send
  Serial.println(rs.getResponseDescription());
}

void loop() {
    // If something available
  if (e32ttl100.available()>1) {
      // read the String message
    ResponseContainer rc = e32ttl100.receiveMessage();
    // Is something goes wrong print error
    if (rc.status.code!=1){
        rc.status.getResponseDescription();
    }else{
        // Print the data received
        Serial.println(rc.data);
    }
  }
  if (Serial.available()) {
      String input = Serial.readString();
      e32ttl100.sendMessage(input);
  }
}

WOR Wake on radio

You can also send a wake message and wake a microcontroller in sleep mode, a fantastic and usefully features to manage sensors reading in a wide area.

Here a simple sketch that receive message and wake the device and the microcontroller.

/*
* LoRa E32-TTL-100
* Receive fixed transmission message on channel.
* https://www.mischianti.org/2019/12/28/lora-e32-device-for-arduino-esp32-or-esp8266-wor-wake-on-radio-the-microcontroller-also-and-new-arduino-shield-part-6/
*
* E32-TTL-100----- Arduino UNO or esp8266
* M0         ----- 3.3v (To config) GND (To send) 7 (To dinamically manage)
* M1         ----- 3.3v (To config) GND (To send) 6 (To dinamically manage)
* TX         ----- RX PIN 3 (PullUP)
* RX         ----- TX PIN 4 (PullUP & Voltage divider)
* AUX        ----- PIN 2 (PullUP)
* VCC        ----- 3.3v/5v
* GND        ----- GND
*
*/
#include "Arduino.h"
#include "LowPower.h"
#include "LoRa_E32.h"
// ---------- Arduino pins --------------
//LoRa_E32 e32ttl(4, 5, 3, 7, 6);
LoRa_E32 e32ttl(4, 5, 3); // Config without connect M0 M1
// Use pin 2 as wake up pin
const int wakeUpPin = 3;
//#include <SoftwareSerial.h>
//SoftwareSerial mySerial(4, 5); // Arduino RX <-- e32 TX, Arduino TX --> e32 RX
//LoRa_E32 e32ttl(&amp;mySerial, 3, 7, 6);
// -------------------------------------
void printParameters(struct Configuration configuration);
void printModuleInformation(struct ModuleInformation moduleInformation);
void wakeUp()
{
Serial.println("WAKE!");
}
//The setup function is called once at startup of the sketch
void setup()
{
Serial.begin(9600);
while (!Serial) {
; // wait for serial port to connect. Needed for native USB
}
delay(100);
e32ttl.begin();
//  e32ttl.resetModule();
// After set configuration comment set M0 and M1 to low
// and reboot if you directly set HIGH M0 and M1 to program
//  ResponseStructContainer c;
//  c = e32ttl.getConfiguration();
//  Configuration configuration = *(Configuration*) c.data;
//  configuration.ADDL = 3;
//  configuration.ADDH = 0;
//  configuration.CHAN = 0x04;
//  configuration.OPTION.fixedTransmission = FT_FIXED_TRANSMISSION;
//  configuration.OPTION.wirelessWakeupTime = WAKE_UP_250;
//
//    configuration.OPTION.fec = FEC_1_ON;
//    configuration.OPTION.ioDriveMode = IO_D_MODE_PUSH_PULLS_PULL_UPS;
//    configuration.OPTION.transmissionPower = POWER_20;
//
//    configuration.SPED.airDataRate = AIR_DATA_RATE_010_24;
//    configuration.SPED.uartBaudRate = UART_BPS_9600;
//    configuration.SPED.uartParity = MODE_00_8N1;
//
//  e32ttl.setConfiguration(configuration, WRITE_CFG_PWR_DWN_SAVE);
//  printParameters(configuration);
// ---------------------------
Serial.println();
Serial.println("Start listening!");
e32ttl.setMode(MODE_2_POWER_SAVING);
// Allow wake up pin to trigger interrupt on low.
attachInterrupt(0, wakeUp, LOW);
// Enter power down state with ADC and BOD module disabled.
// Wake up when wake up pin is low.
LowPower.powerDown(SLEEP_FOREVER, ADC_OFF, BOD_OFF);
// Disable external pin interrupt on wake up pin.
detachInterrupt(0);
Serial.println("OK listening!");
}
// The loop function is called in an endless loop
void loop()
{
if (e32ttl.available()  > 1){
ResponseContainer rs = e32ttl.receiveMessage();
// First of all get the data
String message = rs.data;
Serial.print("Received --> ");
Serial.print(rs.status.getResponseDescription());
Serial.print(" - ");
Serial.println(message);
}
delay(125);
}
void printParameters(struct Configuration configuration) {
Serial.println("----------------------------------------");
Serial.print(F("HEAD : "));  Serial.print(configuration.HEAD, BIN);Serial.print(" ");Serial.print(configuration.HEAD, DEC);Serial.print(" ");Serial.println(configuration.HEAD, HEX);
Serial.println(F(" "));
Serial.print(F("AddH : "));  Serial.println(configuration.ADDH, DEC);
Serial.print(F("AddL : "));  Serial.println(configuration.ADDL, DEC);
Serial.print(F("Chan : "));  Serial.print(configuration.CHAN, DEC); Serial.print(" -> "); Serial.println(configuration.getChannelDescription());
Serial.println(F(" "));
Serial.print(F("SpeedParityBit     : "));  Serial.print(configuration.SPED.uartParity, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTParityDescription());
Serial.print(F("SpeedUARTDatte  : "));  Serial.print(configuration.SPED.uartBaudRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTBaudRate());
Serial.print(F("SpeedAirDataRate   : "));  Serial.print(configuration.SPED.airDataRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getAirDataRate());
Serial.print(F("OptionTrans        : "));  Serial.print(configuration.OPTION.fixedTransmission, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFixedTransmissionDescription());
Serial.print(F("OptionPullup       : "));  Serial.print(configuration.OPTION.ioDriveMode, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getIODroveModeDescription());
Serial.print(F("OptionWakeup       : "));  Serial.print(configuration.OPTION.wirelessWakeupTime, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getWirelessWakeUPTimeDescription());
Serial.print(F("OptionFEC          : "));  Serial.print(configuration.OPTION.fec, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFECDescription());
Serial.print(F("OptionPower        : "));  Serial.print(configuration.OPTION.transmissionPower, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getTransmissionPowerDescription());
Serial.println("----------------------------------------");
}
void printModuleInformation(struct ModuleInformation moduleInformation) {
Serial.println("----------------------------------------");
Serial.print(F("HEAD BIN: "));  Serial.print(moduleInformation.HEAD, BIN);Serial.print(" ");Serial.print(moduleInformation.HEAD, DEC);Serial.print(" ");Serial.println(moduleInformation.HEAD, HEX);
Serial.print(F("Model no.: "));  Serial.println(moduleInformation.model, HEX);
Serial.print(F("Version  : "));  Serial.println(moduleInformation.version, HEX);
Serial.print(F("Features : "));  Serial.println(moduleInformation.features, HEX);
Serial.println("----------------------------------------");
}

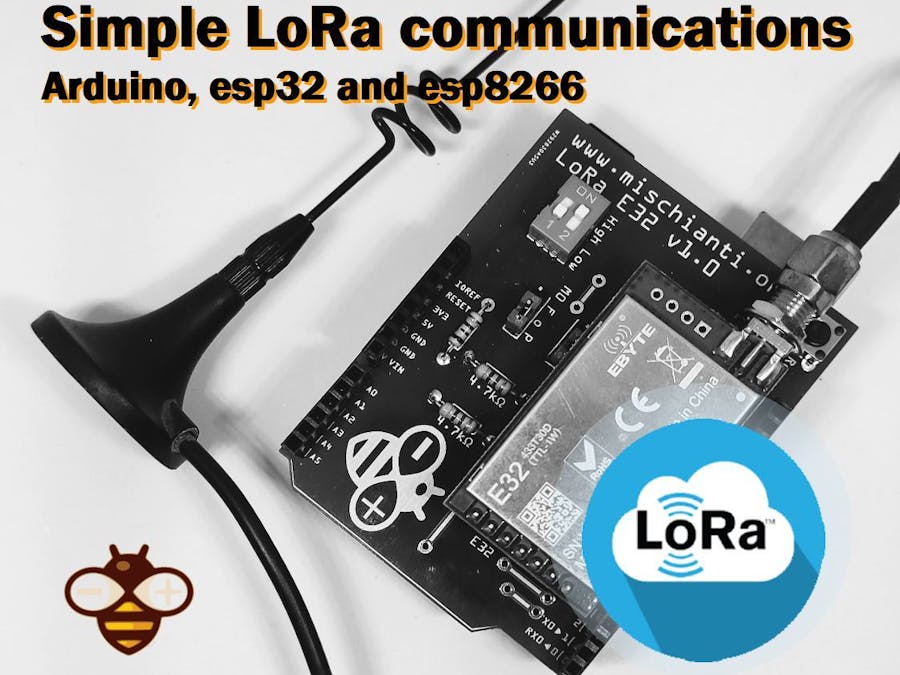

Arduino and esp8266 shield

I create also a shield for Arduino that become very usefully for prototyping.

And I release It as open source project here

https://www.pcbway.com/project/shareproject/LoRa_E32_Series_device_Arduino_shield.html

https://www.pcbway.com/project/shareproject/LoRa_E32_Series_device_WeMos_D1_mini_shield_RF_8km_range.html

Library

GitHub repository https://github.com/xreef/LoRa_E32_Series_Library

Support forum

Additional documentation
