Desk Clock Lcd ST7735

"RIP childhood fun, thank you for creating happiness and inspiring energy."

DESCRIPTION

Continuing from the original project, Nixie LCD Clock had an idea to create a small clock, not too big, but still keeping the same design as the old project, so this project was born.

Step1:

raspberry PICO connect LCD ST7735 Write a program to create gif animations. for title when start power

STEP2: Circuit & PCB

Order PCB by using service from PCB Way. Easy to order by just download Gerber file. Check the completion of the money transfer.

STEP3: Assembly PCB

PCB from PCBWAY using time from order to arrive in Thailand, it takes only 4 days, the work is still the same quality.

Step4: Update software

Using gifio in CircuitPython to Display GIF Animations

In the latest versions of CircuitPython (starting from v8.0), a new module called gifio has been introduced. It allows you to directly load and display animated .gif files — no need to convert them into .bmp frame-by-frame anymore! 🎉

✅ Why use gifio ?

Play .gif animations directly from storage

• Play .gif animations directly from storage

Loop and control frame-by-frame playback

• Loop and control frame-by-frame playback

Fully compatible with displayio displays

• Fully compatible with displayio displays

Notes on GIF Files

Must be animated .gif files

• Must be animated .gif files

Keep resolution within display and memory limits

• Keep resolution within display and memory limits

Use lowercase filenames and avoid spaces (e.g., cat.gif)

• Use lowercase filenames and avoid spaces (e.g., cat.gif)

CASE:

https://grabcad.com/library/desk-clock-lcd-st7735-1

https://www.printables.com/model/428740-desk-clock-lcd-st7735

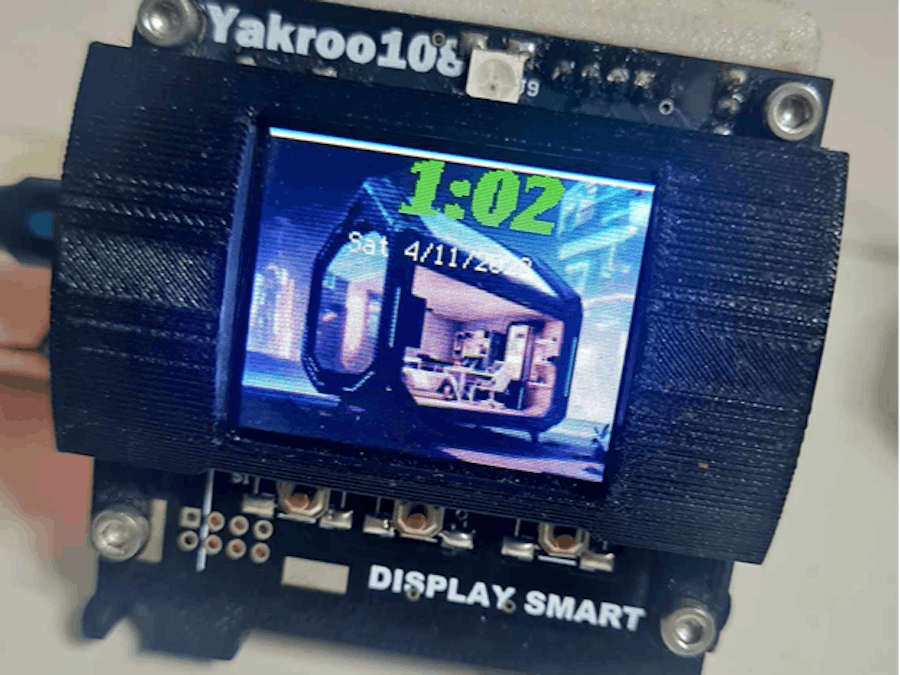

In the end, I have achieved the project as hoped, which is a clock with the following features:

• It's a timekeeping clock.
• It's a clock with overlay images that work in slideshow mode, cycling through all the files in /pic.
• It's a clock with animated images in gif animation format, playing all the.gif files available in the folder until they are finished.

code:

https://github.com/YakrooThai/Desk-Clock-Lcd-ST7735/blob/main/code.py

https://github.com/YakrooThai/-Desk-Clock-Lcd-ST7735
