Building a Versatile Off-Road 4WD Robot: A DIY Adventure

Building a Versatile Off-Road 4WD Robot: A DIY Adventure

Watch full video Tutorial here

Introduction:

In today's world of innovation and technology, DIY projects offer a unique blend of creativity and functionality. One such project that embodies this spirit is the creation of a 4-wheel drive (4WD) off-road robot. Combining rugged design with remote control capabilities, this project opens up a world of possibilities for exploration and experimentation. In this article, we delve into the intricacies of building a 4WD off-road robot, highlighting the key components, design considerations, and the journey of bringing this project to life.

The Concept:

The primary goal of this project is to construct a robust and versatile off-road robot capable of navigating various terrains with ease. Utilising four 12V gear motors with a speed of 300 RPM each, coupled with specially designed PVC pipe framework and large 7*2 wheels, the robot promises exceptional traction and manoeuvrability. The 4WD configuration ensures optimal stability and control, making it ideal for tackling challenging landscapes ranging from rocky terrains to uneven surfaces.

Design and Construction:

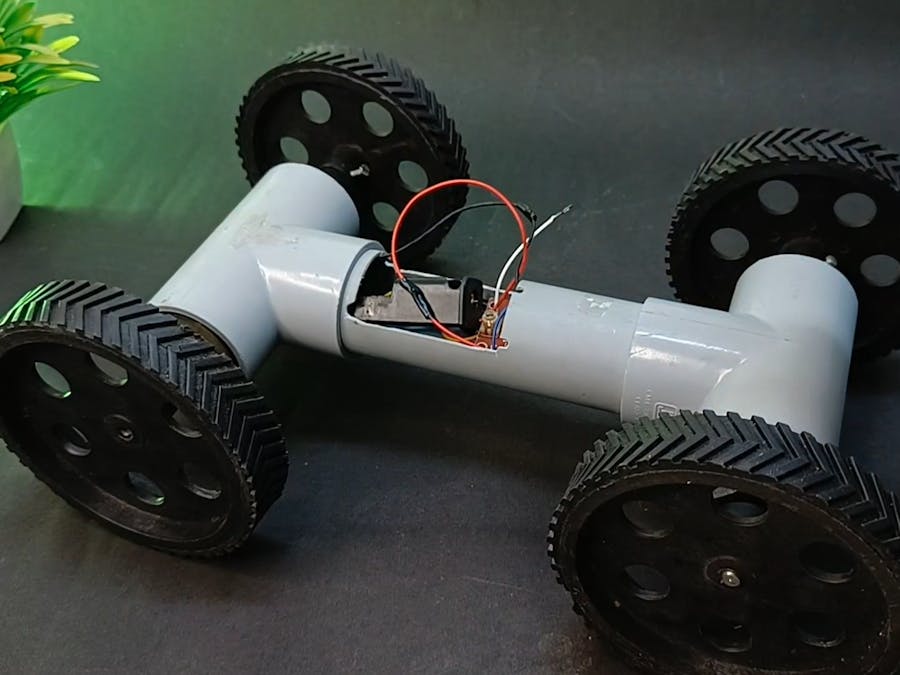

The foundation of the off-road robot lies in its sturdy construction. The use of 1.5-inch PVC pipes and T-joints provides a lightweight yet durable framework, capable of withstanding the rigors of outdoor exploration. The modular design allows for easy assembly and customization, enabling enthusiasts to tailor the robot to their specific preferences and requirements.

The inclusion of large wheels further enhances the robot's ability to traverse obstacles and rough terrain with minimal effort.

Control Mechanism:

Central to the functionality of the off-road robot is its remote control system. Leveraging the 433MHz module-based RF transmitter and receiver, users can effortlessly command the robot from a distance. The custom-designed PCB, fabricated by JLC PCB, serves as the backbone of the control mechanism, ensuring seamless communication between the transmitter and receiver. With precise control over movement and direction, users can navigate the robot through intricate pathways and challenging landscapes with precision and accuracy.

(This is the TX of our RC Car)

(This is RX of our RC car)

Where to Order PCBs-

JLC PCB stands as a testament to the advancements in PCB fabrication technology. Offering high-quality, cost-effective solutions for custom PCB manufacturing, JLC PCB enables enthusiasts and professionals alike to bring their electronic projects to fruition. With state-of-the-art facilities and streamlined processes, JLC PCB ensures rapid turnaround times without compromising on quality. From prototyping to production, their services cater to a wide range of project requirements, making them a preferred choice for DIY enthusiasts and electronics hobbyists worldwide. JLCPCB 1-20 layer PCB from $2, PCBA from $0, Sign up to Get $60 Coupons

Order This PCB - https://jlcpcb.com/IYK

Conclusion:

In conclusion, the creation of a 4WD off-road robot represents a captivating journey into the realm of DIY robotics and engineering. By harnessing the power of innovative technologies such as 433MHz RF modules and custom PCB fabrication, enthusiasts can breathe life into their creations and embark on thrilling adventures in the great outdoors. Whether it's conquering rugged terrains or exploring uncharted landscapes, the off-road robot stands as a testament to human ingenuity and creativity. As we continue to push the boundaries of what's possible, projects like these serve as a reminder of the endless possibilities that await those willing to embark on the journey of discovery and exploration.

Full video Tutorial - Here
