Industrial and Home Security System

It system fully based on the security purpose which is use in INDUSTRY, FURNACE, HOME, MUSEUM and CAR security.

AdvancedFull instructions provided1,163

Things used in this project

Hardware components

PIR Motion Sensor (generic)

Temperature Sensor

Solid State Relay

Resistor 10k ohm

Resistor 4.75k ohm

Capacitor 1000 µF

Capacitor 22 pF

Linear Regulator (7805)

General Purpose Transistor NPN

Adafruit RGB Backlight LCD - 16x2

1N4007 – High Voltage, High Current Rated Diode

Rotary potentiometer (generic)

Buzzer

Hand tools and fabrication machines

Soldering iron (generic)

Story

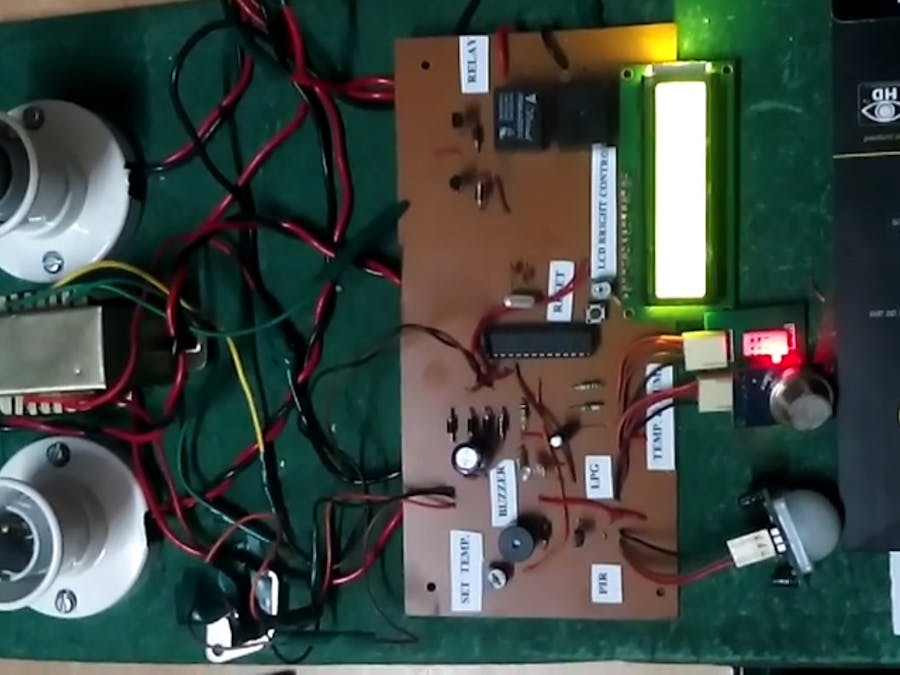

It system fully based on the security purpose which is use in INDUSTRY, FURNACE, HOME, MUSEUM and CAR security.

We have use three type of sensor in this system like

1-PIR (MOTION Sensor) it has detect the motion and theft within 10ft to 15ft.

2-SMOKE sensor:- it has sense the smoke and LPG(Liquid Petroleum Gas) and close the AC Appliance with relay;

3:-TEMP & HUM. sensor :- It has used to detect the temperature and humidity and this temperature range could be set by the USER via PRESET(VAR. RESISTANCE).

4.High Voltage Breaker(Above 245 AC Volt)

APPLICATION

1:-Reduce energy consumption by the AC(Air CONDITION).

2:-Used for home security.

3:-INDUSTRY

4:-Hospital etc.

No need of separate sensor for particular purpose security.

The TOTAL COST OF SYSTEM 2000(rupess) and 32(dollar) approximate

IF YOU WANT THE CIRCUIT DIAGRAM AND COMPONENT LIST please comment at YouTube box.

Code

Code of Project

 // LPG PIN
  //LPG AND SMOKE PIN DETECT ALARM


void setup()
{

  Serial.begin(9600);
  pinMode(13,OUTPUT);
pinMode (12,OUTPUT); //PIR OUTPUT SINGNAL
pinMode (3, INPUT);  // PIR INPUT PIN
int tempsense = 0;
int rhsense = 0;
int temp = 0;
int rh = 0;

 tempsense = (analogRead(1));
 rhsense = (analogRead(0));
}

void loop()
{
{
goto LPG_ND_SMOKE;

goto TEMP_AND_HUMIDITY;

goto PIR;



goto HighVoltage;

}

LPG_ND_SMOKE:
{
  const int analogInPin =2;
  int ledPin = 7;
  int sensorValue = 0;

  sensorValue = analogRead(analogInPin);

  if (sensorValue >=550)

  {
    digitalWrite(ledPin, HIGH);
  }
  else if (sensorValue>=400)

  {
  digitalWrite(ledPin, HIGH);
  }
else

digitalWrite(ledPin, LOW);


  Serial.print("sensor = " );
  Serial.println(sensorValue);

  delay(10);
}

PIR:
{
  int val=0;
val = digitalRead(8);
digitalWrite(13,val);

if (val == 1)
{
digitalWrite(13,LOW);
}

else
{
Serial.print("LOW PIR" );
}

}

TEMP_AND_HUMIDITY:
{
int tempsense = 0;
int rhsense = 0;
int temp = 0;
int rh = 0;

 tempsense = (analogRead(1));
 rhsense = (analogRead(0));
 temp = (tempsense/50);
 rh = ((30.855*(rhsense/204.6))-11.504);

 Serial.print("Temperature: ");
 Serial.print(temp);
 Serial.println(" C ");

 delay(100);
 Serial.print("Humidity: ");
 Serial.print(rh);
 Serial.println("% ");

 delay(1000);
}

HighVoltage:
{
int  max_volt = 255;
int present_main_volt;
float volt;
present_main_volt=analogRead(5);
volt=(5/ max_volt* present_main_volt);


if (volt ==00)
if(volt ==3.177)
if(volt ==3.50)
if(volt==4.00)
if(volt== 4.50)
goto OFF;

}

OFF:
{
  digitalWrite(7,HIGH);
  delay(1000);
  digitalWrite(7,LOW);
}

}
