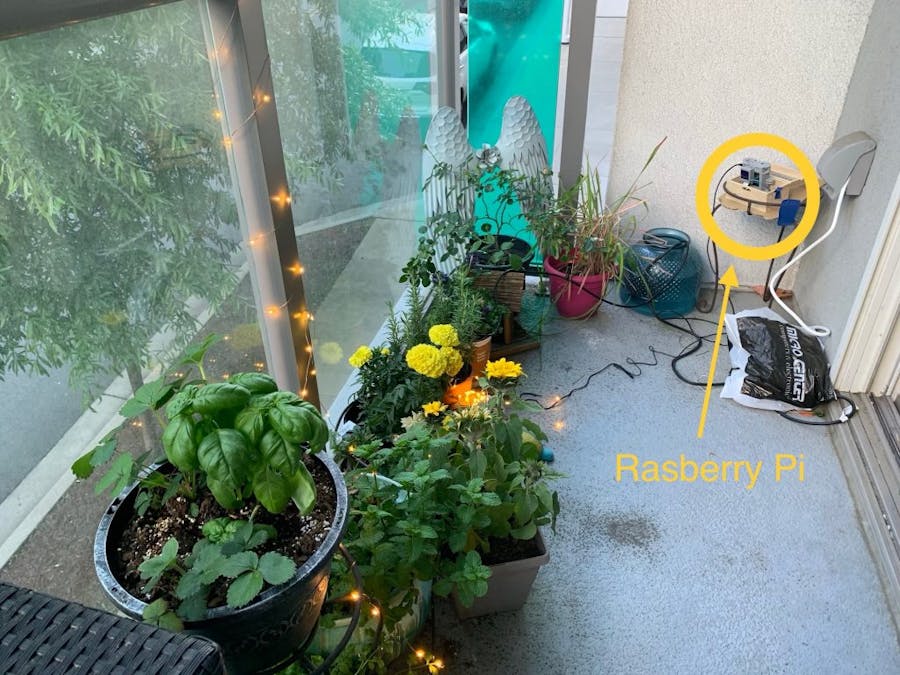

Community IoT Garden Using Raspberry Pi and Telegram Bot

IoT garden using Raspberry Pi and Telegram Bot to water plants, flip lights, take NDVI pics, videos, and more...

AdvancedFull instructions provided6 hours29,428
Community IoT Garden Using Raspberry Pi and Telegram Bot

Things used in this project

Hardware components

Raspberry Pi 3 Model B
Raspberry Pi 3 Model B
×1
Drip irrigation kit
×1
Aquarium Pump
×1
SparkFun 433Mhz Transmitter Chip
×1

Software apps and online services

Telegram

Story

Read more

Schematics

System Schematic

Code

IoTGarden Code

Python
Python Code - Run file , keep all three files in same folder and run:
python3 gardenBot_publish_v1.py &
# -*- coding: utf-8 -*-
"""
Created on Sat Apr  7 13:26:28 2018

@author: Zen Of All LLC (zenofall.com)
"""


import threading
import os



from iotcontrol import iotcontrol
from telegram import InlineKeyboardButton, InlineKeyboardMarkup

from telegram.ext import Updater
from telegram.ext import CommandHandler , CallbackQueryHandler
from telegram.ext import MessageHandler, Filters
import logging
##############################################################################################
darkskyKey = '<Enter dark sky token>'
updater = Updater(token='<TELEGRAM TOKEN>') #Insert bot token
#required by bot to execute functions see example: https://python-telegram-bot.org/
control = iotcontrol(1234567,darkskyKey,33.8463634,-84.373057)
# 1234567 is example admin id : find yours by going to web-api of telegram: https://api.telegram.org/bot<TOKEN>/getUpdates
#<TOKEN> is telegram token during bot creation
#read: https://zenofall.com/raspberry-pi-telegram-home-automation/
#replace: 33.8463634,-84.373057 by latitude longitude of your location from google maps
#we use adminId for special privileges on the bot

dispatcher = updater.dispatcher
#bot examples: https://github.com/python-telegram-bot/python-telegram-bot/tree/master/examples

#logging is always good

#define logging format and file location



####################Bot User Functions ##############################

def start(bot,update): #display menu
    """ BotFunction: First function using which users are supposed to interact with this bot"""



    control.autoAdd(bot,update)


    keyboard = [[InlineKeyboardButton("Instructions", callback_data='5')],
                 [InlineKeyboardButton("Take Pic", callback_data='1')],
                 [InlineKeyboardButton("NDVI Pic", callback_data='8')],
                 [InlineKeyboardButton("Video", callback_data='9')],
                 [InlineKeyboardButton("Local Weather", callback_data='7')],
                 [InlineKeyboardButton("Water Plants", callback_data='2')],
                [InlineKeyboardButton("Ligts on/off", callback_data='3')],
                [InlineKeyboardButton("Status", callback_data='4')],
                [InlineKeyboardButton("Tutorial & Code", callback_data='6')]
                ]

    message="Hello {} (telegram_id:{}).\nPlease read: Instructions first.\nType& send:/start again to pull up menu at any time.\n*Disclaimer: Bot logs all user commands. \nPlease Choose: \n".format(update.message.from_user.first_name,update.message.from_user.id)
    reply_markup = InlineKeyboardMarkup(keyboard)

    bot.send_message(chat_id=update.message.chat_id,text=message, reply_markup=reply_markup)


def button(bot,update):
    """ BotFunction: Function that implements the button callbacks"""
    query = update.callback_query
    bot.answer_callback_query(callback_query_id=query.id, text="Choice registered,processing request..")


    if(query.data=='1'):


        #control.sendPic(bot,update,False)
        t=threading.Thread(target=control.sendPic,args=(bot,update,False))
        t.setDaemon(True)
        t.start()

    if(query.data=='8'):
        #global enablePic

        t=threading.Thread(target=control.sendPic,args=(bot,update,True))
        t.setDaemon(True)
        t.start()

    if(query.data=='9'):
        #global enablePic

        t=threading.Thread(target=control.recordVideo,args=(bot,update))
        t.setDaemon(True)
        t.start()

    if(query.data=='2'):

        control.water(bot,update)

    if(query.data=='3'):

        control.light(bot,update)

    if(query.data=='7'):

        control.weather(bot,update)

    if(query.data=='4'):

     control.status(bot,update)

    if(query.data=='5'):
        control.instructions(bot,update)


    if(query.data=='6'):
        control.tutorial(bot,update)

############# Admin only program functions####################


def unknown(bot, update):
    """ Unkwown command handler"""
    logging.info('/unknown,{},{}'.format(update.message.from_user.first_name,update.message.from_user.id))
    bot.send_message(chat_id=update.message.chat_id, text="Sorry Command Not Recognized! Type: /start for all user actions.")

def shutdown():

    updater.stop()
    updater.is_idle=False

def stop(bot, update): #hardcoded for security only i can issue this command
    """
    Admin Command: stop the bot
    Usage:
        /stop

    """
    #global adminId
    logging.info('/stop,{},{}'.format(update.message.from_user.first_name,update.message.from_user.id))
    if(update.message.from_user.id==control.getAdminId()):
        bot.send_message(chat_id=update.message.chat_id, text="Stopping Server!")
        threading.Thread(target=shutdown).start()
    else:
        bot.send_message(chat_id=update.message.chat_id, text="ERROR: Unauthorized User!")

def addIoTUser(bot,update,args):
    """
    Admin Command: add users manually
    Usage:
        /add 12345 324567 8726251

        The numbers are ids of users

    """
    control.addIoTUser(bot,update,args)



def removeIoTUser(bot,update,args):
    """
    Admin Command: remove users manually
    Usage:
        /rm all
        /rm 123445
    """
    control.removeIoTUser(bot,update,args)



def fetchIoTUserList(bot,update):

    """
    Admin Command: add users manually
    Usage:
        /fetch

    """
    control.fetchIoTUserList(bot,update)



def disable(bot,update,args):

    """
    Admin Command: disable functions in button menu
    Usage:
        /disable 1  (for pic)
        /disable 2  (for water)
        /disable 3  (for light)
        /disable 4  (for video)
        /disable all (disable all)

    """
    control.disable(bot,update,args)



def setAwb(bot,update, args):

    """
    Admin function: set white balance
    Usage:
        /set 1.0 1.3 (red,blue)

    """
    control.setAwb(bot,update,args)


def setExp(bot,update, args):

    """
    Admin function: set white balance
    Usage:
        /setExp auto [auto, sports, night]
    https://picamera.readthedocs.io/en/release-1.10/api_camera.html?highlight=exposure_mode#picamera.camera.PiCamera.exposure_mode
    """
    control.setExp(bot,update,args)


def setLimit(bot,update,args):

    """
    Admin function: set time limits
    Usage:
        /setLimit pic 2.0
        /setLimit water 5.0

    """
    control.setLimit(bot,update,args)



#def clear(bot,update,chat_data):
#    chat_data.clear()




####____global variables____#########



#Kill ServoBlaster - interferes with GPIO #something specific to me
###comment this out if you dont have servo blaster
try:
    os.system("sudo killall servod")
except Exception as e:
    print(e)
    pass
############ #comment ends

#####____HANDLERS_____#######
#bot examples: https://github.com/python-telegram-bot/python-telegram-bot/tree/master/examples
start_handler = CommandHandler('start', start)
stop_handler = CommandHandler('stop', stop)
#menu_handler = CommandHandler('menu', menu)
addHandler = CommandHandler('add',addIoTUser, pass_args=True)
removeHandler = CommandHandler('rm',removeIoTUser,pass_args=True)
fetchHandler = CommandHandler('fetch',fetchIoTUserList)
disable_Handler = CommandHandler('disable',disable,pass_args=True)
awbHandler = CommandHandler('setawb',setAwb,pass_args=True)
expModeHandler = CommandHandler('setexp',setExp,pass_args=True)
setLimitHandler = CommandHandler('setLimit',setLimit,pass_args=True)
#clearHandler = CommandHandler('clear',clear,pass_chat_data=True)
unknown_handler= MessageHandler(Filters.command, unknown)

#####____DISPATCHERS_____#######
dispatcher.add_handler(start_handler)
dispatcher.add_handler(stop_handler)
#dispatcher.add_handler(menu_handler)
dispatcher.add_handler(addHandler)
dispatcher.add_handler(removeHandler)
dispatcher.add_handler(fetchHandler)
dispatcher.add_handler(disable_Handler)
dispatcher.add_handler(awbHandler)
dispatcher.add_handler(expModeHandler)
dispatcher.add_handler(setLimitHandler)
dispatcher.add_handler(CallbackQueryHandler(button))

#dispatcher.add_handler(clearHandler)
dispatcher.add_handler(unknown_handler) #Always keep unkown handler last else commands not recognized
#start the bot client - poll for server messages
updater.start_polling()
updater.idle()
