LoRaWAN Tracker 101: Visulizue Data on TagoIO via TTN

SenseCAP T1000 is a compact LoRaWAN® tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It boasts self-geo-adaptive capabilities, local data storage, and an impressive months of battery life. Additionally, it is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications.

The Things Stack(TTS) is a LoRaWAN® Network Server stack which is the critical component for any LoRaWAN solution.

TagoIO is an IoT Cloud Platform for businesses to manage devices, data, users, analytics, and integration. Its intuitive interface makes it easy for businesses of all sizes to build and deploy innovative IoT solutions.

The content of this chapter will guide users how to connect the SenseCAP T1000 Tracker to TagoIO through TTN.

Device Configuration ​

Before connecting to the TTS, you need to configure the basic parameters of your device on SenseCAP Mate APP, check Get Started for more details.

• Set the platform to TTN, and then copy the Device EUI/APP EUI/APP Key.

The Things Network

To begin, register an account on The Things Network.

Step 1: Create an application ​

Navigate to Applications page, click "+Create application".

Enter an Application ID, click Create Application to save your changes.

Step 2: Register the Device ​

We uploaded a template for users，you only need to select the product model to quickly set up. Select the input method to 'Select the end device in the LoRaWAN Device Repository'

INFO

End device brand:SenseCAPModel:SenseCAP T1000 Tracker A/B

Select the frequency plan according to your device.

Paste the Device EUI/APP EUI/APP Key of your device, and then click 'Register end device'.

Step 3: Check the data ​

When the device tries to connect to the network, the breathing light will flash. If the device joins the network successfully, the breathing light will flash quickly, and there will be a light and cheerful melody.

Then you can check the data on the TTS console.

SenseCAP T1000 Tracker Decoder for TTN

The TagoIO

To get started, create an account with TagoIO.

Step 1: Add Device ​

Navigate to Devices tab and click Add Device.

Search Seeed SenseCAP T1000 for quick setup.

Name your device and paste your device EUI, then click Create my Device.

Step 2: Generate authorization ​

Click Generate authorization and copy your authorization.

Configura The Things Stack ​

On The Things Stack, navigate to Integrations → Webhooks, and click Add Webhook.

Choose the TaoIO Webhook template.

Name your integration by filling in the Webhook ID, and paste the Plugin ID and TagoIO token.

After your device is connected, you can check all the connections in the Live Inspector tab in TagoIO.

TagoIO Dashboard(Optional) ​

A dashboard is where you place your widgets to visualize and interact with data, all in real-time. You can customize your dashboard to your needs.

Navigate to Dashboard tab, name your dashboard and click Create my Dashboard.

Location Dashboard

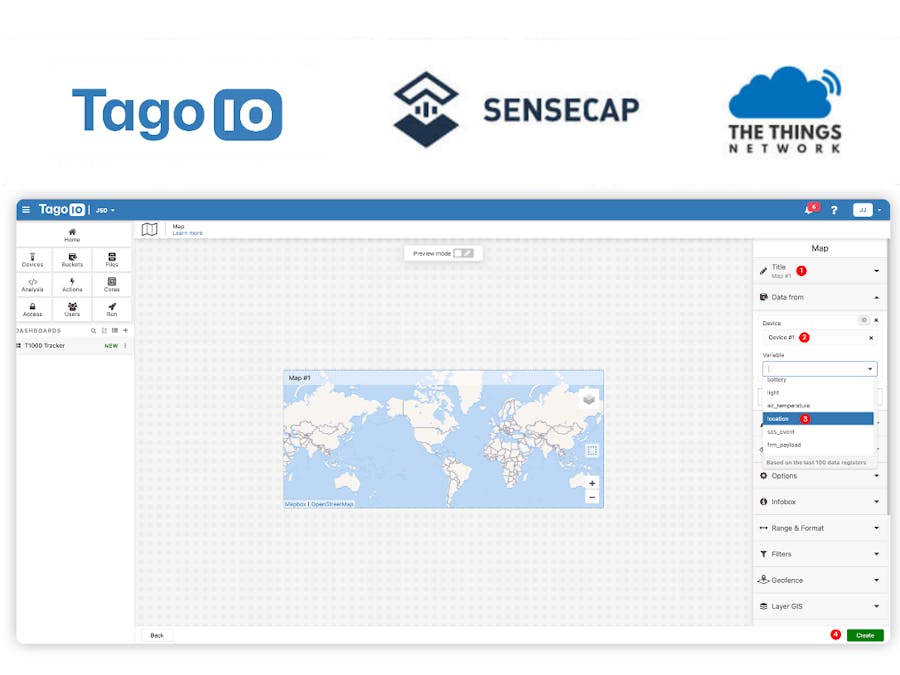

Click Add widget, choose Map type.

Data from: Your device -- location
