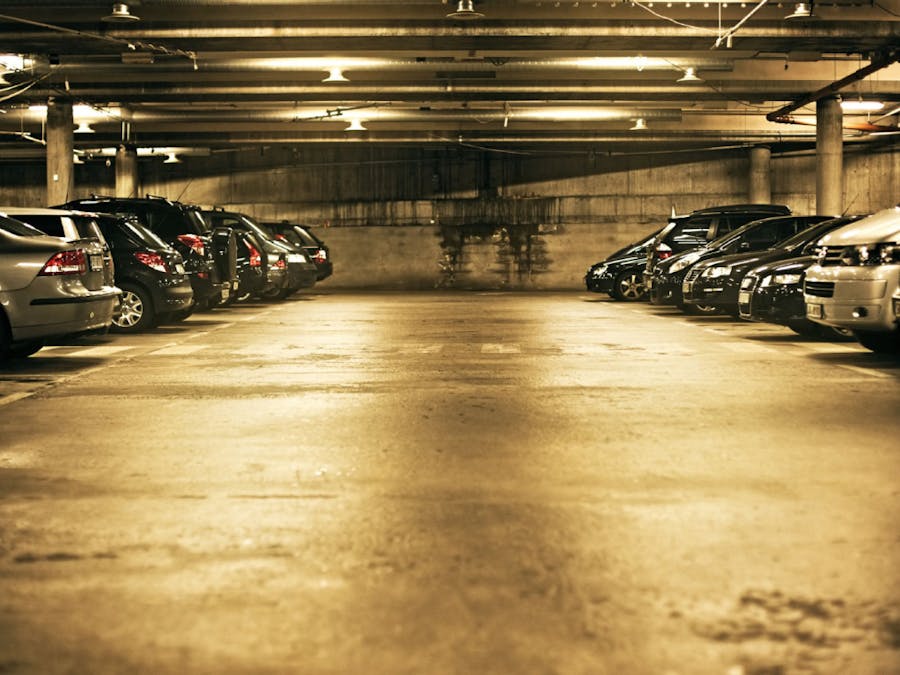

Automated Parking System

#define ECHOPIN 6 // Echo Pin
#define TRIGPIN 5 // Trigger Pin
void ultrasonicsensorInit();
int getDistance();

/***********************RFID logic*******************/
/***************************************************/

/*----------------------------------------------------------------------------- Nicola Coppola
 * Pin layout should be as follows:
 * Signal     Pin              Pin               Pin			Pin
 *            Arduino Uno      Arduino Mega      SPARK			MFRC522 board
 * ---------------------------------------------------------------------------
 * Reset      9                5                 ANY (D2)		RST
 * SPI SS     10               53                ANY (A2)		SDA
 * SPI MOSI   11               51                A5				MOSI
 * SPI MISO   12               50                A4				MISO
 * SPI SCK    13               52                A3				SCK
 *
 * The reader can be found on eBay for around 5 dollars. Search for "mf-rc522" on ebay.com.
 */
//#include <SPI.h>


#define SS_PIN SS
#define RST_PIN D2

MFRC522 mfrc522(SS_PIN, RST_PIN);	// Create MFRC522 instance.

#define  MAXRFIDTAGS        100
#define  MAXSLOTS           20
#define  NUM_NORMAL_SLOTS   10
#define  NUM_PRIORITY_SLOTS  8
#define  NUM_DISABLED_SLOTS  2

#define  LED_NORMAL_PIN      1
#define  LED_PRIORITY_PIN    2
#define  LED_DISABLED_PIN    3
#define  GATE_LED_PIN        4


//***************************************************
// RFID Cache Object Defintion
// **********************************************************************************
// Each Tag Information will contain the RFID TAG and the parking level. The level
// can be "normal", "priority", "Disabled"
typedef struct RFIDTag
{
    String rfidtag;
    String level;
} RFIDTAG;


// RFID CaCHE Class and member functions
class RFIDCACHE {

public:

    void   addRFID(String rfidstr, String levl);
    void   delRFID(String rfidstr);
    int    chkRFID(String rfidstr);
    int    modRFID(String rfidstr, String levl);
    void   print();
    String getRFID(int index);
    int    chklevel(String rfidstr);
    String getlevel(String rfidstr);

    RFIDCACHE();

private:

    RFIDTAG  rfidtags[MAXRFIDTAGS];    // RFID Tags and associated levels
    int      nrfidtags;                // Current number of rfidtags. The max can be MAXRFIDTAGS
    int      normalrfids;
    int      priorityrfids;
    int      disabledrfids;
};

int led = 13;


#define SLOT_ERROR    0
#define SLOT_EMPTY    1
#define SLOT_OCCUPIED 2
#define SLOT_UNUSABLE 3
#define SLOT_RESERVED 4


int        nrfidtags = 0;                   // Total number of RFID tags in the cache
int        gateOpen = 0;                    // Should the gate be opened?
int        delyVal;                        // default loop() cycle time in milliseconds
RFIDCACHE rfidcache;



// RFID Cache Modules Begin
// RFID Cache constructor
RFIDCACHE::RFIDCACHE()
{
     nrfidtags = 0;
}

// Compare the RFID tag obtained with the RFID entries in the local cache.
// Returns the index if the tag is found in the cache, else -1
int RFIDCACHE:: chkRFID(String rfidstr)
{

    int i;
    for (i = 0; i < nrfidtags; i++)
    {
        if (rfidstr == rfidtags[i].rfidtag)
        {
           return i;
        }
    }
    return -1;
}

// Compare the RFID tag obtained with the RFID entries in the local cache.
// Returns 1 if the tag is found in the cache, else 0
/*
int RFIDCACHE:: chklevel(String rfidstr)
{

    int i;
    for (i = 0; i < nrfidtags; i++)
    {
        if ((rfidstr == rfidtags[i].rfidtag) && (rfidtags[i].level == slotPrivilage))
           return 1;
    }
    return 0;
}
*/

String RFIDCACHE:: getlevel(String rfidstr)
{

    int i;
    for (i = 0; i < nrfidtags; i++)
    {
        if (rfidstr == rfidtags[i].rfidtag)
        {
           return rfidtags[i].level;
        }
    }
    return "normal";
}


int RFIDCACHE:: modRFID(String rfidstr, String levl)
{

    int i;
    for (i = 0; i < nrfidtags; i++)
    {
        if (rfidstr == rfidtags[i].rfidtag)
        {
           rfidtags[i].level = levl;
           return 1;
        }
    }
    return 0;
}

// Print the RFIDs over Serial terminal
void RFIDCACHE:: print()
{

    int i;
    Serial.print("RFID TAGS: ");
    for (i = 0; i < nrfidtags; i++)
        Serial.print(rfidtags[i].rfidtag + " ");
    Serial.println("");
}

// Get the RFIDs for a particular index
String RFIDCACHE:: getRFID(int index)
{
    return rfidtags[index].rfidtag;
}

// Add RFID tag to the cache. Uses LRU for replacing if the cache is full.
void RFIDCACHE:: addRFID(String rfidstr, String levl = "normal")
{

    static int currtag = 0;  // index of the latest added RFID tag in the cache

    // RFID tag already in cache. Return
    if (chkRFID(rfidstr) >= 0) return ;

    // If current index has reached the end of the cache, set the current index to 0
    if (currtag == MAXRFIDTAGS)
        currtag = 0;
       // Serial.print("currtag");
    // Place the new RFID in the current index and increment current index
    rfidtags[currtag].rfidtag = rfidstr;
    rfidtags[currtag].level   = levl;
    currtag++;

    // Increment number of rfidtags in the cache.
    if (nrfidtags != MAXRFIDTAGS)
        nrfidtags++;
}

// Delete RFID tag entry from the cache.
void RFIDCACHE:: delRFID(String rfidstr)
{
    int i;
    int delIndex = nrfidtags;

    if (nrfidtags == 0)
       return;
    for (i = 0; i < nrfidtags;i++)
        if (rfidstr == rfidtags[i].rfidtag)
           delIndex = i;

    nrfidtags--;

    for (i = delIndex; i < nrfidtags; i++)
    {
        rfidtags[i].rfidtag = rfidtags[i+1].rfidtag;
        rfidtags[i].level   = rfidtags[i+1].level;
    }
}

//*******************************************************************************
// End RFID Cache management object defintion
//*******************************************************************************


//***************************************************
// PARKED RFID LIST MAnagement
// **********************************************************************************
// Each Tag Information will contain the RFID TAG and the parking level. The level
// can be "normal", "priority", "Disabled"
typedef struct parkedtag
{
    String rfidtag;
    int    isParked;
} PARKEDTAG;


// RFID CaCHE Class and member functions
class PARKEDRFID {

public:

    int    addRFID(String rfidstr);
    int    delRFID(String rfidstr);
    int    chkRFID(String rfidstr);
    void   print();
    String getRFID(int );
    int    chkAvailable(String rfidstr);
    int    isSlotAvailable(String level);


    PARKEDRFID();

private:

    PARKEDTAG  rfidtags[MAXSLOTS];       // RFID Tags and associated levels
    int        nrfidtags;                // Current number of rfidtags. The max can be MAXRFIDTAGS
    int        normalrfids;
    int        priorityrfids;
    int        disabledrfids;
};


PARKEDRFID parkedrfid;                     // RFIDs of cars in the parking lot


// PARKEDRFID Modules Begin
// RFID Cache constructor
PARKEDRFID ::PARKEDRFID()
{
    int i;
    nrfidtags = 0;
    normalrfids = 0;
    priorityrfids = 0;
    disabledrfids = 0;

    for (i = 0; i < MAXSLOTS; i++)
    {
        rfidtags[i].rfidtag = "";
        rfidtags[i].isParked = 0;
    }
}

// Compare the RFID tag obtained with the RFID entries in the local cache.
// Returns the index if the tag is found in the cache, else -1
int PARKEDRFID:: chkRFID(String rfidstr)
{

    int index;
    for (index = 0; index < MAXSLOTS; index++)
        if ((rfidstr == rfidtags[index].rfidtag) && (rfidtags[index].isParked == 1))
           return index;
    return -1;
}

// Compare the RFID tag obtained with the RFID entries in the local cache.
// Returns 1 if the tag is found in the cache, else 0
int PARKEDRFID :: chkAvailable(String rfidstr)
{

    int avail = 0;
    String level;

    level = "" + rfidcache.getlevel(rfidstr);

    // "normal" RFIDs can park only in normal slots
    if (level == "normal")
         avail = normalrfids;
    // "priority" RFIDs can park only  normal slots and priority slot
    if (level == "priority")
         avail = priorityrfids + normalrfids;
    // "disabled" RFIDs can park in any slot
    if (level == "disabled")
         avail = disabledrfids + priorityrfids + normalrfids;
    return avail;
}


// Print the RFIDs over Serial terminal
void PARKEDRFID:: print()
{

    int i;
    Serial.print("RFID TAGS: ");
    for (i = 0; i < MAXSLOTS; i++)
        Serial.print(rfidtags[i].rfidtag + " ");
    Serial.println("");
}

// Check the availability in different types of slots
int PARKEDRFID:: isSlotAvailable(String level)
{

    if ( (level == "normal"   && normalrfids < NUM_NORMAL_SLOTS)   ||
         (level == "priority" && priorityrfids < NUM_PRIORITY_SLOTS) ||
         (level == "disabled" && disabledrfids < NUM_DISABLED_SLOTS))
    {
        return 1;
    }
    else
    {
        return 0;
    }
}

// Add RFID tag to the cache. Uses LRU for replacing if the cache is full.
int PARKEDRFID :: addRFID(String rfidstr)
{

    int index;
    String level;

    // Is it a legal RFID. If not, return.
    if (rfidcache.chkRFID(rfidstr) < 0) return 0;

    // RFID tag already in Parked List. Return
    if (parkedrfid.chkRFID(rfidstr) >= 0) return 0;

    level = "" + rfidcache.getlevel(rfidstr);

    // No place to park the car, return.
    if (parkedrfid.isSlotAvailable(level) == 0)
        return 0;

    // Get the first free entry in the list of parked rfids. This is done by checking the isAvailable flag.
    for (index = 0; index < MAXSLOTS; index++)
       if (rfidtags[index].isParked == 0)
           break;

    // STore the new rfids in the free slot and mark the list entry as full.
    rfidtags[index].rfidtag = rfidstr;
    rfidtags[index].isParked = 1;


    // Increment counters based on priority
    if (level == "normal")
      digtalWrite(LED_NORMAL_PIN ,HIGH);
      delay(100);
      digitalWrite(LED_NORMAL_PIN ,LOW);
       normalrfids++;
    if (level == "priority")
     digtalWrite(LED_PRIORITY_PIN  ,HIGH);
      delay(100);
      digitalWrite(LED_PRIORITY_PIN  ,LOW);
       priorityrfids++;
    if (level == "disabled")
     digtalWrite(LED_DISABLED_PIN ,HIGH);
      delay(100);
      digitalWrite(LED_DISABLED_PIN ,LOW);
       disabledrfids++;
    if (nrfidtags != MAXSLOTS)
       nrfidtags++;

    return 1;

}

// Delete RFID tag entry from the cache.
int PARKEDRFID :: delRFID(String rfidstr)
{

    int delindex;
    String level;

    // RFID tag already is not in cache. Return
    delindex = chkRFID(rfidstr);
    if (delindex < 0) return 0;

    // Make the isAvailable flag as 0 to indicate that the list entry is free.
    rfidtags[delindex].isParked = 0;

    // Decrement counters based on RFID priority
    level = "" + rfidcache.getlevel(rfidstr);
    if (level == "normal")
       normalrfids--;
    if (level == "priority")
       priorityrfids--;
    if (level == "disabled")
       disabledrfids--;
    if (nrfidtags != 0)
       nrfidtags--;

    return delindex;
}

//*******************************************************************************
// End PARKED RFID Cache management object defintion
//*******************************************************************************





void lightLed()
{

    digitalWrite(LED_NORMAL_PIN, parkedrfid.isSlotAvailable("normal"));
    digitalWrite(LED_PRIORITY_PIN, parkedrfid.isSlotAvailable("priority"));
    digitalWrite(LED_DISABLED_PIN, parkedrfid.isSlotAvailable("disabled"));
}

void openGate()
{
   digitalWrite(GATE_LED_PIN, HIGH);
   delay(3000);
   digitalWrite(GATE_LED_PIN, LOW);
}

void closeGate()
{
}



//*******************************************************************************
//  End magnetic sensor functions.
//*******************************************************************************

void setup()
{

      pinMode(LED_NORMAL_PIN, OUTPUT);
      pinMode(LED_PRIORITY_PIN, OUTPUT);
      pinMode(LED_DISABLED_PIN, OUTPUT);
      pinMode(GATE_LED_PIN, OUTPUT);
      Serial.begin(9600);
      SPI.begin();                                    // Init SPI bus
      SPI.setClockDivider(SPI_CLOCK_DIV8);
      mfrc522.PCD_Init();                             // Init MFRC522 card
      Serial.println("Scan PICC to see UID and type...");
      Spark.function("SetParams", setParams); // Function that the server can call to set variables.
}


void loop()
{

      String publishString;

      // Check if someone has tapped with the RFID. This can be for getting in or getting out
      if (checkAndProcessRFID() == 1)
      {
          mfrc522.PICC_DumpToSerial(&(mfrc522.uid));
          openGate();
      }

      lightLed();

      // There is nothing to be done if carParked == 0 && slotStatus == FREE or carParked == 1 and SlotStatus =  OCCUPIED
      // NO RFID Check required for normal slots

      delay(delyVal);
}


// Function to be used for setting SlotParams
int setParams(String args)
{

    int retval = 1;
    String cmd, cmdarg1, cmdarg2;
    char   cargs[30], ccmd[20], carg1[20], carg2[20];

    args.toCharArray(cargs, 30);
    sscanf(cargs, "%s%s%s", ccmd, carg1, carg2);

    cmd = ccmd;
    cmdarg1 = carg1;
    cmdarg2 = carg2;

    // Format of the args : <command> <arg1> <arg2>
    // Example
    // delrfid <RFID>
    // addrfid <RFID> <level>
    // modrfid <RFID> <level>
    // delyval <delay value in milliseconds>


    if (cmd == "delrfid")
    {
       rfidcache.delRFID(cmdarg1);
    }
    if (cmd == "addrfid")
    {
       rfidcache.addRFID(cmdarg1, cmdarg2 );
    }
    else if (cmd == "modrfid")
    {
       rfidcache.modRFID(cmdarg1, cmdarg2 );
    }
    else if (cmd == "delyval")
    {
       delyVal = cmdarg1.toInt();
    }
    else
    {
       retval = 0;
    }

    return retval;;
}




// This function takes the card id information provided on the serial port.
// It checks if the card is available in the local cache. If
// there is a match found, publish the rfid tag value.
int checkAndProcessRFID()
{
    int  i;
    String rfidstr;               // Placeholder to get the RFID value in string format
    char s1[20], s2[20];
    int  gateOpen = 0;

    // Look for card flash If no card is found,
    // return to the function after delyVal time units
    if ( ! mfrc522.PICC_IsNewCardPresent())
       return 0;

    // if card has been found, but no data is coming off the serial port on card id, return
    if ( ! mfrc522.PICC_ReadCardSerial())
         return 0;

    // Somebody has flashed a card. Check and process RFID tag value against
    // the stored ones. RFID value is contained in the uid field. It is in
    // binary format stored byte by byte in uiDByte At the end of the loop,
    // rfidstr contains the RFID value as a string of hex numbers
    for (i = 0; i < mfrc522.uid.size; i++)
    {

        sprintf(s1, "%02x", mfrc522.uid.uidByte[i]);
        strcat(&s2[i*2], s1);
    }
    rfidstr = "" + String(s2);

    // Check if the vehicle is trying to get out.
    if (parkedrfid.chkRFID(rfidstr) >= 0)
    {
        // found in the list. delete the RFID. Indicate to the server that the car with RFID exited
        parkedrfid.delRFID(rfidstr);
        String publishString =  rfidstr + "exited"; // Put it in the JSON format
        Spark.publish( "RFIDVAL" , publishString);              // publish that RFID tag
        Serial.println("Car exited with RFID =  ");
        Serial.println(rfidstr);
    }
    else
    {
        // Vehicle is getting in. Check if there is space.
        if (parkedrfid.addRFID(rfidstr) == 1)
        {
           String publishString =  rfidstr + "entered";   // Put it in the JSON format
           Spark.publish( "RFIDVAL" , publishString);              // publish that RFID tag
           Serial.println("Car exited with RFID =  ");
           gateOpen = 1;
           Serial.println(rfidstr);
        }
    }


    /*
    if (gateOpen == 1)
    {
        String publishString = "{\"RFIDVAL\":" + rfidstr + "}"; // Put it in the JSON format
        Spark.publish( "RFIDVAL" , publishString);              // publish that RFID tag
    }
    */


    return gateOpen;
}
