Published March 11, 2025 © MIT

A DIY Zigbee Air Pressure Sensor for My Home Assistant☁️

Using the XIAO ESP32C6, I connect an atmospheric pressure sensor via Zigbee, sending real-time data to Home Assistant for monitoring ☁️.

BeginnerFull instructions provided1 hour1,721

A DIY Zigbee Air Pressure Sensor for My Home Assistant☁️

Things used in this project

Hardware components

Seeed Studio XIAO Expansion Board

Seeed Studio Grove - Barometer Sensor (BMP280)

Seeed Studio XIAO ESP32C6

Software apps and online services

Arduino IDE

Home Assistant

Autodesk Fusion

Story

Monitoring Atmospheric Pressure with ESP32C6 and Zigbee

In this project, I created a sensor based on the ESP32C6 specifically designed to monitor atmospheric pressure and send data to Home Assistant via Zigbee. 🌍 This project not only deepened my understanding of IoT technology but also allowed me to experience how to integrate hardware and software to achieve smart home monitoring. 🏠✨

Project Background

With the rise of smart homes, environmental monitoring has become increasingly important. 🌱 Changes in atmospheric pressure can affect weather conditions and even indoor air quality. So, I decided to make a sensor that could monitor atmospheric pressure in real-time and send that data to Home Assistant, allowing me to check it anytime! 📊💡

1 / 2

Materials Preparation

I used the following materials:

Seeed Studio XIAO ESP32C6: The main control board, providing powerful processing capabilities and wireless connectivity.
Seeed Studio XIAO Expansion Board: Used to connect the ESP32 C6 with the sensor and display data on the OLED screen.
Seeed Studio Grove-BMP280: Used to detect atmospheric pressure in the environment.
ZBT-1: Enables wireless data transmission to Home Assistant.
Home Assistant Green: Used for data visualization and monitoring platform.

3D Appearance Design

Smart Atmospheric Pressure Detection System Demonstration

1. Connecting the Device with OLED Display

On the OLED screen, we'll show the connection status, making it easy to see if the Zigbee connection to Home Assistant is successful. Plus, there will be some exciting surprises in the UI design!The OLED display will feature three content areas:

Starting Zigbee Connection 🚀

Starting Zigbee Connection 🚀

Connection Success Status ✅

Connection Success Status ✅

Atmospheric Pressure Data 📊

Atmospheric Pressure Data 📊

We can also monitor the Zigbee connection status and data output of the XIAO ESP32 C6 by opening the Arduino serial monitor. 📊

2. Home Assistant Interface Effect Screenshots with Atmospheric Pressure Sensor

After inserting the purchased Home Assistant Connect ZBT-1 into my HA setup, I added our Zigbee terminal device through Zigbee Home Automation. Subsequently, the device name appears on the OLED display after programming the XIAO ESP32 C6.

We can see the changes in the data displayed over time after accessing Home Assistant.After successfully connecting to Home Assistant, we found our device in Zigbee, and it offers two key features:

Real-Time Data Display 📊

Real-Time Data Display 📊

View Historical Atmospheric Pressure Trends 📈. It's worth noting that my device hasn't been running continuously during this period ⚠️.

View Historical Atmospheric Pressure Trends 📈. It's worth noting that my device hasn't been running continuously during this period ⚠️.

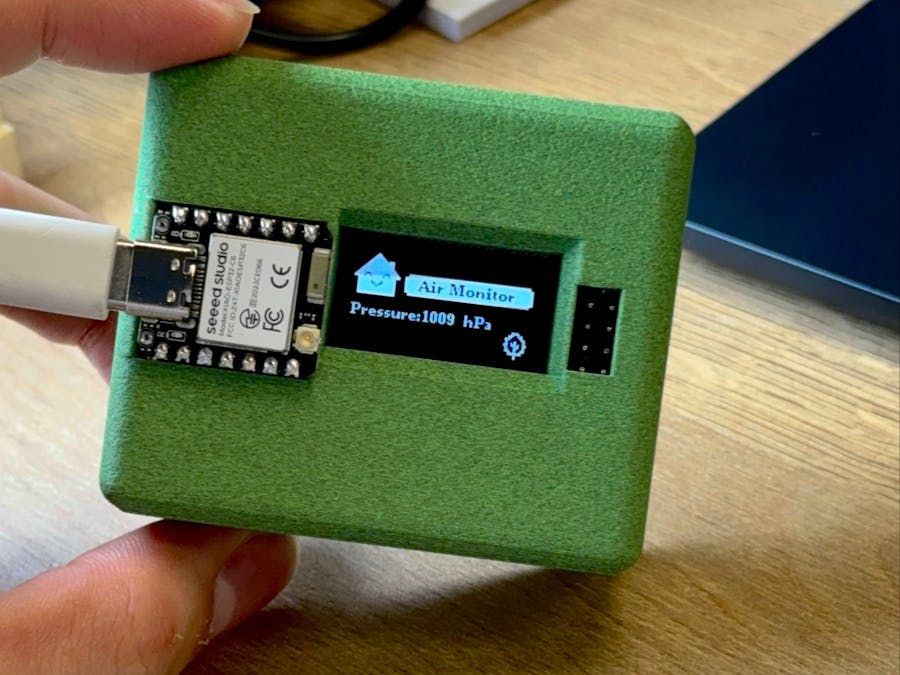

3. Final Setup on the Hand

Finally, we can see the sensor data displayed on the OLED screen, as well as the data on our Home Assistant dashboard.

Future Improvements

Thanks to the numerous Grove interfaces provided by the Seeed Studio XIAO Expansion Board, I plan to integrate additional atmospheric pressure sensors into this project to collect more data. 📊 This will allow me to enhance my smart home setup by automating devices such as activating my dehumidifier when the air pressure is too low, or running the air circulation unit when pressure changes significantly. 🌬️ Isn’t that fantastic! 🎉

Final Summary

In summary, this smart atmospheric pressure monitor project has been an exciting journey of innovation and learning. 🚀 By combining technology with design, I've created a device that not only tracks atmospheric pressure but also enhances the aesthetics of my workspace. 🎨 I invite everyone to share their thoughts on my project, provide feedback, and suggest improvements. 💬 Your insights will be invaluable as I continue to develop this device and explore new features. Let’s work together to create healthier and smarter living environments! 🌱🏡

Next, I will gradually connect different sensors using Zigbee to create a smart home ecosystem. 🏡✨

Code

Arduino Core Code

#ifndef ZIGBEE_MODE_ED
#error "Zigbee end device mode is not selected in Tools->Zigbee mode"
#endif

#include "Zigbee.h"
#include "Seeed_BME280.h"
#include <Wire.h>
#include <U8g2lib.h>

U8G2_SSD1306_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

uint8_t HugoUI_Animation_EasyOut(float *a, float *a_trg, uint16_t n) {
  if (*a == *a_trg)
    return 0;

  float cz = fabs(*a - *a_trg);

  if (cz <= 1)
    *a = *a_trg;
  else {
    if (cz < 10)
      n = n * cz * 0.1f;
    if (n < 10)
      n = 10;
    *a += (*a_trg - *a) / (n * 0.1f);
  }
  return 1;
}

uint8_t HugoUI_Animation_EasyIn(float *a, float *a_trg, uint16_t n) {
  if (*a == *a_trg)
    return 0;

  float cz = fabs(*a - *a_trg);
  if (cz <= 1)
    *a = *a_trg;
  else if (cz > 20)
    n = n * 3;
  else if (cz > 15)
    n = n * 2;
  else if (cz > 5)
    n = n * 1;
  if (*a != *a_trg)
    *a += (*a_trg - *a) / (n * 0.1f);
  else
    return 0;
  return 1;
}

void Oled_DrawSlowBitmapResize(int x, int y, const uint8_t *bitmap, int w1, int h1, int w2, int h2) {
  uint8_t color = u8g2.getDrawColor();

  float mw = (float)w2 / w1;
  float mh = (float)h2 / h1;
  uint8_t cmw = ceil(mw);
  uint8_t cmh = ceil(mh);
  int xi, yi, byteWidth = (w1 + 7) / 8;
  for (yi = 0; yi < h1; yi++) {
    for (xi = 0; xi < w1; xi++) {

      if (*(uint8_t *)(bitmap + yi * byteWidth + xi / 8) & (1 << (xi & 7)))
      {
        u8g2.drawBox(x + xi * mw, y + yi * mh, cmw, cmh);
      } else if (color != 2) {
        u8g2.setDrawColor(0);
        u8g2.drawBox(x + xi * mw, y + yi * mh, cmw, cmh);
        u8g2.setDrawColor(color);
      }
    }
  }
}

const unsigned char gImage_humidity[] = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x03, 0x00, 0x00, 0xF0,
  0x07, 0x00, 0x00, 0xF8, 0x1F, 0x00, 0x00, 0x7C, 0x3F, 0x00, 0x00, 0x3E, 0x7C, 0x00,
  0x00, 0x1F, 0xF8, 0x00, 0x80, 0x07, 0xF0, 0x01, 0xC0, 0x07, 0xE0, 0x01, 0xC0, 0x03,
  0xC0, 0x03, 0xE0, 0x81, 0x81, 0x07, 0xE0, 0xC1, 0x83, 0x07, 0xE0, 0xD0, 0x03, 0x07,
  0xF0, 0xF8, 0x03, 0x0F, 0xF0, 0xF8, 0x0B, 0x0F, 0xF0, 0xF0, 0x1F, 0x0F, 0xF0, 0xE0,
  0x1F, 0x0F, 0xE0, 0xC0, 0x0F, 0x07, 0xE0, 0xC0, 0x07, 0x07, 0xE0, 0xC1, 0x83, 0x07,
  0xC0, 0xC3, 0xC3, 0x03, 0xC0, 0xC7, 0xE3, 0x03, 0x80, 0x8F, 0xF3, 0x01, 0x00, 0xFF,
  0xFF, 0x00, 0x00, 0xFE, 0x7F, 0x00, 0x00, 0xF8, 0x1F, 0x00, 0x00, 0xC0, 0x03, 0x00,
  0x00, 0xC0, 0x03, 0x00, 0x00, 0xC0, 0x03, 0x00, 0x00, 0x80, 0x01, 0x00, 0x00, 0x00,
  0x00, 0x00
};

const unsigned char gImage_homeassistant[] = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x01, 0x00, 0x00, 0xC0, 0x03, 0x00, 0x00, 0xE0, 0x07, 0x00,
  0x00, 0xF0, 0x0F, 0x00, 0x00, 0xF8, 0x1F, 0x00, 0x00, 0xFC, 0xBF, 0x07, 0x00, 0xFE, 0xFF, 0x07,
  0x00, 0xFF, 0xFF, 0x07, 0x80, 0xFF, 0xFF, 0x07, 0xC0, 0xFF, 0xFF, 0x07, 0xE0, 0xFF, 0xFF, 0x07,
  0xF0, 0xFF, 0xFF, 0x0F, 0xF8, 0xFF, 0xFF, 0x1F, 0xFC, 0xFF, 0xFF, 0x3F, 0xFE, 0xF8, 0x1F, 0x7F,
  0x7F, 0xF7, 0xEF, 0xFE, 0x7F, 0xF7, 0xEF, 0xFE, 0xF8, 0xFF, 0xFF, 0x1F, 0xF8, 0xFF, 0xFF, 0x1F,
  0xF8, 0xEF, 0xF7, 0x1F, 0xF8, 0xCF, 0xF3, 0x1F, 0xF8, 0x9F, 0xF9, 0x1F, 0xF8, 0x7F, 0xFE, 0x1F,
  0xF8, 0xFF, 0xFF, 0x1F, 0xF8, 0xFF, 0xFF, 0x1F, 0xF8, 0xFF, 0xFF, 0x1F, 0xF8, 0xFF, 0xFF, 0x1F,
  0xF8, 0xFF, 0xFF, 0x1F, 0xF8, 0xFF, 0xFF, 0x1F, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};




#define PRESSURE_SENSOR_ENDPOINT_NUMBER 11

uint8_t button = BOOT_PIN;

ZigbeePressureSensor zbPressureSensor = ZigbeePressureSensor(PRESSURE_SENSOR_ENDPOINT_NUMBER);
BME280 bme280;

static float img_a = 4, img_a_trg = 24;
static float img_b = -2, img_b_trg = 24;
static float img_c = -10, img_c_trg = 13;
static float img_d = 5, img_d_trg = 90;
uint16_t pressure_value;

static void pressure_sensor_update(void *arg) {
  static uint32_t timeCounter = 0;
  for (;;) {

    if (!(timeCounter++ % 20)) {
      pressure_value = (uint16_t)(bme280.getPressure() / 100.0);
      Serial.printf("Updating pressure sensor value to %d hPa\r\n", pressure_value);
      zbPressureSensor.setPressure(pressure_value);
    }

    delay(3000);
  }
}

void setup() {
  Serial.begin(115200);
  u8g2.begin();

  pinMode(WIFI_ENABLE, OUTPUT);
  digitalWrite(WIFI_ENABLE, LOW);

  delay(100);

  pinMode(WIFI_ANT_CONFIG, OUTPUT);
  digitalWrite(WIFI_ANT_CONFIG, LOW);


  if (!bme280.init()) {
    Serial.println("Device error!");
  }

  pinMode(button, INPUT_PULLUP);


  zbPressureSensor.setManufacturerAndModel("Espressif", "ZigbeePressureSensor");


  zbPressureSensor.setMinMaxValue(0, 10000);


  zbPressureSensor.setTolerance(1);


  Zigbee.addEndpoint(&zbPressureSensor);

  Serial.println("Starting Zigbee...");

  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_ncenB08_tr);
  u8g2.drawStr(0, 30, "Connecting to Zigbee...");
  u8g2.sendBuffer();


  if (!Zigbee.begin()) {
    Serial.println("Zigbee failed to start!");
    Serial.println("Rebooting...");
    ESP.restart();
  } else {
    Serial.println("Zigbee started successfully!");
  }
  Serial.println("Connecting to network");
  while (!Zigbee.connected()) {
    Serial.print(".");
    delay(100);
  }
  Serial.println();

  u8g2.clearBuffer();
  u8g2.drawStr(0, 30, "Successfully connect");
  u8g2.drawStr(0, 50, "Zigbee network!");
  u8g2.sendBuffer();
  Serial.println();

  delay(5000);


  xTaskCreate(pressure_sensor_update, "pressure_sensor_update", 2048, NULL, 10, NULL);


  zbPressureSensor.setReporting(0, 30, 1);
}

void loop() {

  u8g2.clearBuffer();
  u8g2.setFont(u8g2_font_ncenB08_tr);

  u8g2.drawXBM(0, 0, 32, 32, gImage_homeassistant);

  u8g2.drawStr(43, img_b, " Air Monitor");

  u8g2.setDrawColor(2);
  u8g2.drawRBox(36, img_c, img_d, 15, 1);
  u8g2.setDrawColor(1);

  u8g2.drawStr(0, 45, "Pressure: ");
  u8g2.setCursor(50, 45);
  u8g2.print(pressure_value);
  u8g2.drawStr(80, 45, "hPa");




  if (img_a == img_a_trg) {
    if (img_a == 4) {
      img_a_trg = 24;
    } else if (img_a == 24)
      img_a_trg = 4;
  }

  HugoUI_Animation_EasyOut(&img_b, &img_b_trg, 100);
  HugoUI_Animation_EasyIn(&img_a, &img_a_trg, 115);
  HugoUI_Animation_EasyOut(&img_c, &img_c_trg, 100);
  HugoUI_Animation_EasyOut(&img_d, &img_d_trg, 100);

  Oled_DrawSlowBitmapResize(118 - img_a / 2, 50 - img_a / 4, gImage_humidity, 32, 32, img_a, img_a);

  u8g2.sendBuffer();


  if (digitalRead(button) == LOW) {

    delay(100);
    int startTime = millis();
    while (digitalRead(button) == LOW) {
      delay(50);
      if ((millis() - startTime) > 3000) {

        Serial.println("Resetting Zigbee to factory and rebooting in 1s.");
        delay(1000);
        Zigbee.factoryReset();
      }
    }
    zbPressureSensor.report();
  }
}
