Published October 8, 2016 © MIT

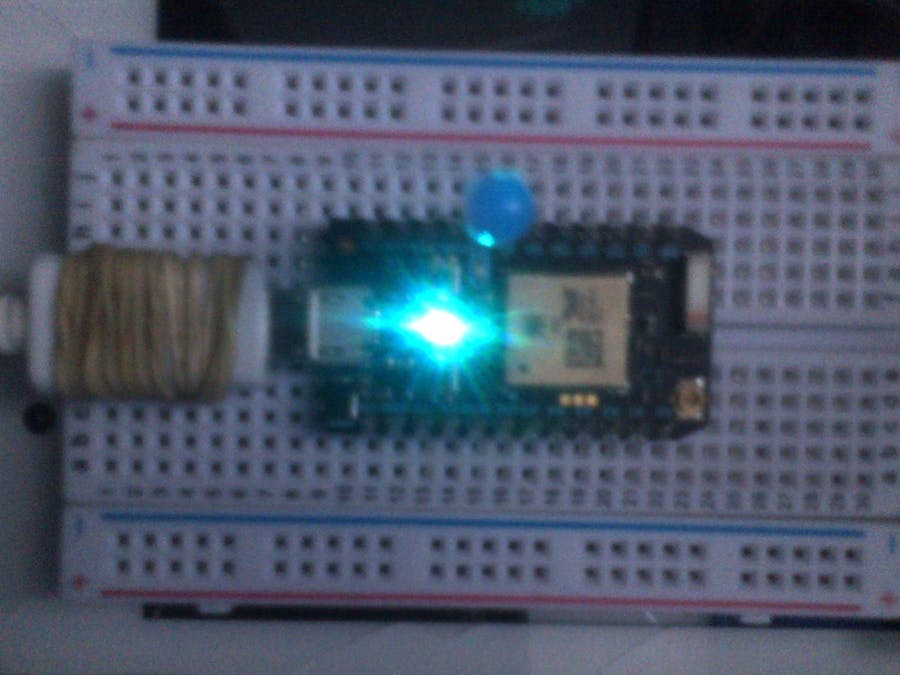

Connecting Particle Photon to Cayenne

Experiment using Photon and keeping all boards connnected to Cayenne, which are also compatible with Blynk.

IntermediateProtip1 hour1,958

Things used in this project

Hardware components

Particle Photon

LED (generic)

Software apps and online services

myDevices Cayenne

Story

Ideation

In a post of this community I read about an unofficial library, but had not detailed steps, so I decided to write this tutorial step by step, with images and code included so that you can connect a Photon to Cayenne. The truth is that this library is still not very worked as Arduino library, but taking certain considerations you can achieve connect smoothly.

STEP 1: Add a New Device (Select Arduino)

1 / 3

STEP 2: Look for Particle Library on Particle Cloud Editor

1 / 2

STEP 3: Use the Example, modify auth code, Build and Flash the Code.

1 / 5

STEP 4: Rename the Device

1 / 2

STEP 6: Update the new Sketch

STEP 7: Try controlling the LED.

Thanks for reading...don't forget to respect this ;)

01-cayenne.ino

#define CAYENNE_PRINT Serial
#include "cayenne-particle/cayenne-particle.h"

char auth[] = "nezswd70wi";
int ledPin = D6;
int virtualPin = 1;

void setup()
{
    pinMode(ledPin, OUTPUT);
    Serial.begin(9600);
    delay(5000); // Allow board to settle
    Blynk.begin(auth);
}



BLYNK_WRITE(V1){
  // get value sent from dashboard
  int currentValue = param.asInt(); // 0 to 1
  // assuming you wire your relay as normally open
  if (currentValue == 1) {
      digitalWrite(ledPin, HIGH);
  } else {
      digitalWrite(ledPin, LOW);
  }
}


void loop()
{
    Blynk.run();
}

Credits

Laurence Daxes

19 projects • 36 followers

Systems Engineer Bachellor, I Love technology, and IoT World https://youtube.com/c/DaxesHacks
