3D Printed and Expandable Robot for Arduino

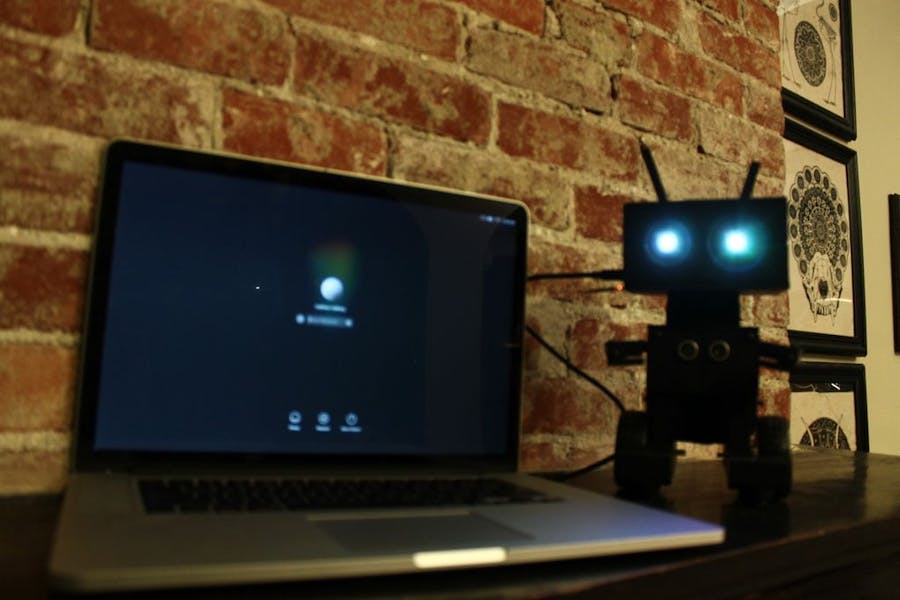

This is a very versatile robot with a multitude of features, the chassis can be 3D printed, and there is a lot of room for expansion.

IntermediateShowcase (no instructions)Over 1 day8,440

3D Printed and Expandable Robot for Arduino

Things used in this project

Hardware components

Arduino UNO

SparkFun Dual H-Bridge motor drivers L298

geared dc motors with wheels

SparkFun Ultrasonic Sensor - HC-SR04

HC-05 Bluetooth Module

9V Battery Clip

9V battery (generic)

SparkFun Breadboard - Mini Modular

Jumper wires (generic)

SparkFun LED - RGB Diffused Common Anode

Resistor 330 ohm

screws 6-32 X 1/2-inch (Generic)

sand paper (generic)

super glue (generic)

Hand tools and fabrication machines

Regular screwdriver

mini screwdriver

3D Printer (generic)

Story

This is a nice project that you can continue to work on and modify as you learn more Arduino projects. This tutorial goes through the complete build for the Bluetooth enabled robot in the first half of the video. As long as you have a 3D printer this project is really easy to do and the electronic parts cost only around $30-$35. It takes in total about 35 hours to 3D print, but can be assembled and programmed in around 30 minutes. Requires only 2 screwdrivers to build and does not require any soldering.

I wanted to design this thing to be inexpensive and use common parts, so this robot uses 9V batteries currently. They run out pretty quickly with a lot of use, so I will probably end up designing a new piece that allows for the use of rechargeable lithium ion batteries and Adafruit power booster. Also, if anyone knows of a good 3D printing service, so people without printers can make this, it would be much appreciated, I got an initial estimate of over $1000 so I was discouraged from wasting any more time uploading the files elsewhere.

Creative Commons License: Attribution Non-Commercial- Share Alike

Step 1: Gather 3D printed parts, tools, and electronic components.

First gather all the 3D printed parts that can be downloaded from Thingiverse. The .stl files are included in a .zip in the attachments.

Parts list with links can be found here: http://WireBeings.com/code.html

Full instructions can be found here: http://www.instructables.com/id/WireBeings-an-Expandable-Robot-Chassis-for-Arduino/

Schematics

Code

#include <SoftwareSerial.h>

String command;
int incomingByte = 0;


int enA = 10;//robot's right motor
int in1 = 9;
int in2 = 8;

int enB = 5;//robot's left motor
int in3 = 7;
int in4 = 6;


int bluepin=A1;//RGB LED pins
int redpin=A2;
int greenpin=A3;


void stop()
{
  digitalWrite(in1, LOW);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, LOW);
}

void forward()
{
  digitalWrite(in1, LOW);
  digitalWrite(in2, HIGH);

  analogWrite(enA, 150);//change speeds here 0-255

  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);

  analogWrite(enB, 150);//change speeds here 0-255

  delay(500);//change delay value here to go more forward or less forward
  stop();
}


void backward()
{
  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);

  analogWrite(enA, 150);//change speeds here 0-255

  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);

  analogWrite(enB,150);//change speeds here 0-255

  delay(500);
  stop();
}

void right()
{

  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);

  analogWrite(enA, 230);//change speeds here 0-255

  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);

  analogWrite(enB, 230);//change speeds here 0-255
  delay(1000);
  stop();
}

void RGB (int R, int G, int B){

    analogWrite(redpin,R);
    analogWrite(greenpin,G);
    analogWrite(bluepin,B);
}

void setup() {
  RGB(0,0,255); //blue
  Serial.begin(9600);
  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
  pinMode(in3, OUTPUT);
  pinMode(in4, OUTPUT);
}

void loop() {
  while (Serial.available()){
  delay(10);
  char instruction = Serial.read();
  if (instruction == '#') {
    break;
    }
  command = command + instruction;
  }


  if (command.length() > 0) {
    Serial.println(command);
       if (command == "*forward") {
              forward();
        }  else if (command == "*backward"){
          backward();
          } else if (command == "*turn"){
            right();
          } else if (command == "*red"){
          RGB(255,0,0);
          } else if (command == "*green"){
            RGB(0,255,0);
          } else if (command == "*blue"){
            RGB(0,0,255);
          }



command ="";
  }

}

int enA = 10;
int in1 = 9;
int in2 = 8;

int enB = 5;
int in3 = 7;
int in4 = 6;

int trigPin = 2;
int echoPin = 4;
long duration, cm, inches;

int redpin=A1;
int greenpin=A2;
int bluepin=A3;

void setup() {

  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
  pinMode(in3, OUTPUT);
  pinMode(in4, OUTPUT);

  Serial.begin (9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);

}

void forward()
{

  digitalWrite(in1, LOW);
  digitalWrite(in2, HIGH);

  analogWrite(enA, 180);

  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);

  analogWrite(enB, 180);
}

void backward()
{

  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);

  analogWrite(enA, 150);

  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);

  analogWrite(enB, 150);

}

void stop()
{
  digitalWrite(in1, LOW);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, LOW);
}

void avoid()
{
  //STOP
  digitalWrite(in1, LOW);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, LOW);
  //BACKUP
  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);
  analogWrite(enA, 150);
  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);
  analogWrite(enB, 150);
  delay(1000);
  //TURN
  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);
  analogWrite(enA, 140);
  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);
  analogWrite(enB, 140);
  delay(.001);


}

void RGB (int R, int G, int B){

    analogWrite(redpin,R);
    analogWrite(greenpin,G);
    analogWrite(bluepin,B);
}

void loop()
{
  RGB(0,0,255); //blue
  delay(1000);

  forward();

  int duration, distance, inch;
  digitalWrite(trigPin, HIGH);
  delay(100);
  digitalWrite(trigPin, LOW);
  duration = pulseIn(echoPin, HIGH);
  distance = (duration/2) / 29.1;
  inch = (distance * 0.3937);

  //Sets object detection distance to 4.5
  if (inch < 15) {
    RGB(255,0,0); //red
    avoid();
    delay(1000);
    forward();
    delay(2000);
   }

}

int incomingByte = 0;
#include <SoftwareSerial.h>
int enA = 10;//right motor (robot's right)
int in1 = 9;
int in2 = 8;

int enB = 5;//left motor (robot's left)
int in3 = 7;
int in4 = 6;


int bluepin=A1; //define RGB LED pins
int redpin=A2;
int greenpin=A3;

int speed = 150; //change speed here, can range from 0 to 255.


void setup()
{

RGB(255,0,255);//blue

Serial.begin(9600); //Use serial monitor at 9600 for debugging and controlling from computer
Serial.println("Motor test!");

  pinMode(enA, OUTPUT);
  pinMode(enB, OUTPUT);
  pinMode(in1, OUTPUT);
  pinMode(in2, OUTPUT);
  pinMode(in3, OUTPUT);
  pinMode(in4, OUTPUT);

}


void left()
{
  digitalWrite(in1, LOW);
  digitalWrite(in2, HIGH);

  analogWrite(enA, speed);

  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);

  analogWrite(enB, speed);
}

void right()
{

  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);

  analogWrite(enA, speed);

  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);

  analogWrite(enB, speed);
}

void forward()
{
  digitalWrite(in1, LOW);
  digitalWrite(in2, HIGH);

  analogWrite(enA, speed);

  digitalWrite(in3, HIGH);
  digitalWrite(in4, LOW);

  analogWrite(enB, speed);
}

void backward()
{

  digitalWrite(in1, HIGH);
  digitalWrite(in2, LOW);

  analogWrite(enA, 100);

  digitalWrite(in3, LOW);
  digitalWrite(in4, HIGH);

  analogWrite(enB, 100);
}

void stop()
{
  digitalWrite(in1, LOW);
  digitalWrite(in2, LOW);
  digitalWrite(in3, LOW);
  digitalWrite(in4, LOW);
}

void RGB (int R, int G, int B){

    analogWrite(redpin,R);
    analogWrite(greenpin,G);
    analogWrite(bluepin,B);
}

void loop()
{



    if (Serial.available() > 0) {
    incomingByte = Serial.read();
    }



 switch(incomingByte)
  {
     case 'S':

      { stop();
       Serial.println("Stop\n");
       incomingByte='*';}

     break;

     case 'F':

     {  forward();

       Serial.println("Forward\n");
       incomingByte='*';}
     break;

      case 'B':

    {   backward();

       Serial.println("Backward\n");
       incomingByte='*';}
     break;

     case 'R':

     {
       right();
       Serial.println("Rotate Right\n");
       incomingByte='*';}
     break;


       case 'L':

      {
       left();
       Serial.println("Rotate Left\n");
       incomingByte='*';}
     break;

     case 'W':

      {
       RGB(255,0,0);//red
       Serial.println("Red Eyes");
       incomingByte='*';}
     break;

    case 'V':

      {
       RGB(0,255,0);//green
       Serial.println("Green Eyes");
       incomingByte='*';}
     break;
  }

}
