PSoC 4 Wireless Programming

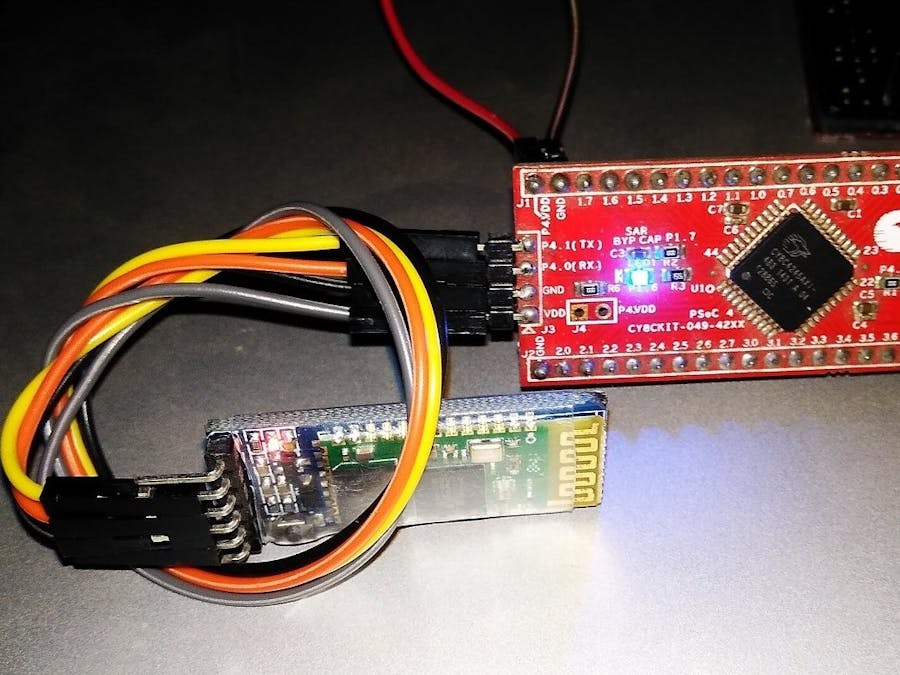

Instead of programming CY8CKIT-049-42xx PSoC 4 through USB, program it wirelessly via Bluetooth-UART link with HC-05 module.

BeginnerProtip1 hour2,410
PSoC 4 Wireless Programming

Things used in this project

Hardware components

PSoC 4 Prototyping Kit
Cypress PSoC 4 Prototyping Kit
×1
HC-05 Bluetooth Module
HC-05 Bluetooth Module
×1
Tactile Switch, Top Actuated
Tactile Switch, Top Actuated
×1

Software apps and online services

PSoC Creator
Cypress PSoC Creator
Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Sch

Code

Bootloadable Blinking LED from Example

C/C++
/******************************************************************************
* Project Name		: Bootloadable Blinking LED
* File Name			: main.c
* Version 			: 1.0
* Device Used		: CY8C4245AXI-483
* Software Used		: PSoC Creator 3.1
* Compiler    		: ARMGCC 4.8.4, ARM RVDS Generic, ARM MDK Generic
* Related Hardware	: CY8CKIT-049-42xx PSoC 4 Prototyping Kit
*
********************************************************************************
* Copyright (2015), Cypress Semiconductor Corporation. All Rights Reserved.
********************************************************************************
* This software is owned by Cypress Semiconductor Corporation (Cypress)
* and is protected by and subject to worldwide patent protection (United
* States and foreign), United States copyright laws and international treaty
* provisions. Cypress hereby grants to licensee a personal, non-exclusive,
* non-transferable license to copy, use, modify, create derivative works of,
* and compile the Cypress Source Code and derivative works for the sole
* purpose of creating custom software in support of licensee product to be
* used only in conjunction with a Cypress integrated circuit as specified in
* the applicable agreement. Any reproduction, modification, translation,
* compilation, or representation of this software except as specified above
* is prohibited without the express written permission of Cypress.
*
* Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH
* REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
* Cypress reserves the right to make changes without further notice to the
* materials described herein. Cypress does not assume any liability arising out
* of the application or use of any product or circuit described herein. Cypress
* does not authorize its products for use as critical components in life-support
* systems where a malfunction or failure may reasonably be expected to result in
* significant injury to the user. The inclusion of Cypress' product in a life-
* support systems application implies that the manufacturer assumes all risk of
* such use and in doing so indemnifies Cypress against all charges.
*
* Use of this Software may be limited by and subject to the applicable Cypress
* software license agreement.
*******************************************************************************/

/******************************************************************************
*                           THEORY OF OPERATION
* This is a blinking LED project. A PWM component drives the pin to blink the
* LED at regular intervals. This project contains a bootloadable component so
* that it can be bootloaded into PSoC 4 which has a bootloader already programmed
* into it.
* Default UART Port Configuration for bootloading the PSoC 4 in CY8CKIT-049-42xx
* Baud Rate : 115200 bps
* Data Bits : 8
* Stop Bits : 1
* Parity    : None
******************************************************************************/
#include <project.h>
int x=10;
int main()
{

	for(;;)
    {
     P1_6_Write(1);
    CyDelay(x); P1_6_Write(0);
    CyDelay(x);
    x=x+5;
    if(x>100) {x=10;}

        }
    }
