How to Rewind BLDC

Step 1: Introduction

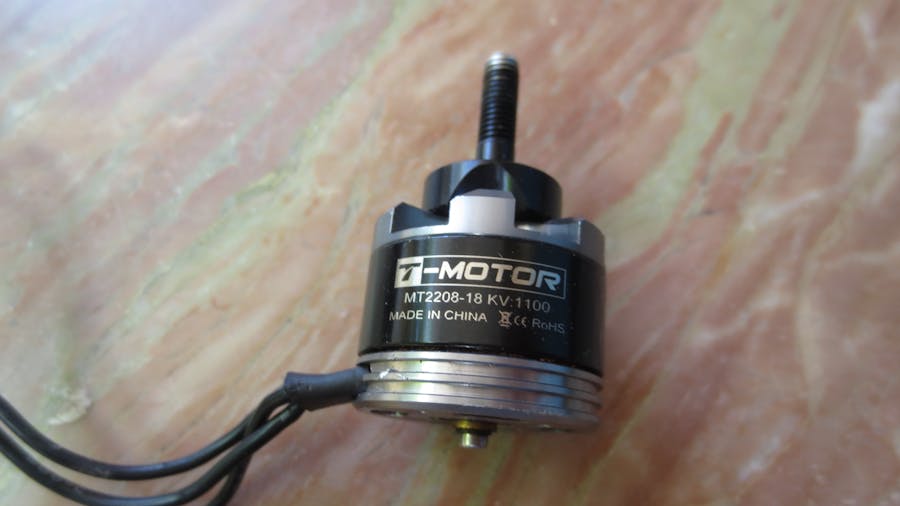

BLDC (Brushless Direct Current) motors are most offen used in drones, but unfortunately it will burn during heavy workload. So, I will instruct how to recover it in order to save few bucks.

Step 2: Remove the Pin

Step 3: Removing Coil

• Remove the out runner
• Use screw driver as lever mechanism to remove the coil

Step 4: Winding Coil

• Follow the images
• Wind as tight as possible
• Clear instruction given on video

Step 5: Decide the Connection

• Go for delta connection u will get more speed

Step 6: Putting Back the Coil

• Apply some epoxy to fix the coil tightly

Step 7: Test the Motor

• Connect to ESC
• Run a test drive
