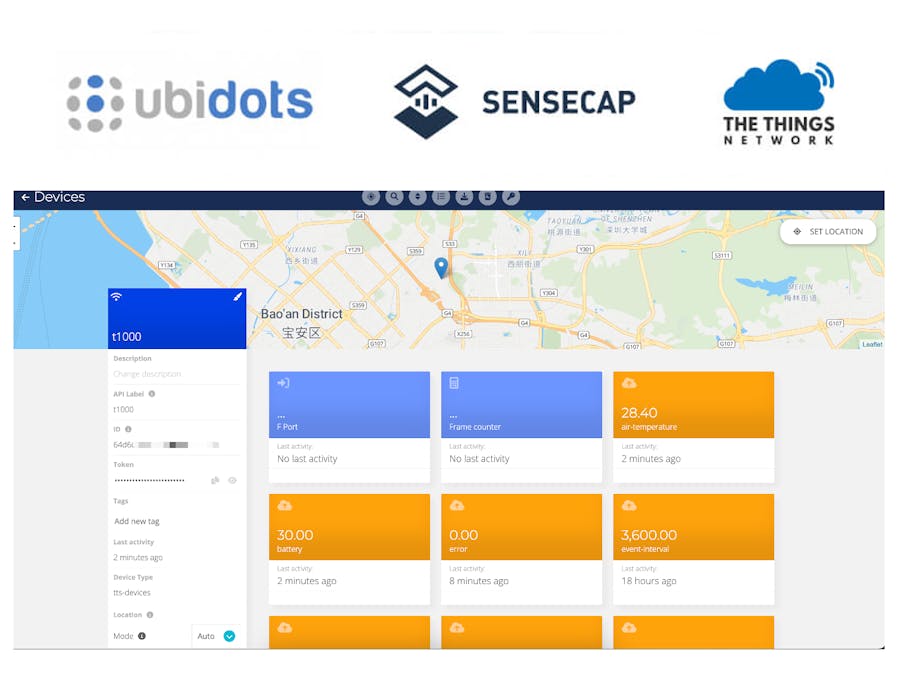

LoRaWAN Tracker 101：Visulizue Data on Ubidots via TTN

Unlock seamless IoT integration: Connect SenseCAP T1000 Tracker to Ubidots via The Things Network. Build, track, visualize!

BeginnerFull instructions provided1 hour311
LoRaWAN Tracker 101：Visulizue Data on Ubidots via TTN

Things used in this project

Hardware components

SenseCAP T1000-A LoRaWAN Tracker
Seeed Studio SenseCAP T1000-A LoRaWAN Tracker
×1

Software apps and online services

The Things Stack
The Things Industries The Things Stack
Ubidots
Ubidots

Story

Read more

Code

SenseCAP T1000 Tracker Decoder for Ubidots

JavaScript
After creating the plugin in Ubidots, go to the Decoder section, delete all the code and replace it with the following code.
const HOTSPOT_INFO = false;

function handleErrorIfExists(data){
    const error = 'error' in data;
    if (error) {
        const errorMsg = { "error": { "value": data.errorCode, "context" : { "reason": data.error } } };
        return errorMsg;
    }
    return false;
}

function addLat(lat, ubidotsPayload){
    ubidotsPayload.position.context.lat = lat;
}

function addLng(lng, ubidotsPayload){
    ubidotsPayload.position.context.lng = lng;
}

const coordinateActions = {
    "Longitude": addLng,
    "Latitude": addLat,
}

const assignPayloadKeys = (data, ubidotsPayload) => {
    const { type, measurementValue } = data;

    if (type === "Longitude" || type === "Latitude") {
        if (!ubidotsPayload.position) {
            ubidotsPayload.position = { "value": 1, "context": { "lat": undefined, "lng": undefined } };
        }
        coordinateActions[type](measurementValue, ubidotsPayload);
    }
    else if (data.type === "Timestamp") {
        ubidotsPayload.timestamp = data.measurementValue;
    }
    else {
        ubidotsPayload[type] = measurementValue;
    }
};

function buildUbidotsPayload(data){
    const ubidotsPayload = {};
    data.forEach(innerData => {
        innerData.forEach(innerInnerData => {
            assignPayloadKeys(innerInnerData, ubidotsPayload);
        });
    });
    return ubidotsPayload;
}

async function formatPayload(args){

    const data = args.uplink_message.decoded_payload.messages;
    let ubidotsPayload = {};

    const error = handleErrorIfExists(data[0][0]);
    if (error) return error;

    if (HOTSPOT_INFO) {
        const { hotspots, port, fcnt } = args;
        const { snr, rssi } = hotspots[0];
        Object.assign(ubidotsPayload, { SNR: snr, RSSI: rssi, port, 'Frame Counter': fcnt });
    }
    ubidotsPayload = buildUbidotsPayload(data);
    console.log(ubidotsPayload);
    return ubidotsPayload;
};

module.exports = { formatPayload };
