This gateway works with this perfect guide.
I just made only PCB and enclosure.

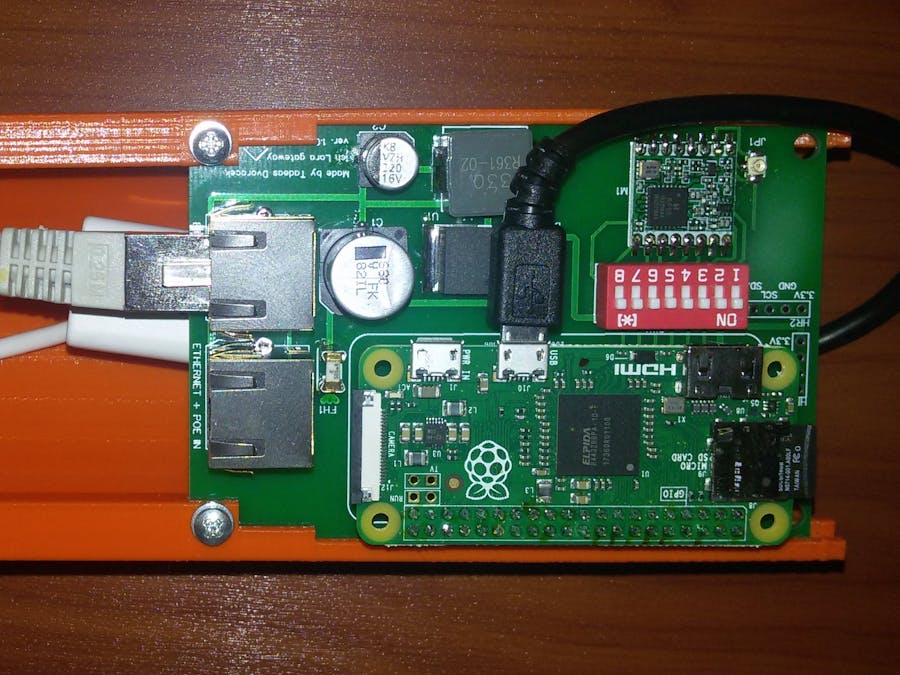

Gateway consists of Raspberry Pi Zero, RFM95W LoRa RF module on 868MHz, PoE power curcuit, USB Ethernet module and antenna.
Gateway is powered by a passive PoE.
The gateway is also an antenna, which I made using the instructions on the TTN Network forum.
Gateway with long antenna in PVC pipe.
Thank you for reading, please like and write comments.
This project is sponsored by LCSC component.
