Secure the motors onto the chassis using the provided connectors and screws.
Attach and secure the chassis plates.
Wire the motors: connect red wires together and black wires together.
Attach the L298N motor driver to the chassis using double-sided tape.
Step 2: Circuit ConnectionsL298N Motor Driver to MotorsRight-side motors → OUT1 & OUT2 (L298N)
Left-side motors → OUT3 & OUT4 (L298N)
L298N VCC → 12V Battery
L298N GND → Common GND
ESP32 to L298N Motor DriverESP32 receives 5V and GND from the L298N.
Motor control pins connected based on circuit diagram.
📷
Step 3: Uploading the CodeBefore uploading the code, ensure you have installed the ESP32 board support package and the Dabble ESP32 library in the Arduino IDE.
Step 4: Connecting with Dabble AppDownload & Install the Dabble mobile app.
Pair with ESP32: Connect to "My Bluetooth Car."
Control the Car: Use the app’s gamepad controls for movement.

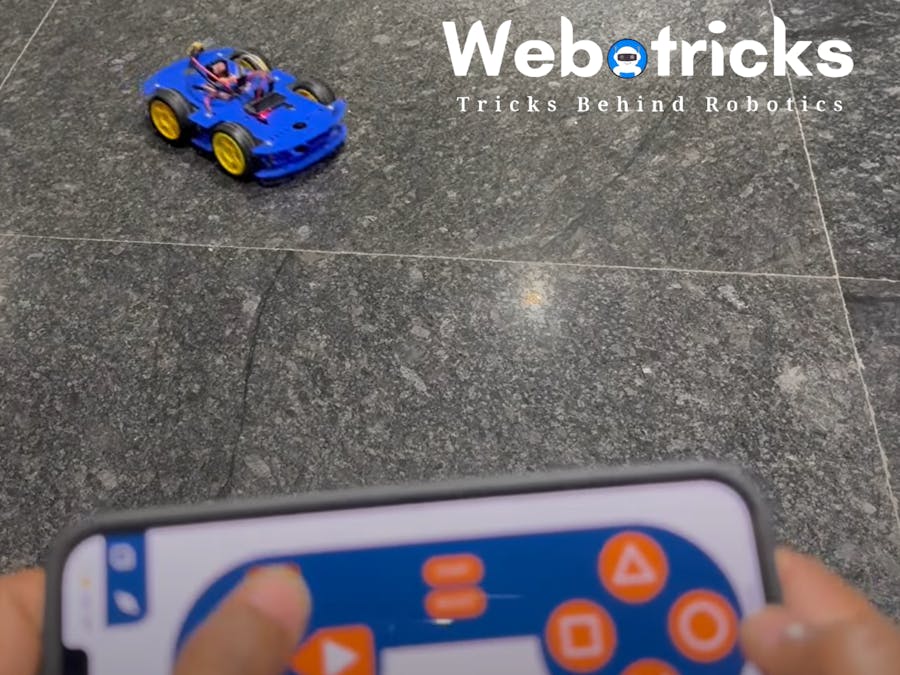

Final DemonstrationThe car responds to Bluetooth commands sent from the Dabble app, allowing real-time control via a smartphone.
