Step 1: Circuit Connections
MLX90614 Infrared Sensor:
VCC → 5V (Arduino)
GND → GND (Arduino)
SDA → A4 (Arduino - I2C)
SCL → A5 (Arduino - I2C)
Ultrasonic Sensor (HC-SR04):
VCC → 5V (Arduino)
GND → GND (Arduino)
Trig → Digital Pin 9 (Arduino)
Echo → Digital Pin 10 (Arduino)
Buzzer:
Positive → Digital Pin 6 (Arduino)
Negative → GND (Arduino)
16x2 LCD Display (Optional - I2C Module):
VCC → 5V (Arduino)
GND → GND (Arduino)
SDA → A4 (Arduino - I2C)
SCL → A5 (Arduino - I2C)
Upload the Arduino code to read temperature data from the MLX90614 sensor, measure distance using the ultrasonic sensor, and trigger the buzzer based on temperature levels.
Step 3: Testing and CalibrationEnsure the MLX90614 sensor is properly reading temperature values. Open the serial monitor in the Arduino IDE and observe the temperature readings.
Adjust the ultrasonic sensor range to detect objects within the desired distance (default: 10 cm).
Verify buzzer tones: Check if the buzzer emits different sounds for high and low temperatures.

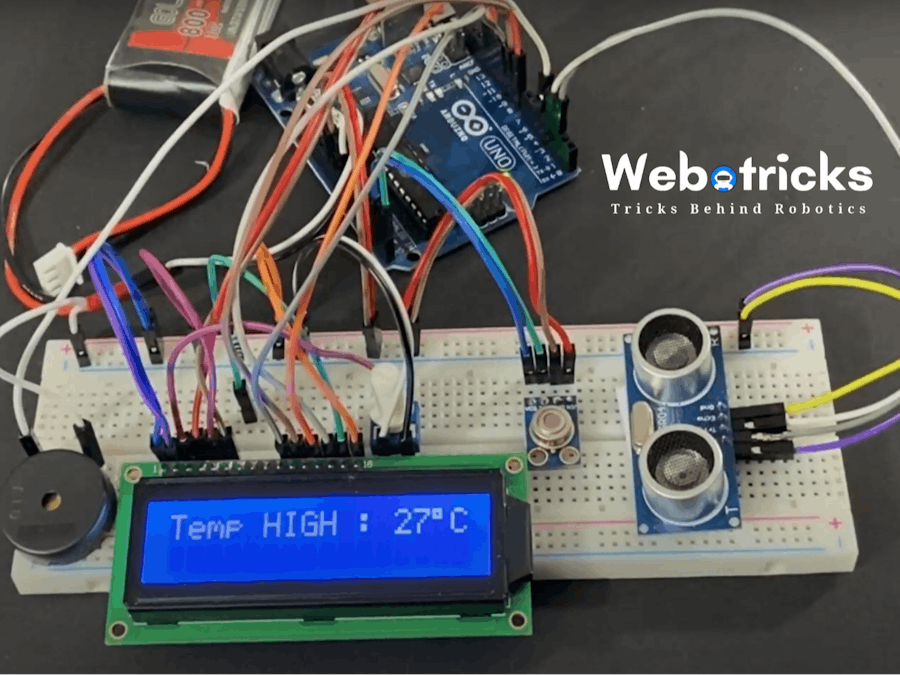

Optional: Connect an LCD display to show real-time temperature readings.
Step 4: Running the SystemPower the Arduino using a 7-12V DC battery.
Place an object within range of the ultrasonic sensor.
Observe the temperature reading and listen to the buzzer feedback.
If an LCD is connected, verify the display of temperature values.
Troubleshooting and OptimizationPower Supply: Ensure the battery is fully charged.
Sensor Calibration: Adjust the MLX90614 and ultrasonic sensor placements for better accuracy.
Buzzer Sound: Modify the frequency values in the code for distinct alerts.
LCD Display Issues: Check I2C connections and install the required libraries in the Arduino IDE.
