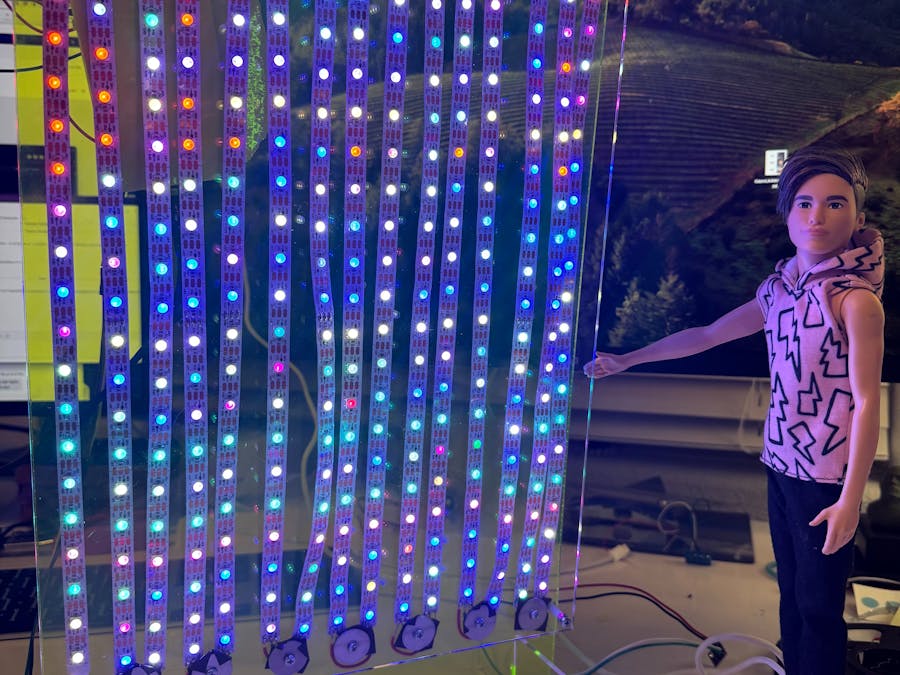

* Project Livelights Capstone Project
* Author: Caroline C. Blaker
* Date: 2024-12-02 - 2024-12-13
* For comprehensive documentation and examples, please visit:
* https://docs.particle.io/firmware/best-practices/firmware-template/
*/
// Include Particle Device OS APIs
#include "Particle.h"
#include "Adafruit_VL53L0X.h"
#include "Adafruit_BME280.h"
#include "neopixel.h"
#include <Adafruit_MQTT.h>
#include "Adafruit_MQTT/Adafruit_MQTT_SPARK.h"
#include "Adafruit_MQTT/Adafruit_MQTT.h"
#include "credentials.h"
bool status;
const byte BPEADDRESS=0x76;
int LOXL_ADDRESS = 0x30;
int LOXC_ADDRESS = 0x31;
int LOXR_ADDRESS = 0x32;
int bLOXL_ADDRESS = 0x33;
int bLOXC_ADDRESS = 0x34;
int bLOXR_ADDRESS = 0x35;
int LOXL_PIN = D5;
int LOXC_PIN = D6;
int LOXR_PIN = D7;
int bLOXL_PIN = D12;
int bLOXC_PIN = D13;
int bLOXR_PIN = D14;
// this naming convention diverges from the styleguide in a way
// that helps me keep track of what the variable means.
const int LOXL_MAX = 430;
const int bLOXL_MAX= 390;
const int LOXC_MAX = 310;
const int bLOXC_MAX= 390;
const int LOXR_MAX = 330;
const int bLOXR_MAX= 390;
int i, j,n;
const int INTERVAL=500;
const int ONCEASOMETHING= 2000;
int currentTime;
int lastTime;
uint8_t wait;
const int red = 0;
const int orange = (30.0/360.0)*255;
const int yellow = (60.0/360.0)*255;
const int green = (120.0/360.0)*255;
const int blue = (240.0/360.0)*255;
const int indigo = (265.0/360.0)*255;
const int violet = (275.0/360.0)*255;
const int TOTAL_NEOPIXELS = 300;
const int rainbow2[] = {red, orange, yellow, green, blue,indigo,violet};
int pointX,colorband, pointY,brightVal,randomColor, start;
float tempF,humidRH;
// 10th 20th
int myMatrix[20][15] = {{19, 20, 59, 60, 99, 100, 139, 140, 179, 180, 219, 220, 259, 260, 299},
{ 18, 21, 58, 61, 98, 101, 138, 141, 178, 181, 218, 221, 258, 261, 298},
{ 17, 22, 57, 62, 97, 102, 137, 142, 177, 182, 217, 222, 257, 262, 297},
{ 16, 23, 56, 63, 96, 103, 136, 143, 176, 183, 216, 223, 256, 263, 296},
{ 15, 24, 55, 64, 95, 104, 135, 144, 175, 184, 215, 224, 255, 264, 295},
{ 14, 25, 54, 65, 94, 105, 134, 145, 174, 185, 214, 225, 254, 265, 294},
{ 13, 26, 53, 66, 93, 106, 133, 146, 173, 186, 213, 226, 253, 266, 293},
{ 12, 27, 52, 67, 92, 107, 132, 147, 172, 187, 212, 227, 252, 267, 292},
{ 11, 28, 51, 68, 91, 108, 131, 148, 171, 188, 211, 228, 251, 268, 291},
{ 10, 29, 50, 69, 90, 109, 130, 149, 170, 189, 210, 229, 250, 269, 290},
{ 9, 30, 49, 70, 89, 110, 129, 150, 169, 190, 209, 230, 249, 270, 289},
{ 8, 31, 48, 71, 88, 111, 128, 151, 168, 191, 208, 231, 248, 271, 288},
{ 7, 32, 47, 72, 87, 112, 127, 152, 167, 192, 207, 232, 247, 272, 287},
{ 6, 33, 46, 73, 86, 113, 126, 153, 166, 193, 206, 233, 246, 273, 286},
{ 5, 34, 45, 74, 85, 114, 125, 154, 165, 194, 205, 234, 245, 274, 285},
{ 4, 35, 44, 75, 84, 115, 124, 155, 164, 195, 204, 235, 244, 275, 284},
{ 3, 36, 43, 76, 83, 116, 123, 156, 163, 196, 203, 236, 243, 276, 283},
{ 2, 37, 42, 77, 82, 117, 122, 157, 162, 197, 202, 237, 242, 277, 282},
{ 1, 38, 41, 78, 81, 118, 121, 158, 161, 198, 201, 238, 241, 278, 281},
{ 0, 39, 40, 79, 80, 119, 120, 159, 160, 199, 200, 239, 240, 279, 280}};
int myColors[20][15];
int c_val[]= {4, 5, 6, 7, 8, 9, 10};
int r_val[]= {8, 9, 10, 11, 12, 13, 14};
// Let Device OS manage the connection to the Particle Cloud
SYSTEM_MODE(AUTOMATIC);
// Run the application and system concurrently in separate threads
SYSTEM_THREAD(ENABLED);
Adafruit_NeoPixel panel(TOTAL_NEOPIXELS, SPI1, WS2812B);
Adafruit_VL53L0X loxL = Adafruit_VL53L0X();
Adafruit_VL53L0X loxC = Adafruit_VL53L0X();
Adafruit_VL53L0X loxR = Adafruit_VL53L0X();
Adafruit_VL53L0X bLoxL = Adafruit_VL53L0X();
Adafruit_VL53L0X bLoxC = Adafruit_VL53L0X();
Adafruit_VL53L0X bLoxR = Adafruit_VL53L0X();
//SerialLogHandler logHandler(LOG_LEVEL_INFO);
VL53L0X_RangingMeasurementData_t measureL;
VL53L0X_RangingMeasurementData_t measureC;
VL53L0X_RangingMeasurementData_t measureR;
VL53L0X_RangingMeasurementData_t bMeasureL;
VL53L0X_RangingMeasurementData_t bMeasureC;
VL53L0X_RangingMeasurementData_t bMeasureR;
Adafruit_BME280 bme;
TCPClient TheClient;
// Setup the MQTT client class by passing in the WiFi client and MQTT server and login details.
Adafruit_MQTT_SPARK mqtt(&TheClient,AIO_SERVER,AIO_SERVERPORT,AIO_USERNAME,AIO_KEY);
Adafruit_MQTT_Publish pubFeed = Adafruit_MQTT_Publish(&mqtt, AIO_USERNAME "/feeds/starting-pixel-number");
void setID();
int positioner();
void createDots();
void pixelFill(int start, int end, int color);
void matrixFill(int color);
void lineRunner(int posx, int posy,int color);
void rainbow(uint8_t wait);
uint32_t hueWheel(byte WheelPos);
byte reverseWheel(uint32_t color);
void setPixel( uint16_t n, uint8_t r, uint8_t g, uint8_t b, uint16_t brightness);
void MQTT_connect();
bool MQTT_ping();
void setID() { //sets new address for each TOF sensor
// all reset
digitalWrite(LOXL_PIN, LOW);
digitalWrite(LOXC_PIN, LOW);
digitalWrite(LOXR_PIN, LOW);
delay(10);
// all unreset
digitalWrite(LOXL_PIN, HIGH);
digitalWrite(LOXC_PIN, HIGH);
digitalWrite(LOXR_PIN, HIGH);
delay(10);
// activating LOX1 and reseting LOX2
digitalWrite(LOXL_PIN, HIGH);
digitalWrite(LOXC_PIN, LOW);
digitalWrite(LOXR_PIN, LOW);
delay(10);
if (!loxL.begin(LOXL_ADDRESS)) {
Serial.println(F("Failed to boot left VL53L0X"));
while(1);
}
digitalWrite(LOXC_PIN, HIGH);
// initing center
if(!loxC.begin(LOXC_ADDRESS)) {
Serial.println(F("Failed to boot center VL53L0X"));
while(1);
}
delay(10);
// activating Right
digitalWrite(LOXR_PIN, HIGH);
delay(10);
//initing Right
if(!loxR.begin(LOXR_ADDRESS)) {
Serial.println(F("Failed to boot right VL53L0X"));
while(1);
}
Serial.printf("going LOW\n");
// all reset
digitalWrite(bLOXL_PIN, LOW);
digitalWrite(bLOXC_PIN, LOW);
digitalWrite(bLOXR_PIN, LOW);
delay(10);
// all unreset
digitalWrite(bLOXL_PIN, HIGH);
digitalWrite(bLOXC_PIN, HIGH);
digitalWrite(bLOXR_PIN, HIGH);
delay(10);
// activating LOX1 and reseting LOX2
digitalWrite(bLOXL_PIN, HIGH);
digitalWrite(bLOXC_PIN, LOW);
digitalWrite(bLOXR_PIN, LOW);
delay(10);
if (!bLoxL.begin(bLOXL_ADDRESS)) {
Serial.println(F("Failed to boot bottom left VL53L0X"));
while(1);
}
delay(10);
digitalWrite(bLOXC_PIN, HIGH);
// initing center
if(!bLoxC.begin(bLOXC_ADDRESS)) {
Serial.println(F("Failed to boot center VL53L0X"));
while(1);
}
delay(10);
// activating Right
digitalWrite(bLOXR_PIN, HIGH);
delay(10);
//initing Right
if(!bLoxR.begin(bLOXR_ADDRESS)) {
Serial.println(F("Failed to boot right VL53L0X"));
while(1);
}
Serial.printf("All Connected\n");
}
void setup() {
Wire.begin();
Serial.begin(9600);
panel.begin();
panel.setBrightness(37);
panel.show(); //initialize all off
waitFor(Serial.isConnected,10000);
pinMode(LOXL_PIN, OUTPUT);
pinMode(LOXC_PIN, OUTPUT);
pinMode(LOXR_PIN, OUTPUT);
pinMode(bLOXL_PIN, OUTPUT);
pinMode(bLOXC_PIN, OUTPUT);
pinMode(bLOXR_PIN, OUTPUT);
Serial.println("Shutdown pins inited...");
digitalWrite(LOXL_PIN, LOW);
digitalWrite(LOXC_PIN, LOW);
digitalWrite(LOXR_PIN, LOW);
digitalWrite(bLOXL_PIN, LOW);
digitalWrite(bLOXC_PIN, LOW);
digitalWrite(bLOXR_PIN, LOW);
Serial.println("Both in reset mode...(all 3 are low)");
Serial.println("Starting BME...");
status = bme.begin(BPEADDRESS);
setID();
lastTime=millis();
matrixFill(rainbow2[5]);
n=0;
if (status == FALSE) {
Serial.printf("Bme280 at address 0x%02X failed to start", BPEADDRESS);
} else {
Serial.printf("Bme280 at address 0x%02X online", BPEADDRESS);
}
}
// loop() runs over and over again, as quickly as it can execute.
void loop() {
MQTT_connect();
MQTT_ping();
//Looks for visitors
loxR.rangingTest(&measureR, false);
bLoxR.rangingTest(&bMeasureR, false);
loxC.rangingTest(&measureC, false);
bLoxC.rangingTest(&bMeasureC, false);
loxL.rangingTest(&measureL, false);
bLoxL.rangingTest(&bMeasureL, false);
if (millis()-lastTime > ONCEASOMETHING){
start = positioner();
Serial.printf("start: %i\n",start);
if (start== -1){
createDots();
} else {
// Send our position
if(mqtt.Update()) {
pubFeed.publish(start);
}
if(bMeasureR.RangeMilliMeter<bLOXR_MAX || measureR.RangeMilliMeter<LOXR_MAX){
Serial.printf(" Right Top: %i, bottom :%i\n",measureR.RangeMilliMeter,bMeasureR.RangeMilliMeter);
}
if(bMeasureC.RangeMilliMeter<bLOXC_MAX || measureC.RangeMilliMeter<LOXC_MAX){
Serial.printf(" Center Top: %i, bottom :%i\n",measureC.RangeMilliMeter,bMeasureC.RangeMilliMeter);
}
if(bMeasureL.RangeMilliMeter<bLOXL_MAX || measureL.RangeMilliMeter<LOXL_MAX){
Serial.printf(" Left Top: %i, bottom :%i\n",measureL.RangeMilliMeter,bMeasureL.RangeMilliMeter);
}
tempF = 9*(bme.readTemperature()/5.0)+32;
humidRH = bme.readHumidity();
lastTime=millis();
}
}
}
void createDots(){
byte r,g,b;
pointX= random(20);
pointY= random(15);
brightVal=random(75,150);
//randomColor= hueWheel(rainbow2[random(6)]);
// Bitwise op for rgb
//r = randomColor>>16 & 0xFF;
//g = randomColor>>8 & 0xFF;
//b = randomColor & 0xFF;
r= random(255);
g= random(255);
b= random(255);
//Serial.printf("Color: R: %i, G: %i, B: %i\n",r,g,b);
setPixel(myMatrix[pointX][pointY],r,g,b,brightVal);
}
void setPixel( uint16_t n, uint8_t r, uint8_t g, uint8_t b, uint16_t brightness) {
panel.setPixelColor(n, (brightness*r/255) , (brightness*g/255), (brightness*b/255));
panel.show();
}
void lineRunner(int pos_x,int pos_y,int color){
int* myRow=myMatrix[pos_y];
int k,r,g,b;
for (k=0; k<15; k++){
// Bitwise op for rgb
r = hueWheel(color)>>16 & 0xFF;
g = hueWheel(color)>>8 & 0xFF;
b = hueWheel(color) & 0xFF;
//Serial.printf("Line Color: R: %i, G: %i, B: %i\n",r,g,b);
setPixel(myMatrix[pos_x][k],r,g,b,100);
// k-1
if (k > 0){
setPixel(myMatrix[pos_x][k-1],r,g,b,200);
}
//k-2
if (k == pos_x){
setPixel(myMatrix[pos_x][k-1],200,200,200,200);
}
}
}
// Super medium-fidelity person-position tracker
int positioner(){ // uses TOF to see which threshold is active
int handPos;
int colorAngle;
int x_val;
int y_val;
//If we have any reads within the boundaries of the max
if ((bMeasureR.RangeMilliMeter<bLOXR_MAX)||bMeasureC.RangeMilliMeter<bLOXC_MAX||bMeasureL.RangeMilliMeter<bLOXL_MAX) {
// Let's compare left and right
if(bMeasureL.RangeMilliMeter < bMeasureR.RangeMilliMeter) {
//to the left
Serial.printf("left \n");
// and then center to left
if(bMeasureL.RangeMilliMeter < bMeasureC.RangeMilliMeter){
x_val= 0;
if (bMeasureL.RangeMilliMeter <200){
y_val =random(0,2);
} else if (bMeasureL.RangeMilliMeter <300){
y_val =random(3,5);
} else if (bMeasureL.RangeMilliMeter <325){
y_val =random(6,8);
} else if (bMeasureL.RangeMilliMeter <350){
y_val =random(9,11);
} else if (bMeasureL.RangeMilliMeter <375){
y_val =random(12,14);
} else if (bMeasureL.RangeMilliMeter <400){
y_val =random(15,17);
} else {
y_val =random(16,19);
}
} else {
x_val= 4;
if (bMeasureC.RangeMilliMeter <200){
y_val =random(0,2);
} else if (bMeasureC.RangeMilliMeter <300){
y_val =random(3,5);
} else if (bMeasureC.RangeMilliMeter <325){
y_val =random(6,8);
} else if (bMeasureC.RangeMilliMeter <350){
y_val =random(9,11);
} else if (bMeasureC.RangeMilliMeter <375){
y_val =random(12,14);
} else if (bMeasureC.RangeMilliMeter <400){
y_val =random(15,17);
} else {
y_val =random(16,19);
}
}
} else {
//to the right
// Serial.printf("right %i to %i \n",bMeasureL.RangeMilliMeter,bMeasureR.RangeMilliMeter);
if(bMeasureR.RangeMilliMeter < bMeasureC.RangeMilliMeter){
x_val= 5;
if (bMeasureR.RangeMilliMeter <200){
y_val =random(0,2);
} else if (bMeasureR.RangeMilliMeter <300){
y_val =random(3,5);
} else if (bMeasureR.RangeMilliMeter <325){
y_val =random(6,8);
} else if (bMeasureR.RangeMilliMeter <350){
y_val =random(9,11);
} else if (bMeasureR.RangeMilliMeter <375){
y_val =random(12,14);
} else if (bMeasureR.RangeMilliMeter <400){
y_val =random(15,17);
} else {
y_val =random(16,19);
}
} else {
x_val= 0;
if (bMeasureC.RangeMilliMeter <200){
y_val =random(0,2);
} else if (bMeasureC.RangeMilliMeter <300){
y_val =random(3,5);
} else if (bMeasureC.RangeMilliMeter <325){
y_val =random(6,8);
} else if (bMeasureC.RangeMilliMeter <350){
y_val =random(9,11);
} else if (bMeasureC.RangeMilliMeter <375){
y_val =random(12,14);
} else if (bMeasureC.RangeMilliMeter <400){
y_val =random(15,17);
} else {
y_val =random(16,19);
}
}
}
//slightly randomize base values
x_val=random(x_val,6);
y_val=random (y_val,2);
//Serial.printf("x_val: %i y_val: %i\n",x_val, y_val);
handPos= myMatrix[x_val][y_val];
Serial.printf("x_val: %i y_val: %i handpos: %i\n",x_val, y_val, handPos);
colorAngle= random(360);
lineRunner(y_val,x_val, colorAngle);
}else {
handPos=-1;
}
// the interesting value is on the left, center, or right
setPixel(handPos,200,0,0,155);
return handPos;
}
void pixelFill(int start, int end, int color) {
int _i;
for (_i = start; _i <= end; _i++ ){
panel.setPixelColor(_i, color);
}
panel.show();
}
void matrixFill(int color){
for(i=0;i<20;i++) {
for(j=0;j<15;j++) {
panel.setPixelColor(myMatrix[i][j],color);
panel.show();
delay(10);
}
}
}
void rainbow(uint8_t wait) {
uint16_t i, j;
for(j=0; j<256; j++) {
for(i=0; i<panel.numPixels(); i++) {
panel.setPixelColor(i, hueWheel((i+j) & 255));
}
panel.show();
delay(wait);
}
}
// Convert hue to rgb (hue values 0 - 255 equal 0 to 360 degrees)
uint32_t hueWheel(byte WheelPos) {
if(WheelPos < 85) {
return panel.Color(255 - WheelPos * 3, WheelPos * 3, 0);
} else if(WheelPos < 170) {
WheelPos -= 85;
return panel.Color( 0, 255 - WheelPos * 3, WheelPos * 3);
} else {
WheelPos -= 170;
return panel.Color( WheelPos * 3, 0, 255 - WheelPos * 3);
}
}
// Convert rgb hexcolor to hue
byte reverseWheel(uint32_t color) {
byte r,g,b;
r = color>>16 & 0xFF;
g = color>>8 & 0xFF;
b = color & 0xFF;
if(b==0) {
return (g/3);
}
if(g==0) {
return ((r/3)+170);
}
if(r==0) {
return ((b/3)+85);
}
return -1;
}
void MQTT_connect() {
int8_t ret;
// Return if already connected.
if (mqtt.connected()) {
return;
}
Serial.print("Connecting to MQTT... ");
while ((ret = mqtt.connect()) != 0) { // connect will return 0 for connected
Serial.printf("Error Code %s\n",mqtt.connectErrorString(ret));
Serial.printf("Retrying MQTT connection in 5 seconds...\n");
mqtt.disconnect();
delay(5000); // wait 5 seconds and try again
}
Serial.printf("MQTT Connected!\n");
}
bool MQTT_ping() {
static unsigned int last;
bool pingStatus;
if ((millis()-last)>120000) {
Serial.printf("Pinging MQTT \n");
pingStatus = mqtt.ping();
if(!pingStatus) {
Serial.printf("Disconnecting \n");
mqtt.disconnect();
}
last = millis();
}
return pingStatus;
}
Comments
Please log in or sign up to comment.
