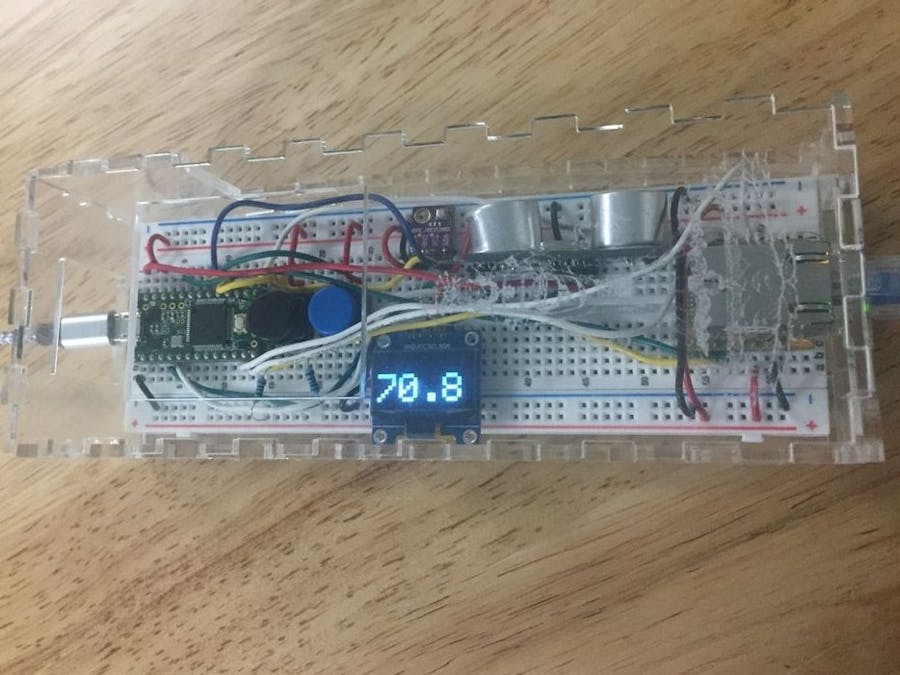

Smart Massage Room Controller

Smart Massage Room Controller with motion senor for dim lighting and temperature reader.

BeginnerShowcase (no instructions)10 hours254

Smart Massage Room Controller

Things used in this project

Hardware components

SparkFun Atmospheric Sensor Breakout - BME280

SparkFun Atmospheric Sensor Breakout - BME280

×

1

Ultrasonic Sensor - HC-SR04 (Generic)

Ultrasonic Sensor - HC-SR04 (Generic)

×

1

0.96" OLED 64x128 Display Module

ElectroPeak 0.96" OLED 64x128 Display Module

×

1

Teensy 3.1

×

1

Ethernet Cable, Cat6a

Ethernet Cable, Cat6a

×

1

Breadboard (generic)

Breadboard (generic)

×

1

Resistor 100 ohm

Resistor 100 ohm

×

2

Gravity:Digital Push Button (Yellow)

DFRobot Gravity:Digital Push Button (Yellow)

I used a black and blue button

×

2

Story

This the midterm project for CNMs Deep Dive Bootcamp IoT Cohort 3. I chose to make a smart massage room because it's something I have experience with. The HC-SR04 sensor is used to dim lights to promote a relaxing massage environment. BME280 is used to read the temperature of the room. In the classroom we use Wemo for the outlets throughout the room. I have selected two buttons for the teapot and the fan in the room. A long press is used on the blue button to turn the lights onto bright again.

Schematics

Code

Credits

Celeste

3 projects • 3 followers
