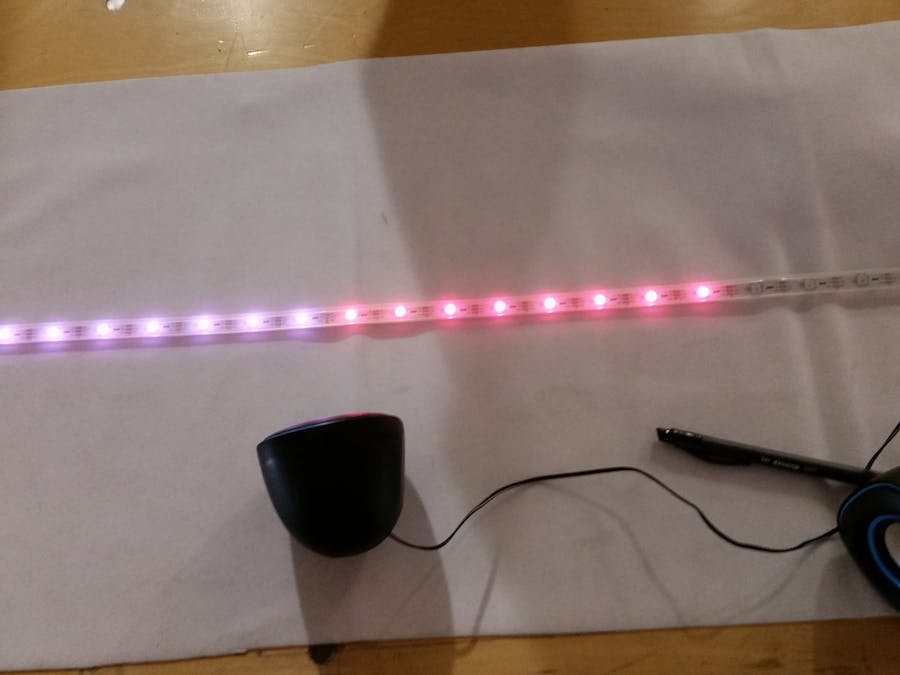

EquiLED - LED Music Visualizer

using Microsoft.Maker.Firmata;
using Microsoft.Maker.RemoteWiring;
using Microsoft.Maker.Serial;
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;
using System.Threading;
using System.Threading.Tasks;
using Windows.Devices.Enumeration;
using Windows.Foundation;
using Windows.Foundation.Collections;
using Windows.Media.Audio;
using Windows.Media.Effects;
using Windows.Media.Render;
using Windows.Storage;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;
using CustomEffect;
using System.ComponentModel;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=402352&clcid=0x409

namespace wra_neopixel_control
{
    /// <summary>
    /// An empty page that can be used on its own or navigated to within a Frame.
    /// </summary>
    public sealed partial class ConnectionPage : Page
    {
        DispatcherTimer timeout;
        CancellationTokenSource cancelTokenSource;

        private const int NEOPIXEL_SET_COMMAND = 0x42;
        private const int NEOPIXEL_SHOW_COMMAND = 0x44;
        private const int NUMBER_OF_PIXELS = 30;

        // Audio Stuff
        private AudioGraph graph;
        private AudioFileInputNode fileInputNode;
        private AudioDeviceOutputNode deviceOutputNode;
        private PropertySet echoProperties;
        private Timer audioTimer;
        private bool playing;


        public static IStream Connection
        {
            get;
            set;
        }

        public static UwpFirmata Firmata
        {
            get;
            set;
        }

        public static RemoteDevice Arduino
        {
            get;
            set;
        }

        public ConnectionPage()
        {
            playing = false;
            this.InitializeComponent();
            ConnectionMethodComboBox.SelectionChanged += ConnectionComboBox_SelectionChanged;

            Task<DeviceInformationCollection> task = null;
            DeviceInformation device = null;

            task = UsbSerial.listAvailableDevicesAsync().AsTask<DeviceInformationCollection>();
            //task.Wait();

            var result = task.Result;



            if (result == null || result.Count == 0)
            {
                throw new InvalidOperationException("No USB FOUND");
            }
            else
            {
                // Assume first
                device = result.FirstOrDefault();
            }

            Connection = new UsbSerial(device);

            Firmata = new UwpFirmata();
            Firmata.begin(Connection);
            Arduino = new RemoteDevice(Firmata);
            Connection.ConnectionEstablished += OnConnectionEstablished;
            Connection.begin(115200, SerialConfig.SERIAL_8N1);

            //for (int i = 0; i < 500; i++)
            //    System.Diagnostics.Debug.WriteLine(i);

        }

        protected override async void OnNavigatedTo(NavigationEventArgs e)
        {
            base.OnNavigatedTo(e);

            // Audio Callbacks
            await CreateAudioGraph();

            await SelectInputFile();

            TogglePlay();
        }

        private async Task SelectInputFile()
        {

            StorageFile file = await GetPackagedFile(null, "audio.mp3");

            // File can be null if cancel is hit in the file picker
            if (file == null)
            {
                return;
            }

            CreateAudioFileInputNodeResult fileInputNodeResult = await graph.CreateFileInputNodeAsync(file);
            if (fileInputNodeResult.Status != AudioFileNodeCreationStatus.Success)
            {
                // Cannot read file
                return;
            }

            fileInputNode = fileInputNodeResult.FileInputNode;
            fileInputNode.AddOutgoingConnection(deviceOutputNode);

            // Event Handler for file completion
            fileInputNode.FileCompleted += FileInput_FileCompleted;

            // Enable the button to start the graph

            // Create the custom effect and apply to the FileInput node
            AddCustomEffect();
        }

        private void TogglePlay()
        {
            // Toggle playback
            if (playing == false)
            {
                System.Diagnostics.Debug.WriteLine("Playing");
                graph.Start();
                playing = true;
            }
            else
            {
                playing = false;
                graph.Stop();
            }
        }

        private async Task<StorageFile> GetPackagedFile(string folderName, string fileName)
        {
            StorageFolder installFolder = Windows.ApplicationModel.Package.Current.InstalledLocation;

            if (folderName != null)
            {
                StorageFolder subFolder = await installFolder.GetFolderAsync(folderName);
                return await subFolder.GetFileAsync(fileName);
            }
            else
            {
                return await installFolder.GetFileAsync(fileName);
            }
        }

        private async Task CreateAudioGraph()
        {
            // Create an AudioGraph with default settings
            AudioGraphSettings settings = new AudioGraphSettings(AudioRenderCategory.Media);
            CreateAudioGraphResult result = await AudioGraph.CreateAsync(settings);

            if (result.Status != AudioGraphCreationStatus.Success)
            {
                // Cannot create graph
                return;
            }

            graph = result.Graph;

            // Create a device output node
            CreateAudioDeviceOutputNodeResult deviceOutputResult = await graph.CreateDeviceOutputNodeAsync();

            if (deviceOutputResult.Status != AudioDeviceNodeCreationStatus.Success)
            {
                // Cannot create device output
                return;
            }

            deviceOutputNode = deviceOutputResult.DeviceOutputNode;



        }

        private void AddCustomEffect()
        {
            // Create a property set and add a property/value pair
            echoProperties = new PropertySet();
            echoProperties.Add("Mix", 0.5f);
            echoProperties.Add("Data", new double[512]);

            // Instantiate the custom effect defined in the 'CustomEffect' project
            AudioEffectDefinition echoEffectDefinition = new AudioEffectDefinition(typeof(AudioEchoEffect).FullName, echoProperties);
            fileInputNode.EffectDefinitions.Add(echoEffectDefinition);

            audioTimer = new Timer(Callback, null, 50, 0);
        }


        double maxLowVolume = 1;
        double maxHighVolume = 1;
        Random rand = new Random();
        private async void Callback(Object state)
        {


            double redLowVolume = 0;
            double greenLowVolume = 0;
            double blueLowVolume = 0;

            double redHighVolume = 0;
            double greenHighVolume = 0;
            double blueHighVolume = 0;
            // Long running operation
            await FFTProcessor.ControlLightStrip((double[])echoProperties["Data"]);

            var data = echoProperties["Data"] as double[];

            double lowRangeVal = 1, highRangeVal = 1;

            for (int i = 2; i < data.Length / 5; i++)
            {
                lowRangeVal += Math.Abs(data[i]);

            }
            for (int j = 0; j < data.Length / 3 / 3 + 15; j++)
            {
                redLowVolume += Math.Abs(data[j]);
            }
            for (int j = data.Length / 3 / 3; j < 2 * (data.Length / 3 / 3) + 15; j++)
            {
                greenLowVolume += Math.Abs(data[j]);
            }
            for (int j = 2 * (data.Length / 3 / 3); j < data.Length / 3 - 10; j++)
            {
                blueLowVolume += Math.Abs(data[j]);
            }



            for (int i = (4 * data.Length) / 5; i < data.Length; i++)
            {
                highRangeVal += Math.Abs(data[i]);
            }

            for (int j = (2 * data.Length) / 3 - 20; j < ((2 * data.Length) / 3) + (3 / 18) * data.Length+ 10; j++)
            {
                redHighVolume += Math.Abs(data[j]);
            }
            for (int j = ((2 * data.Length) / 3) + (1 / 9) * data.Length - 20; j < ((2 * data.Length) / 3) + (5 / 18) * data.Length + 10; j++)
            {
                greenHighVolume += Math.Abs(data[j]);
            }
            for (int j = ((2 * data.Length) / 3) + (2 / 9) * data.Length; j < data.Length; j++)
            {
                blueHighVolume += Math.Abs(data[j]);
            }

            maxLowVolume = Math.Max(maxLowVolume, lowRangeVal);
            maxHighVolume = Math.Max(maxHighVolume, highRangeVal);


            redLowVolume = 6 * redLowVolume > 255 ? 255 : 6 * redLowVolume;
            greenLowVolume = 6 * greenLowVolume > 255 ? 255 : 6 * greenLowVolume;
            blueLowVolume = 5 * blueLowVolume > 255 ? 255 : 5 * blueLowVolume;

            redHighVolume = 9 * redHighVolume > 255 ? 255 : 9 * redHighVolume;
            greenHighVolume = 9 * greenHighVolume > 255 ? 255 : 9 * greenHighVolume;
            blueHighVolume = 6 * blueHighVolume > 255 ? 255 : 4 * blueHighVolume;

            // Lowers other volumes
            double maxColor = Math.Max(Math.Max(redLowVolume, greenLowVolume), blueLowVolume);
            if(Math.Abs(maxColor - redLowVolume) > 0.0001)
            {
                redLowVolume *= 1.2;

                blueLowVolume *= 0.3;
                greenLowVolume *= 0.3;
            }else if (Math.Abs(maxColor - greenLowVolume) > 0.0001)
            {
                greenLowVolume *= 1.2;
                blueLowVolume *= 0.3;
                redLowVolume *= 0.3;
            } else if (Math.Abs(maxColor - blueLowVolume) > 0.0001)
            {
                blueLowVolume *= 1.1;
                redLowVolume *= 0.3;
                greenLowVolume *= 0.3;
            }

            redHighVolume = rand.NextDouble() * 255;
            greenHighVolume = 255 - redHighVolume;
            // Lowers other volumes
            double maxColorHigh = Math.Max(Math.Max(redHighVolume, greenHighVolume), blueHighVolume);
            if (Math.Abs(maxColorHigh - redHighVolume) > 0.0001)
            {

                redHighVolume += 20;
                blueHighVolume *= 0.3;
                greenHighVolume *= 0.1;
            }
            else if (Math.Abs(maxColorHigh - greenHighVolume) > 0.0001)
            {
                greenHighVolume += 20;
                blueHighVolume *= 0.5;
                redHighVolume *= 0.1;
            }
            else if (Math.Abs(maxColorHigh - blueHighVolume) > 0.0001)
            {
                blueHighVolume *= 5.0;
                redHighVolume *= 0.2;
                greenHighVolume *= 0.5;
            }

            SetPixelRange(15-(int)(lowRangeVal / maxLowVolume * 15),15, redLowVolume, greenLowVolume, blueLowVolume);
            SetPixelRange(0, 15-(int)(lowRangeVal / maxLowVolume * 15), 0, 0, 0);

            SetPixelRange(15, 15 + (int)(highRangeVal / maxHighVolume * 15), redHighVolume, greenHighVolume, blueHighVolume);
            SetPixelRange(15 + (int)(highRangeVal / maxHighVolume * 15), 30, 0, 0, 0);

            UpdateStrip();
            audioTimer.Change(50, 0);

        }

        private void SetPixelRange(int l, int h, double r, double g, double b)
        {
            for (int i = l; i < h; i++)
            {
                byte ib = (byte)i;
                byte rb = (byte)r;
                byte gb = (byte)g;
                byte bb = (byte)b;
                SetPixel(ib, rb, gb, bb);
            }

        }

        private async void FileInput_FileCompleted(AudioFileInputNode sender, object args)
        {
            // File playback is done. Stop the graph
            graph.Stop();

            // Reset the file input node so starting the graph will resume playback from beginning of the file
            sender.Reset();
        }

        private void OnConnectionEstablished()
        {
            System.Diagnostics.Debug.WriteLine("connection esablished");

            SetAllPixelsAndUpdate(255, 0, 0);

            /// <summary>
            /// This button callback is invoked when the buttons are pressed on the UI. It determines which
            ///// button is pressed and sets the LEDs appropriately
            ///// </summary>
            ///// <param name="sender"></param>
            ///// <param name="e"></param>
            //private void Color_Click(object sender, RoutedEventArgs e)
            //{
            //    var button = sender as Button;
            //    switch (button.Name)
            //    {
            //        case "Red":
            //            SetAllPixelsAndUpdate(255, 0, 0);
            //            break;

            //        case "Green":
            //            SetAllPixelsAndUpdate(0, 255, 0);
            //            break;

            //        case "Blue":
            //            SetAllPixelsAndUpdate(0, 0, 255);
            //            break;

            //        case "Yellow":
            //            SetAllPixelsAndUpdate(255, 255, 0);
            //            break;

            //        case "Cyan":
            //            SetAllPixelsAndUpdate(0, 255, 255);
            //            break;

            //        case "Magenta":
            //            SetAllPixelsAndUpdate(255, 0, 255);
            //            break;
            //    }
            //}
        }

        private void RefreshDeviceList()
        {
            //invoke the listAvailableDevicesAsync method of the correct Serial class. Since it is Async, we will wrap it in a Task and add a llambda to execute when finished
            Task<DeviceInformationCollection> task = null;
            if (ConnectionMethodComboBox.SelectedItem == null)
            {
                ConnectMessage.Text = "Select a connection method to continue.";
                return;
            }

            switch (ConnectionMethodComboBox.SelectedItem as String)
            {
                default:
                case "Bluetooth":
                    ConnectionList.Visibility = Visibility.Visible;
                    NetworkConnectionGrid.Visibility = Visibility.Collapsed;

                    //create a cancellation token which can be used to cancel a task
                    cancelTokenSource = new CancellationTokenSource();
                    cancelTokenSource.Token.Register(() => OnConnectionCancelled());

                    task = BluetoothSerial.listAvailableDevicesAsync().AsTask<DeviceInformationCollection>(cancelTokenSource.Token);
                    break;

                case "USB":
                    ConnectionList.Visibility = Visibility.Visible;
                    NetworkConnectionGrid.Visibility = Visibility.Collapsed;

                    //create a cancellation token which can be used to cancel a task
                    cancelTokenSource = new CancellationTokenSource();
                    cancelTokenSource.Token.Register(() => OnConnectionCancelled());

                    task = UsbSerial.listAvailableDevicesAsync().AsTask<DeviceInformationCollection>(cancelTokenSource.Token);
                    break;

                case "Network":
                    ConnectionList.Visibility = Visibility.Collapsed;
                    NetworkConnectionGrid.Visibility = Visibility.Visible;
                    ConnectMessage.Text = "Enter a host and port to connect";
                    task = null;
                    break;
            }

            if (task != null)
            {
                //store the returned DeviceInformation items when the task completes
                task.ContinueWith(listTask =>
               {
                    //store the result and populate the device list on the UI thread
                    var action = Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, new Windows.UI.Core.DispatchedHandler(() =>
                  {
                       Connections connections = new Connections();

                       var result = listTask.Result;
                       if (result == null || result.Count == 0)
                       {
                           ConnectMessage.Text = "No items found.";
                       }
                       else
                       {
                           foreach (DeviceInformation device in result)
                           {
                               connections.Add(new Connection(device.Name, device));
                           }
                           ConnectMessage.Text = "Select an item and press \"Connect\" to connect.";
                       }

                       ConnectionList.ItemsSource = connections;
                   }));
               });
            }
        }

        /****************************************************************
         *                       UI Callbacks                           *
         ****************************************************************/

        /// <summary>
        /// This function is called if the selection is changed on the Connection combo box
        /// </summary>
        /// <param name="sender">The object invoking the event</param>
        /// <param name="e">Arguments relating to the event</param>
        private void ConnectionComboBox_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            RefreshDeviceList();
        }

        /// <summary>
        /// Called if the Refresh button is pressed
        /// </summary>
        /// <param name="sender">The object invoking the event</param>
        /// <param name="e">Arguments relating to the event</param>
        private void RefreshButton_Click(object sender, RoutedEventArgs e)
        {
            RefreshDeviceList();
        }

        /// <summary>
        /// Called if the Cancel button is pressed
        /// </summary>
        /// <param name="sender">The object invoking the event</param>
        /// <param name="e">Arguments relating to the event</param>
        private void CancelButton_Click(object sender, RoutedEventArgs e)
        {
            OnConnectionCancelled();
        }


        /// <summary>
        /// Sets all the pixels to the given color values and calls UpdateStrip() to tell the NeoPixel library to show the set colors.
        /// </summary>
        /// <param name="red"></param>
        /// <param name="green"></param>
        /// <param name="blue"></param>
        private void SetAllPixelsAndUpdate(byte red, byte green, byte blue)
        {
            SetAllPixels(red, green, blue);
            UpdateStrip();
        }

        /// <summary>
        /// Sets all the pixels to the given color values
        /// </summary>
        /// <param name="red">The amount of red to set</param>
        /// <param name="green">The amount of green to set</param>
        /// <param name="blue">The amount of blue to set</param>
        private void SetAllPixels(byte red, byte green, byte blue)
        {
            for (byte i = 0; i < NUMBER_OF_PIXELS; ++i)
            {
                SetPixel(i, red, green, blue);
            }
        }

        /// <summary>
        /// Sets a single pixel to the given color values
        /// </summary>
        /// <param name="red">The amount of red to set</param>
        /// <param name="green">The amount of green to set</param>
        /// <param name="blue">The amount of blue to set</param>
        private void SetPixel(byte pixel, byte red, byte green, byte blue)
        {
            Firmata.beginSysex(NEOPIXEL_SET_COMMAND);
            Firmata.appendSysex(pixel);
            Firmata.appendSysex(red);
            Firmata.appendSysex(green);
            Firmata.appendSysex(blue);
            Firmata.endSysex();
        }

        /// <summary>
        /// Tells the NeoPixel strip to update its displayed colors.
        /// This function must be called before any colors set to pixels will be displayed.
        /// </summary>
        /// <param name="red">The amount of red to set</param>
        /// <param name="green">The amount of green to set</param>
        /// <param name="blue">The amount of blue to set</param>
        private void UpdateStrip()
        {
            Firmata.beginSysex(NEOPIXEL_SHOW_COMMAND);
            Firmata.endSysex();
        }

        /// <summary>
        /// Called if the Connect button is pressed
        /// </summary>
        /// <param name="sender">The object invoking the event</param>
        /// <param name="e">Arguments relating to the event</param>
        private void ConnectButton_Click(object sender, RoutedEventArgs e)
        {
            ////disable the buttons and set a timer in case the connection times out
            //SetUiEnabled( false );

            //DeviceInformation device = null;
            //if( ConnectionList.SelectedItem != null )
            //{
            //    var selectedConnection = ConnectionList.SelectedItem as Connection;
            //    device = selectedConnection.Source as DeviceInformation;
            //}
            //else if( ConnectionMethodComboBox.SelectedIndex != 2 )
            //{
            //    //if they haven't selected an item, but have chosen "usb" or "bluetooth", we can't proceed
            //    ConnectMessage.Text = "You must select an item to proceed.";
            //    SetUiEnabled( true );
            //    return;
            //}

            ////use the selected device to create our communication object
            //switch( ConnectionMethodComboBox.SelectedItem as String )
            //{
            //    default:
            //    case "Bluetooth":
            //        App.Connection = new BluetoothSerial( device );
            //        break;

            //    case "USB":
            //        App.Connection = new UsbSerial( device );
            //        break;

            //    case "Network":
            //        string host = NetworkHostNameTextBox.Text;
            //        string port = NetworkPortTextBox.Text;
            //        ushort portnum = 0;

            //        if( host == null || port == null )
            //        {
            //            ConnectMessage.Text = "You must enter host and IP.";
            //            return;
            //        }

            //        try
            //        {
            //            portnum = Convert.ToUInt16( port );
            //        }
            //        catch( FormatException )
            //        {
            //            ConnectMessage.Text = "You have entered an invalid port number.";
            //            return;
            //        }

            //        App.Connection = new NetworkSerial( new Windows.Networking.HostName( host ), portnum );
            //        break;
            //}

            //App.Firmata = new UwpFirmata();
            //App.Firmata.begin( App.Connection );
            //App.Arduino = new RemoteDevice( App.Firmata );

            //App.Connection.ConnectionEstablished += OnConnectionEstablished;
            //App.Connection.ConnectionFailed += OnConnectionFailed;
            //App.Connection.begin( 115200, SerialConfig.SERIAL_8N1 );

            ////start a timer for connection timeout
            //timeout = new DispatcherTimer();
            //timeout.Interval = new TimeSpan( 0, 0, 30 );
            //timeout.Tick += Connection_TimeOut;
            //timeout.Start();
        }


        /****************************************************************
         *                  Event callbacks                             *
         ****************************************************************/

        private void OnConnectionFailed(string message)
        {
            timeout.Stop();
            var action = Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, new Windows.UI.Core.DispatchedHandler(() =>
          {
              ConnectMessage.Text = "Connection attempt failed: " + message;
              SetUiEnabled(true);
          }));
        }

        //private void OnConnectionEstablished()
        //{
        //    timeout.Stop();
        //    var action = Dispatcher.RunAsync( Windows.UI.Core.CoreDispatcherPriority.Normal, new Windows.UI.Core.DispatchedHandler( () =>
        //    {
        //        this.Frame.Navigate( typeof( MainPage ) );
        //    } ) );
        //}

        private void Connection_TimeOut(object sender, object e)
        {
            var action = Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, new Windows.UI.Core.DispatchedHandler(() =>
          {
              ConnectMessage.Text = "Connection attempt timed out.";
              SetUiEnabled(true);
          }));
        }


        /****************************************************************
         *                  Helper functions                            *
         ****************************************************************/

        private void SetUiEnabled(bool enabled)
        {
            RefreshButton.IsEnabled = enabled;
            ConnectButton.IsEnabled = enabled;
            CancelButton.IsEnabled = !enabled;
        }

        /// <summary>
        /// This function is invoked if a cancellation is invoked for any reason on the connection task
        /// </summary>
        private void OnConnectionCancelled()
        {
            ConnectMessage.Text = "Connection attempt cancelled.";

            if (App.Connection != null)
            {
                App.Connection.ConnectionEstablished -= OnConnectionEstablished;
                App.Connection.ConnectionFailed -= OnConnectionFailed;
            }

            if (cancelTokenSource != null)
            {
                cancelTokenSource.Dispose();
            }

            App.Connection = null;
            App.Arduino = null;
            cancelTokenSource = null;

            SetUiEnabled(true);
        }
    }
}
