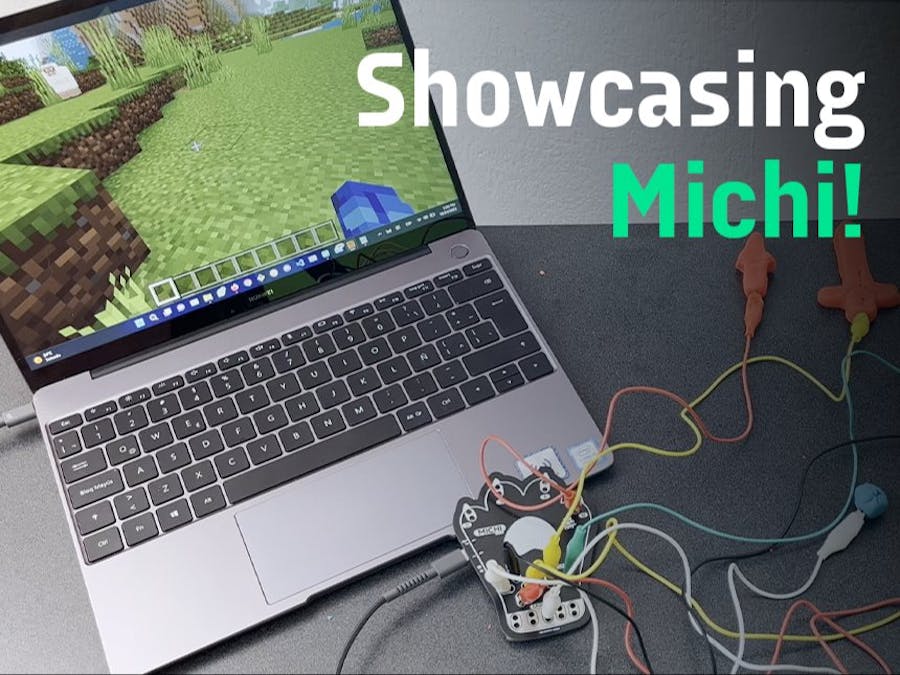

Showcasing Michi!

Can Michi play Minecraft? Yes, It can!

BeginnerProtip1 hour196

Things used in this project

Hardware components

Electronic Cats Michi

Software apps and online services

Arduino IDE

Story

You may be wondering, wait, first of all, what is a Michi or the Michi?

Well, a Michi is an affectionate way of calling cats in Latin America. But the Michi is an educational board, featuring an RP2040 microcontroller, designed by Electronic Cats.

Made to mimic several programmable keyboard and mouse keys. Any material that conducts electricity can be connected to the Michi, converting anything into a touch-screen device. Capable of working in fields such as engineering, athletics, music, visual arts, and even physical therapy.

But, How does it work?

The Michi employs high-resistance switching to determine whether it has formed a connection. Also functions as a keyboard or a mouse. On the front of the board, 10 inputs may be connected using alligator cables or any other technique you can think of. On the rear, there are five additional inputs: two for mouse movement and three for keyboard keys that may be accessed using jumpers.

Let's imagine that you connect an apple, when you touch it, the computer receives a keyboard message from it. It appears to the computer as a standard keyboard (or mouse). Since all software, operating systems, and websites accept keyboard and mouse input, it is compatible with all of them.

The challenge

As it was previously mentioned, the Michi can be used for several fields, so we decided to use it for gaming, using it to play Minecraft. The idea is to use Michi as a keyboard using its resistance sensors.

Time to work

Michi is an open-source board, so you can find everything about it in the repository: https://github.com/ElectronicCats/michi. In the repository, you will find the firmware that was used as a base for this project which is the same firmware that comes by default.

Understanding the code and the functions included in the example can take some time, and more if you are not very familiar with programming. We modified the settings.h file to use Michi as a mouse and keyboard at the same time, taking off the function of the arrow keys (which is not used while playing Minecraft), and getting them the possibility to move the cursor in the game.

While we were modifying the code we encounter some issues with the variables for the mouse movement, since the original code was declaring the variables as bytes the code could only take positive values making only available the movement to the right and up, however, this issue is already solved if you go now to the repository or download the code below!

The process, is simple, connect the Michi to the computer and upload the modified Sketch through Arduino IDE. If you want to use other objects as buttons through the resistor sensors what you need to do is to attach the alligator clips to connect them to the Michi. In our case, we use Play-Doh and other materials to create funny buttons to be able to move our characters through the game.

Playing Minecraft with the Michi

As you read above, Michi can do great things, making it a powerful and outstanding board for educational purposes and other fields. At the end of the project, we realized that this board is a great option for accessibility purposes as well. Imagine the possibilities, a board with an RP2040, and resistive sensors that you can connect to any material that can conduct electricity, giving you the ability to create customized buttons that works by touching them and not pressing them.

Now is your turn! Tell us, What would you like to do with the Michi?

/*
 /////////////////////////////////////////////////
 /////////////HOW TO EDIT THE KEYS ///////////////
 /////////////////////////////////////////////////
 - Edit keys in the settings.h file
 - that file should be open in a tab above (in Arduino IDE)
 - more instructions are in that file

 //////////////////////////////////////////////////
 ///////// MICHI FIRMWARE v1.0.0 ////////////
 //////////////////////////////////////////////////


 /************************************************************
Michi - Using the Michi you can make anything into a key
just by connecting a few alligator clips

Andres Sabas @ Electronic Cats
Original Creation Date: Sept 6, 2022
https://github.com/ElectronicCats/MeowMeow

This example demonstrates how to use Meow Meow

Development environment specifics:
  IDE: Arduino 1.8.19
  Hardware Platform:
  Michi
  - RP2040

This code is beerware; if you see me (or any other Electronic Cats
member) at the local, and you've found our code helpful,
please buy us a round!

Distributed as-is; no warranty is given.

Based in the work by:
 by: Eric Rosenbaum, Jay Silver, and Jim Lindblom
 MIT Media Lab & Sparkfun
 start date: 2/16/2012
 release: 7/5/2012
 ***************************************************************************/

/////////////////////////
// DEBUG DEFINITIONS ////
/////////////////////////
//#define DEBUG
//#define DEBUG2
//#define DEBUG3
//#define DEBUG_TIMING
//#define DEBUG_MOUSE
//#define DEBUG_TIMING2

////////////////////////
// DEFINED CONSTANTS////
////////////////////////

#define BUFFER_LENGTH    3     // 3 bytes gives us 24 samples
#define NUM_INPUTS       10    // 6 on the front + 12 on the back
#define NUM_OUTPUTS       10    //
//#define TARGET_LOOP_TIME 694   // (1/60 seconds) / 24 samples = 694 microseconds per sample
//#define TARGET_LOOP_TIME 758  // (1/55 seconds) / 24 samples = 758 microseconds per sample
#define TARGET_LOOP_TIME 744  // (1/56 seconds) / 24 samples = 744 microseconds per sample

// id numbers for mouse movement inputs (used in settings.h)
#define MOUSE_MOVE_UP       -1
#define MOUSE_MOVE_DOWN     -2
#define MOUSE_MOVE_LEFT     -3
#define MOUSE_MOVE_RIGHT    -4

#include <Keyboard.h>
#include <Mouse.h>
#include "settings.h"

/////////////////////////
// STRUCT ///////////////
/////////////////////////
typedef struct {
  byte pinNumber;
  int keyCode;
  byte measurementBuffer[BUFFER_LENGTH];
  boolean oldestMeasurement;
  byte bufferSum;
  boolean pressed;
  boolean prevPressed;
  boolean isMouseMotion;
  boolean isMouseButton;
  boolean isKey;
}
MakeyMakeyInput;

MakeyMakeyInput inputs[NUM_INPUTS];

///////////////////////////////////
// VARIABLES //////////////////////
///////////////////////////////////
int bufferIndex = 0;
byte byteCounter = 0;
byte bitCounter = 0;
int mouseMovementCounter = 0; // for sending mouse movement events at a slower interval

int pressThreshold;
int releaseThreshold;
boolean inputChanged;

int mouseHoldCount[NUM_INPUTS]; // used to store mouse movement hold data

// Pin Numbers
// input pin numbers for kickstarter production board
int pinNumbers[NUM_INPUTS] = {
  27, 25, 29, 23, 19, 21,     // top of makey makey board
  17, 14, 12, 10        // left side of female header, KEYBOARD
     // right side of female header, MOUSE
};

int pinNumbers2[NUM_OUTPUTS] = {
  9, 11, 13, 16, 18, 20,     // top of makey makey board
  22, 24, 26, 28        // left side of female header, KEYBOARD
     // right side of female header, MOUSE
};

// input status LED pin numbers
const int inputLED_a = 15;
const int inputLED_b = 8;
const int inputLED_c = 7;
const int outputK = 0;
const int outputM = 1;
byte ledCycleCounter = 0;

// timing
int loopTime = 0;
int prevTime = 0;
int loopCounter = 0;


///////////////////////////
// FUNCTIONS //////////////
///////////////////////////
void initializeArduino();
void initializeInputs();
void updateMeasurementBuffers();
void updateBufferSums();
void updateBufferIndex();
void updateInputStates();
void sendMouseButtonEvents();
void sendMouseMovementEvents();
void addDelay();
void cycleLEDs();
void danceLeds();
void updateOutLEDs();

//////////////////////
// SETUP /////////////
//////////////////////
void setup()
{
  initializeArduino();
  initializeInputs();
  danceLeds();
}

////////////////////
// MAIN LOOP ///////
////////////////////
void loop()
{
  updateMeasurementBuffers();
  updateBufferSums();
  updateBufferIndex();
  updateInputStates();
  sendMouseButtonEvents();
  sendMouseMovementEvents();
  cycleLEDs();
  updateOutLEDs();
  addDelay();
}

//////////////////////////
// INITIALIZE ARDUINO
//////////////////////////
void initializeArduino() {
#ifdef DEBUG
  Serial.begin(9600);  // Serial for debugging
#endif

  /* Set up input pins
   DEactivate the internal pull-ups, since we're using external resistors */
  for (int i=0; i<NUM_INPUTS; i++)
  {
    pinMode(pinNumbers[i], INPUT);
    digitalWrite(pinNumbers[i], LOW);
  }

  for (int i=0; i<NUM_OUTPUTS; i++)
  {
    pinMode(pinNumbers2[i], OUTPUT);
    digitalWrite(pinNumbers2[i], HIGH);
  }

  pinMode(inputLED_a, INPUT);
  pinMode(inputLED_b, INPUT);
  pinMode(inputLED_c, INPUT);
  digitalWrite(inputLED_a, LOW);
  digitalWrite(inputLED_b, LOW);
  digitalWrite(inputLED_c, LOW);

  pinMode(outputK, OUTPUT);
  pinMode(outputM, OUTPUT);
  digitalWrite(outputK, LOW);
  digitalWrite(outputM, LOW);


#ifdef DEBUG
  delay(4000); // allow us time to reprogram in case things are freaking out
#endif

  Keyboard.begin();
  Mouse.begin();
}

///////////////////////////
// INITIALIZE INPUTS
///////////////////////////
void initializeInputs() {

  float thresholdPerc = SWITCH_THRESHOLD_OFFSET_PERC;
  float thresholdCenterBias = SWITCH_THRESHOLD_CENTER_BIAS/50.0;
  float pressThresholdAmount = (BUFFER_LENGTH * 8) * (thresholdPerc / 100.0);
  float thresholdCenter = ( (BUFFER_LENGTH * 8) / 2.0 ) * (thresholdCenterBias);
  pressThreshold = int(thresholdCenter + pressThresholdAmount);
  releaseThreshold = int(thresholdCenter - pressThresholdAmount);

#ifdef DEBUG
  Serial.println(pressThreshold);
  Serial.println(releaseThreshold);
#endif

  for (int i=0; i<NUM_INPUTS; i++) {
    inputs[i].pinNumber = pinNumbers[i];
    inputs[i].keyCode = keyCodes[i];

    for (int j=0; j<BUFFER_LENGTH; j++) {
      inputs[i].measurementBuffer[j] = 0;
    }
    inputs[i].oldestMeasurement = 0;
    inputs[i].bufferSum = 0;

    inputs[i].pressed = false;
    inputs[i].prevPressed = false;

    inputs[i].isMouseMotion = false;
    inputs[i].isMouseButton = false;
    inputs[i].isKey = false;

    if (inputs[i].keyCode < 0) {
#ifdef DEBUG_MOUSE
      Serial.println("GOT IT");
#endif

      inputs[i].isMouseMotion = true;
    }
    else if ((inputs[i].keyCode == MOUSE_LEFT) || (inputs[i].keyCode == MOUSE_RIGHT)) {
      inputs[i].isMouseButton = true;
    }
    else {
      inputs[i].isKey = true;
    }
#ifdef DEBUG
    Serial.println(i);
#endif

  }
}


//////////////////////////////
// UPDATE MEASUREMENT BUFFERS
//////////////////////////////
void updateMeasurementBuffers() {

  for (int i=0; i<NUM_INPUTS; i++) {

    // store the oldest measurement, which is the one at the current index,
    // before we update it to the new one
    // we use oldest measurement in updateBufferSums
    byte currentByte = inputs[i].measurementBuffer[byteCounter];
    inputs[i].oldestMeasurement = (currentByte >> bitCounter) & 0x01;

    // make the new measurement
    boolean newMeasurement = digitalRead(inputs[i].pinNumber);

    // invert so that true means the switch is closed
    newMeasurement = !newMeasurement;

    // store it
    if (newMeasurement) {
      currentByte |= (1<<bitCounter);
    }
    else {
      currentByte &= ~(1<<bitCounter);
    }
    inputs[i].measurementBuffer[byteCounter] = currentByte;
  }
}

///////////////////////////
// UPDATE BUFFER SUMS
///////////////////////////
void updateBufferSums() {

  // the bufferSum is a running tally of the entire measurementBuffer
  // add the new measurement and subtract the old one

  for (int i=0; i<NUM_INPUTS; i++) {
    byte currentByte = inputs[i].measurementBuffer[byteCounter];
    boolean currentMeasurement = (currentByte >> bitCounter) & 0x01;
    if (currentMeasurement) {
      inputs[i].bufferSum++;
    }
    if (inputs[i].oldestMeasurement) {
      inputs[i].bufferSum--;
    }
  }
}

///////////////////////////
// UPDATE BUFFER INDEX
///////////////////////////
void updateBufferIndex() {
  bitCounter++;
  if (bitCounter == 8) {
    bitCounter = 0;
    byteCounter++;
    if (byteCounter == BUFFER_LENGTH) {
      byteCounter = 0;
    }
  }
}

///////////////////////////
// UPDATE INPUT STATES
///////////////////////////
void updateInputStates() {
  inputChanged = false;
  for (int i=0; i<NUM_INPUTS; i++) {
    inputs[i].prevPressed = inputs[i].pressed; // store previous pressed state (only used for mouse buttons)
    if (inputs[i].pressed) {
      if (inputs[i].bufferSum < releaseThreshold) {
        inputChanged = true;
        inputs[i].pressed = false;
        if (inputs[i].isKey) {
          Keyboard.release(inputs[i].keyCode);
        }
        if (inputs[i].isMouseMotion) {
          mouseHoldCount[i] = 0;  // input becomes released, reset mouse hold
        }
      }
      else if (inputs[i].isMouseMotion) {
        mouseHoldCount[i]++; // input remains pressed, increment mouse hold
      }
    }
    else if (!inputs[i].pressed) {
      if (inputs[i].bufferSum > pressThreshold) {  // input becomes pressed
        inputChanged = true;
        inputs[i].pressed = true;
        if (inputs[i].isKey) {
          Keyboard.press(inputs[i].keyCode);
        }
      }
    }
  }
#ifdef DEBUG3
  if (inputChanged) {
    Serial.println("change");
  }
#endif
}

/*
///////////////////////////
 // SEND KEY EVENTS (obsolete, used in versions with pro micro bootloader)
 ///////////////////////////
 void sendKeyEvents() {
 if (inputChanged) {
 KeyReport report = {
 0                                                        };
 for (int i=0; i<6; i++) {
 report.keys[i] = 0;
 }
 int count = 0;
 for (int i=0; i<NUM_INPUTS; i++) {
 if (inputs[i].pressed && (count < 6)) {
 report.keys[count] = inputs[i].keyCode;

 #ifdef DEBUG3
 Serial.println(report.keys[count]);
 #endif

 count++;
 }
 }
 if (count > 0) {
 report.modifiers = 0x00;
 report.reserved = 1;
 Keyboard.sendReport(&report);
 }
 else {
 report.modifiers = 0x00;
 report.reserved = 0;
 Keyboard.sendReport(&report);
 }
 }
 else {
 // might need a delay here to compensate for the time it takes to send keyreport
 }
 }
 */

/////////////////////////////
// SEND MOUSE BUTTON EVENTS
/////////////////////////////
void sendMouseButtonEvents() {
  if (inputChanged) {
    for (int i=0; i<NUM_INPUTS; i++) {
      if (inputs[i].isMouseButton) {
        if (inputs[i].pressed) {
          if (inputs[i].keyCode == MOUSE_LEFT) {
            Mouse.press(MOUSE_LEFT);
          }
          if (inputs[i].keyCode == MOUSE_RIGHT) {
            Mouse.press(MOUSE_RIGHT);
          }
        }
        else if (inputs[i].prevPressed) {
          if (inputs[i].keyCode == MOUSE_LEFT) {
            Mouse.release(MOUSE_LEFT);
          }
          if (inputs[i].keyCode == MOUSE_RIGHT) {
            Mouse.release(MOUSE_RIGHT);
          }
        }
      }
    }
  }
}

//////////////////////////////
// SEND MOUSE MOVEMENT EVENTS
//////////////////////////////
void sendMouseMovementEvents() {
  byte right = 0;
  byte left = 0;
  byte down = 0;
  byte up = 0;
  int horizmotion = 0;
  int vertmotion = 0;

  mouseMovementCounter++;
  mouseMovementCounter %= MOUSE_MOTION_UPDATE_INTERVAL;
  if (mouseMovementCounter == 0) {
    for (int i=0; i<NUM_INPUTS; i++) {
#ifdef DEBUG_MOUSE
      //  Serial.println(inputs[i].isMouseMotion);
#endif

      if (inputs[i].isMouseMotion) {
        if (inputs[i].pressed) {
          if (inputs[i].keyCode == MOUSE_MOVE_UP) {
            // JL Changes (x4): now update to 1 + a hold factor, constrained between 1 and mouse max movement speed
            up=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
          if (inputs[i].keyCode == MOUSE_MOVE_DOWN) {
            down=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
          if (inputs[i].keyCode == MOUSE_MOVE_LEFT) {
            left=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
          if (inputs[i].keyCode == MOUSE_MOVE_RIGHT) {
            right=constrain(1+mouseHoldCount[i]/MOUSE_RAMP_SCALE, 1, MOUSE_MAX_PIXELS);
          }
        }
      }
    }

    // diagonal scrolling and left/right cancellation
    if(left > 0)
    {
      if(right > 0)
      {
        horizmotion = 0; // cancel horizontal motion because left and right are both pushed
      }
      else
      {
        horizmotion = -left; // left yes, right no
      }
    }
    else
    {
      if(right > 0)
      {
        horizmotion = right; // right yes, left no
      }
    }

    if(down > 0)
    {
      if(up > 0)
      {
        vertmotion = 0; // cancel vertical motion because up and down are both pushed
      }
      else
      {
        vertmotion = down; // down yes, up no
      }
    }
    else
    {
      if (up > 0)
      {
        vertmotion = -up; // up yes, down no
      }
    }
    // now move the mouse
    if( !((horizmotion == 0) && (vertmotion==0)) )
    {
      Mouse.move(horizmotion * PIXELS_PER_MOUSE_STEP, vertmotion * PIXELS_PER_MOUSE_STEP);
    }
  }
}

///////////////////////////
// ADD DELAY
///////////////////////////
void addDelay() {

  loopTime = micros() - prevTime;
  if (loopTime < TARGET_LOOP_TIME) {
    int wait = TARGET_LOOP_TIME - loopTime;
    delayMicroseconds(wait);
  }

  prevTime = micros();

#ifdef DEBUG_TIMING
  if (loopCounter == 0) {
    int t = micros()-prevTime;
    Serial.println(t);
  }
  loopCounter++;
  loopCounter %= 999;
#endif

}

///////////////////////////
// CYCLE LEDS
///////////////////////////
void cycleLEDs() {
  pinMode(inputLED_a, INPUT);
  pinMode(inputLED_b, INPUT);
  pinMode(inputLED_c, INPUT);
  digitalWrite(inputLED_a, LOW);
  digitalWrite(inputLED_b, LOW);
  digitalWrite(inputLED_c, LOW);

  ledCycleCounter++;
  ledCycleCounter %= 6;

  if ((ledCycleCounter == 0) && inputs[0].pressed) {
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
  }
  if ((ledCycleCounter == 1) && inputs[1].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);

  }
  if ((ledCycleCounter == 2) && inputs[2].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);
  }
  if ((ledCycleCounter == 3) && inputs[3].pressed) {
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
  }
  if ((ledCycleCounter == 4) && inputs[4].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
  }
  if ((ledCycleCounter == 5) && inputs[5].pressed) {
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
  }

}

///////////////////////////
// DANCE LEDS
///////////////////////////
void danceLeds()
{
  int delayTime = 50;
  int delayTime2 = 100;

  // CIRCLE
  for(int i=0; i<4; i++)
  {
    // UP
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime);

    //RIGHT
    pinMode(inputLED_a, INPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
    delay(delayTime);


    // DOWN
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime);

    // LEFT
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, OUTPUT);
    digitalWrite(inputLED_b, HIGH);
    pinMode(inputLED_c, INPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime);
  }

  // WIGGLE
  for(int i=0; i<4; i++)
  {
    // SPACE
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, HIGH);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, LOW);
    delay(delayTime2);

    // CLICK
    pinMode(inputLED_a, OUTPUT);
    digitalWrite(inputLED_a, LOW);
    pinMode(inputLED_b, INPUT);
    digitalWrite(inputLED_b, LOW);
    pinMode(inputLED_c, OUTPUT);
    digitalWrite(inputLED_c, HIGH);
    delay(delayTime2);
  }
}

void updateOutLEDs()
{
  boolean keyPressed = 0;
  boolean mousePressed = 0;

  for (int i=0; i<NUM_INPUTS; i++)
  {
    if (inputs[i].pressed)
    {
      if (inputs[i].isKey)
      {
        keyPressed = 1;
#ifdef DEBUG
        Serial.print("Key ");
        Serial.print(i);
        Serial.println(" pressed");
#endif
      }
      else
      {
        mousePressed = 1;
      }
    }
  }

  if (keyPressed)
  {
    digitalWrite(outputK, HIGH);
    //TXLED1;
  }
  else
  {
    digitalWrite(outputK, LOW);
    //TXLED0;
  }

  if (mousePressed)
  {
    digitalWrite(outputM, HIGH);
    //RXLED1;
  }
  else
  {
    digitalWrite(outputM, LOW);
    //RXLED0;
  }
}

#include "Arduino.h"

/*
/////////////////////////////////////////////////////////////////////////
// KEY MAPPINGS: WHICH KEY MAPS TO WHICH PIN ON THE Michi BOARD? //
/////////////////////////////////////////////////////////////////////////

  - edit the keyCodes array below to change the keys sent by the Michi for each input
  - the comments tell you which input sends that key (for example, by default 'w' is sent by pin D5)
  - change the keys by replacing them. for example, you can replace 'w' with any other individual letter,
    number, or symbol on your keyboard
  - you can also use codes for other keys such as modifier and function keys (see the
    the list of additional key codes at the bottom of this file)

*/

int keyCodes[NUM_INPUTS] = {
  // top side of the michi board

  MOUSE_MOVE_UP,      // up arrow pad
  MOUSE_MOVE_DOWN,    // down arrow pad
  MOUSE_MOVE_LEFT,    // left arrow pad
  MOUSE_MOVE_RIGHT,   // right arrow pad
  ' ',               // space button pad
  MOUSE_LEFT,        // click button pad

  // female header on the back left side

  'w',                // pin D5
  'a',                // pin D4
  's',                // pin D3
  'd',                // pin D2
};

///////////////////////////
// NOISE CANCELLATION /////
///////////////////////////
#define SWITCH_THRESHOLD_OFFSET_PERC  5    // number between 1 and 49
                                           // larger value protects better against noise oscillations, but makes it harder to press and release
                                           // recommended values are between 2 and 20
                                           // default value is 5

#define SWITCH_THRESHOLD_CENTER_BIAS 55   // number between 1 and 99
                                          // larger value makes it easier to "release" keys, but harder to "press"
                                          // smaller value makes it easier to "press" keys, but harder to "release"
                                          // recommended values are between 30 and 70
                                          // 50 is "middle" 2.5 volt center
                                          // default value is 55
                                          // 100 = 5V (never use this high)
                                          // 0 = 0 V (never use this low


/////////////////////////
// MOUSE MOTION /////////
/////////////////////////
#define MOUSE_MOTION_UPDATE_INTERVAL  35   // how many loops to wait between
                                           // sending mouse motion updates

#define PIXELS_PER_MOUSE_STEP         4     // a larger number will make the mouse
                                           // move faster

#define MOUSE_RAMP_SCALE              150  // Scaling factor for mouse movement ramping
                                           // Lower = more sensitive mouse movement
                                           // Higher = slower ramping of speed
                                           // 0 = Ramping off

#define MOUSE_MAX_PIXELS              10   // Max pixels per step for mouse movement

/*

///////////////////////////
// ADDITIONAL KEY CODES ///
///////////////////////////

- you can use these codes in the keyCodes array above
- to get modifier keys, function keys, etc

KEY_LEFT_CTRL
KEY_LEFT_SHIFT
KEY_LEFT_ALT
KEY_LEFT_GUI
KEY_RIGHT_CTRL
KEY_RIGHT_SHIFT
KEY_RIGHT_ALT
KEY_RIGHT_GUI

KEY_BACKSPACE
KEY_TAB
KEY_RETURN
KEY_ESC
KEY_INSERT
KEY_DELETE
KEY_PAGE_UP
KEY_PAGE_DOWN
KEY_HOME
KEY_END
KEY_CAPS_LOCK

KEY_F1
KEY_F2
KEY_F3
KEY_F4
KEY_F5
KEY_F6
KEY_F7
KEY_F8
KEY_F9
KEY_F10
KEY_F11
KEY_F12

*/
