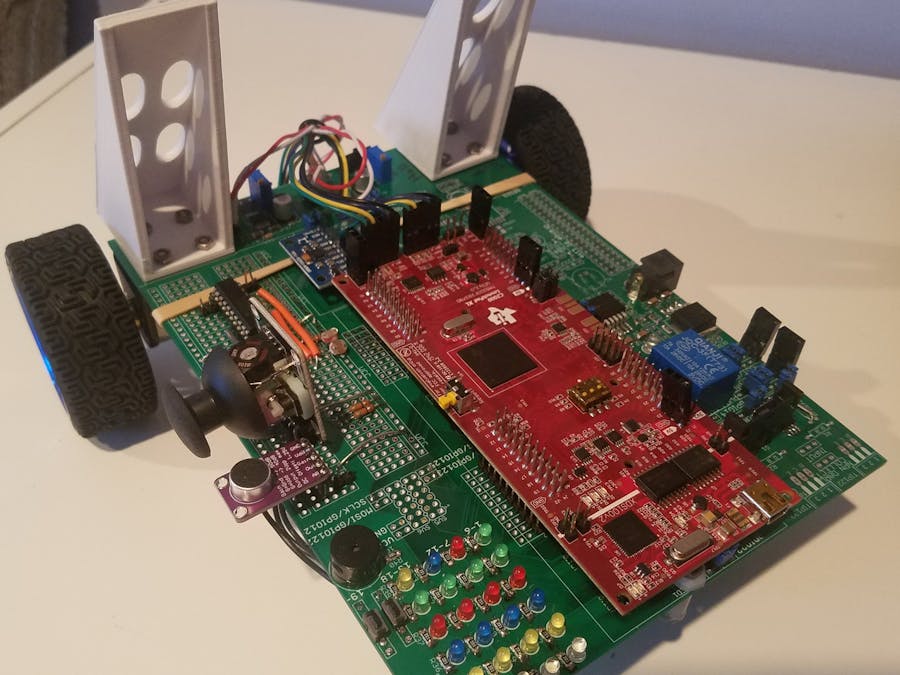

// FILE: labstarter_main.c
//
// TITLE: Lab Starter
//#############################################################################
// Included Files
#include <stdio.h>
#include <stdlib.h>
#include <stdarg.h>
#include <string.h>
#include <math.h>
#include <limits.h>
#include "F28x_Project.h"
#include "driverlib.h"
#include "device.h"
#include "f28379dSerial.h"
#define PI 3.1415926535897932384626433832795
#define TWOPI 6.283185307179586476925286766559
#define HALFPI 1.5707963267948966192313216916398
// Interrupt Service Routines predefinition
__interrupt void cpu_timer0_isr(void);
__interrupt void cpu_timer1_isr(void);
__interrupt void cpu_timer2_isr(void);
__interrupt void SWI_isr(void);
__interrupt void SPIB_isr(void);
void serialRXA(serial_t *s, char data);
void setupSpib(void);
void initEPwm6AB(void);
void setEPWM6A(float uRight);
void setEPWM6B(float uLeft);
float readEncLeft(void);
float readEncRight(void);
void init_eQEPs(void);
// Count variables
uint32_t numTimer0calls = 0;
uint32_t numSWIcalls = 0;
uint32_t numRXA = 0;
uint16_t UARTPrint = 0;
float accelx = 0;
float accely = 0;
float accelz = 0;
float gyrox = 0;
float gyroy = 0;
float gyroz = 0;
float mx = 0;
float my = 0;
float mz = 0;
float accelx_offset = 0;
float accely_offset = 0;
float accelz_offset = 0;
float gyrox_offset = 0;
float gyroy_offset = 0;
float gyroz_offset = 0;
float accelxSide = 1.502; //accel x offset for when starting on the side
float accelxSideStart = 1.502;
float accelzSide = -0.76;
float gravitySide = 0.70; //gravity offset for accely when starting on the side.
//char buffer[100];
int16 IMU_data[9];
//float offset = 0;
uint16_t count=0;
uint16_t newdata=0;
uint16_t read=0;
uint16_t calc_offset=0;
uint16_t MPU_readbacktest[34];
// Joey added constants
uint16_t XG_OFFSET_H = 0x1300;
uint16_t XG_OFFSET_L = 0x1400;
uint16_t YG_OFFSET_H = 0x1500;
uint16_t YG_OFFSET_L = 0x1600;
uint16_t ZG_OFFSET_H = 0x1700;
uint16_t ZG_OFFSET_L = 0x1800;
uint16_t SMPLRT_DIV = 0x1900;
uint16_t CONFIG = 0x1A00;
uint16_t GYRO_CONFIG = 0x1B00;
uint16_t ACCEL_CONFIG = 0x1C00;
uint16_t ACCEL_CONFIG_2 = 0x1D00;
uint16_t LP_ACCEL_ODR = 0x1E00;
uint16_t WOM_THR = 0x1F00;
uint16_t FIFO_EN = 0x2300;
uint16_t I2C_MST_CTRL = 0x2400;
uint16_t I2C_SLV0_ADDR = 0x2500;
uint16_t I2C_SLV0_REG = 0x2600;
uint16_t I2C_SLV0_CTRL = 0x2700;
uint16_t I2C_SLV1_ADDR = 0x2800;
uint16_t I2C_SLV1_REG = 0x2900;
uint16_t I2C_SLV1_CTRL = 0x2A00;
uint16_t INT_ENABLE = 0x3800;
uint16_t INT_STATUS = 0x3A00;
uint16_t I2C_SLV1_DO = 0x6400;
uint16_t I2C_MST_DELAY_CTRL = 0x6700;
uint16_t USER_CTRL = 0x6A00;
uint16_t PWR_MGMT_1 = 0x6B00;
uint16_t WHO_AM_I = 0x7500;
uint16_t XA_OFFSET_H = 0x7700;
uint16_t XA_OFFSET_L = 0x7800;
uint16_t YA_OFFSET_H = 0x7A00;
uint16_t YA_OFFSET_L = 0x7B00;
uint16_t ZA_OFFSET_H = 0x7D00;
uint16_t ZA_OFFSET_L = 0x7E00;
uint16_t temp=0;
uint16_t senddata = 0;
int16_t readdata[25]; // received data
uint16_t acc_config2 = 0;
float x_A_offs_add = .100;
float y_A_offs_add = -.07;
float z_A_offs_add = .070;
float x_G_offs = 1;
float y_G_offs = 6;
float z_G_offs = 1;
float compass_angle = 0.0;
float max_mx = 53;
float min_mx = -92;
float max_my = 73;
float min_my = -86;
float max_mz = 273;
float min_mz = 125;
float mx_offset = (53 + -92)/2.0; //(max_mx + min_mx)/2.0
float my_offset = (73 + -86)/2.0; // (max_my + min_my)/2.0
float mz_offset = (273 + 125)/2.0; // (max_mz + min_mz)/2.0
float wheelLeft = 0;
float wheelRight = 0;
float uLeft = 5.0;
float uRight = 5.0;
float dutyValue = 0;
float travelLeft = 0;
float travelRight = 0;
float XLeft_K = 0;
float XLeft_K_1 = 0;
float VLeftK = 0;
float XRight_K = 0;
float XRight_K_1 = 0;
float VRightK = 0;
float kp = 3;
float ki = 15;
float LI_K = 0;
float LI_K_1 = 0;
float RI_K = 0;
float RI_K_1 = 0;
float LE_K = 0;
float LE_K_1 = 0;
float RE_K = 0;
float RE_K_1 = 0;
float LU_K = 0;
float RU_K = 0;
float Vref = 0.5;
float eturn = 0;
float kturn = 3;
float turn = 0;
float gyroz_1 = 0;
float gyroZint = 0;
float gyroZint_1 = 0;
float R = 1.275; //wheel radius in inches
float W = 7.35; //base width in inches
float phi = 0;
float phi_array[500];
float compass_angle_array[500];
float gyroZint_array[500];
int16_t spibcount = 0;
int16_t revcountphi = 0;
int16_t revcountgyro = 0;
float gyroZintdisplay = 0;
int16_t doneCal = 0;
void main(void)
{
// PLL, WatchDog, enable Peripheral Clocks
// This example function is found in the F2837xD_SysCtrl.c file.
InitSysCtrl();
InitGpio();
// Blue LED on LaunchPad
GPIO_SetupPinMux(31, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(31, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPASET.bit.GPIO31 = 1;
// Red LED on LaunchPad
GPIO_SetupPinMux(34, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(34, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPBSET.bit.GPIO34 = 1;
// LED1 and PWM Pin
GPIO_SetupPinMux(22, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(22, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO22 = 1;
// LED2
GPIO_SetupPinMux(52, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(52, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPBCLEAR.bit.GPIO52 = 1;
// LED3
GPIO_SetupPinMux(67, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(67, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPCCLEAR.bit.GPIO67 = 1;
// LED4
GPIO_SetupPinMux(94, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(94, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPCCLEAR.bit.GPIO94 = 1;
// LED5
GPIO_SetupPinMux(95, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(95, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPCCLEAR.bit.GPIO95 = 1;
// LED6
GPIO_SetupPinMux(97, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(97, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPDCLEAR.bit.GPIO97 = 1;
// LED7
GPIO_SetupPinMux(111, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(111, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPDCLEAR.bit.GPIO111 = 1;
// LED8
GPIO_SetupPinMux(130, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(130, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPECLEAR.bit.GPIO130 = 1;
// LED9
GPIO_SetupPinMux(131, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(131, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPECLEAR.bit.GPIO131 = 1;
// LED10
GPIO_SetupPinMux(4, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(4, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO4 = 1;
// LED11
GPIO_SetupPinMux(5, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(5, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO5 = 1;
// LED12
GPIO_SetupPinMux(6, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(6, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO6 = 1;
// LED13
GPIO_SetupPinMux(7, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(7, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO7 = 1;
// LED14
GPIO_SetupPinMux(8, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(8, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO8 = 1;
// LED15
GPIO_SetupPinMux(9, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(9, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO9 = 1;
// LED16
GPIO_SetupPinMux(24, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(24, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO24 = 1;
// LED17
GPIO_SetupPinMux(25, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(25, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO25 = 1;
// LED18
GPIO_SetupPinMux(26, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(26, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO26 = 1;
// LED19
GPIO_SetupPinMux(27, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(27, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPACLEAR.bit.GPIO27 = 1;
// LED20
GPIO_SetupPinMux(60, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(60, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPBCLEAR.bit.GPIO60 = 1;
// LED21
GPIO_SetupPinMux(61, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(61, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPBCLEAR.bit.GPIO61 = 1;
// LED22
GPIO_SetupPinMux(157, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(157, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPECLEAR.bit.GPIO157 = 1;
// LED23
GPIO_SetupPinMux(158, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(158, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPECLEAR.bit.GPIO158 = 1;
//DRV8874 #1 DIR Direction
GPIO_SetupPinMux(29, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(29, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPASET.bit.GPIO29 = 1;
//DRV8874 #2 DIR Direction
GPIO_SetupPinMux(32, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(32, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPBSET.bit.GPIO32 = 1;
//MPU9250 CS Chip Select
GPIO_SetupPinMux(66, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(66, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPCSET.bit.GPIO66 = 1;
//DAN777 CS Chip Select
GPIO_SetupPinMux(2, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(2, GPIO_OUTPUT, GPIO_PUSHPULL);
GpioDataRegs.GPASET.bit.GPIO2 = 1;
//PushButton 1
GPIO_SetupPinMux(122, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(122, GPIO_INPUT, GPIO_PULLUP);
//PushButton 2
GPIO_SetupPinMux(123, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(123, GPIO_INPUT, GPIO_PULLUP);
//PushButton 3
GPIO_SetupPinMux(124, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(124, GPIO_INPUT, GPIO_PULLUP);
//PushButton 4
GPIO_SetupPinMux(125, GPIO_MUX_CPU1, 0);
GPIO_SetupPinOptions(125, GPIO_INPUT, GPIO_PULLUP);
//EPWM6A - Right Motor
GPIO_SetupPinMux(10, GPIO_MUX_CPU1, 1);
//EPWM6B - Left Motor
GPIO_SetupPinMux(11, GPIO_MUX_CPU1, 1);
// Clear all interrupts and initialize PIE vector table:
// Disable CPU interrupts
DINT;
// Initialize the PIE control registers to their default state.
// The default state is all PIE interrupts disabled and flags
// are cleared.
// This function is found in the F2837xD_PieCtrl.c file.
InitPieCtrl();
// Disable CPU interrupts and clear all CPU interrupt flags:
IER = 0x0000;
IFR = 0x0000;
// Initialize the PIE vector table with pointers to the shell Interrupt
// Service Routines (ISR).
// This will populate the entire table, even if the interrupt
// is not used in this example. This is useful for debug purposes.
// The shell ISR routines are found in F2837xD_DefaultIsr.c.
// This function is found in F2837xD_PieVect.c.
InitPieVectTable();
// Interrupts that are used in this example are re-mapped to
// ISR functions found within this project
EALLOW; // This is needed to write to EALLOW protected registers
PieVectTable.TIMER0_INT = &cpu_timer0_isr;
PieVectTable.TIMER1_INT = &cpu_timer1_isr;
PieVectTable.TIMER2_INT = &cpu_timer2_isr;
PieVectTable.SCIA_RX_INT = &RXAINT_recv_ready;
PieVectTable.SCIC_RX_INT = &RXCINT_recv_ready;
PieVectTable.SCID_RX_INT = &RXDINT_recv_ready;
PieVectTable.SCIA_TX_INT = &TXAINT_data_sent;
PieVectTable.SCIC_TX_INT = &TXCINT_data_sent;
PieVectTable.SCID_TX_INT = &TXDINT_data_sent;
PieVectTable.SPIB_RX_INT = &SPIB_isr;
PieVectTable.EMIF_ERROR_INT = &SWI_isr;
EDIS; // This is needed to disable write to EALLOW protected registers
// DC Motor Setup
EPwm6Regs.TBCTL.bit.FREE_SOFT = 2; // Free run
EPwm6Regs.TBCTL.bit.CLKDIV = 0; // Divide by 1
EPwm6Regs.TBCTL.bit.CTRMODE = 0; // Count up mode
EPwm6Regs.TBCTL.bit.PHSEN = 0; // Disable phase. Prof. Block says we need this
EPwm6Regs.TBCTR = 0; // Start timers at zero
EPwm6Regs.TBPRD = 1000; // 20kHz Period = 50us => 50us*50MHz = 2500 // 1000 for E3
EPwm6Regs.CMPA.bit.CMPA = 0; // Duty cycle at (0/2500) * 100 = 0%
EPwm6Regs.CMPB.bit.CMPB = 0; // Duty cycle at (0/2500) * 100 = 0%
EPwm6Regs.AQCTLA.bit.CAU = 1; // Clears / grounds
EPwm6Regs.AQCTLA.bit.ZRO = 2; // Sets high
EPwm6Regs.AQCTLB.bit.CBU = 1; // Clears / grounds
EPwm6Regs.AQCTLB.bit.ZRO = 2; // Sets high
EPwm6Regs.TBPHS.bit.TBPHS = 0; // Being careful
// Initialize the CpuTimers Device Peripheral. This function can be
// found in F2837xD_CpuTimers.c
InitCpuTimers();
// Configure CPU-Timer 0, 1, and 2 to interrupt every second:
// 200MHz CPU Freq, 1 second Period (in uSeconds)
ConfigCpuTimer(&CpuTimer0, 200, 1000);
ConfigCpuTimer(&CpuTimer1, 200, 4000);
ConfigCpuTimer(&CpuTimer2, 200, 1000);
// Enable CpuTimer Interrupt bit TIE
CpuTimer0Regs.TCR.all = 0x4000;
CpuTimer1Regs.TCR.all = 0x4000;
CpuTimer2Regs.TCR.all = 0x4000;
// Enable eQEP
init_eQEPs();
GPIO_SetupPinMux(63, GPIO_MUX_CPU1, 15); //MPU-9250 Data Input
GPIO_SetupPinMux(64, GPIO_MUX_CPU1, 15); //MPU-9250 Data Output
GPIO_SetupPinMux(65, GPIO_MUX_CPU1, 15); //MPU-9250 Clock
EALLOW;
GpioCtrlRegs.GPBPUD.bit.GPIO63 = 0; // Enable Pull-ups
GpioCtrlRegs.GPCPUD.bit.GPIO64 = 0;
GpioCtrlRegs.GPCPUD.bit.GPIO65 = 0;
GpioCtrlRegs.GPBQSEL2.bit.GPIO63 = 3; // Set prequalifier for 63,64,65
GpioCtrlRegs.GPCQSEL1.bit.GPIO64 = 3;
GpioCtrlRegs.GPCQSEL1.bit.GPIO65 = 3;
EDIS;
setupSpib(); // Init MPU9250
init_serial(&SerialA,115200,serialRXA);
// init_serial(&SerialC,115200,serialRXC);
// init_serial(&SerialD,115200,serialRXD);
// Enable CPU int1 which is connected to CPU-Timer 0, CPU int13
// which is connected to CPU-Timer 1, and CPU int 14, which is connected
// to CPU-Timer 2: int 12 is for the SWI.
IER |= M_INT1;
IER |= M_INT8; // SCIC SCID
IER |= M_INT9; // SCIA
IER |= M_INT12;
IER |= M_INT13;
IER |= M_INT14;
IER |= M_INT6;
// Enable TINT0 in the PIE: Group 1 interrupt 7
PieCtrlRegs.PIEIER1.bit.INTx7 = 1;
// Enable SWI in the PIE: Group 12 interrupt 9
PieCtrlRegs.PIEIER12.bit.INTx9 = 1;
PieCtrlRegs.PIEIER6.bit.INTx3=1;// Enable PIE Group 6, INT 3 (spib_rx)
// Enable global Interrupts and higher priority real-time debug events
EINT; // Enable Global interrupt INTM
ERTM; // Enable Global realtime interrupt DBGM
// IDLE loop. Just sit and loop forever (optional):
while(1)
{
if (UARTPrint == 1 ) {
//serial_printf(&SerialA,"X = %.1f Y = %.1f Z = %.1f Ang = %.1f turn %.3f\r\n", mx, my, mz, compass_angle, turn);
serial_printf(&SerialA,"gyroZint = %.1f phi = %.1f Compass Angle = %.1f Revolutions = %i \r\n", gyroZintdisplay, phi, compass_angle, revcountphi);
UARTPrint = 0;
}
}
}
__interrupt void SPIB_isr(void){
GpioDataRegs.GPCSET.bit.GPIO66 = 1; //Pull CS high as done R/W
uint16_t i;
for (i=0; i<14; i++) {
readdata[i] = SpibRegs.SPIRXBUF; // readdata[0] is garbage, readdata[8] is temperature
}
IMU_data[0] = readdata[1];
IMU_data[1] = readdata[2];
IMU_data[2] = readdata[3];
IMU_data[3] = readdata[5];
IMU_data[4] = readdata[6];
IMU_data[5] = readdata[7];
IMU_data[6] = readdata[9];
IMU_data[7] = readdata[10];
IMU_data[8] = readdata[11];
accelx = (((float)(IMU_data[0]))*4.0/32767.0)-x_A_offs_add;
accely = (((float)(IMU_data[1]))*4.0/32767.0)-y_A_offs_add;
accelz = (((float)(IMU_data[2]))*4.0/32767.0)-z_A_offs_add;
gyrox = (((float)(IMU_data[3]))*250.0/32767.0)-x_G_offs; // deg/s
gyroy = (((float)(IMU_data[4]))*250.0/32767.0)-y_G_offs; // deg/s
gyroz = (((float)(IMU_data[5]))*250.0/32767.0)-z_G_offs; // deg/s
mx = (((float)(IMU_data[6]))*1.0/1.0);
my = (((float)(IMU_data[7]))*1.0/1.0);
mz = (((float)(IMU_data[8]))*1.0/1.0);
gyroZint = gyroZint_1 + ((0.001)*(gyroz + gyroz_1)/2); //SPIB_ISR running every 1 ms
gyroZintdisplay = gyroZint - (360*revcountgyro); //Keeps display within -360 to 360 degrees
if(gyroZintdisplay > 360) //If it completes a revolution, subtract a revolution to keep display within -360 to 360 degrees
{
revcountgyro++;
}
if(gyroZintdisplay < -360)
{
revcountgyro--;
}
gyroz_1 = gyroz; //Fill the old value
gyroZint_1 = gyroZint; //Fill the old value
mx = mx - mx_offset; //Add in the offset from calibration
my = my - my_offset; //Add in the offset from calibration
//mz = mz - mz_offset; //Add in the offset from calibration
phi = ((R/W)*(wheelRight - wheelLeft)*(180/PI) - (360*revcountphi));
if(phi > 360) //If it completes a revolution, subtract a revolution to keep display within -360 to 360 degrees
{
revcountphi++;
}
if(phi < -360) //Also keeps track of revolutions to display
{
revcountphi--;
}
//Use arctan to get compass angle
if(my < 0) {
compass_angle = 270.0-(((float)atan((mx/my)))*180.0/PI);
}
else if(my > 0) {
compass_angle = 90.0-(((float)atan((mx/my)))*180.0/PI);
}
else if((my == 0) && (mx < 0)) {
compass_angle = 180.0;
}
if((my == 0) && (mx > 0)) {
compass_angle = 0.0;
}
// Fill arrays of data
// if(spibcount<500){
// compass_angle_array[spibcount] = compass_angle;
// phi_array[spibcount] = phi;
// gyroZint_array[spibcount] = gyroZint;
// }
//This code calibrates the gyro relative to wherever the cart is being used
if(calc_offset == 0)
{}
if(calc_offset==1){
accelx_offset+=accelx;accely_offset+=accely;accelz_offset+=accelz;
gyrox_offset+=gyrox;gyroy_offset+=gyroy;gyroz_offset+=gyroz;
}
else if(calc_offset==2){
accelx_offset/=3000.0;accely_offset/=3000.0;accelz_offset/=3000.0;
gyrox_offset/=3000.0;gyroy_offset/=3000.0;gyroz_offset/=3000.0;
calc_offset = 3;
}
else if(calc_offset==3){
doneCal = 1;
accelx -=(accelx_offset-accelxSide);accely -=(accely_offset-gravitySide);accelz -=(accelz_offset-accelzSide); //different offsets when start on side
gyrox -= gyrox_offset;gyroy -= gyroy_offset;gyroz -= gyroz_offset;
}
SpibRegs.SPIFFRX.bit.RXFFOVFCLR=1; // Clear Overflow flag
SpibRegs.SPIFFRX.bit.RXFFINTCLR=1; // Clear Interrupt flag
PieCtrlRegs.PIEACK.all = PIEACK_GROUP6;
spibcount++;
}
// SWI_isr, Using this interrupt as a Software started interrupt
__interrupt void SWI_isr(void) {
// These three lines of code allow SWI_isr, to be interrupted by other interrupt functions
// making it lower priority than all other Hardware interrupts.
PieCtrlRegs.PIEACK.all = PIEACK_GROUP12;
asm(" NOP"); // Wait one cycle
EINT; // Clear INTM to enable interrupts
numSWIcalls++;
DINT;
}
// cpu_timer0_isr - CPU Timer0 ISR
__interrupt void cpu_timer0_isr(void)
{
CpuTimer0.InterruptCount++;
numTimer0calls++;
// Acknowledge this interrupt to receive more interrupts from group 1
PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;
}
// cpu_timer1_isr - CPU Timer1 ISR
__interrupt void cpu_timer1_isr(void)
{
wheelLeft = readEncLeft();
wheelRight = -1* readEncRight(); //Right wheel is negative
travelLeft = wheelLeft / 9.44; //Radians to feet
travelRight = wheelRight / 9.44; //Radians to feet
XLeft_K_1 = XLeft_K; // Fill previous position
XLeft_K = travelLeft; //Grab new position
VLeftK = (XLeft_K - XLeft_K_1 )/ (0.004); //Use the positions to calculate velocity
XRight_K_1 = XRight_K; // Fill previous position
XRight_K = travelRight; //Grab new position
VRightK = (XRight_K - XRight_K_1 )/ (0.004); //Use the positions to calculate velocity
//Turn controls
eturn = turn + (VLeftK - VRightK);
LE_K_1 = LE_K;
RE_K_1 = RE_K;
LE_K = Vref - VLeftK - (kturn*eturn);
RE_K = Vref - VRightK + (kturn*eturn);
//I controls
LI_K_1 = LI_K;
RI_K_1 = RI_K;
LI_K = LI_K_1 +(0.004)*((LE_K_1 + LE_K)/2);
RI_K = RI_K_1 +(0.004)*((RE_K_1 + RE_K)/2);
//U controls
LU_K = kp*LE_K + ki*LI_K;
RU_K = kp*RE_K + ki*RI_K;
if((LU_K >= 10) || (LU_K <= -10)){
LI_K = LI_K_1;
}
if((RU_K >= 10) || (RU_K <= -10)){
RI_K = RI_K_1;
}
setEPWM6A(LU_K); //Left wheel
setEPWM6B(RU_K); //Right wheel
CpuTimer1.InterruptCount++;
if((CpuTimer1.InterruptCount%250) == 0)
{
UARTPrint = 1;
}
}
// CPU Timer2 ISR
__interrupt void cpu_timer2_isr(void)
{
if((CpuTimer2.InterruptCount%1000) == 0) {
GpioDataRegs.GPBTOGGLE.bit.GPIO34 = 1;
}
SpibRegs.SPIFFRX.bit.RXFFIL = 12; //Going to R/W 7 (16 bit) entries
GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1; //Pull CS low to get ready to transmit/receive
if(count<3000) {
count++;
} else {
if(calc_offset==0) {
calc_offset = 1;
count = 0;
} else if(calc_offset == 1)
calc_offset = 2;
}
senddata = ((0x8000)|(0x3A00));
read = 1;
SpibRegs.SPITXBUF = ((0x8000) | (0x3A00)); //INT_STATUS - Dummy
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //AccelX
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //AccelY
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //AccelZ
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //Temperature
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //GyroX
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //GyroY
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //GyroZ
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //Information and Status1 EXT_SENS_DATA_00 and 01
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //CompassX MSB and CompassX LSB EXT_SENS_DATA_02 and 03
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //CompassY MSB and CompassY LSB EXT_SENS_DATA_04 and 05
SpibRegs.SPITXBUF = ((0x0000) | (0x0000)); //CompassZ MSB and CompassZ LSB EXT_SENS_DATA_06 and 07
CpuTimer2.InterruptCount++;
}
// This function is called each time a char is received over UARTA.
void serialRXA(serial_t *s, char data) {
numRXA ++;
if (data == 'q')
{
turn = turn + 0.05;
}
else if (data == 'r')
{
turn = turn - 0.05;
}
else if (data == '3')
{
Vref = Vref + 0.1;
}
else if(data == 's'){
Vref = 0;
}
else if(data == 'p'){
Vref = 0;
turn = 0;
}
else
{
turn = 0;
Vref = 0.5;
}
}
float readEncLeft(void) {
int32_t raw = 0;
uint32_t QEP_maxvalue = 0xFFFFFFFFU; //4294967295U
raw = EQep1Regs.QPOSCNT;
if (raw >= QEP_maxvalue/2) raw -= QEP_maxvalue;
return (raw*((2*PI)/1496.0));
}
float readEncRight(void) {
int32_t raw = 0;
uint32_t QEP_maxvalue = 0xFFFFFFFFU; //4294967295U
raw = EQep2Regs.QPOSCNT;
if (raw >= QEP_maxvalue/2) raw -= QEP_maxvalue;
return (raw*((2*PI)/1496.0));
}
void init_eQEPs(void) {
// setup eQEP1 pins for input
EALLOW;
//Disable internal pull-up for the selected output pins for reduced power consumption
GpioCtrlRegs.GPAPUD.bit.GPIO20 = 1; // Disable pull-up on GPIO20 (EQEP1A)
GpioCtrlRegs.GPAPUD.bit.GPIO21 = 1; // Disable pull-up on GPIO21 (EQEP1B)
GpioCtrlRegs.GPAQSEL2.bit.GPIO20 = 2; // Qual every 6 samples
GpioCtrlRegs.GPAQSEL2.bit.GPIO21 = 2; // Qual every 6 samples
EDIS;
// This specifies which of the possible GPIO pins will be EQEP1 functional pins.
// Comment out other unwanted lines.
GPIO_SetupPinMux(20, GPIO_MUX_CPU1, 1);
GPIO_SetupPinMux(21, GPIO_MUX_CPU1, 1);
EQep1Regs.QEPCTL.bit.QPEN = 0; // make sure eqep in reset
EQep1Regs.QDECCTL.bit.QSRC = 0; // Quadrature count mode
EQep1Regs.QPOSCTL.all = 0x0; // Disable eQep Position Compare
EQep1Regs.QCAPCTL.all = 0x0; // Disable eQep Capture
EQep1Regs.QEINT.all = 0x0; // Disable all eQep interrupts
EQep1Regs.QPOSMAX = 0xFFFFFFFF; // use full range of the 32 bit count
EQep1Regs.QEPCTL.bit.FREE_SOFT = 2; // EQep uneffected by emulation suspend in Code Composer
EQep1Regs.QEPCTL.bit.QPEN = 1; // Enable EQep
EQep1Regs.QPOSCNT = 0;
// setup QEP2 pins for input
EALLOW;
//Disable internal pull-up for the selected output pins for reduced power consumption
GpioCtrlRegs.GPBPUD.bit.GPIO54 = 1; // Disable pull-up on GPIO54 (EQEP2A)
GpioCtrlRegs.GPBPUD.bit.GPIO55 = 1; // Disable pull-up on GPIO55 (EQEP2B)
GpioCtrlRegs.GPBQSEL2.bit.GPIO54 = 2; // Qual every 6 samples
GpioCtrlRegs.GPBQSEL2.bit.GPIO55 = 2; // Qual every 6 samples
EDIS;
GPIO_SetupPinMux(54, GPIO_MUX_CPU1, 5); // set GPIO54 and eQep2A
GPIO_SetupPinMux(55, GPIO_MUX_CPU1, 5); // set GPIO54 and eQep2B
EQep2Regs.QEPCTL.bit.QPEN = 0; // make sure qep reset
EQep2Regs.QDECCTL.bit.QSRC = 0; // Quadrature count mode
EQep2Regs.QPOSCTL.all = 0x0; // Disable eQep Position Compare
EQep2Regs.QCAPCTL.all = 0x0; // Disable eQep Capture
EQep2Regs.QEINT.all = 0x0; // Disable all eQep interrupts
EQep2Regs.QPOSMAX = 0xFFFFFFFF; // use full range of the 32 bit count.
EQep2Regs.QEPCTL.bit.FREE_SOFT = 2; // EQep unaffected by emulation suspend
EQep2Regs.QEPCTL.bit.QPEN = 1; // Enable EQep
EQep2Regs.QPOSCNT = 0;
}
// this function has already been called for you in the main() function.
// It sets up PWM6A and B with a 20KHz carrier frequency PWM signal.
void initEPwm6AB(void)
{
EALLOW;
// Disable internal pull-up for the selected output pins
// for reduced power consumption
// Pull-ups can be enabled or disabled by the user.
// Comment out other unwanted lines.
GpioCtrlRegs.GPAPUD.bit.GPIO10 = 1; // Disable pull-up on GPIO10 (EPWM6A)
// Configure EPWM-6 pins using GPIO regs
// This specifies which of the possible GPIO pins will be EPWM1 functional pins.
GpioCtrlRegs.GPAMUX1.bit.GPIO10 = 1; // Configure GPIO10 as EPWM6A
GpioCtrlRegs.GPAPUD.bit.GPIO11 = 1; // Disable pull-up on GPIO11 (EPWM6B)
GpioCtrlRegs.GPAMUX1.bit.GPIO11 = 1; // Configure GPIO11 as EPWM6B
EDIS;
EPwm6Regs.TBCTL.bit.CTRMODE = TB_COUNT_UP; //set epwm3 to upcount mode
EPwm6Regs.TBCTL.bit.FREE_SOFT = 0x2; //Free Run
EPwm6Regs.TBPRD = 2500; //set epwm3 counter 20KHz
EPwm6Regs.TBCTL.bit.PHSEN = TB_DISABLE; // Disable phase loading
EPwm6Regs.TBPHS.bit.TBPHS = 0x0000; // Phase is 0
EPwm6Regs.TBCTR = 0x0000; // Clear counter
// For EPWM6A
EPwm6Regs.AQCTLA.bit.CAU = AQ_CLEAR; //clear when counter = compareA
EPwm6Regs.AQCTLA.bit.ZRO = AQ_SET; //set when timer is 0
// For EPWM6B
EPwm6Regs.AQCTLB.bit.CBU = AQ_CLEAR; // Clear when counter = compareA
EPwm6Regs.AQCTLB.bit.ZRO = AQ_SET; // Set when timer is 0
}
void setEPWM6A(float uLeft)
{
if(uLeft > 10){ //if above max range, reset to saturated value
uLeft = 10;
}
if(uLeft < -10){ // if below min range, reset to saturated value
uLeft = -10;
}
if(uLeft >= 0){
GpioDataRegs.GPADAT.bit.GPIO29 = 1; //high pin GPIO29, spin motor one way
dutyValue = (uLeft/10.0) * EPwm6Regs.TBPRD; // use the controleffort variable and divide it by it's max value (10)
}else{
GpioDataRegs.GPADAT.bit.GPIO29 = 0; //low pin GPIO29, spin motor the other way
dutyValue = (-uLeft/10.0) * EPwm6Regs.TBPRD; // this is in essence a duty cycle and you multiply by the TBPRD to get the actual dutyValue
}
EPwm6Regs.CMPA.bit.CMPA = dutyValue; // Set one motor to this percentage duty cycle
}
void setEPWM6B(float uRight)
{
if(uRight > 10){ //if above max range, reset to saturated value
uRight = 10;
}
if(uRight < -10){ // if below min range, reset to saturated value
uRight = -10;
}
if(uRight >= 0){
GpioDataRegs.GPBDAT.bit.GPIO32 = 0; // low pin GPIO32, spin motor one way
dutyValue = (uRight/10.0) * EPwm6Regs.TBPRD;
}else{
GpioDataRegs.GPBDAT.bit.GPIO32 = 1; //high pin GPIO32, spin motor the other way
dutyValue = (-uRight/10.0) * EPwm6Regs.TBPRD;
}
EPwm6Regs.CMPB.bit.CMPB = dutyValue; // set other motor to this percentage duty cycle
}
void setupSpib(void) //for mpu9250
{
SpibRegs.SPICCR.bit.SPISWRESET = 0; // Put SPI in Reset
SpibRegs.SPICTL.bit.CLK_PHASE = 1;
SpibRegs.SPICCR.bit.CLKPOLARITY = 0;
SpibRegs.SPICTL.bit.MASTER_SLAVE = 1; // SPI master
SpibRegs.SPICCR.bit.SPICHAR = 0xF; // Set to transmit 16 bits
SpibRegs.SPICTL.bit.TALK = 1; // Enables transmission for the 4-pin option
SpibRegs.SPIPRI.bit.FREE = 1; // Free run, continue SPI operation
SpibRegs.SPICTL.bit.SPIINTENA = 0; // Disables the SPI interrupt
SpibRegs.SPIBRR.bit.SPI_BIT_RATE = 49; // 50MHz/(49+1) = 1MHz
SpibRegs.SPISTS.all = 0x0000;
SpibRegs.SPIFFTX.bit.SPIRST = 1; // SPI FIFO can resume transmit or receive.
SpibRegs.SPIFFTX.bit.SPIFFENA = 1; // SPI FIFO enhancements are enabled
SpibRegs.SPIFFTX.bit.TXFIFO = 0; // Write 0 to reset the FIFO pointer to zero, and hold in reset
SpibRegs.SPIFFTX.bit.TXFFINTCLR = 1; // Write 1 to clear SPIFFTX[TXFFINT] flag
SpibRegs.SPIFFRX.bit.RXFIFORESET = 0; // Write 0 to reset the FIFO pointer to zero, and hold in reset
SpibRegs.SPIFFRX.bit.RXFFOVFCLR = 1; // Write 1 to clear SPIFFRX[RXFFOVF]
SpibRegs.SPIFFRX.bit.RXFFINTCLR = 1; // Write 1 to clear SPIFFRX[RXFFINT] flag
SpibRegs.SPIFFRX.bit.RXFFIENA = 1; // RX FIFO interrupt based on RXFFIL match
SpibRegs.SPIFFCT.bit.TXDLY = 0x00; // The next word in the TX FIFO buffer is transferred to SPITXBUF immediately upon completion of transmission of the previous word.
SpibRegs.SPICCR.bit.SPISWRESET = 1; // Pull the SPI out of reset
SpibRegs.SPIFFTX.bit.TXFIFO = 1; // Release transmit FIFO from reset.
SpibRegs.SPIFFRX.bit.RXFIFORESET = 1; // Re-enable receive FIFO operation
SpibRegs.SPICTL.bit.SPIINTENA = 1; // Enables the SPI interrupt.
SpibRegs.SPIFFRX.bit.RXFFIL = 1; // A RX FIFO interrupt request is generated when there are 1 or more words in the RX buffer.
//-----------------------------------------------------------------------------------------------------------------
GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
SpibRegs.SPITXBUF = (XG_OFFSET_H | 0x0000); // 0x1300 (0x0000)
SpibRegs.SPITXBUF = (0x0000 | 0x0000); // 0x1400 (0x0000), 0x1500 (0x0000)
SpibRegs.SPITXBUF = (0x0000 | 0x0000); // 0x1600 (0x0000), 0x1700 (0x0000)
SpibRegs.SPITXBUF = (0x0000 | 0x0013); // 0x1800 (0x0000), 0x1900 (0x0013)
SpibRegs.SPITXBUF = (0x0200 | 0x0000); // 0x1A00 (0x0002), 0x1B00 (0x0000), 250 dps
SpibRegs.SPITXBUF = (0x0800 | 0x0006); // 0x1C00 (0x0008), +-4g, 0x1D00 (0x0006), 5Hz
SpibRegs.SPITXBUF = (0x0000 | 0x0000); // 0x1E00 (0x0000), 0x1F00 (0x0000)
while(SpibRegs.SPIFFRX.bit.RXFFST !=7);
GpioDataRegs.GPCSET.bit.GPIO66 = 1;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
DELAY_US(10);
GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;
SpibRegs.SPITXBUF = (FIFO_EN | 0x0000); // 0x2300 (0x0000)
SpibRegs.SPITXBUF = (0x4000 | 0x008C); // 0x2400 (0x0040), 0x2500 (0x008C)
SpibRegs.SPITXBUF = (0x0100 | 0x00D8); // 0x2600 (0x0002), 0x2700 (0Sx0088) //See *Annotation*
SpibRegs.SPITXBUF = (0x0C00 | 0x000A); // 0x2800 (0x000C), 0x2900 (0x000A)
while(SpibRegs.SPIFFRX.bit.RXFFST !=4);
GpioDataRegs.GPCSET.bit.GPIO66 = 1;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
temp = SpibRegs.SPIRXBUF;
// //*Annotation*
// The register 0x26 (I2C_SLV0_REG ) change means it first reads the info for the compass. I'll show below.
// readdata[8] //Status 1 and Information EXT_SENS_DATA_00 and 01
// readdata[9] //CompassX LSB and CompassX MSB EXT_SENS_DATA_02 and 03
// readdata[10] //CompassY LSB and CompassY MSB EXT_SENS_DATA_04 and 05
// readdata[11] //CompassZ LSB and CompassZ MSB EXT_SENS_DATA_06 and 07
//
// Then we need to swap the LSB and MSB. This is setting register 0x27 (I2C_SLV0_CTRL) to 0xD8. This means the following:
// I2C_SLV0_EN is set to 1. //Enables reading of data to EXT_SENS_DATA_00
// I2C_SLV0_BYTE_SW is set to 1. //Swaps the high and low bytes of a word.
// I2C_SLV0_REG_DIS is set to 0. //Still don't really know what this is for.
// I2C_SLV0_GRP is set to 1. //Swaps grouping from odd number ends the pair to even number ends the pair
// I2C_SLV0_LENG[3:0] is set to 0x8. //8 byte length
...
This file has been truncated, please download it to see its full contents.
Comments
Please log in or sign up to comment.
