Fab Lab Academy Activity

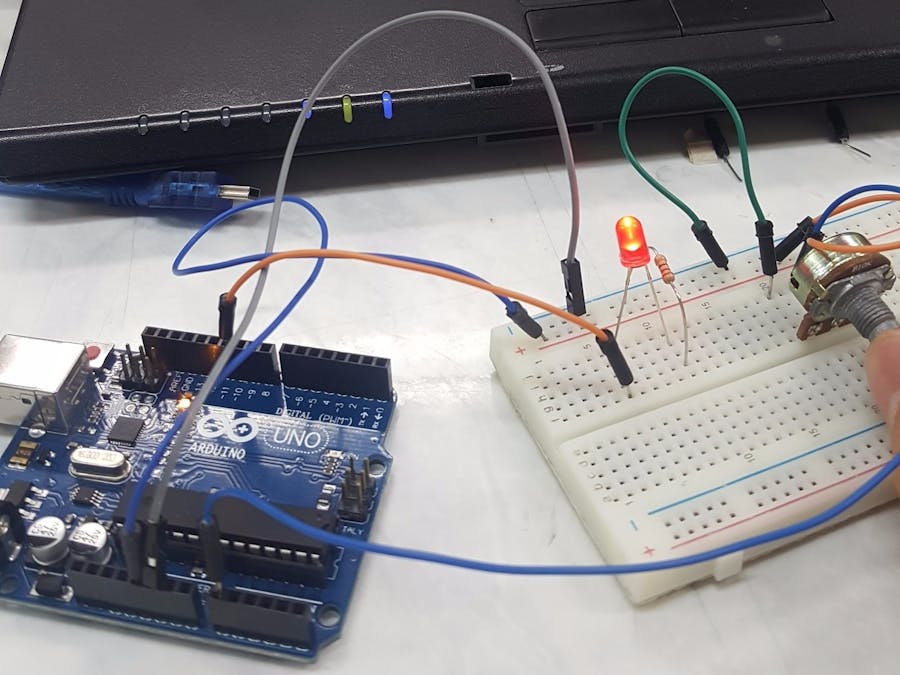

I used a potentiometer to adjust the brightness of the led.

BeginnerShowcase (no instructions)1 hour758
Fab Lab Academy Activity

Things used in this project

Hardware components

Jumper wires (generic)
Jumper wires (generic)
×1
Arduino UNO
Arduino UNO
×1
LED (generic)
LED (generic)
×1
Rotary potentiometer (generic)
Rotary potentiometer (generic)
×1
Resistor 330 ohm
Resistor 330 ohm
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

led

control LED

Code

LED switchi control

Arduino
int led_pin = 13;
int sw_pin1= 2;
int sw_pin2= 8;
int sw1_value;
int sw2_value;



void setup() {
pinMode(13,OUTPUT);
pinMode(2,INPUT);
pinMode(8,INPUT);

}

void loop() {
// put your main code here, to run repeatedly:
sw1_value=digitalRead(2);
sw2_value=digitalRead(8);
if(sw1_value==LOW)
{digitalWrite(13,HIGH);}
if(sw2_value==HIGH)
{digitalWrite(13,HIGH);}
digitalWrite(13,LOW);


}
